Mattress Machine Computer Multi-Needle Super High Speed ​​Quilting Machine

Product details
Quilt width:2450mmHead count:long
Needle size:130/21, 140/22, 160/23, 180/24payment terms:letter of credit, wire transfer
weight:6000KGCore components:motor
Showroom location:Indonesia, Pakistan, India, Mexico, Morocco, UAE, ColombiaCore Components Warranty:1 year
Health status:newthing:Quilting Arm
Needle space:25.4mmNeedle Arrangement:50.8, 76.2, 152.4 76.2 76.2 152.4
Local service location:Saudi Arabia, Indonesia, Pakistan, India, Mexico, Australia, Kenya, Argentina, Algeria, Sri Lankaspinning speed:600~1200RPM
Supply capacity:30 sets per monthplace of origin; place of origin:Guangdong, China
Maximum sewing speed:1200 rpmMaximum sewing thickness:≤80mm
port:ShenzhenAfter Warranty Service:Online support
Certification:International Organization for StandardizationMechanical test report:if
Voltage:380V/50HZ, 220V/60HZ, 380V, 220VSew:2 ~ 7 mm
use:Mattresses, mattress boards, quiltsstrength:10KW
brand:HCAfter-sales service provided:Engineers can repair machinery overseas, online support
Dimensions (L*W*H):5100*1500*2000mmApplicable industries:manufacturing plant
Warranty:1 yearVideo external inspection:if
Moving method:otherMarketing Type:New Products 2019
Product Description
Applications
Mattress boards, mattresses, bedspreads, quilts, bedding, upholstery, etc.
HC3200 Technical Specifications
Dimensions (L×W×H)
5100×1500×2000mm
weight
6000kg
spinning speed
600-1200RPM
Production speed
80-280m/h
quilt width
2450mm
sew
2-7 mm
Needle size
130/21, 140/22, 160/23, 180/24
Pin
(50.8,76.2,152.4) (76.2,76.2,152.4)
needle space
25.4mm
maximum. horizontal movement
450mm
Voltage
380V/50HZ, 220V/60HZ
strength
10KW
Quilting Thickness
≤80mm
special function

Basic function introduction:
• Brand new design for fabric loading, easy loading.
• Tilted body design for easy operation and maintenance.
• Wire break detector.
• Pneumatic air thread cutting system.
• Run on high quality sealed bearings that do not require lubrication.
• Adjustable foot lift mechanism allows you to quilt a wide range of material thicknesses.
• Emergency safety devices.
• Improved quilting software control system makes quilting operation more precise and stable.
• CAD pattern drawing pattern system allows you to create your own designs.
• The machine comes with 100-300 design patterns.
• Error detection system.
• Pattern compensation.

Introduction of innovative features:
• Automatically adjustable feed rollers allow the operator to adjust various types of thickness.
• Cloth transport blocks ensure more stable machine operation and less noise.
• Sealed fabric drum for better control over design patterns.
• High-speed machine operation and stability control.
• Heavy duty tracking system for infeed and outfeed.


timing regulator




The maximum speed reaches 1200RPM



High power fast control servo motor

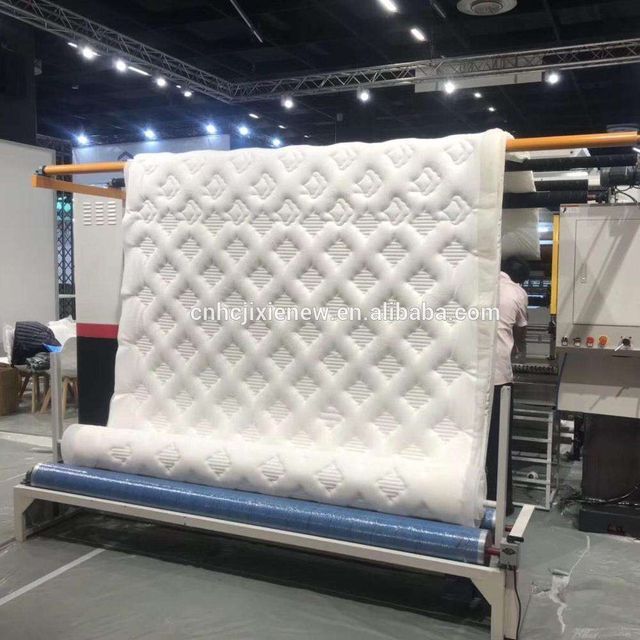

pattern
