Bedding Single Side Quilting Embroidery Machine

Supplier: Nantong Xinjia Machine & Electron Co., Ltd.
Region: Jiangsu, China
Contact: Ms jiali ding
Price: $12500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Sewing machine:	Single thread type, double thread type, large hook	Dimensions (LWH):	5.4m4.2m1.5m
Quilting material size:	2.8m*3.2m	weight:	1900
Packaging Details:	For sea parcels.	port:	Shanghai port
strength:	Can be customized, 1.5Kw	Marketing Type:	New Products 2020
Mechanical test report:	if	After warranty service:	online support
brand:	XJ.	Warranty:	1 year
Core components:	engine	Voltage:	AC220V, 50Hz 1.5Kw
Maximum sewing thickness:	1200gsm	Pitch:	2-7mm
Supply capacity:	200 sets per year	Quilting Thickness:	1200gsm
Head count:	single head	payment terms:	L/C, Western Union, D/P, T/T, MoneyGram
Needle:	Singer MR5 18-23#	Health status:	new
Maximum sewing speed:	2200 pins/SPM	Showroom location:	not any
After-sales service provided:	Engineers available to service machinery overseas	Applicable industries:	other
Core component warranty:	1 year	Needle size:	2.6m*3.0m
Mobile style:	frame move	speed:	2200 pins/SPM
Video shipment inspection:	if	Origin:	Jiangsu, China

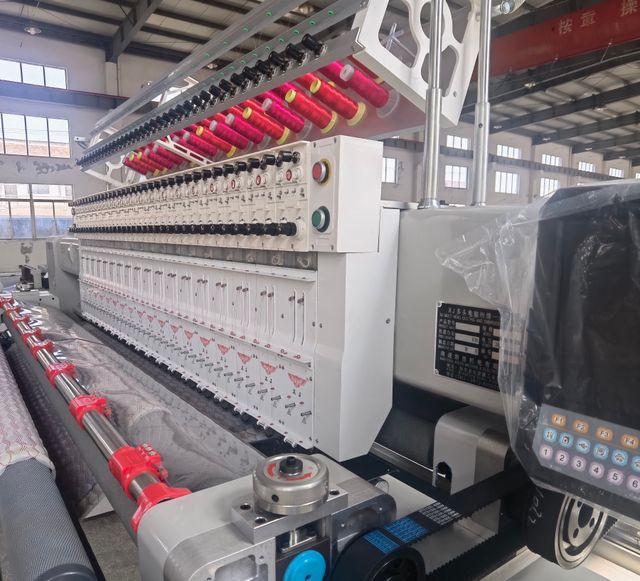

XJ-H Series Computer Single Needle Quilting Machine

(frame moves)

Picture, name, model, quantity, price

This series accepts non-head number and needle pitch customization

Language: Chinese, English, Russian

The most advanced software, easy to operate, simple and stable. If there is an update for the software, we will send it to you, and it will be free for life.

application:

Quilted products: clothing, sleeping bags, summer quilts, mattresses, bedspreads, cushions, etc.

Main details:

1. The head adopts servo motor to provide powerful and accurate drive
2. More than 200 quilting patterns are saved in the computer, and new patterns can also be read through USB.
3. 2800RPM high-speed operation, precision quilt, low noise, long life machine, to achieve the goal of high output and high quality
4. Automatic quilting according to the selected pattern
5. Provide forward and backward buttons and threading buttons.
6. Koban large size rotary hook ensures low thread breakage
7. Powerful computer functions, professional computer control system, automatically complete the quilting process
8. Can read DST, DSB, ZSK, SWF formats, compatible with patterns in different formats, 100,000 needle patterns on the machine computer, all patterns and programs can be read from USB.

Model image:

Model	XJ-2628H	XJ-2832H	XJ-3032H	XJ-3535H
Maximum quilting material size	2.6m×2.8m	2.8m×3.2m	3.0m×3.2m	3.2m×3.5m
Needle drop size	2.4m×2.6m	2.6m×3.0m	2.8m×3.0m	3.0m×3.3m
sewing machine	Single thread type, double thread type, large hook
maximum Quilting thickness	1200gsm
Needle	Singer MR5 18-23#
speed	2200 pins/SPM
Pitch	2-7mm
Dimensions (LWH)	5.0m×4.0m ×1.4m	5.4m×4.2m ×1.4m	5.4m×4.4m ×1.4m	5.8m×5.1m ×1.4m
strength	AC220V, 50Hz 1.5Kw
weight	1800 kg	1900 kg	2000 kg	2100 kg

After-sales service:

1) Installation and commissioning: the seller can provide installation and commissioning

And provide training service in the buyer's factory, and the buyer needs to pay the visa application fee,

Airfare, accommodation and (if necessary) translation fees for the seller's technical staff.

2) After one year, buyers need to pay a service fee of USD200/day/person, and

As visa application fees, airfare, accommodation and (if necessary) interpreter fees

Fees for Seller's technical personnel.

2.Warranty: For the above machines, the seller provides a one-year warranty, from

The moment the seller ships the item. For each detailed guarantee period

section, see the Operator's Manual. wearing parts, consumable materials and

Damage caused by improper operation by the buyer is not covered by the warranty.
