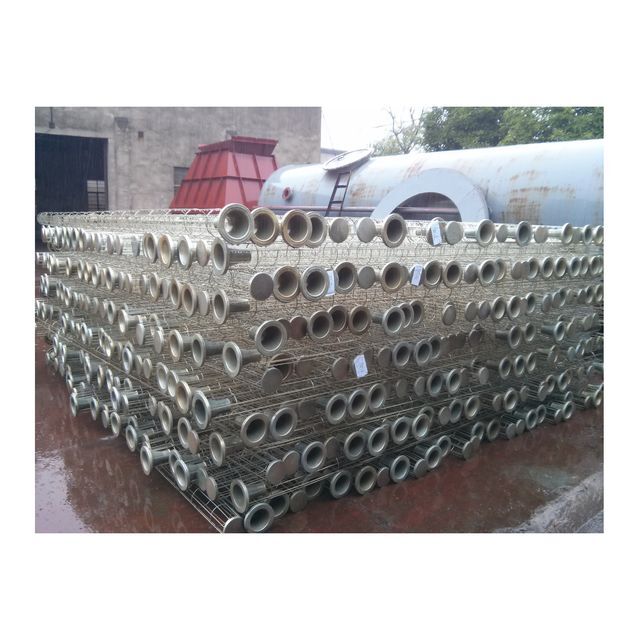

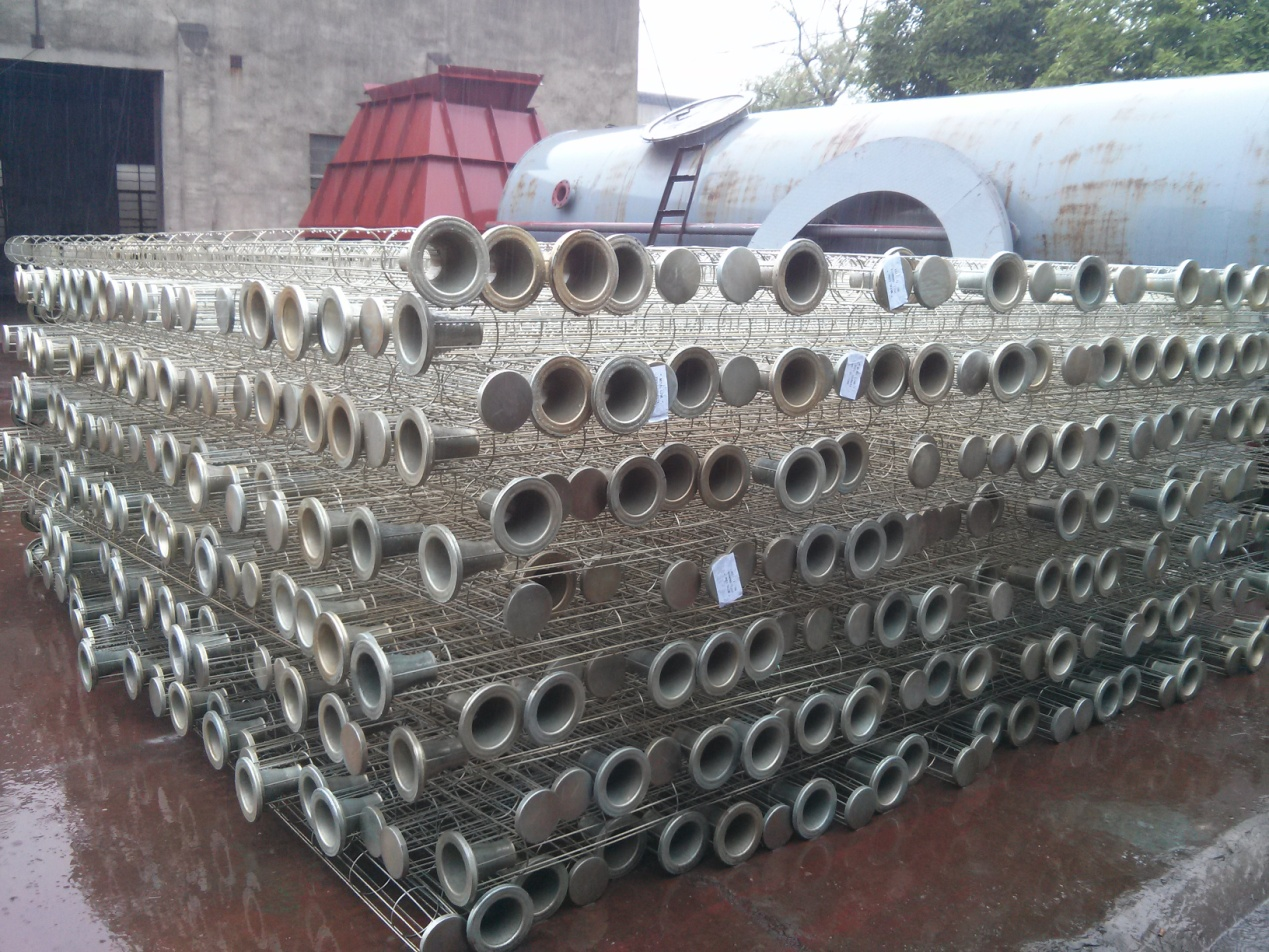

Custom Venturi Filter Cage Material Carbon Steel Bag Filter Matching Bag Filter

Product details
Marketing Type:New Products 2020Applicable industries:Building Materials Store,Manufacturing Plant,Energy & Mining,Other
Core components:filter bagVideo external inspection:Not available
Showroom location:not anyMechanical test report:Not available
Core Components Warranty:1 yearplace of origin; place of origin:China
brand:TGport:Shanghai
Weight (kg):2000payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
product name:filter bag cage
Product Description
1. The filter bag cage needs to be galvanized/silicon coated
2. Carbon or stainless steel
3. Any length or diameter.

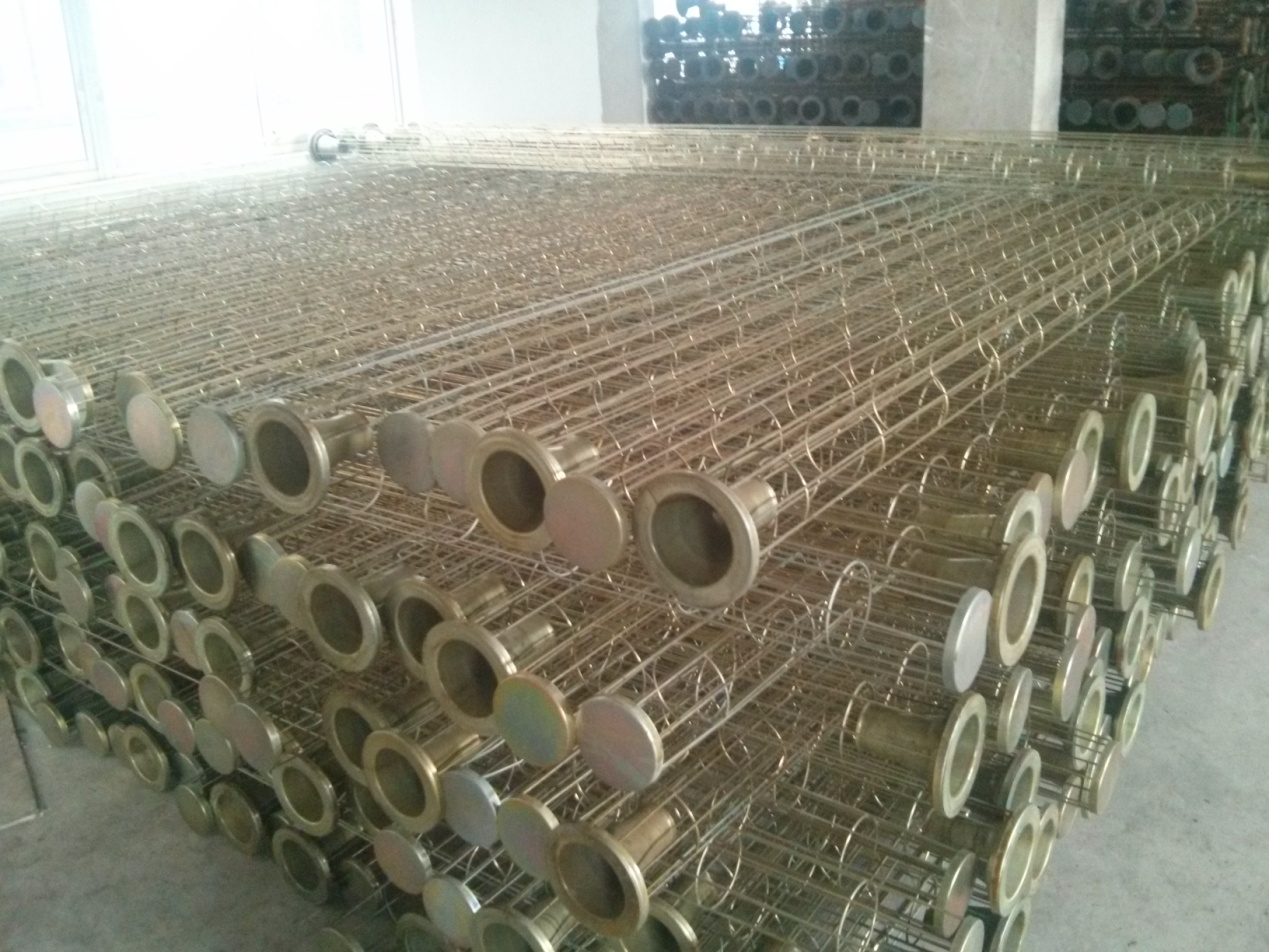

The filter bag cage is the support of the filter bag and should be light and easy to install and maintain. The quality of the filter cage is directly related to the filter state and service life of the filter bag. Every cage we make can satisfy
Requirements for tightness, flatness and stiffness.
1. Cage material: carbon steel or SS304, 316, 316L
2. Cage type: any style
3. Horizontal bar type: ring or star or envelope or oval
4. Surface treatment: galvanized or silicon coating or epoxy resin
5. Connection method: clamp, chuck, claw connection
6. Number of lines: 8, 10, 12, 16, 20, 24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.
Pole, horizontal ring, spacer ring, length, ring diameter, cage shape can be adjusted according to
customer's request.
Specification
type:
Round/Flat/Envelope/Special
Number of lines:
8/10/12/16/20/24 vertical lines
Ring space:
Ring spacing is standard 6" or 8". (15.24 cm or 20.32 cm)
Cage Diameter:
Cage diameters range from 4" to 8" (100mm to 200mm)
Wire thickness:
Wire thickness ranging from 2mm to 5mm
Material:
Carbon Steel, Galvanized Steel, Stainless Steel
Finish:
Epoxy, PVC vinyl coating

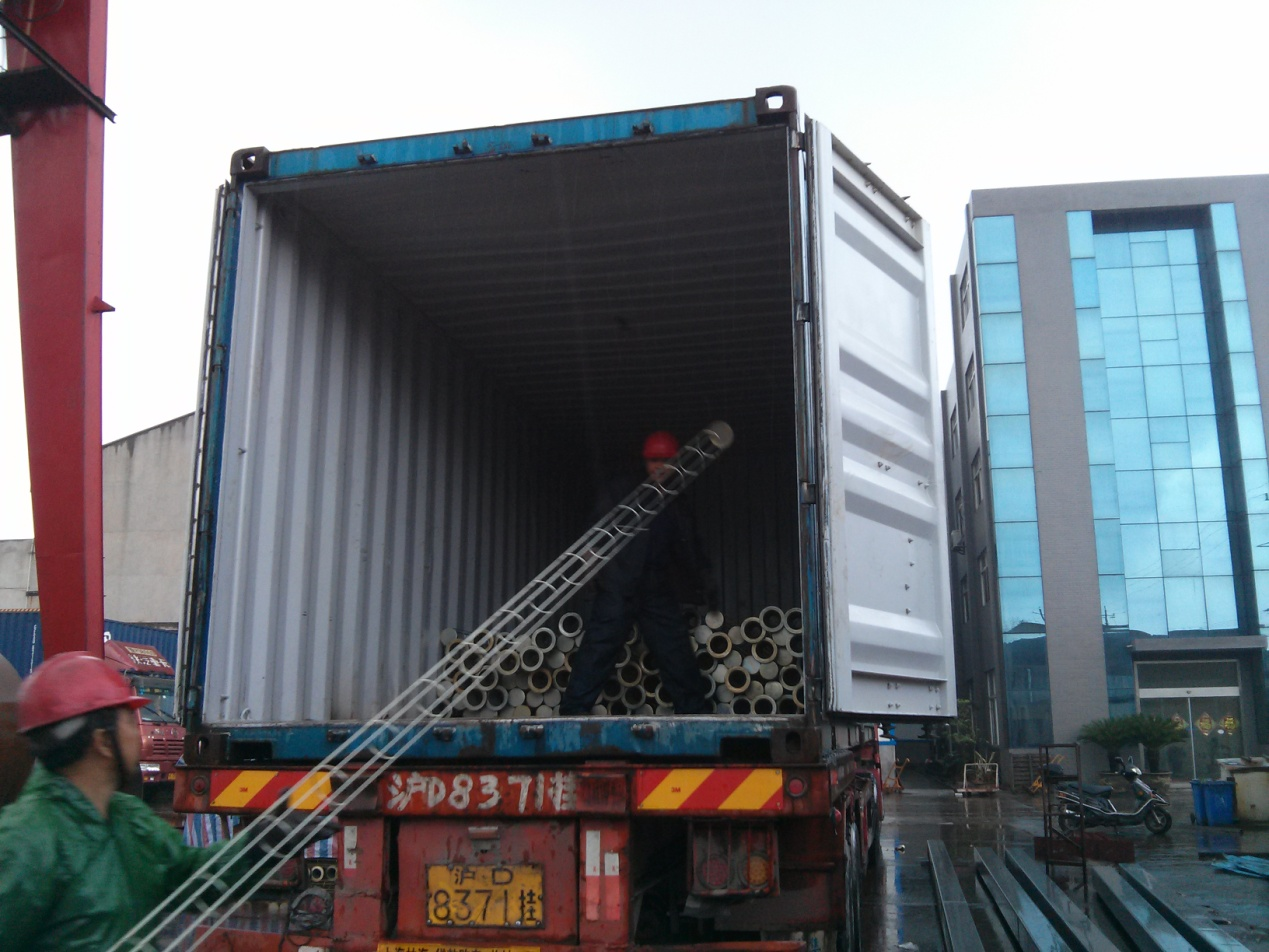

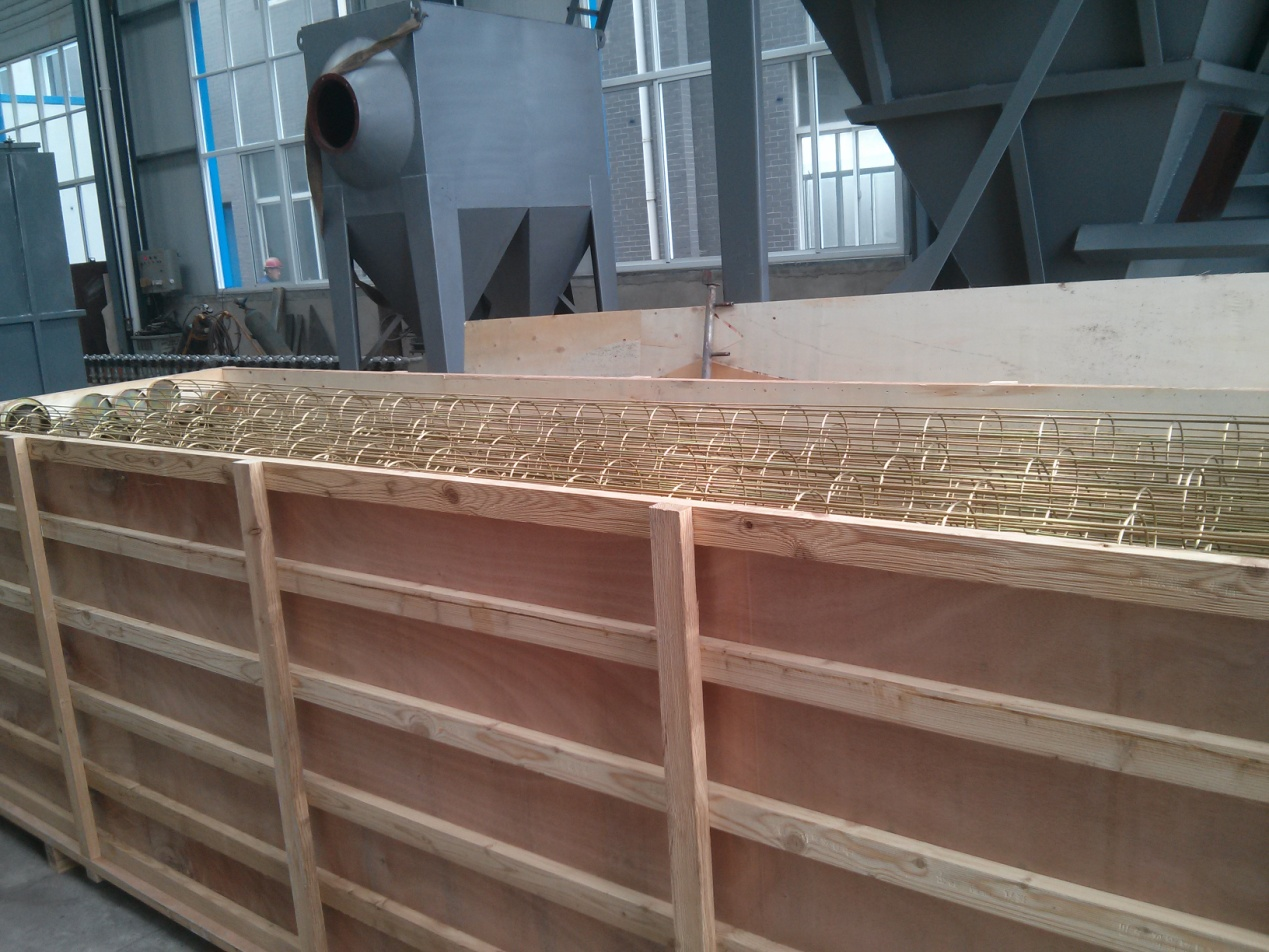

Bale:
Cages come in custom designed cartons
usage:
Factory dust from mining, wood, cement, chemicals, pharmaceuticals, dye coatings, plastics, food and other industries such as coal-fired power generation
power station, steel power station, cement industry, paper industry and other industrial fields.
advantage:
1. No corrosion 2. No damage 3.3-5 times longer service life than other bags steel cage
4. Economical maintenance (almost no maintenance required)
5. Pulse dust removal effect is remarkable 6. Easy installation
7. Risk-free installation
Standard technical data
round style
Diameter(mm)
Bag Diameter(mm)
Length(mm)
115
120
2000, 2400 2800,
3200,3600,4000,
4400,4800,5200,
5600,6000,7000
125
130
147
152
195
200
flat style
perimeter
Bag circumference
Length(mm)
800
800
2000 3000 4000
5000 6000
900
900
envelope style
length Width Thickness
Bag length and width
1500X750x25mm
1500X750x25mm
Specification
Name
filter bag cage
Card
TG
Minimum order quantity
10
port
Shanghai
