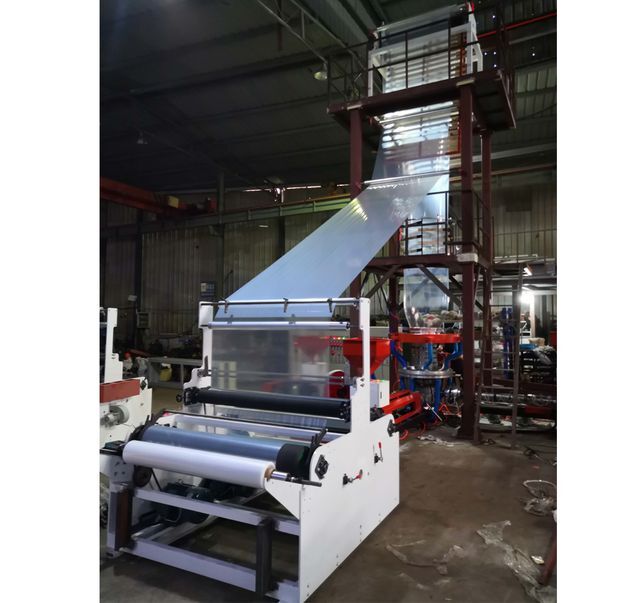

High-speed film blowing machine

Product details
Material:HDPE LDPE LLDPEShowroom location:Pakistan, Mexico, Russia, Thailand, Morocco, Argentina, Algeria, South Africa, Ukraine, Nigeria, Uzbekistan, Malaysia
Plastic Processing:Polyethylene, High Density Polyethylene, Low Density Polyethylene, Low Density PolyethyleneMarketing Type:normal product
Packaging Preview:Packaging Details:in a wooden box
automatic:Yesweight:2800kg
model:sj-h55Weight (kg):3500
Layers:single layerapplication:Movie
port:Wenzhou or NingboVideo external inspection:if
Applicable industries:Mechanical Repair Shops, Advertising Agencies, Food and Beverage Stores, Farms, Printing Shops, HomeHealth status:new
Voltage:380VScrew diameter (mm):55
After-sales service provided:Engineers can repair machinery overseascolor:blue and white
Dimensions (L*W*H):5500mm*2300mm*4000mmPower (W):18.5kW
Supply capacity:30 sets per monthcapacity:45 kg/h
Core components:Engine, gearbox, motorwidth:800mm
brand:creativityMechanical test report:if
place of origin; place of origin:Zhejiang, ChinaCore Components Warranty:3 years
Warranty:1 yearpayment terms:L/C,Western Union,T/T,MoneyGram
Main selling point:easy to operateOutput (kg/hour):60 - 80
Blow molding type:Blown film

PE film blowing machine is used to produce low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE) and metallocene linear low density packaging of food, clothing and other civil and industrial products plastic film , touch and daily necessities, etc.

/Model

SJ-45

SJ-50

SJ-55

feature

raw materials

HDPE, LDPE, LLDPE; Virgin and Recycled

Film width

400mm

600mm

800mm

output

25kg

35kg

45kg

Film thickness

0.008mm-0.15mm

power supply

380V, three-phase, 50Hz

weight

1300kg

1400kg

1600kg

aspect

5×2.3×4M

5×2.3×4M

5×2.5×4.5M

Extrusion unit

Screw barrel diameter

45mm

50mm

55mm

screw barrel length to diameter ratio

28:1; 30:1 or 32:1

motor

11KW

11KW

15KW

gearbox

133

133

146

Die Type

Fixed die

Die size

50/80

60/100

120/160

heating

11KW

11KW

13KW

blower

2.2KW

Movie

take-up tower

upper tower

rise and fall

drum length

700mm

700mm

900mm

How the drum works

Cylinder opening and tightening

coiling motor

1.5KW

winding station

Winding machine type

Single winding station

roller

700mm

700mm

900mm

torque motor

5N/M

maximum. Winding diameter

600mm

control panel

temperature control

District 5

electronic product

China's top brands

Inverter capacity

11KW/1.5KW

11KW/1.5KW

15KW/1.5KW

optional equipment

Hopper Loader, Corona



/Model

SJ-45

SJ-50

SJ-55

feature

raw materials

HDPE, LDPE, LLDPE; Virgin and Recycled

Film width

400mm

600mm

800mm

output

25kg

35kg

45kg

Film thickness

0.008mm-0.15mm

power supply

380V, three-phase, 50Hz

weight

1300kg

1400kg

1600kg

aspect

5×2.3×4M

5×2.3×4M

5×2.5×4.5M

Extrusion unit

Screw barrel diameter

45mm

50mm

55mm

screw barrel length to diameter ratio



motor

11KW

11KW

15KW

gearbox

133

133

146

Die Type

Fixed die

Die size

50/80

60/100

120/160

heating

11KW

11KW

13KW

blower

2.2KW

Movie

take-up tower

upper tower

rise and fall

drum length

700mm

700mm

900mm

How the drum works

Cylinder opening and tightening

coiling motor

1.5KW

winding station

Winding machine type

Single winding station

roller

700mm

700mm

900mm

torque motor

5N/M

maximum. Winding diameter

600mm

control panel

temperature control

District 5

electronic product

China's top brands

Inverter capacity

11KW/1.5KW

11KW/1.5KW

15KW/1.5KW

optional equipment

Hopper Loader
