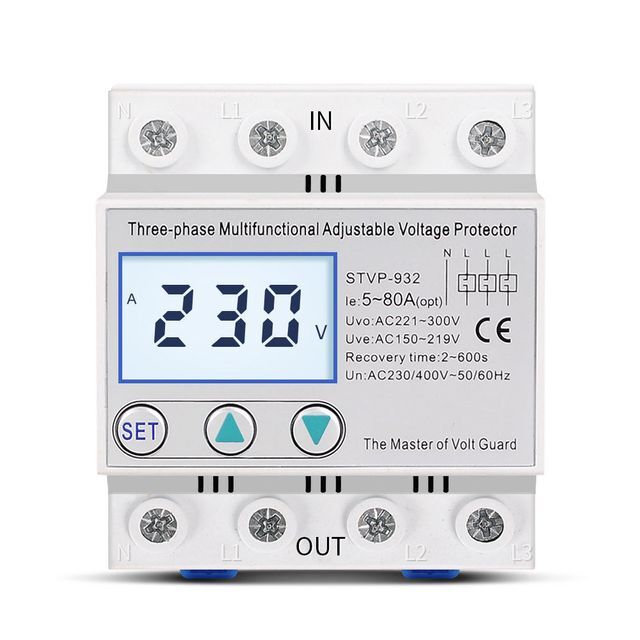

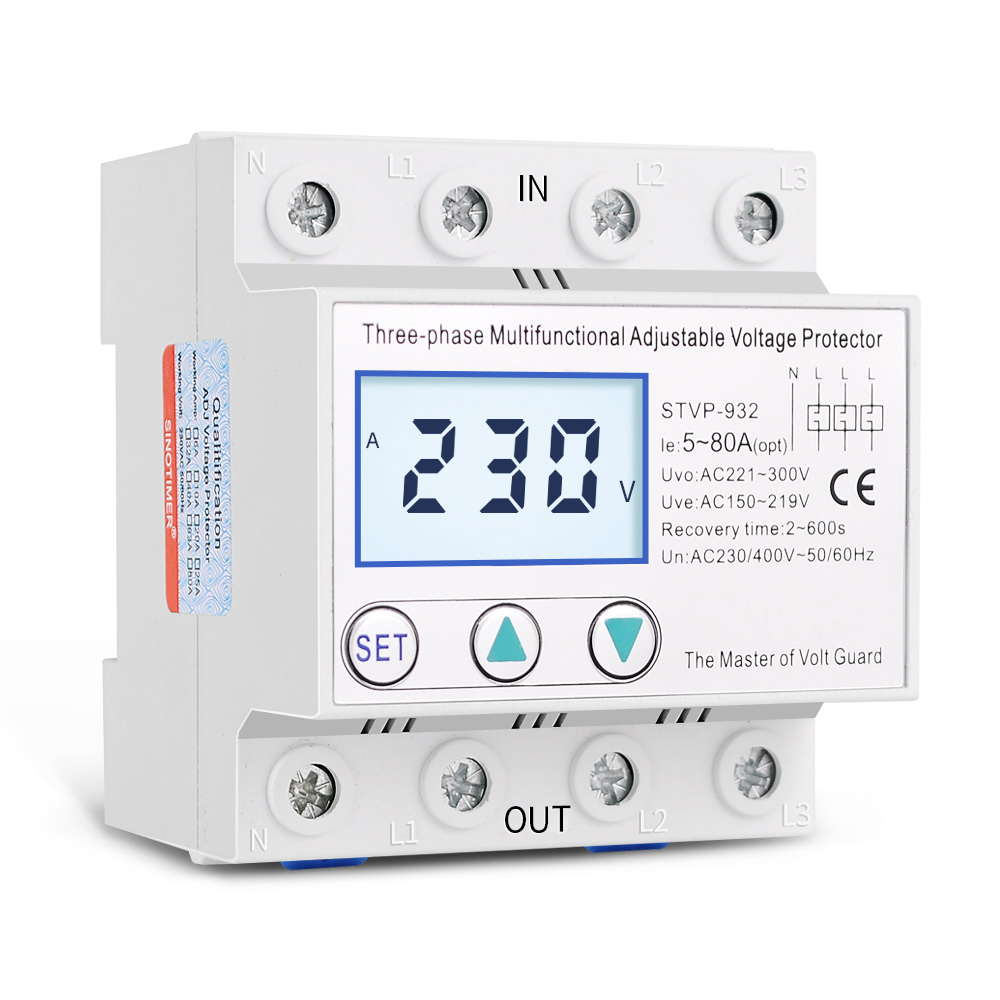

DIN Rail Adjustable AC 380V 3 Phase Over and Under Voltage Protector Relay Voltmeter Monitor Phase Sequence Fault Protection

DIN Rail Adjustable AC 380V 3 Phase Over and Under Voltage Protector Relay Voltmeter Monitor Phase Sequence Fault Protection

STVP series automatic overvoltage and undervoltage protectors are suitable for three-phase AC 380V, 50/60Hz, rated working current of 40A or 50A or 63A or loads below 80A.

Its main feature is that when the circuit has overvoltage or undervoltage, the product can instantly cut off the power supply, protect the electrical equipment from damage, and automatically turn on the power supply to normal when the circuit voltage recovers.

Function:

1. Overvoltage protection
2. Undervoltage protection

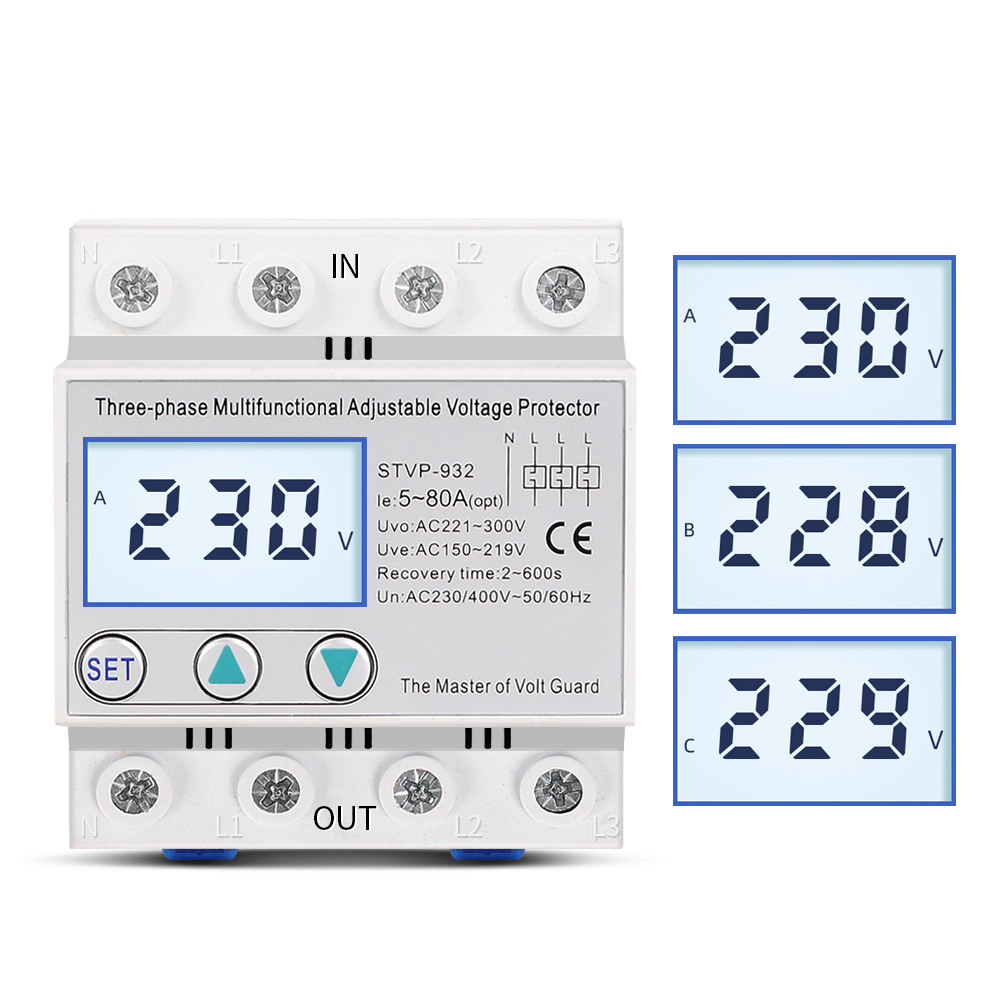

3. Voltage display (independent ABC phase voltage measurement)
4. Three-phase voltage unbalance protection
5. Phase sequence protection (reverse phase protection)
6. Zero line disconnection protection
7. Phase failure protection
8. The overvoltage protection value is adjustable
9. Overvoltage recovery value is adjustable
10. The overvoltage protection action time is adjustable
11. Adjustable under-voltage protection value
12. The undervoltage recovery value is adjustable
13. The action time of undervoltage protection is adjustable
14. Three-phase voltage unbalance protection value is adjustable
15. Three-phase voltage unbalance protection action time is adjustable
16. Power-on delay time is adjustable
17. The fault recovery delay time is adjustable
18. Reset mode selection
19. Troubleshooting
20. Factory data reset

Product parameters:

1. Model: STVP-932
2. Power supply: 3*230V / 400V AC 50/60Hz
3. Maximum load power: 40A or 50A or 63A or 80A
4. Overvoltage protection value range: 221V~300-OFF adjustable (default: 280V)
Overvoltage recovery value range: 220V~299V (default 250V)
Overvoltage protection action time: 0.1~10 seconds (default 0.2s)
5. Undervoltage protection value range: 150V~219V-OFF ​​adjustable (default: 160V)
Undervoltage recovery value range: 151V~220V (default 180V)
Undervoltage protection action time: 0.1~10 seconds (default 0.2s)
6. 3-phase voltage unbalance protection value: 10%~50%~0FF (default 20%)
7. 3-phase voltage unbalance protection action time: 0.1~10 seconds (default: 2s)
8. Power-on delay time: 2~255 seconds (default: 2s)
9. Recovery delay time: 2~512s (default: 60s)
10. Display model: LCD

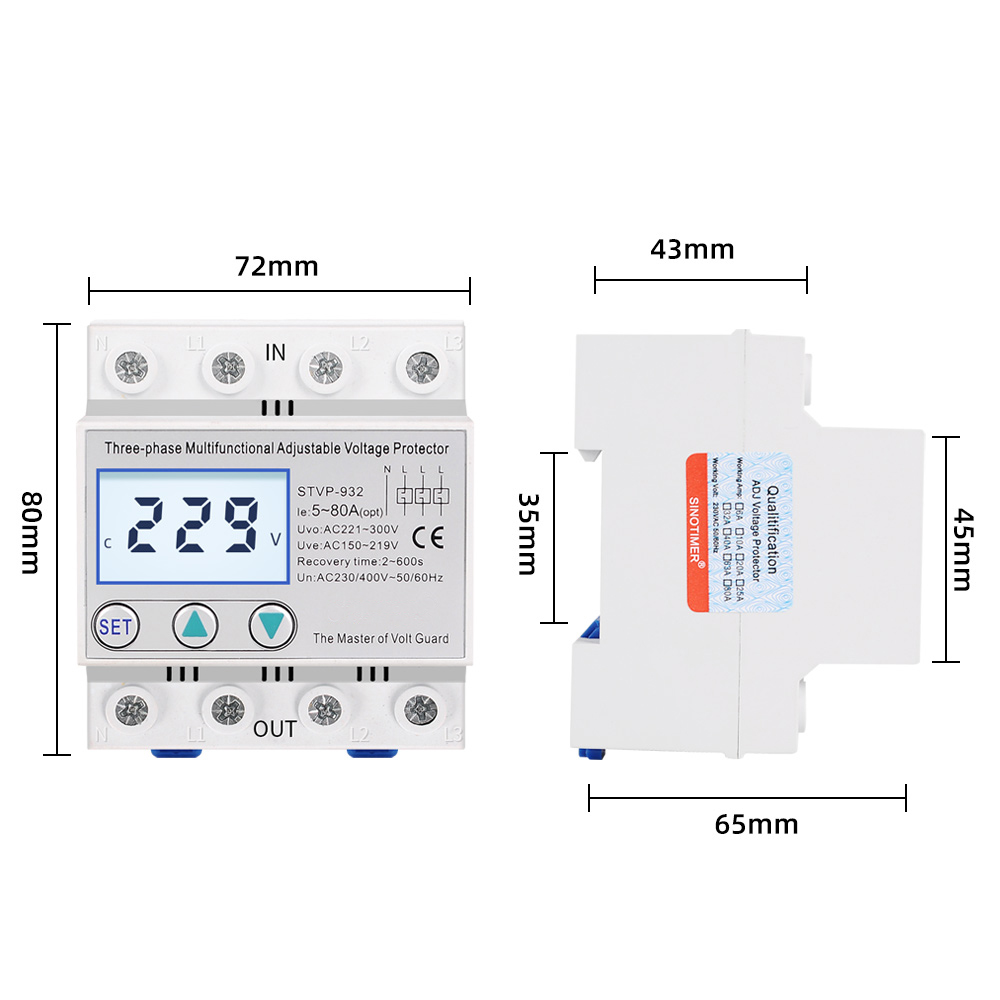

11. Size: 80*72*65mm

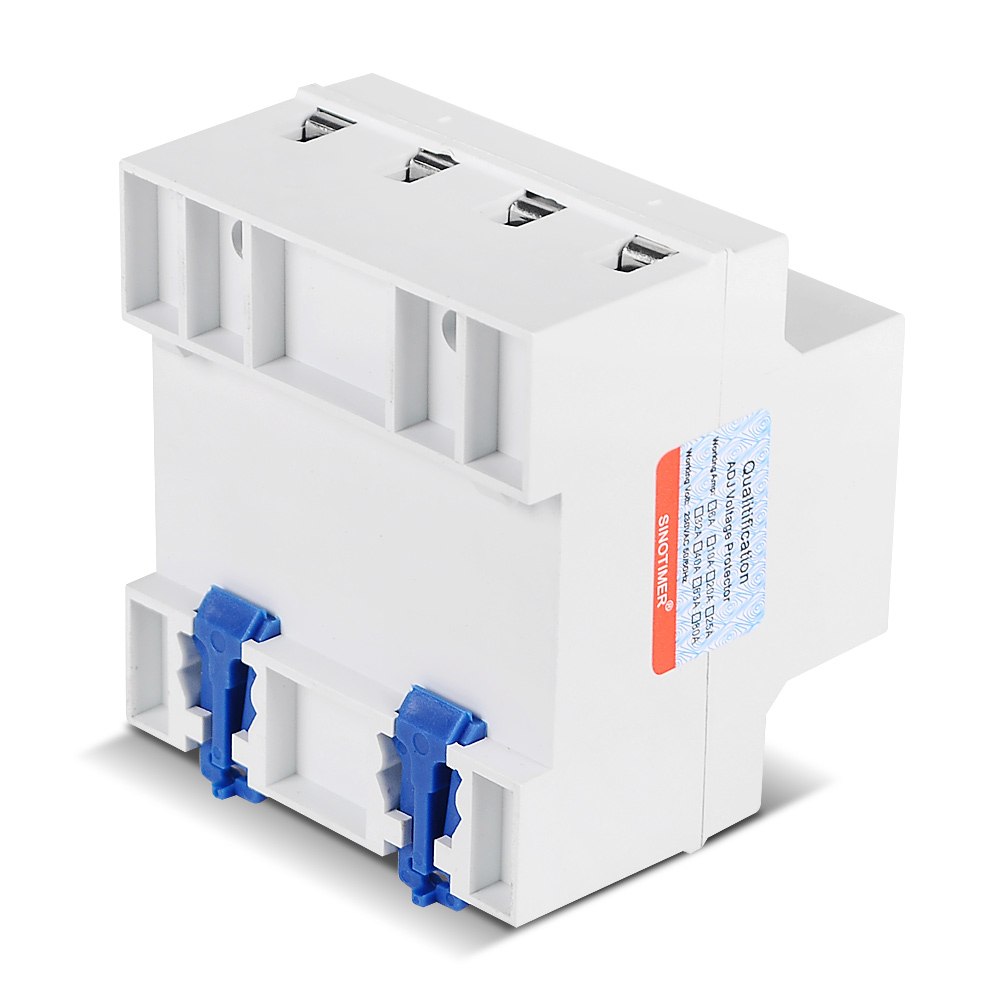

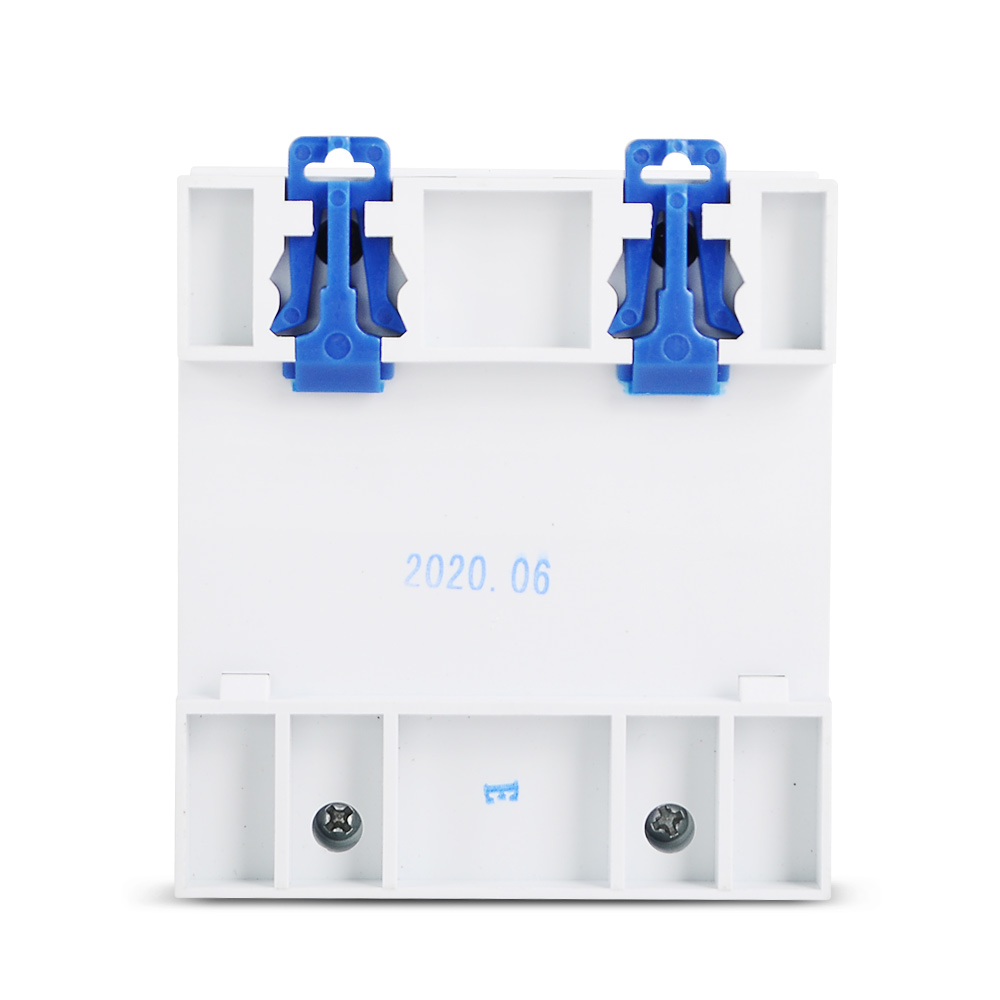

12. Installation: 35mm DIN rai
