DZH-6 2+1 Automatic Pocket Spring Production Line for sale

Supplier: Foshan Yuantian Mattress Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Iris Yuantian
Price: $210000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Locate:	Foshan Yuantian, China factory, Chinese Manufacturer;	Spring Free Height:	160~260mm;
Spring Mid-Coil Diameter:	55~75mm;	Output:	4 mins/mattress, around 15mattress/hour;
Selling Units:	Single item;	Wire Diameter:	1.8~2.2mm;
Microcomputer NC:	digital controll;	Coiling Speed:	170~200 Pcs/min;
Single package size:	800X400X200 cm;	Brand Name:	Yuantian;

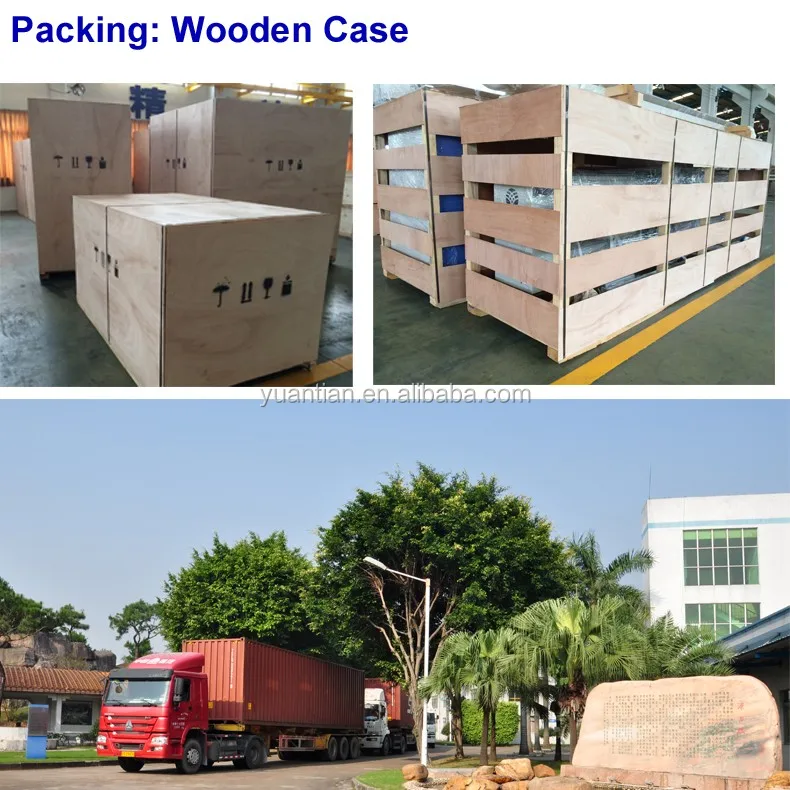

Single gross weight:	1,200 KG;	Package Type:	WOODEN CASE;
After-sales Service Provided:	Engineers available to service machinery overseas;	Model Number:	DZH-6;
2+1:	2 Pocket Spring Coiler + 1 Assembler;	Package Preview:	https://sc02.alicdn.com/kf/HTB1A8pSXKf85uJjSZFtq6y4bVXa9.jpg_640x640.jpg;
Pocket Spring Height:	100~220mm;	Assembling Speed:	10 Second / Row;
Delivery Detail:	2 days after payment;	Place of Origin:	Guangdong China (Mainland);

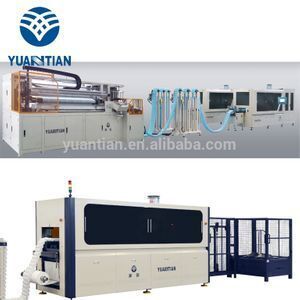

DZH-6

2+1 Automatic Pocket Spring Production Line for Sale

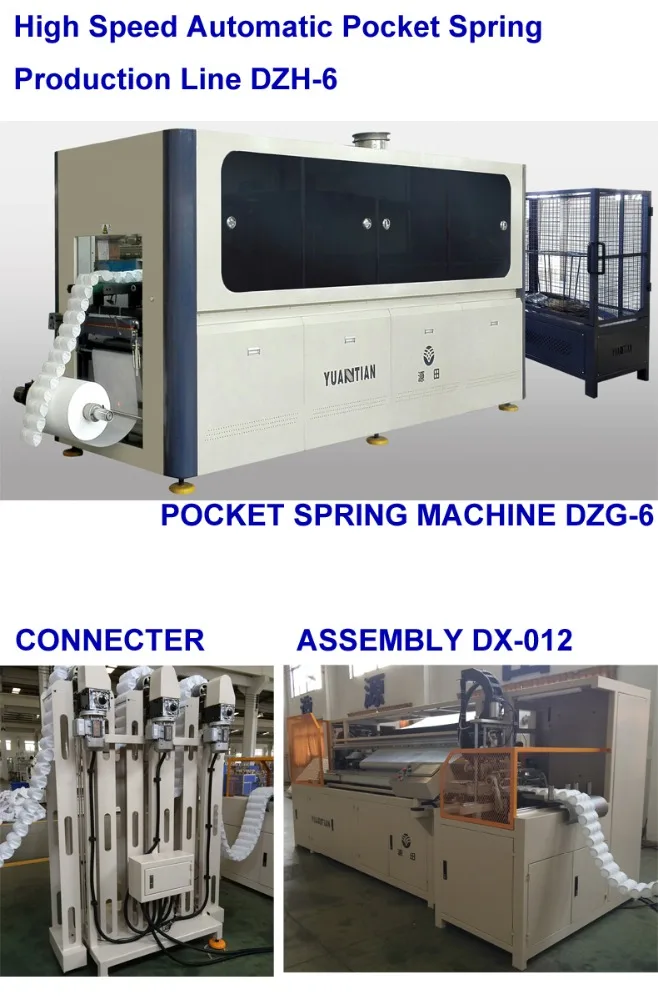

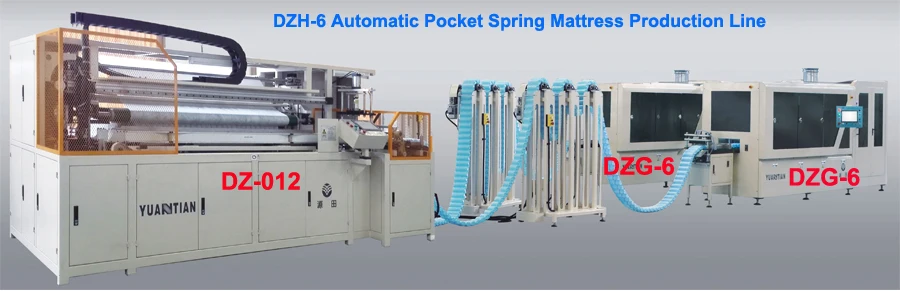

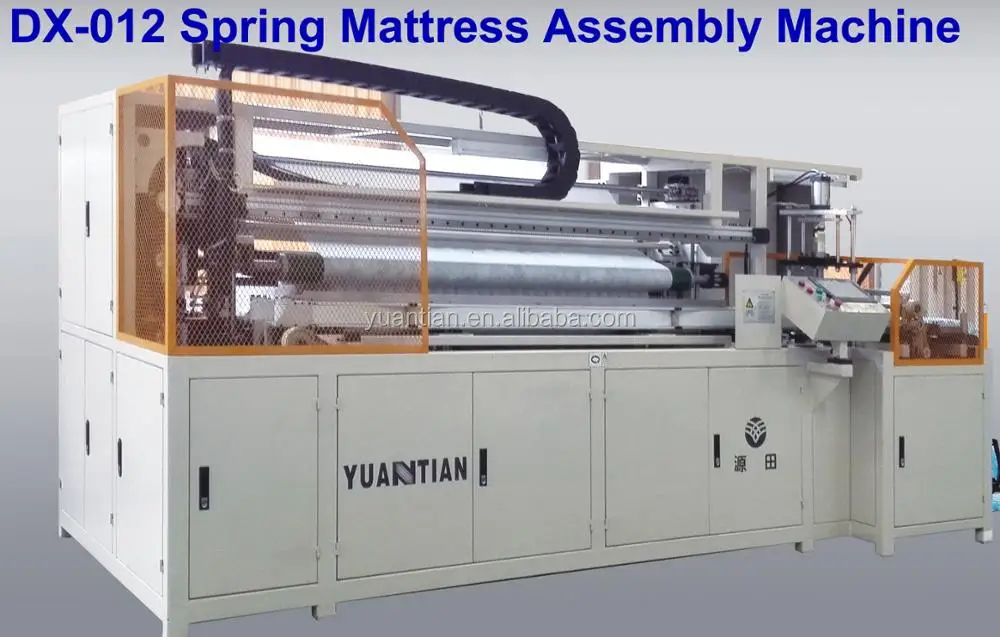

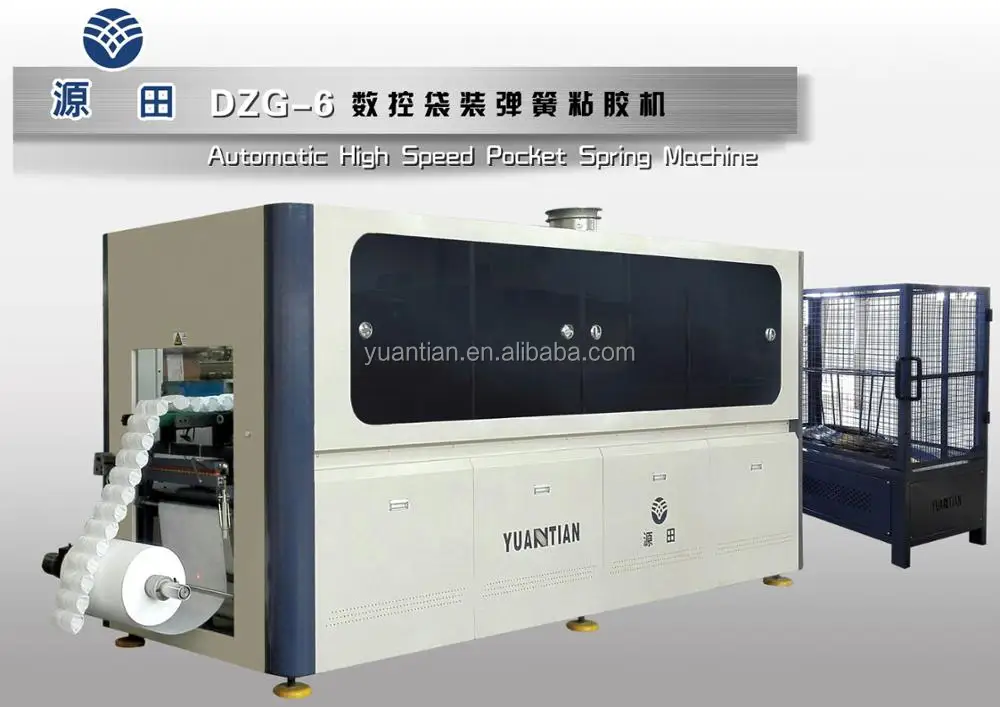

DZH-6 is an automatic production line machine for pocket spring unit with 2 set of DZG-6 coiling machine, and 1 set of assembling machine DX-012 which is with microcomputer NC, self-developed control system,devices for connecting, conveying and glue spraying. It’s the best choice for the production of pocket spring unit production.

1. 2 spring coiler works with 1 assembler to offer high efficiency

2. Microcomputer NC can change parallel or offset assembling without any mechanism adjusting.

3. Interrupted or continuous glue spray according to production needs.

4. Top and bottom non-woven covers are optional according to production needs.

Main Technical Parmeters
	DZG-6 POCKET SPRING COILER * 2	DX-012 POCKET SPRING ASSEMBLER *1
Speed	110Pcs/min	10 Second / Row
Overall Dimension	402617951917mm	370038002250mm
Layout Area	18m * 4m
Power Supply	3 Phase, 380V, 50HZ
Air Supply	0.6~0.8Mpa
Air Consumption	0.8 m3/min
Total Power	40KW	25KW
Working Power	25KW	15KW
Free Spring Height	190 ~ 250mm	/
Pocketed Spring Height	100 - 150mm or 120-200mm	100 ~ 210mm
Wire Diameter	Ø1.8 ~ Ø2.2mm
Mid-Coil Diameter	Ø55~ Ø75mm
Non-Woven Fabric Width	450 ~ 600mm
Non-Woven Fabric Thickness	70g/square meter or upper

Terms & Conditions:

Payment:

TT 30% down payment to confirm order and proceed bulk production, balance before shipment.

Time of Delivery:

Within 30 days after receiving the buyer’s down payment.

After-sale service:

a) Installation & Commissioning: the seller can provide the installation, commissioning and training

service in buyer's factory, while the buyer needs to pay for VISA application, air ticket,

accommodation, and (if necessary) interpreting fee for seller’s technician.

b) Within two years after the machine dispatched, except paying for VISA application, air ticket,

accommodation, and (if necessary) interpreting fee for seller’s technician, the buyer does not

need to pay any service charge.

Warranty:

the seller provides one year warranty of the main machine starting from the moment the buyer

signs the acceptance certificate. For the wearing parts, consumption of materials and the damage

incurred by the Buyer's incorrect operation are out of the warranty range.

CONTACT US

Certifications:

Fairs:

Every year, Yuantian participate in well-known mattress machinery exhibitions with our newly developed products.

MORE INFO OF OUR EXHIBITIONS.

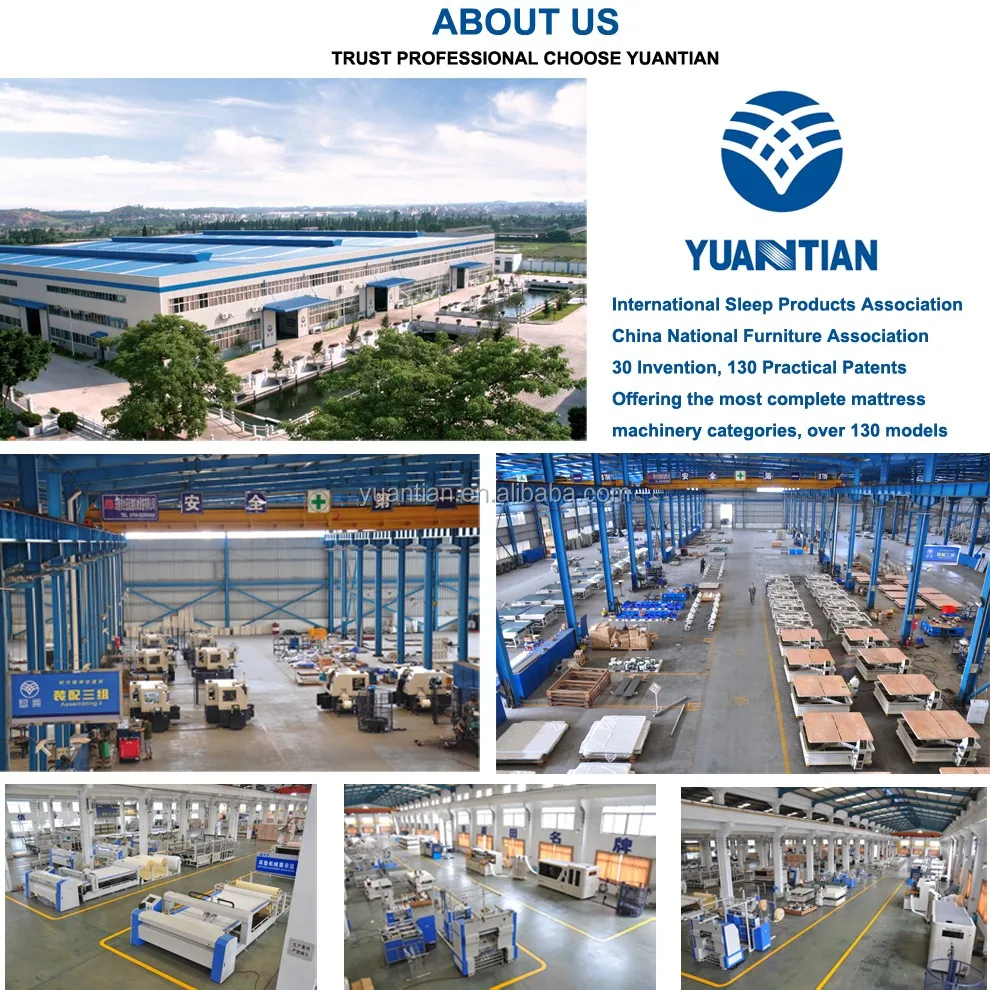

Company Views:

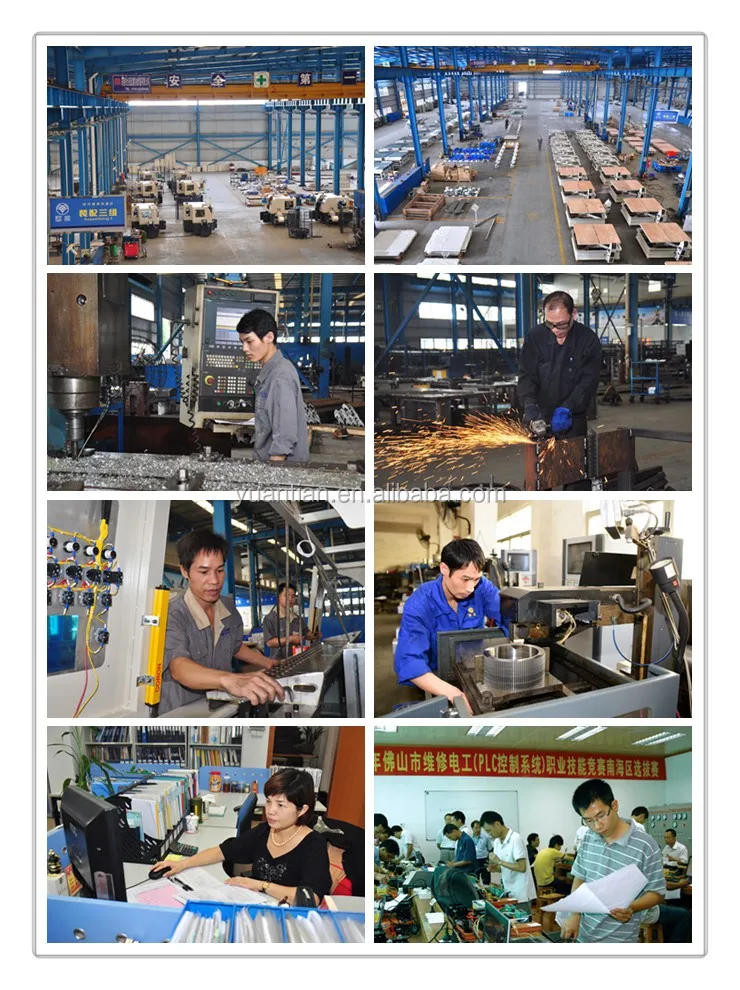

Factory & Staffs:

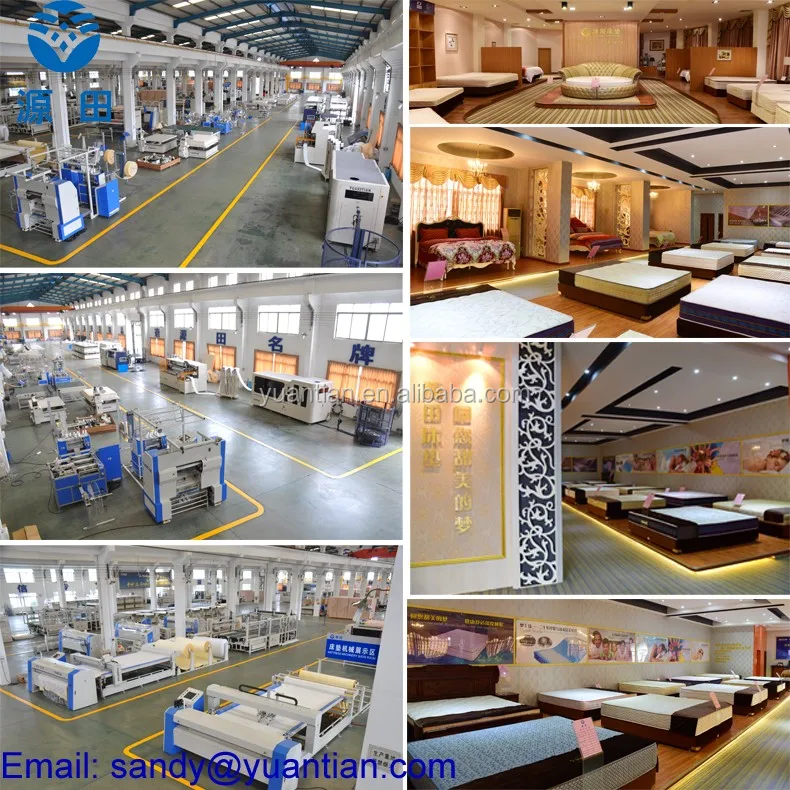

Show rooms:

Key Customers:

FAQ:
