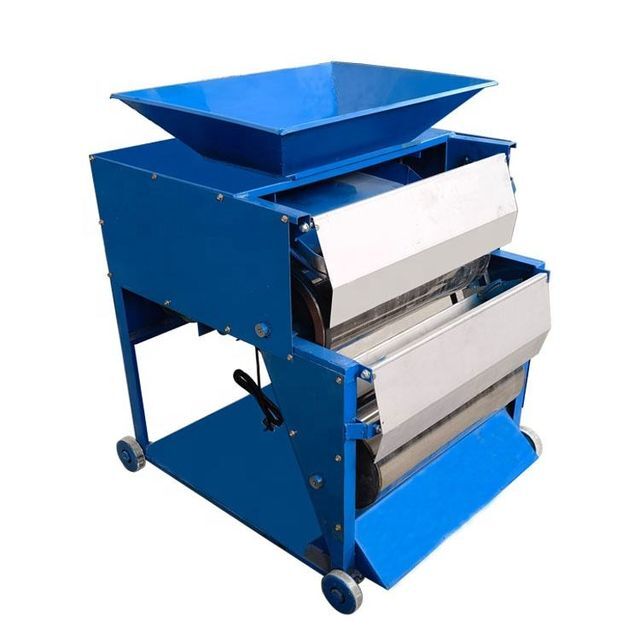

Hot Sale High Separation Portable Magnet Separator with Two Pins for Aluminum and Iron

Supplier: Baoding Lianchi Tengbo Mechanical Equipment Factory
Region: Hebei, China
Contact: Mr haiyuan wang
Price: $2840.00 / 1 - 9 sets
$2800.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Weight (kg):	166	Health status:	new
Video external inspection:	if	Model:	Tengbo-2001-1
brand:	Tumble	port:	Tianjin harbor
Mechanical test report:	if	type:	Magnetic separator
Showroom location:	not any	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Material:	NdFeB	Packaging Preview:
Packaging Details:	The outer packaging of the product is packaged in a wooden box to ensure the integrity of the product during transportation and avoid collision	Warranty:	1 year
Core components:	engine, bearing	Card:	Tumble
Applicable industries:	Manufacturing, Mechanical Repair, Retail, Construction, Energy & Mining	Supply capacity:	20 acres per month
Marketing Type:	normal product

Specification

product name	Double drum magnetic separator
Model	Double drum magnetic separator
Drum Specifications	Diameter 220mm * Length 600mm 2
Full Magnetic/Half Magnetic	semi-magnetic
Magnetic field range	Medium Magnetic (800-1000gs) Strong magnetic (2000-2500gs)
processing power	1-2 tons/hour
Motor Power	2.2kw220v
Feed pellet requirements	<60mm
drum speed	40-200r/min
reduction gear	pulley deceleration
Inlet size	430*240mm
machine weight	180kg

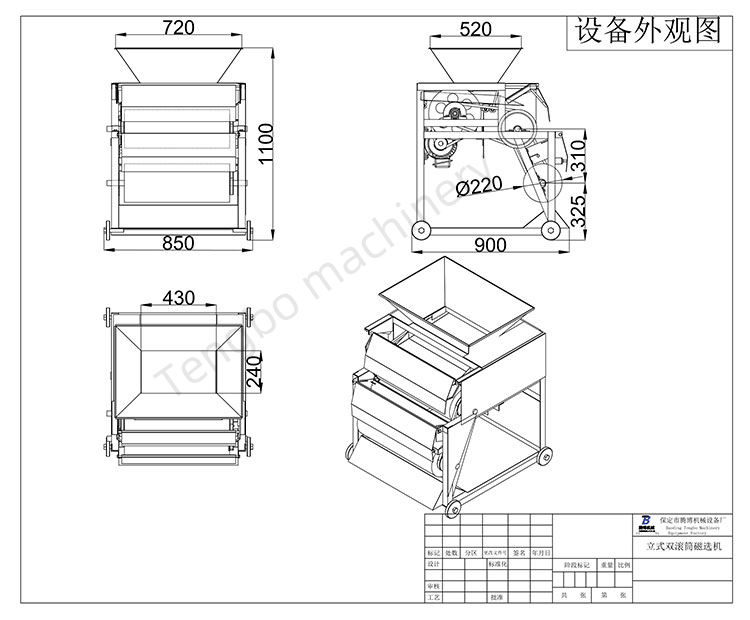

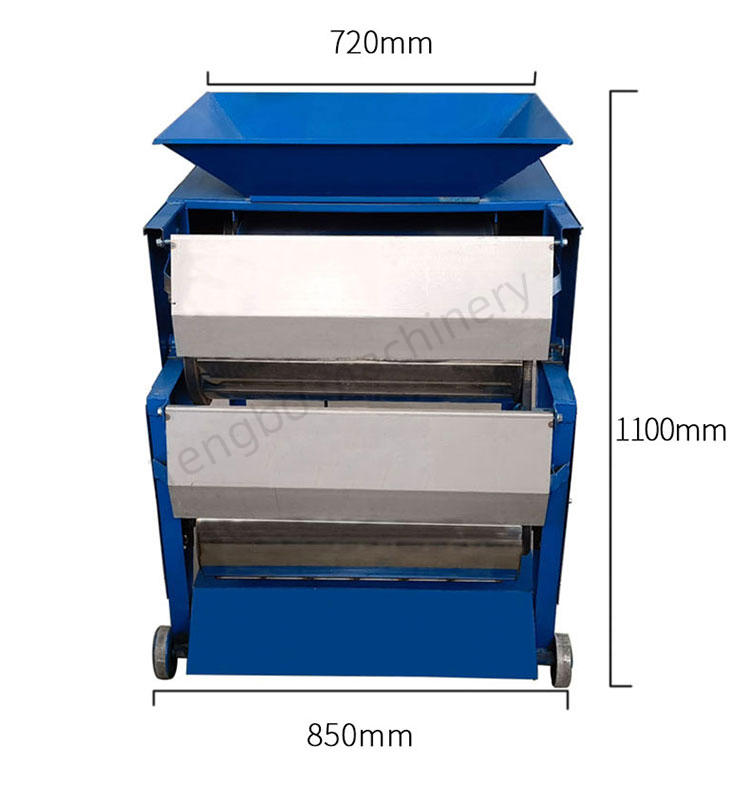

physical dimension	7708701100mm
Quality Inspection	Checked before leaving the factory

This machine adopts permanent magnet material as the magnetic source. The magnetic force is generated by the magnetic force of the selected material surface when the magnetic force is different from that of the selected material surface, i.e. non-magnetic particles when the magnetic force is different from that of the selected material surface. The magnetic particles are adsorbed on the surface of the magnetic drum, fall down as the magnetic drum turns to the non-magnetic area, and are discharged from the magnetic material barrel. The non-magnetic particles are thrown forward under the action of centrifugal force and discharged from the non-magnetic material barrel.

Product Description

Product advantages

1. High-strength permanent magnet, automatically fall off, and the half magnetic angle is reasonable. 2. High and medium weights. 3. The pulley is easy to move and assemble. 4, save time and effort, convenient transportation. 5. High cost performance. 6. Quality assurance, many years of experience and practical experience. It classifies various materials and can be customized at the same time.

working principle

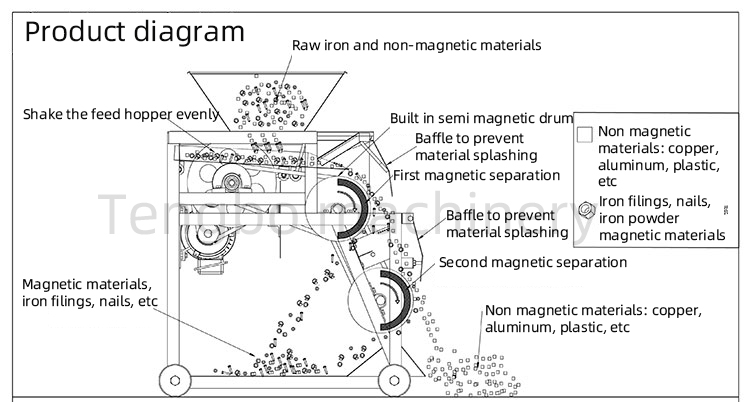

The material is evenly fed into the upper magnetic field area of the rotating semi-magnetic drum through the mechanical swing feeding device, and the magnetic material is adsorbed on the surface of the drum and rotates with the drum. Due to the difference in the magnetic force between the magnetic material and the non-magnetic material in the magnetic field, the magnetic particles are magnetically adsorbed on the surface of the drum in the magnetic field, and are thrown off when they are brought to the non-magnetic field. The trajectories are different. The stronger the magnetism, the closer it is to the drum when you throw it away. The alternating magnetic field is used in the surrounding direction, oscillating at a certain angle and period, so as to achieve the function of separation.

Separable Materials:

Aluminum needles, aluminum scraps, aluminum powder, aluminum scraps, electronic feet, copper powder, copper rice and other metal iron removal iron scraps, abrasives, refractory materials, non-metallic beneficiation, carbon black, grain, feed, chemical raw materials, etc.
