rare earth permanent magnetic separator permanent magnetic separator metal magnetic separator

Supplier: Baoding Lianchi Tengbo Mechanical Equipment Factory
Region: Hebei, China
Contact: Mr haiyuan wang
Price: $2840.00 / 1 - 9 pieces
$2750.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	tempo	Video shipment inspection:	if
Package preview:		Packaging Details:	The outer packaging of the product is packed in a wooden box to ensure the integrity of the product during transportation and avoid collisions
Warranty:	1 year	Showroom location:	not any
Health status:	new	brand:	tempo
payment terms:	Western Union, D/P, D/A, T/T, MoneyGram	Weight (kg):	166
Mechanical test report:	if	Applicable industries:	Manufacturing plants, machinery repair shops, retail, construction, energy and mining
port:	Tianjin harbor	type:	Magnetic separator
Model:	Tandberg-2001-21	Supply capacity:	10 acres per month
Material:	NdFeB	Marketing Type:	normal product
Core components:	engine, bearing

Specification

product name	Double cylinder magnetic separator
Model	Double cylinder magnetic separator
Drum Specifications	Diameter 220mm*Length 600mm 2pcs
Full Magnetic/Half Magnetic	semi-magnetic
Magnetic range	Medium magnetic (800-1000gs) Strong magnetic (2000-2500gs)
Processing capacity	1-2 tons/hour
Motor Power	2.2kw220v
Feed Pellet Requirements	<60mm
Drum speed	40-200 rpm
Reducer	pulley deceleration
Inlet size	430*240mm
machine weight	180 kg
physical dimension	7708701100mm
Quality Inspection	Has been inspected before leaving the factory

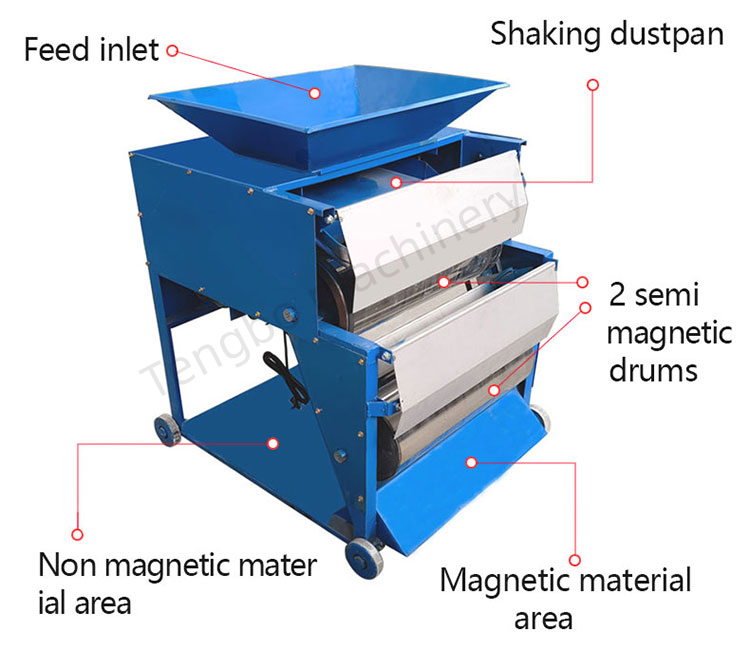

This machine uses permanent magnet material as the magnetic source. When the magnetic force is different from the magnetic force on the surface of the selected material, the magnetic force is generated by the magnetic force on the surface of the selected material, that is, when the magnetic force is different from the magnetic force on the surface of the selected material, non-magnetic particles. The magnetic particles are adsorbed on the surface of the magnetic drum, fall down as the drum turns to the non-magnetic area, and are discharged from the magnetic hopper. The non-magnetic particles are thrown forward under the action of centrifugal force and discharged from the non-magnetic material hopper.

Product Description

Product advantages

1. High-strength permanent magnet, which falls off automatically, and the half-magnet angle is reasonable. 2. Advanced medium weight. 3. The pulley is easy to move and assemble. 4. Time-saving and labor-saving, convenient transportation. 5. High cost performance. 6. Quality assurance, years of experience and practical experience. Various materials are classified and can be customized at the same time.

Years of experience in the magnetic separation and iron absorption industry, the machines are exported to various cities at home and abroad

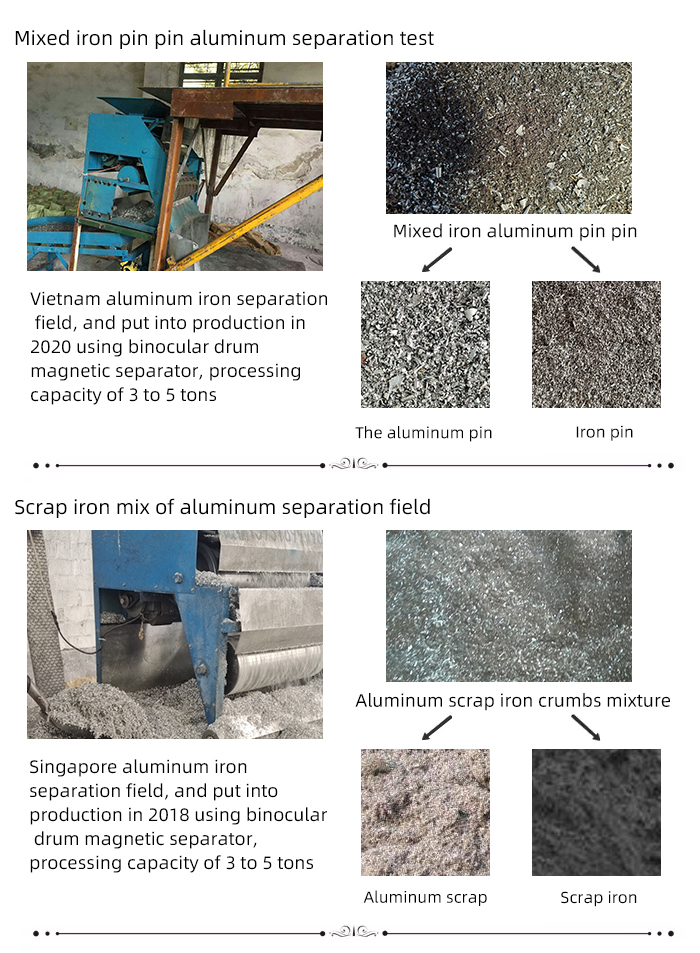

seperate effect

Separable material:

Aluminum needle, aluminum shavings, aluminum powder, aluminum shavings, electronic feet, copper powder, copper rice and other metals and iron are separated to remove iron sundries, abrasives, refractory materials, non-metallic mineral processing, carbon black, grain, feed, chemical raw materials, ETC.
