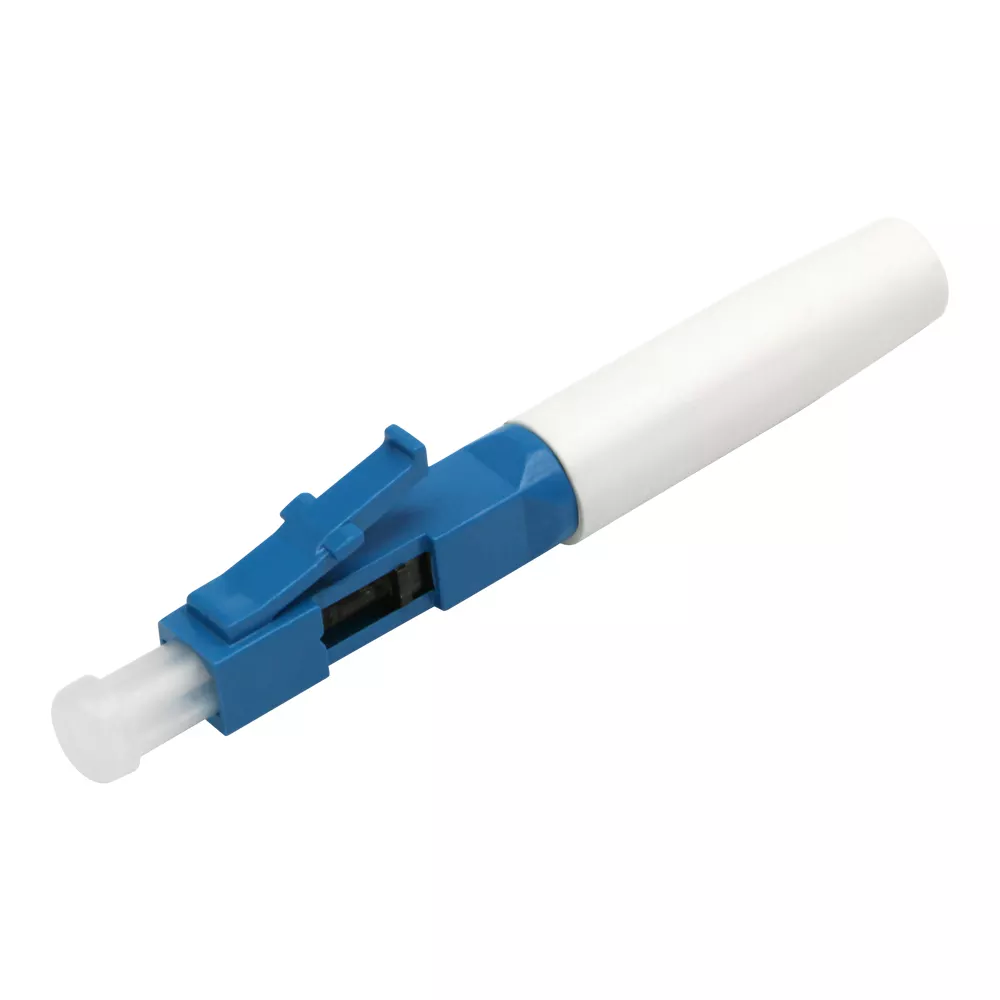

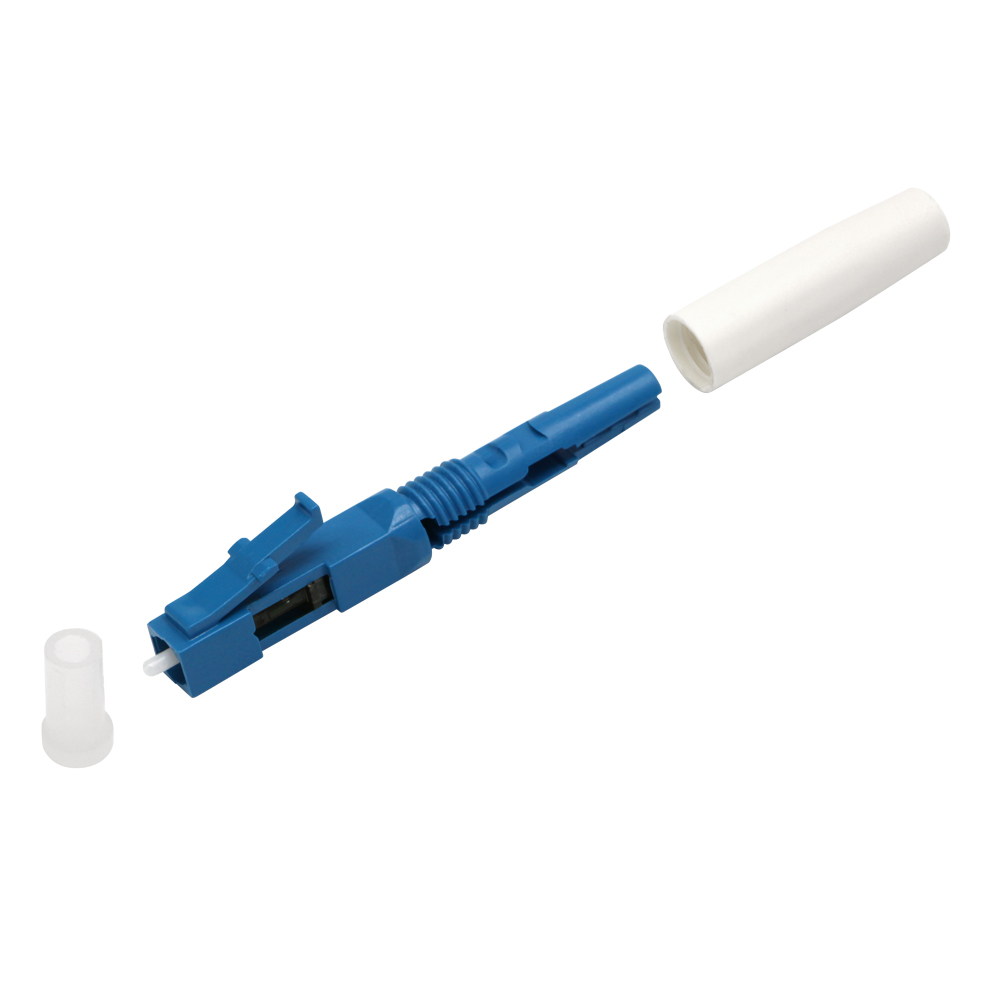

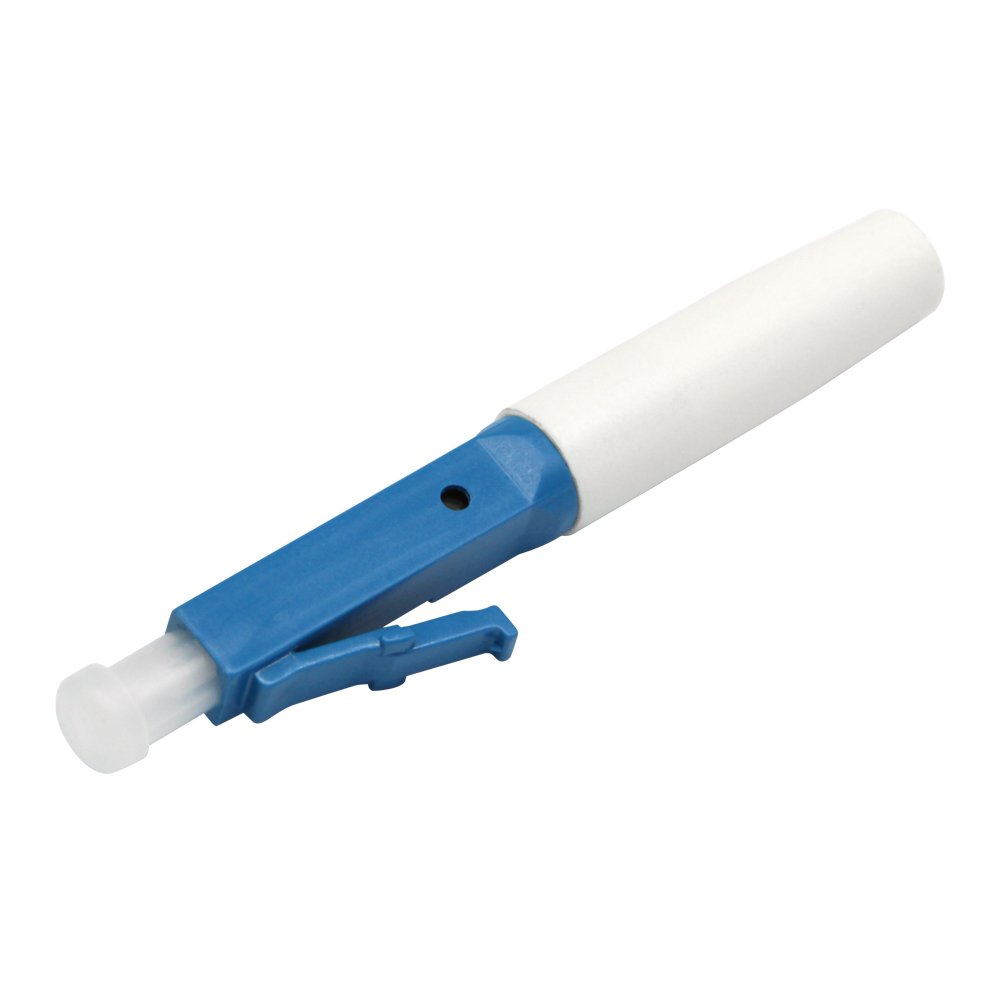

LC/UPC 0.9mm fiber optic assembly quick connector lc multimode fiber lc upc ftth quick connector

Supplier: Dongguan Qingying Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Huang Sunny
Price: $1.80 / 1 - 99 pieces
$1.70 / 100 - 999 pieces
$1.60 / 1000 - 4999 pieces
$1.50 / >=5000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Repeatability:	≤0.1dB	Packaging Details:	1. NW: 4g 2. GW: 6.5kg 3. Packing: carton. 4. Size: 452524cm. 5. Capacity: 1000 pieces. 6. Production capacity: 10000pcs/day. 7. The 10PCS is put into a plastic box, and the 1PC user manual is attached.
model:	QLC44Z1-UPC	Interchangeability:	≤0.2dB
Durability:	≥1000 times	type:	Field Installable Connectors
port:	Shenzhen	Operating temperature:	-25℃ - +70℃
place of origin; place of origin:	Guangdong, China	tensile strength:	≥50N
Insertion Loss:	S≤0.5dB, P≤0.3dB	Return Loss:	S≥45dB, P≥50dB
polishing:	UPC	describe:	LC APC Field Installable Connectors
Supply capacity:	1,000,000 pieces/month	Bale:	plastic box
payment terms:	L/C, Western Union, T/T, Paypal	Reusability:	≥5 times
Fiber Type:	S: 9/125, P: 9/125 (Corning)	Card:	quality

3m pre-embedded APC quick cable connector fiber optic home sm sc quick assembly field connector LC/APC fiber optic quick connector

Why choose us

① One-stop supplier from molding design and injection molding. ② 10,000 square meters of manufacturing plant. ③ 10 production lines, 300 workers. ④ There are 30 R&D teams with degrees and 30 quality system teams. ⑤ ISO 9001, CE, RoHS certification. ⑥ 12 months after-sales warranty.

Product Description

LC connectors and adapters set the standard for small fiber optic interconnects. The locking mechanism is simple with a locking lever to prevent accidental disconnection and precision housing for optimum performance. The LC is also the first small form factor (SFF) connector kit available, offering unprecedented fiber density and performance.

feature

Since the LC connector is only half the size, the density of the optical network can be increased.

Today's 1U 48-port 25GbE + multiple 100GbE switches would be difficult to implement with SC connectors because of their size.

LC connectors use 1.25mm ferrules, half the size of ST. Otherwise, it is a standard ceramic ferrule connector whose good properties make it ideal for single-mode termination.

A connector mechanically couples and aligns the core of an optical fiber so that light can pass through. Better connectors lose very little light due to reflection or misalignment of the fibers.

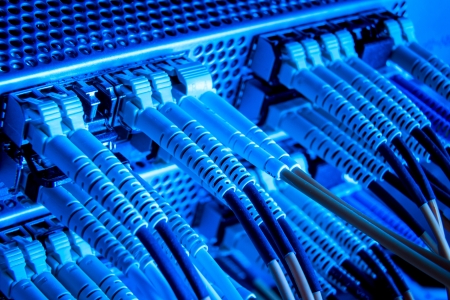

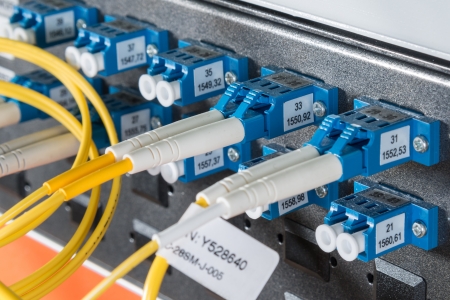

The advantage of the LC connector is its small size, so it allows a very high packing density and makes it attractive in data centers and central offices. LC connectors are also used in LAN, WAN and LTTD networks, railways, telecommunication networks, cable television and measurement technology. Duplex cables applied to this adapter are used for cable ducts, compartments and pipes with low mechanical stress.

application

Specification

LC/UPC Fiber Adapter				FC/APC Field Mount Connector
title	unit	S-Class (Standard)	Class P (Advanced)
Fiber Type	Um	9/125	9/125 (Corning)
polishing	---	UPC	UPC
Insertion loss	D b	≤0.5	≤0.3
return loss	D b	≥45	≥45
Repeatability	D b	≤0.1
interchangeability	D b	≤0.2
Operating temperature	°C	﹣25~﹢70
Durability	Second-rate	≥1,000
reusability	---	≥5
tensile strength	n	≥50
