Laser Rangefinder Laser Rangefinder Laser Measurement 30m Tape Digital Rangefinder

Click here to contact

Product details

Supply capacity:	1000 pieces per week	application:	antenna
place of origin; place of origin:	Anhui, China	product name:	Laser rangefinder
Number of Fibers:	1.	use:	fiber to the home
brand:	first arrival	Packaging Details:	Packing Details: Standard Packing (with carton) Delivery Details: Ships within 5 days after payment
Warranty:	1 year	model:	Wang Hai
port:	Shenzhen	payment terms:	L/C,Western Union,T/T

Selling

Product Image

Specification:

1. The most advanced two-color material integrated mold technology, firm and firm;

2. Advanced anti-reflection liquid crystal display, the on-site display interface is clear;

3.0.8m ultra-short event dead zone, easy to test fiber patch cords;

4. Automatic and manual testing functions;

5. Automatically detect the communication optical signal;

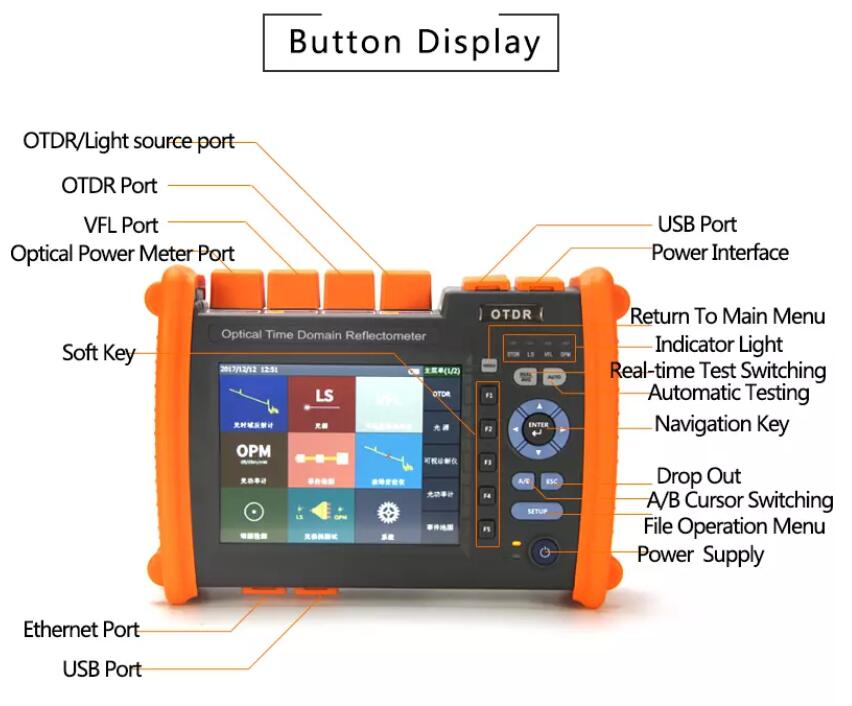

6. Touch screen and keyboard operation;

7. Two USB ports: can connect external U disk, or communicate with PC through SyncActive software;

8. Support Bellcore GR196 and SR-4731 file formats;

9. Intelligent indication of battery capacity, alarm when power is exhausted;

10.WinCE window operating system, Chinese/English operation interface;

11. Large-capacity lithium battery, support more than 10 hours of work, suitable for long-term field work;

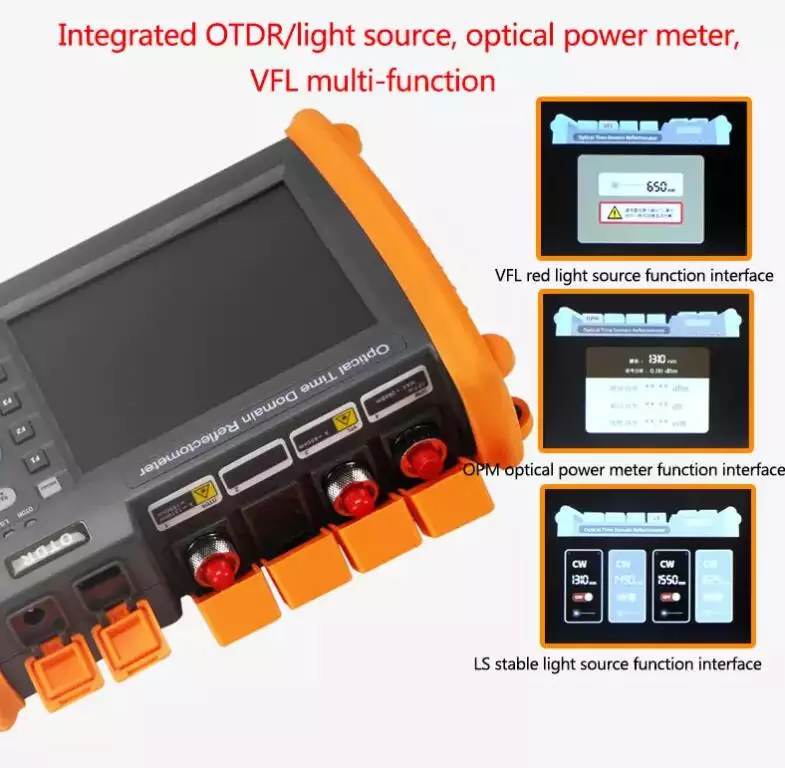

12. Built-in visual fault locator (VFL) function;

13. The OTDR optical output connector can be replaced, and the end face cleaning is more convenient;

14. The application software can be upgraded online without returning to the factory.

Model	OTDR
exhibit	5.7-inch color LCD touch screen
Dynamic Range	32/30 dB
distance range	400m/800m/1.6Km/3.2Km/6.4Km/16Km/32Km/64Km/128Km/256/512Km
Measuring pulse width	5ns/10ns/30ns/100ns/275ns/500ns/1000ns/5000ns/10000ns/20000ns
Ranging accuracy	±(1m+sampling interval+0.005%×test distance)
Linearity	±0.05dB/dB
resolution loss	0.001dB
event dead zone	0.8m
Waveform data storage	≥1000
Interface Type	FC/PC (replaceable SC, ST)
Communication Interface	USB mini-USB 10M/100M Ethernet
VFL output	≥5mW
OPM	Wavelength range: 1200nm~1650nm, power range: -50dBm~+26dBm
stable light source	1310/1550nm: -5dBm, CW (270Hz, 1K270Hz, 2K270Hz)
Power supply	Output: 19V, 1.31A; Lithium battery: 7.4V 6300mAh
Operating temperature	-5°C~50°C
Storage temperature	-20°C~70°C
Relative humidity	0~95°C non-condensing
weight	1.5kg
aspect	215mm×150mm×70mm

Product Image
