TruPulse 200 Rangefinder

Product details
Supply capacity:1000 pieces per monthmeasurement accuracy:± 0.2 m
Positioning mode:Nearest, Farthest, Continuous, FilteredField of view in range:10 m @ 91.5 m away
Bluetooth wireless technology:Windows + Androidweight:285 grams
RS232 serial communication port:YesPackaging Details:standard box
Model:Pulse 200port:Shanghai Port
Inclination accuracy:± 0.25° typicalOrigin:U.S.
Maximum range for non-reflective targets:1000 meterspayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Maximum range of reflective targets:2000 metersRange enlargement:7 times/LCD
model:200brand:pulse
Measuring range:2000 meterssize:12 x 5 x 9 cm

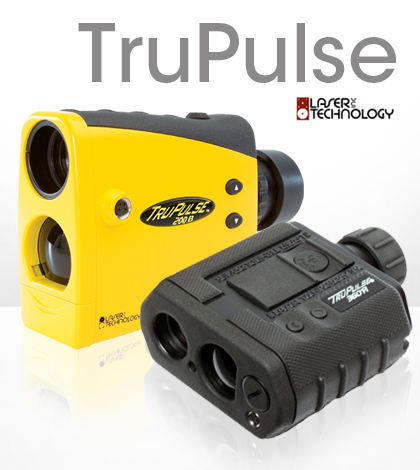

TruPulse 200 Rangefinder





TruPulse Overview

LTI's dedication to high quality and unparalleled innovation has allowed the TruPulse Series to stand the test of time. It's almost an insult to call these powerful measuring tools "laser rangefinders," since their capabilities go far beyond measuring distance. You can instantly measure slant range, inclination and azimuth* and calculate horizontal and vertical distances - all at the touch of a button.



The TruPulse 200L and 200 models just got a makeover and are now better than ever with new enhancements and improvements. These lasers offer greater precision, better target acquisition and greater range resolution, and are just another example of LTI's commitment to bringing the highest levels of quality and innovation to the world.

From our most affordable professional laser rangefinder, the 200L, to the 200 and 200X, you'll be able to capture the measurements you need with accuracy, confidence and ease of use.


Ultimate Scalability and Mobility

Small enough to fit in a vest pocket and light enough to hang comfortably on a neck strap, the TruPulse is the ultimate tool for professionals in the field. All TruPulse models include LTI's Missing Line Routine feature. The TruPulse 200 Series Missing Line routine is a two-dimensional measurement. Take 2 shots of the remote target to calculate the distance and inclination between the 2 remote targets. The TruPulse 360​​ Series has an integrated compass that allows you to measure azimuth, enhancing your Missing Line routines. This is a simple 2-shot routine that instantly calculates distance, inclination and azimuth direction values ​​between any two remote points.



LTI's exclusive TruVector 360° Compass technology built into the TruPulse 360 ​​Series gives you the best azimuth accuracy no matter what pitch or angle you're shooting from. No other compass laser rangefinder can do this. Grab a 360R and you'll get the added benefit of a rugged, water-resistant laser, letting you know your laser is protected from harsher weather conditions.

All TruPulse laser rangefinders have built-in TruTargeting technology, providing professionals with four aiming modes - closest, farthest, continuous and filtered - to capture the correct measurement for your intended target. The included on-board solution calculates altitude or clearance values ​​for any target under the most challenging conditions.

Use the 3-shot Height routine to shoot upright targets such as utility poles or buildings, even if the top or bottom may be obscured. The Vertical Distance and Missing Line modes are great for leaning objects, such as most trees you'll come across; and clearance values ​​for power lines or bridges on roads.

Download measurement data to the device using the standard RS232 serial port included with these lasers or wireless communication. These measurements can be used to remotely locate objects when integrated with GPS, or to add altitude values ​​as attributes in a GIS.




What else can we say about TruPulse? Our customers claim it pays for itself on their first project, so experience it for yourself and see why the TruPulse Laser Distance Meter is one of the best measurement tools in the world.

How the TruPulse Laser Distance Meter Measures:

  • Measure distance, altitude, missing line* and azimuth*.
  • Fits in a vest pocket and is very economical.
  • Display all measurements and menus directly in the oscilloscope.
  • Mounts on a staff or monopod for added stability
  • Integrate with GPS and popular GIS software**.





For more information, please feel free to contact our sales team. Thanks.
