brand: | Bolida | Rotary blade: | 2/4/6 |
Packaging Details: | Standard Seaworthy Packaging for Large Capacity Wood Chippers | Screen: | 5*5cm |
Supply capacity: | 50 sets per month | Tool diameter: | 433 |
Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | port: | Qingdao/Ningbo/Tianjin Large Capacity Wood Chipper |
Fixed blade: | 1 | Aperture size: | 4*4cm or 5*5cm |
Marketing Type: | New Products 2022 | Tool length: | 600*180*20*2 |
Core Components Warranty: | 1 year | Dimensions (L*W*H): | 4720*3100*1950 |
Function: | making wood chips | place of origin; place of origin: | Shandong China |
Health status: | new | Mechanical test report: | if |
Number of cutters: | 4 | Applicable industries: | manufacturing plant |
Operation: | with PLC and remote device | Mill particle size: | 3-5cm |
capacity: | 20-30tph | Raw materials: | Diameter should be less than 45cm |
main power: | 315kW | Weight (kg): | 17000 |
Warranty: | 1 year | Video external inspection: | if |
Showroom location: | Vietnam, Indonesia, Russia, South Korea | Packaging Preview: | |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Main selling point: | easy to operate |
Feed hopper size: | 1100*500 | Model: | Bolida drum wood chipper |
Inlet diameter: | 1100*500 | | |
Product Description

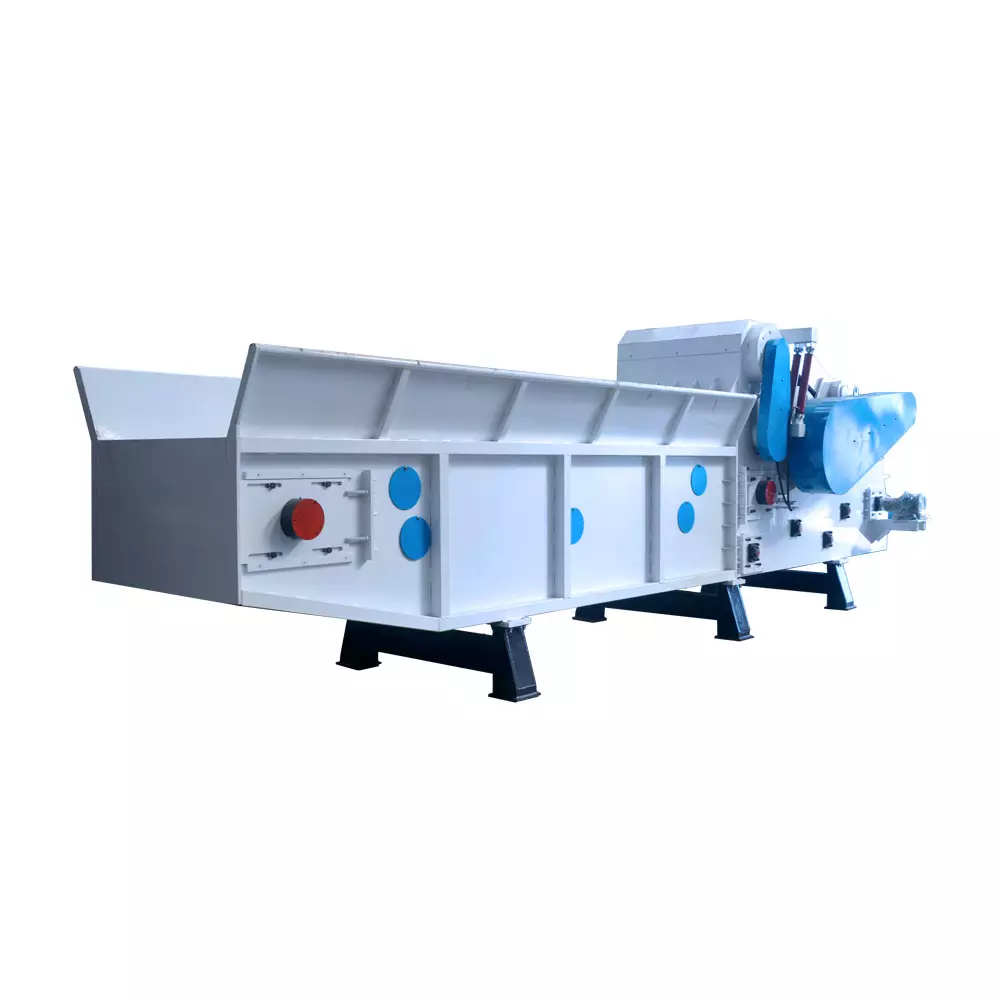

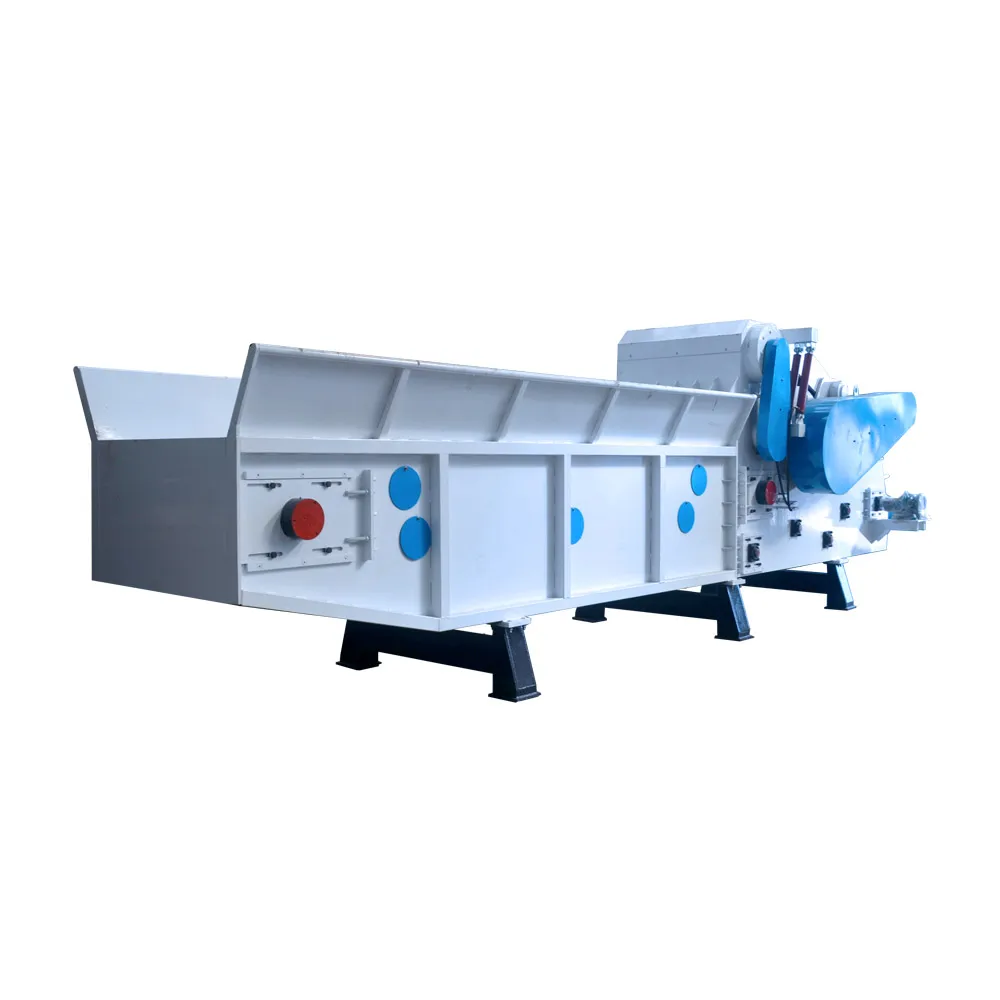

Bolida drum wood chipper
Bolida drum wood chipper is optimized with Vermeer technology
Drum wood chippers typically use two sets of tools, a fixed blade (bottom blade) and a spindle fly blade. The tool material is usually manganese steel; the machine base is made of high-strength steel through CNC machining and robot welding, which is the support foundation of the whole machine.
2/4/6 pieces of flying knives are installed on the knife roller, and the flying knives are fixed on the knife roller by pressure
Blocks with special flying blade bolts.
According to the thickness of the raw material to be cut, the upper feed roller assembly is lifted and lowered within a certain range by means of a hydraulic system.
The discharge port is equipped with a sturdy and durable alloy steel screen. The qualified cutting materials fall through the screen holes and are discharged from the bottom through the discharge belt conveyor. The oversized materials are cut in the screen.
machine.
Details picture

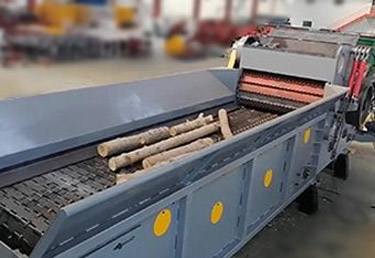

chain conveyor
Using chain conveyor instead of traditional belt conveyor, long service life

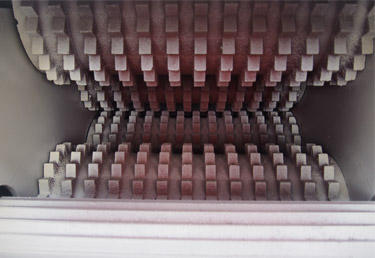

feed roller
The feed roller is made of cast steel 45, with high strength and good performance
than weldment

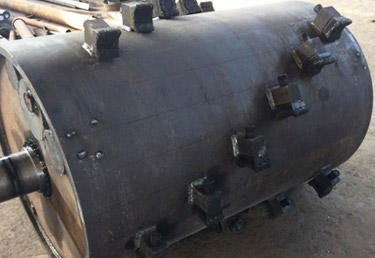

special wood hammer
Service life: 3000-5000 tons of wood chips Function: Punch waste wood pallets into small size for materials with nails

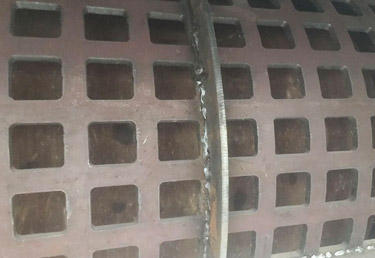

Screen
Service life: 4-6 months Material: Carbon steel Hole size: 3-5cm

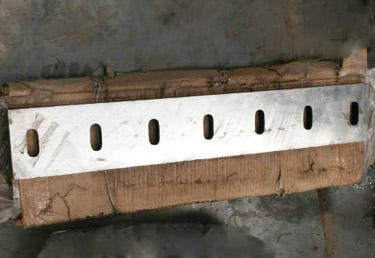

fixed blade
65# manganese steel blade thickness is 20mm, and each grinding is 1mm thin. Lifespan: 4-6 months

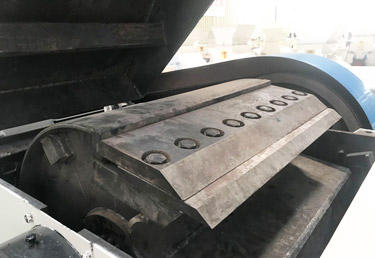

rotating blade
65# manganese steel life: 800-1200 hours

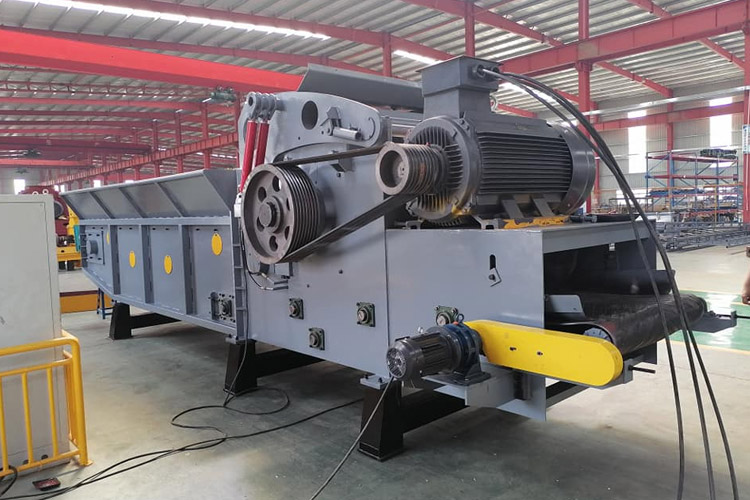

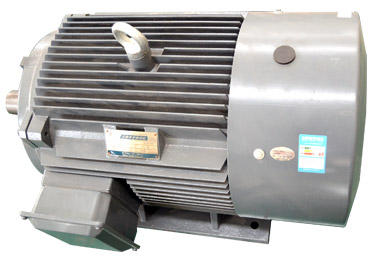

motor
Use a Siemens Bader motor

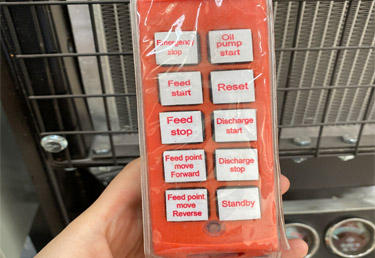

remote device
With remote control device to control feed feeding and feeding
behind;
Product parameters
Model | | | | notes |
BMPJ216 | 55 | 3-5 | 545*230 | The raw material size is preferably less than 15cm |
BMPJ218 | 110 | 6-10 | 710*360 | The diameter of the raw material is preferably less than 30cm |
BMPJ1300-600 | 160 | 12-15 | 1300*600 | It can cut raw material with nails |
BMPJ 1400-700 | 220 | 15-20 | 1400*700 | It can cut raw material with nails |
BMPJ2113 | 315 | 20-25 | 1100*500 | The diameter of the wood should be less than 45cm |
Raw materials and applications
wood chipper raw material
Wooden logs, diameter wooden branches, waste formwork construction, wooden pallets, bamboo ..

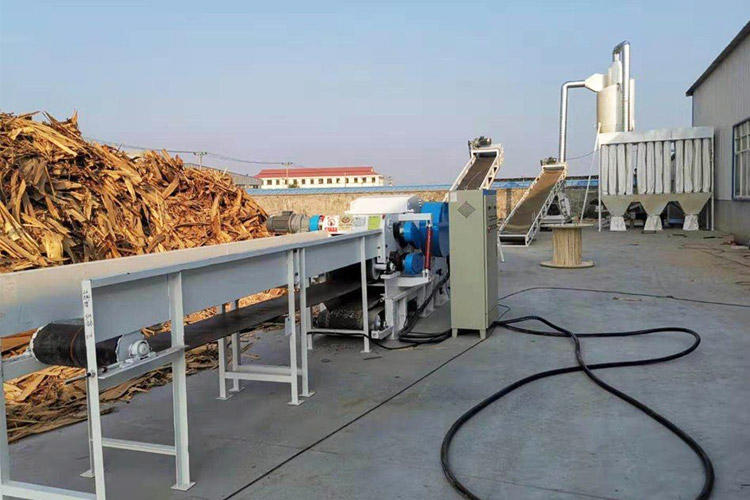

customer photo
20-25t/h wood chipper for Korean customers
Bolida

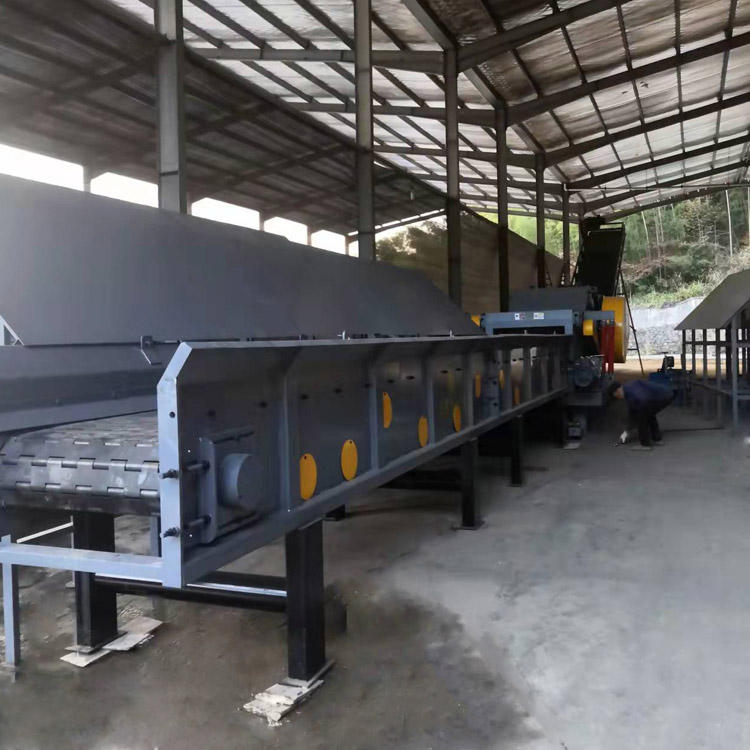

Heavy Duty Drum Wood Chipper, main power 315kw, with 4m feeding chain conveyor and 8m discharging belt conveyor

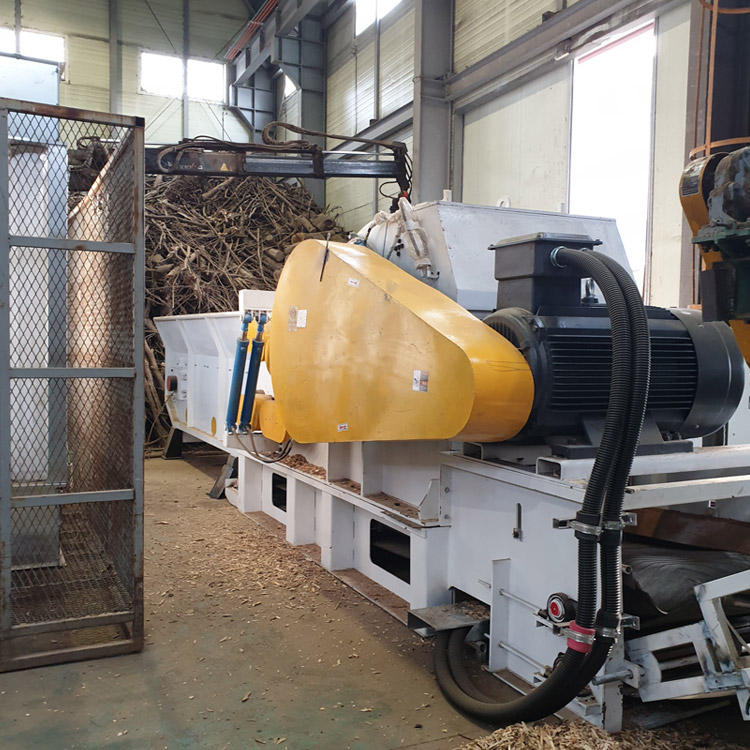

YMPJ2113 Drum Wood Chipper
drum wood chipsr, specially designed for customer 10m bamboo. The length of the chain conveyor is 10m, and the discharge belt conveyor is 12m.

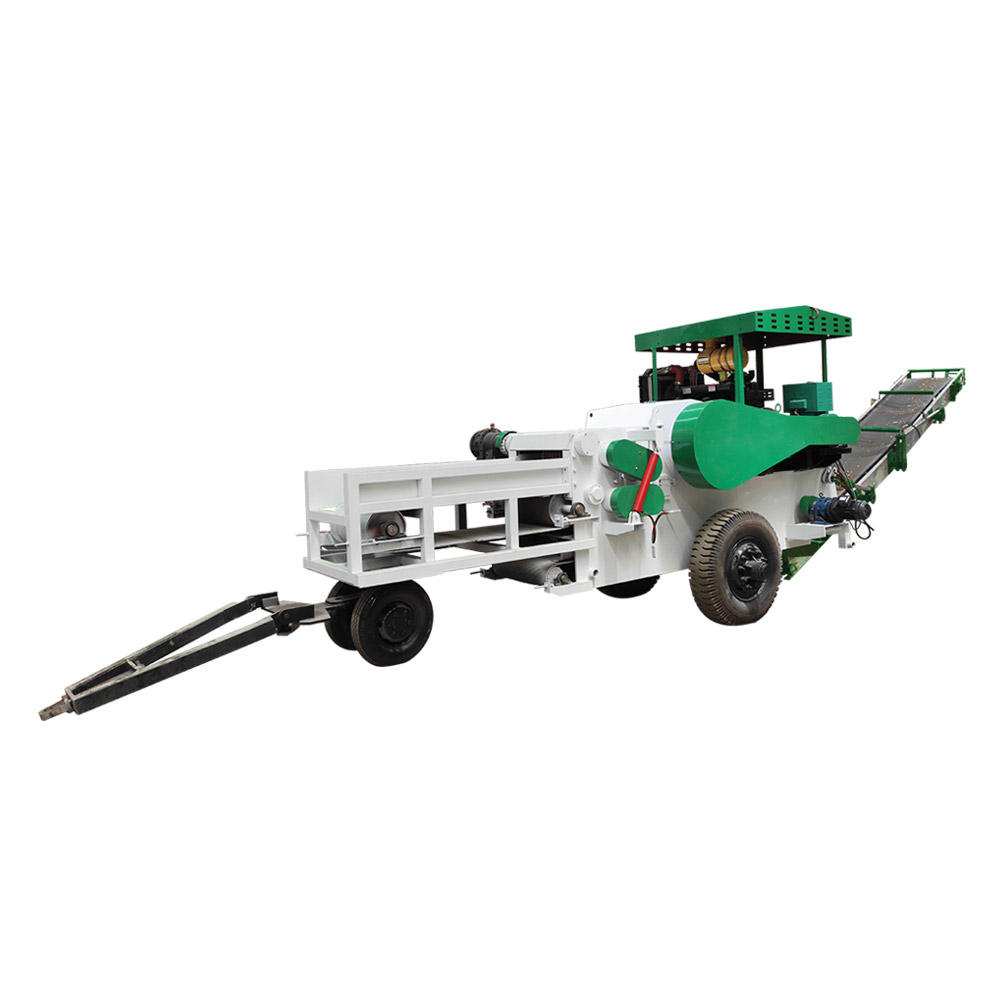

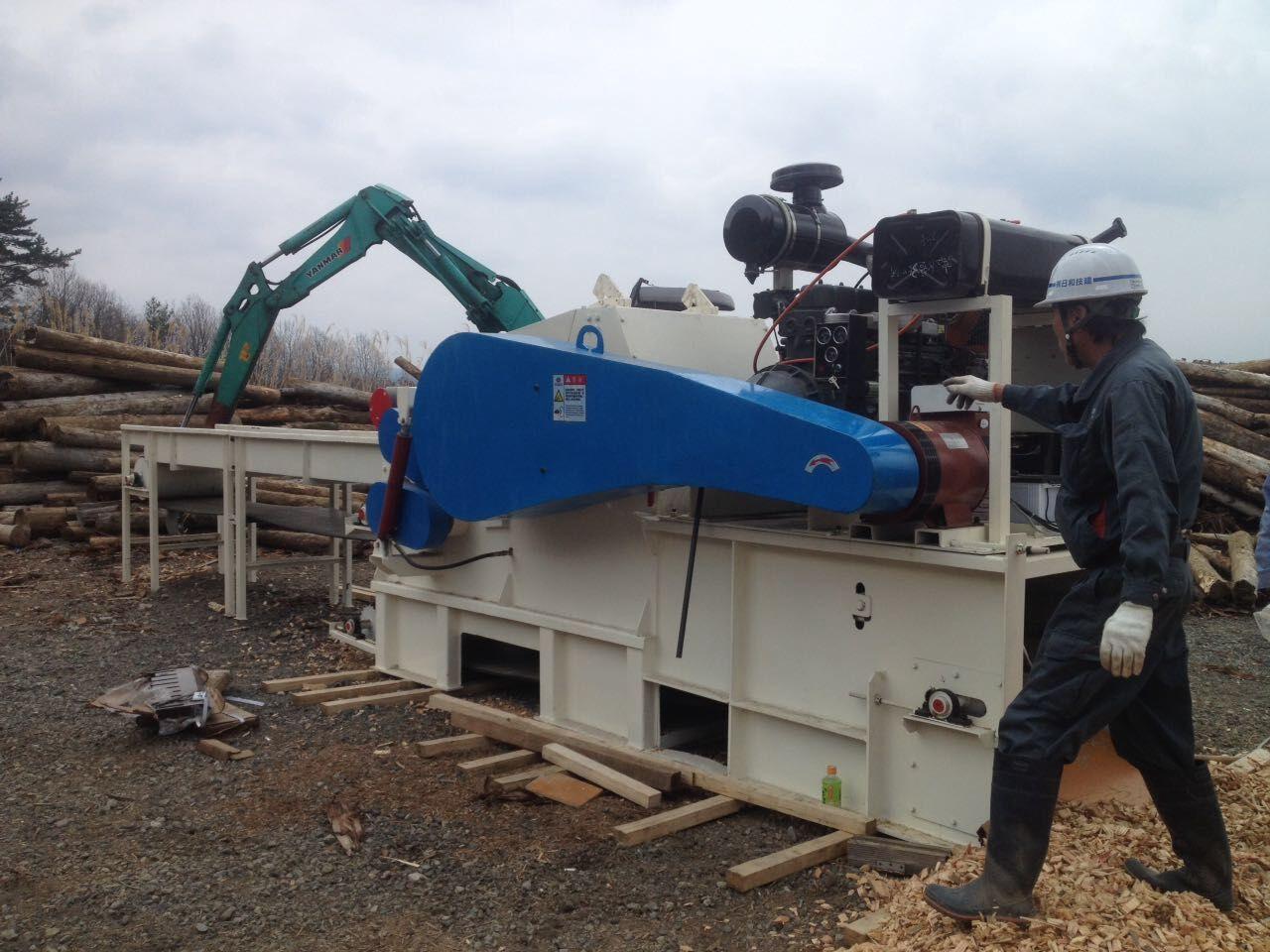

Japanese diesel wood chipper
diesel wood chipperFor Japanese customers, mainly for forests. Due to the lack of electricity in the forest, a diesel engine was used instead of the electric motor type.

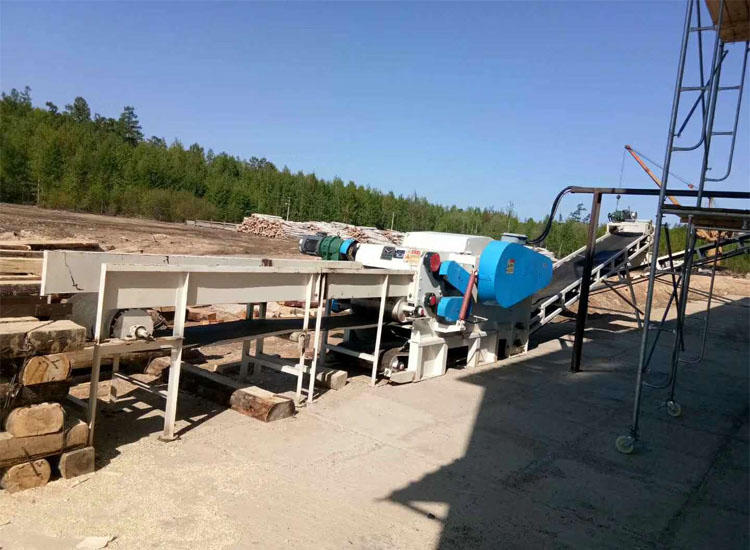

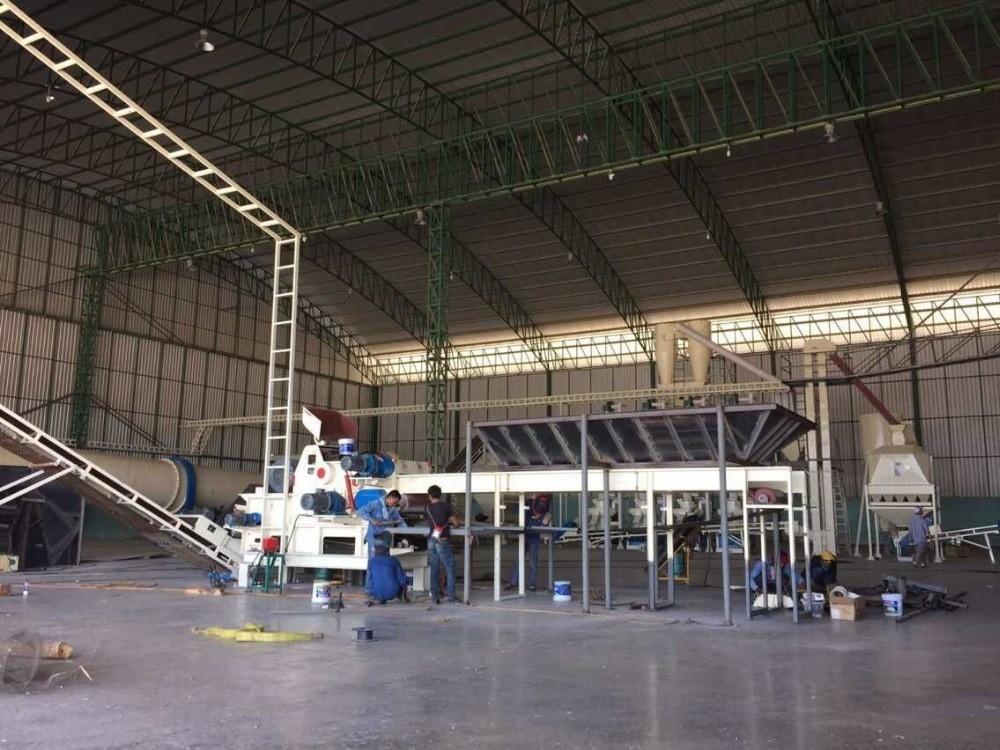

Thailand Large Capacity Drum Wood Chipper
thisdrum wood chipperFor biomass wood pellet plants. The first step is to cut the log into 3-5cm pieces.

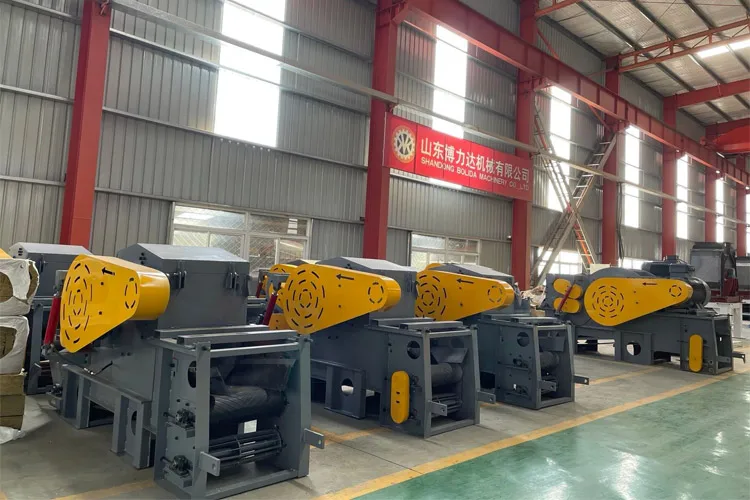

BOLIDA 216 Drum Wood Chipper
216wood chipper55kw is the smallest model for industrial use. It is equipped with 4m feed cutter and 6m discharge belt conveyor for chipper scrap shredder..
BOLIDA 218 Drum Wood Chipper
218drum wood chipper110kw, the capacity is 8-10tph. Widely used in major biomass pellet plants. The diameter of the wood should be less than 30 cm.
Bolida hot products

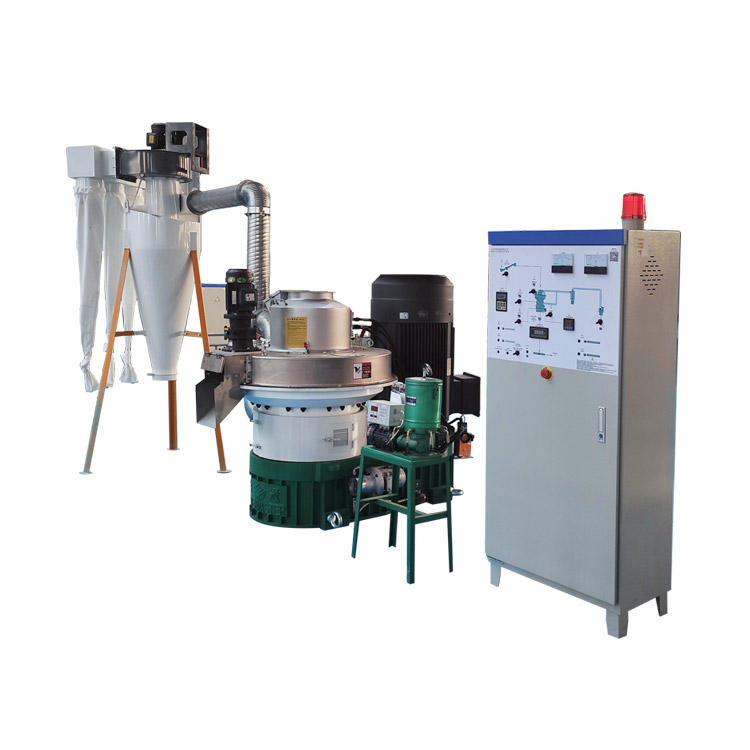

Bolida biomass pellet machine
biomass pellet machine, is also calledBiomass pelletizer, or wood pellet press,It is mainly used for pressing wood chips, rice husks, etc. into 6mm/8mm wood chips.

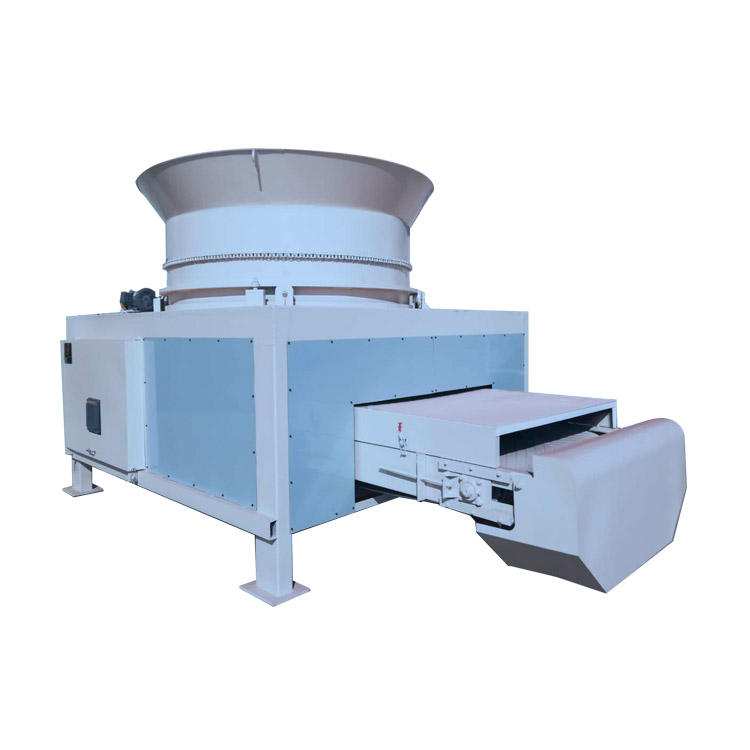

Bolida rotary cutter
rotary cutterMainly used for cutting wheat straw and cotton stalk into 10-30mm.
Usually the diameter of the wheat straw is large, about 2m, and the wheat straw is fed into the rotary cutter with a forklift.

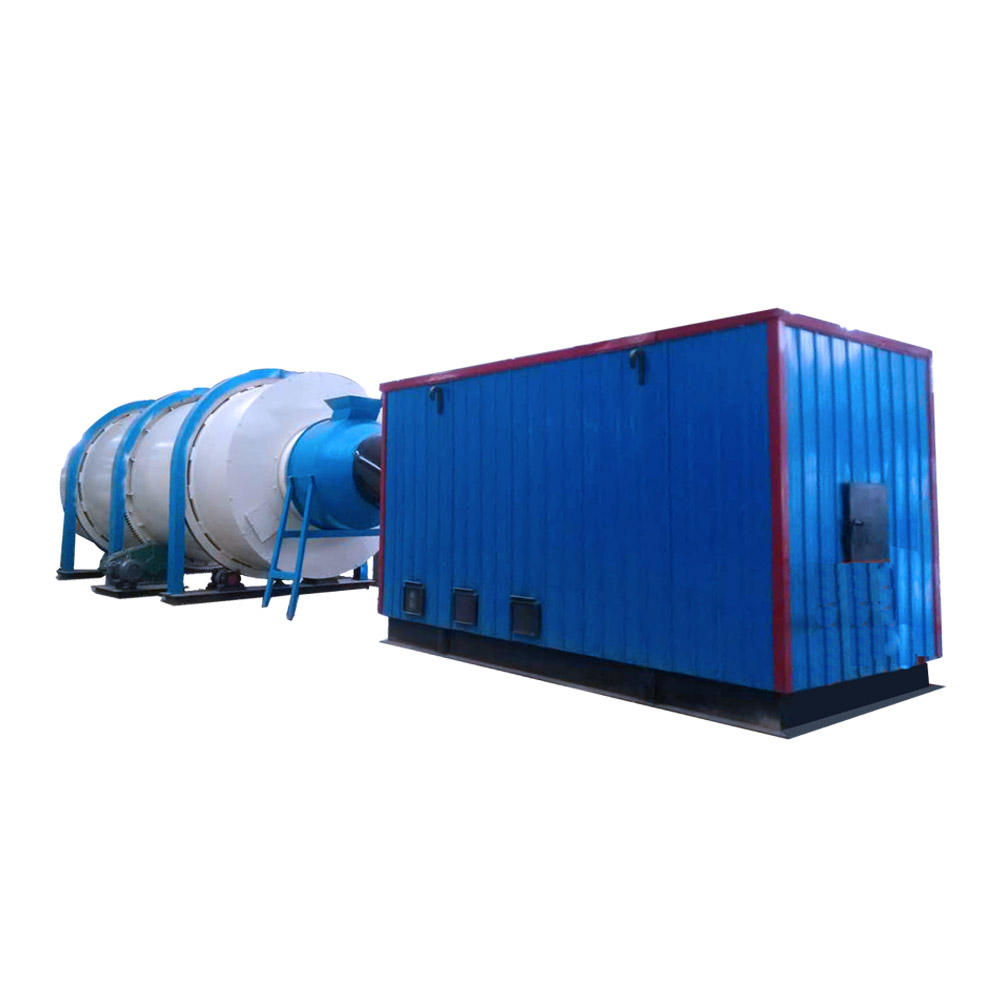

Bolida Rotary Dryer/Three Pass Dryer
Bolida Rotary DryerIt is mainly used to dry wet wood chips and sawdust into suitable moisture. Hand stoves, chain stoves or pellet burners are typically used to provide heat to drying equipment.

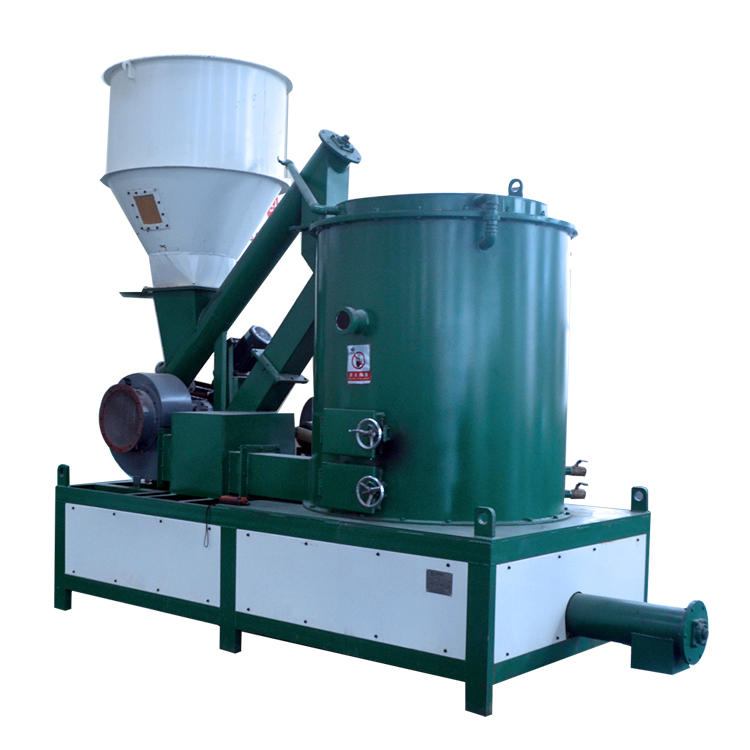

Bolida biomass pellet burner
biomass pellet burnerIt uses wood pellets and rice husk pellets as fuel. For large biomass pellet burners, it comes with an automatic ash removal system.
Bolida diesel wood chipper
Diesel Mobile Roller Wood Chipper ShredderIt is widely used in some places with power shortage. It has wheels so it is easy to move.

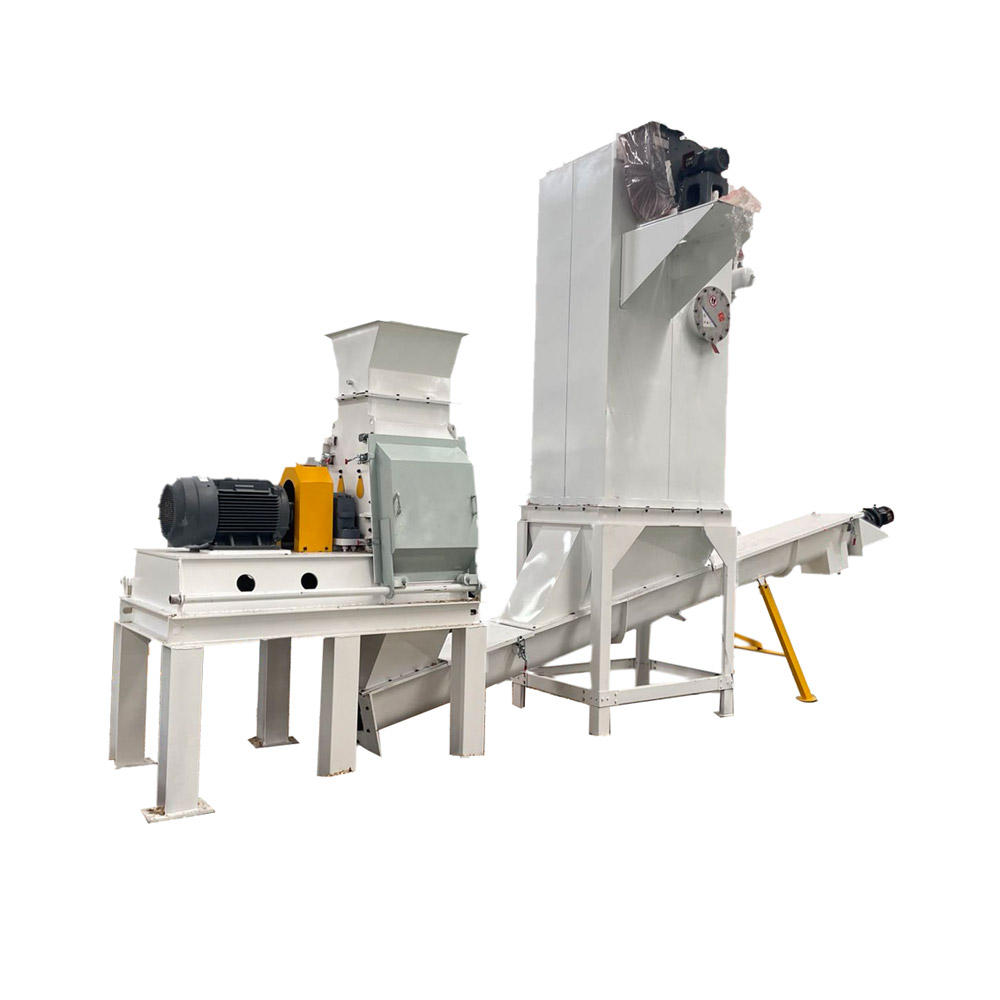

Bolida High Efficiency Hammer Mill
