SARY industrial small 12V DC electric holding magnet round electromagnet LY2525 lifting electromagnet 8kgs

  • Supplier: Guangzhou Sary Electronics Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Wenzhao
  • Price: $4.65 / 1 - 99 pieces
    $4.45 / 100 - 999 pieces
    $3.95 / >=1000 pieces
  • Min. Order: 1 piece
Product details
Weight (kg):0.1 kgSingle package size:13X8X6 cm
brand:SurreyHealth status:new
Service life:500,000 timesWarranty:6 months
installation method:tightenVideo external inspection:Not available
place of origin; place of origin:Guangdong, ChinaUse voltage:DC12V
Core Components Warranty:1 yearRetentivity:8kg
After Warranty Service:Online supportCore components:motor
Way of working:Power on holdsize:Length 25mm*width 25mm
Material:ironSales unit:single product
Local service location:not anyGross weight per piece:0.100 kg
Marketing Type:New Products 2020Mechanical test report:Not available
Showroom location:not any
Product display

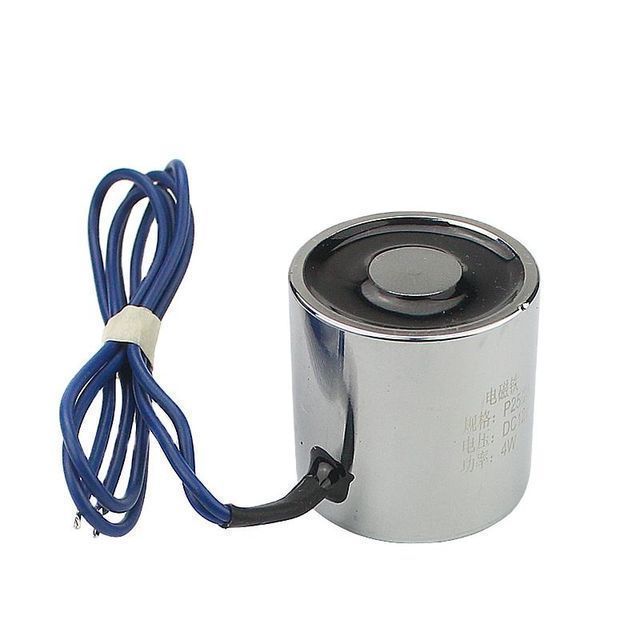

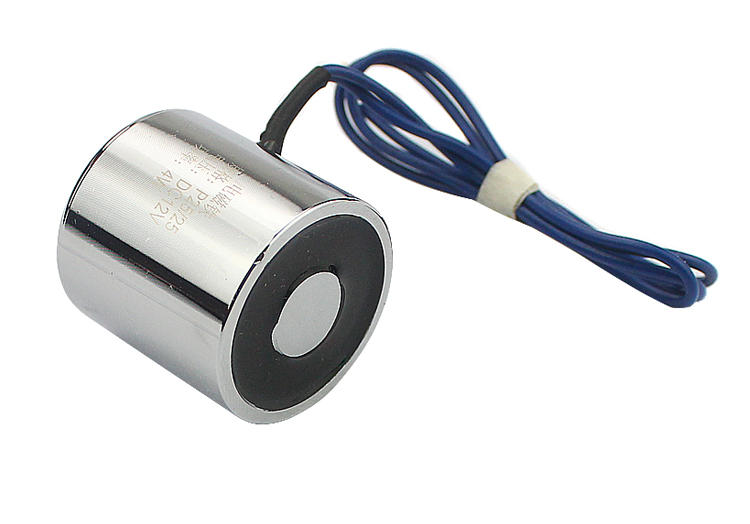

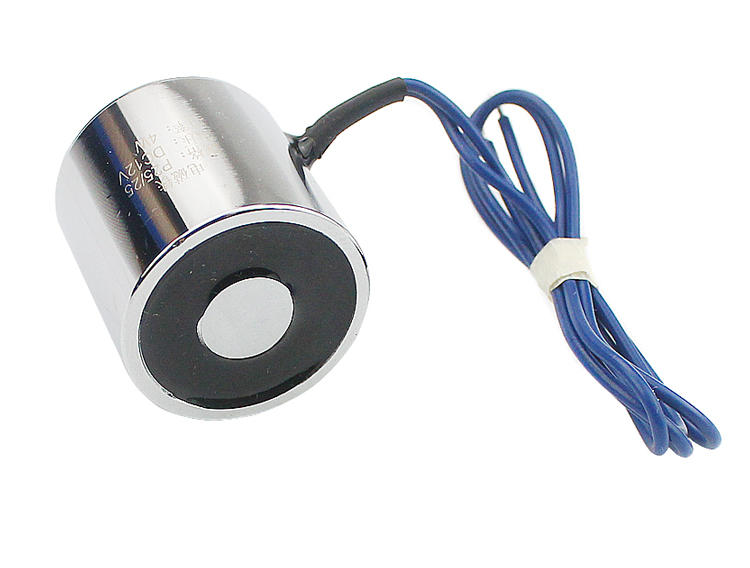

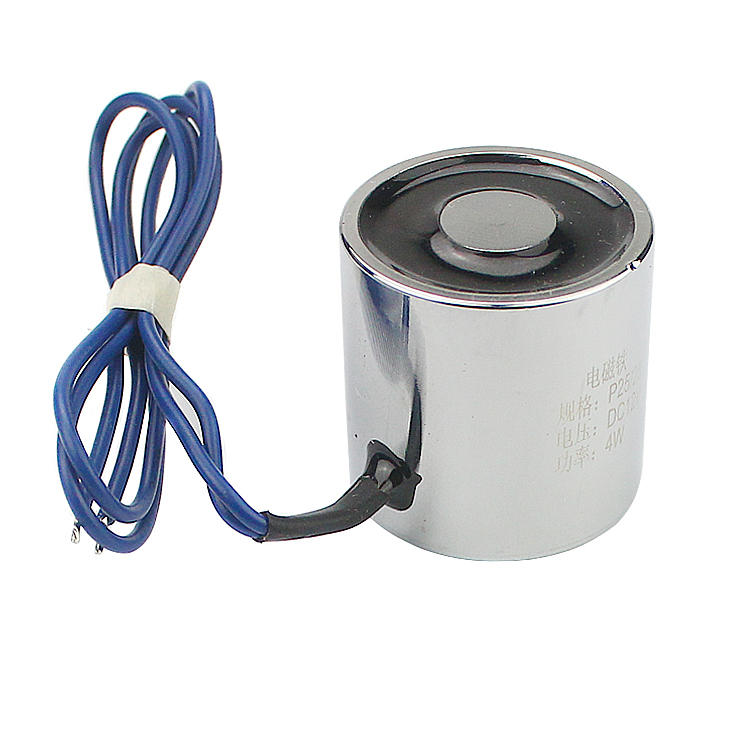

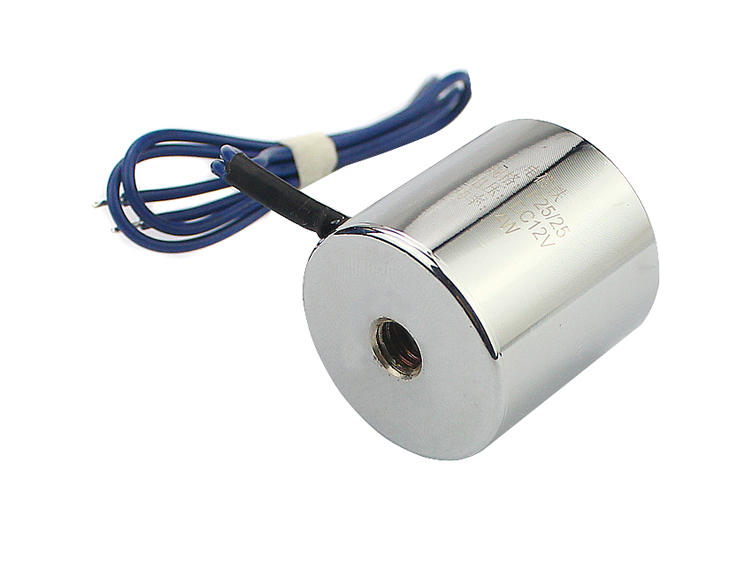

LY-2525 DC12V small lifting electromagnet holding force 8kgs

Product number: LY-2525
Use voltage: DC12V Working current: 330mA Product power consumption: 4W Working method: Power-on Retention force: 80N (8kgs) Product life: 500,000 times Product weight: 0.1KG
Why choose us
Electromagnet Description The normal use of the electromagnet must meet the following conditions to achieve the maximum suction value 1. The magnetically conductive object must be a good magnetically conductive material 2. Use the correct power supply and voltage 3. The surface of the magnetically conductive object must be kept flat and clean 4. The magnetically conductive object The contact area must be greater than or equal to the outer diameter of the electromagnet 5. The thickness of the magnetically conductive object must be greater than 8mm to achieve the standard pull-in force. When the thickness is reduced, the force will be reduced. 6. There can be no distance between the contact object and the electromagnet, and no object can be isolated

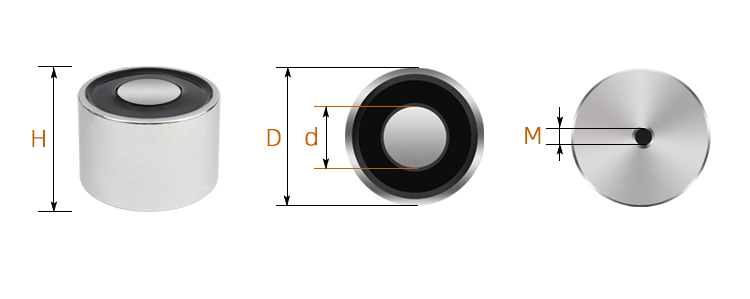

SARY round hold electromagnet
Model
Height (H)
Outer diameter (D)
Inner diameter (d)
Thread size (M)
thread depth
Retentivity
LY-1809
8.6mm
18mm
8mm
3-M2
1.6mm
1.2kg
LY-2015
15mm
20mm
8mm
M3
6mm
2.5kg
LY-2510
10mm
25mm
12mm
M4
/
6kg
LY-2525
25mm
25mm
10mm
M6
10mm
8kg
LY-2825
25mm
28mm
12mm
M6
8mm
10 kg
LY-3530
30mm
35mm
15mm
M6
12mm
25kg
LY-4020
20mm
40mm
25mm
M6
12mm
35kg
LY-4027
27mm
40mm
19mm
M6
12mm
38kg
LY-5042
42mm
50mm
25mm
M6
12mm
55kg
