Solvent-free solvent-free laminating machine for flexible packaging film printing aluminum foil, paper roll

Product details
payment terms:L/C,Western Union,D/P,T/TPackaging Details:export standard wooden pallet
speed:500 m/minRack Thickness:80mm
Showroom location:not anySupply capacity:10 sets per month
port:NingboMechanical test report:if
strength:58KWCertification:Chief Executive
pack:metal trayCore components:PLC, motor
Melter:A+B glue mixerLocal service location:not any
place of origin; place of origin:Chinaweight:16000KGS
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesMain selling point:high productivity
Health status:newWarranty:2 years
Dimensions (L*W*H):5100x3600x2500MMbrand:Mori
Voltage:380VAfter-sales service provided:Video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support
Marketing Type:Hot Products of 2021Applicable industries:manufacturing plant
Video external inspection:ifCore Components Warranty:2 years

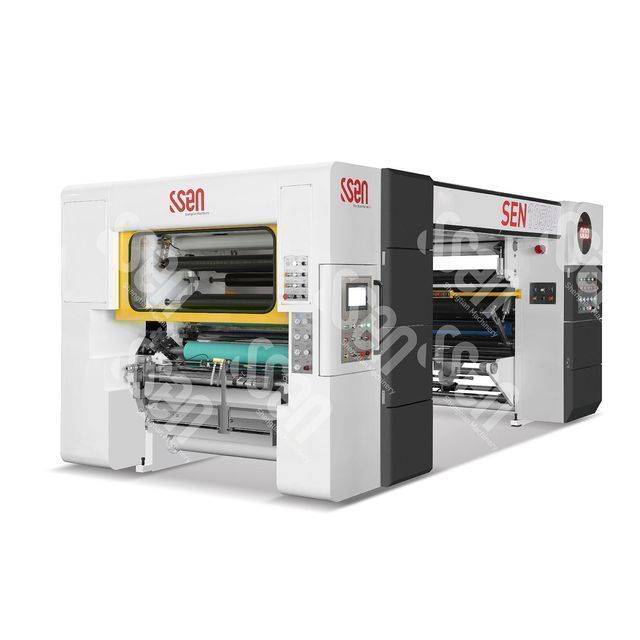

SEN-1050/1350A Solvent Free Solvent Free Laminating Machine for Flexible Packaging Film, Printing Aluminum Foil, Paper Roll

This machine is suitable for high-speed lamination of different types of films, papers and aluminum foils, and has the advantages of high efficiency, good performance, and no solvent residue in the product.

advantage:

1.tension controlSystem: PurposeThe dance roller system controlled by Japan's Fujikura low-friction cylinder is adopted.
2.Coated Section Gap System:The initial coating amount is detected by the gap between the scraper roller and the metering roller, and is adjusted by a Japanese brand ball reducer. The adjustment accuracy is ±0.001 mm (1 micron). After cleaning, there is no need to re-adjust the gap, and the pointer will automatically adjust back to the original gap. It is more convenient and saves time for the operator.
3.Coating section, metering roller and transfer roller,Each uses 1 servo motor + servo drive control. Coating quantity control is more precise;
4.Machine structure, we use 80mm thick solid steel,The weight of the machine is 14-15 tons, and the sturdy body ensures more stable high-speed work.
5. Both the unwinder and the rewinder are shaftlessType Autoloader with 3 and 6 inchescore adapter.

Optional equipment:

  1. One-component glue applicator
  2. Corona treatment device
  3. Siemens servo motor system/Allen-Brad ley USA electrical system optional.

The main parameters:

Ways of printing materials

left to right

mechanical speed

580 m/min

Maximum lamination speed

500 m/min

(Maximum production speed will be affected by the quality and performance of the substrate and adhesive used)

Maximum coating width

1050mm

Maximum roll width

1050mm

Minimum roll width

400mm

Unfold the core

3''=76mm and 6''=152mm

Winding paper core

3''=76mm and 6''=152mm

Unwinding tension range

3--40kg(400N)

Winding tension range

4--55kg(550N)

Rewind tension setting range

100%--60%

Maximum roll weight

1,000kg

Coating range

0.8-3g/sm

aspect

5100x3600x2500MM

strength

53KW

weight

14000KG

machine color

ivory

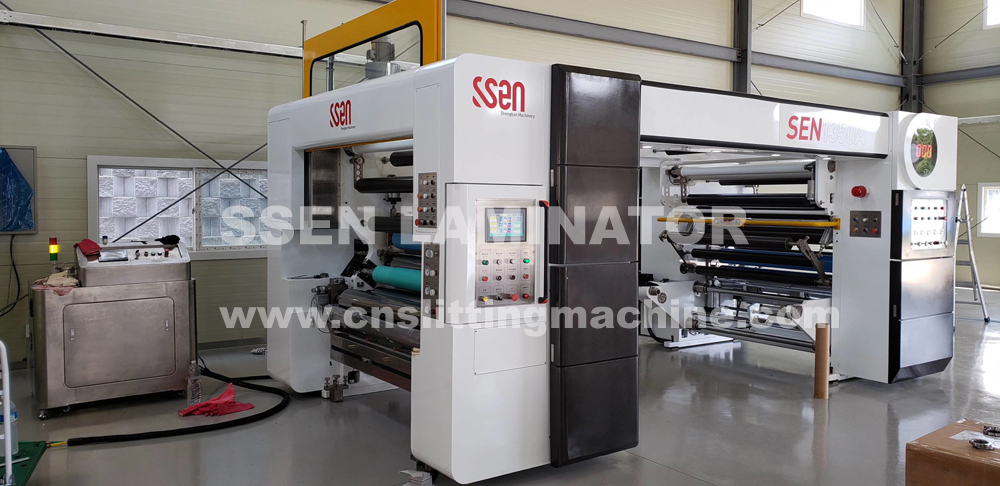

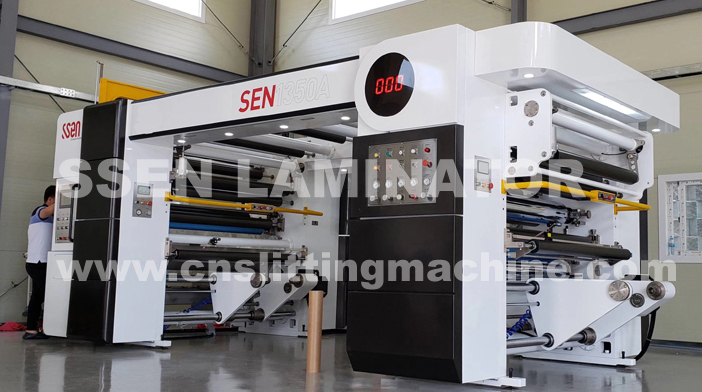

Machine photo:
