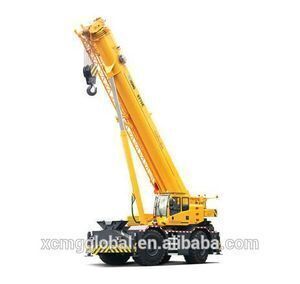

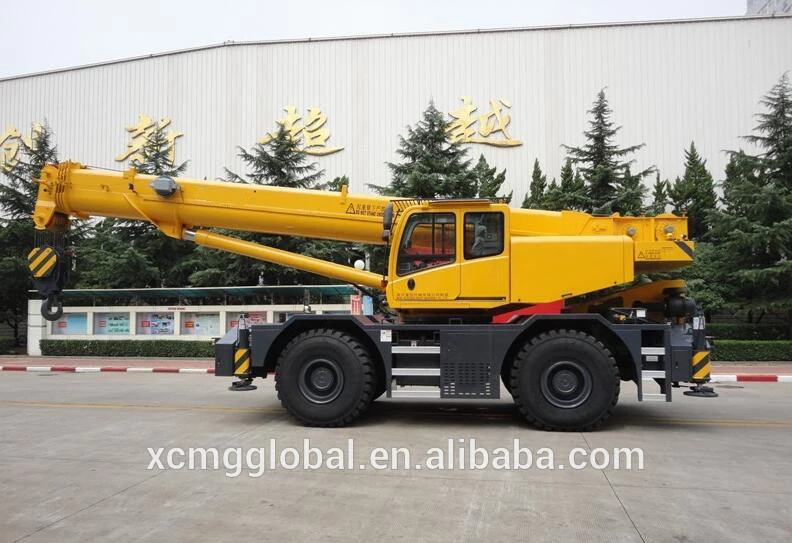

Xugong rugged terrain mobile 50 tons truck crane size

Supplier: Heihe Yuxin Trading Co., Ltd.
Region: Heilongjiang, China
Contact: Ms Sunny Shan
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	shanghai;	Condition:	New;
Packaging Detail:	Export package.;	Origin:	100% China;
Wheel Track:	14067mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	30 Set/Sets per Month;	Application:	Construction;
Place of Origin:	Jiangsu China (Mainland);	Feature:	Truck Crane;
Max. Lifting Height:	60.2 m;	Product name:	50 tons truck crane size;
Warranty:	1 Year;	Color:	Yellow;
Gross Vehicle Weight When Driving:	58000kg;	Span:	7.6m;
Warranty:	1 Year;	Max. Lifting Load:	80 ton;
Payment Terms:	L/C,T/T;	Wheel Base:	2554mm;
Rated Lifting Moment:	1424 N.m/(r/min);	Brand Name:	Xugong;
Max. Slewing Speed:	1.8(r/min);	Certification:	ISO;
Rated Loading Capacity:	60.2 m;

Xugong rugged terrain mobile 50 tons truck crane size

1:Maneuvering and Flexible, Quick and Efficient

The max speed reaches 36km/h and the max gradeability is 60% and the min. turning radius is 7.5m. All these three factors make it flexible.

The product is equipped with great power system, specialized cross-country tire and skid resisting differential locking gear. All these three factors make it drive over all kinds of road easily.

2:Safe and Reliable, No Worry to Handle

The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.

The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 4,000km and 10,000 times hanging. Both ensure its reliability.

3:Economic and Environmental Protection, with Cost Saving

The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.

The downward-gravity luffing system makes the product need no extra power. And the electrical variable power control decreases the comprehensive oil consumption by 15%.

4:Comfortable to Handle, Convenient to Operate

The product is equipped with full hydro-steering control system and automatic manual gear box, which make it easy to handle. It is equipped with turnover handling room, which presents a border view and makes it more comfortable to operate.

The product is equipped with humanized climb ladder, maintenance access and control layout. And it is equipped with professional man-machine engineering simulation analysis; exquisite man-machine interface and stand-alone fault diagnose function. It is comfortable to handle and convenient to operate.

Project	Unit	Parameter
Weight Parameters
Axle Load	(kg)	(Front Axle)30350 (Rear Axle)27650
Kinetic Paremeter
Engine Rated Power(kw/	(kw/(r/min))	209
Engine Max Torque(N.m/	(N.m/(r/min))	1424
Max Travel Speed	(km/h)	36
Min Travel Speed	(km/h)	2
Swerve
Min Turning Radius	(m)	15
Max Gradeability	(%)	60
Max. Load Moment of Basic Jib	(kN·m)	3140
Radius of Gyration of Turntable Tail	(mm)	4625
Outrigger
Longitudinal	(m)	7.8
Horizontal	(m)	7.6/6.5
Boom Length of Crane
Basic Boom	(m)	11.9
Longest Main Boom	(m)	46
Full Stretching	(s)	152

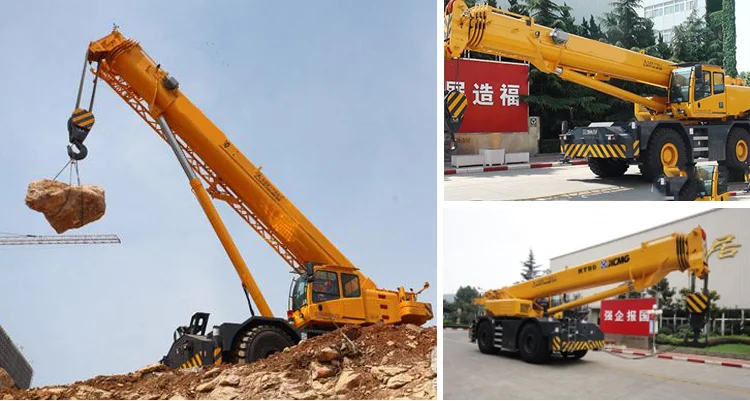

The product is a high-end model developed by Xugong and experienced R&D institute in Europe. The product is equipped with two-axle loading chassis and has two types of driving model, four types of turning models and back-and-forward driving function. It has five sections of quadrangular great circle main doom, H-type outrigger, combined self-removal and installation counterweight. It has three types of operation models such as operation with the support of outrigger, operation with the support of tire and hanging when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.

Factory Show

1: Fengtai has been established for 26 years. It is a professional dump truck, excavator, forklift, crane, concrete mixer, road roller, loader and so on. :

2: to introduce to CHANGLIN, SHANTUI, Sany, ZOOMLION, China, Liugong, SDLG, HOWO, SHANTUI, HBXG, YTO, North Ben and other outstanding engineering machinery enterprises and products.

3: for more than 20 years, we have established a good reputation in Russia and Asia. We sell more than 3000 sets of products each year, so that we can get a very competitive price from mechanical Mills.

1.Q:What are your advantages compared with others?

A:1.competitive technology-we are as the leading dealers of various China machinery manufactures.

2.competitive service-Our company has good maintenance team,we can provide best service everytime and everywhere.

3.fast delivery-It will take about 15 days for factories to produce the ordered products.

4.competitive service- we often have an negotation from numerous comparison and feedbacks from clients,our price is more competitive than others.

2.Q:How can i believe you and your factory?

A:Since it is not the little thing to purchase machine,you can come to China to visit us for an inspect,and we will welcome you enthusiasm.so we can establish good cooperation with each other.

3.Q:How long of the warranty period ?

A:1year

4.Q:How about delivery?

A:delivery:7-10 working days after payment
packing:
A:container or RORO ship
B:Nude package or according customers requirements
better shipping is chosen for you accordingly.
reply you in 24 hours, if you are urgent, we can reply you soonest.
