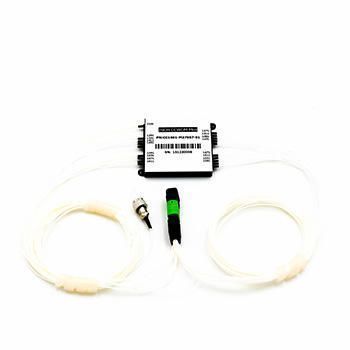

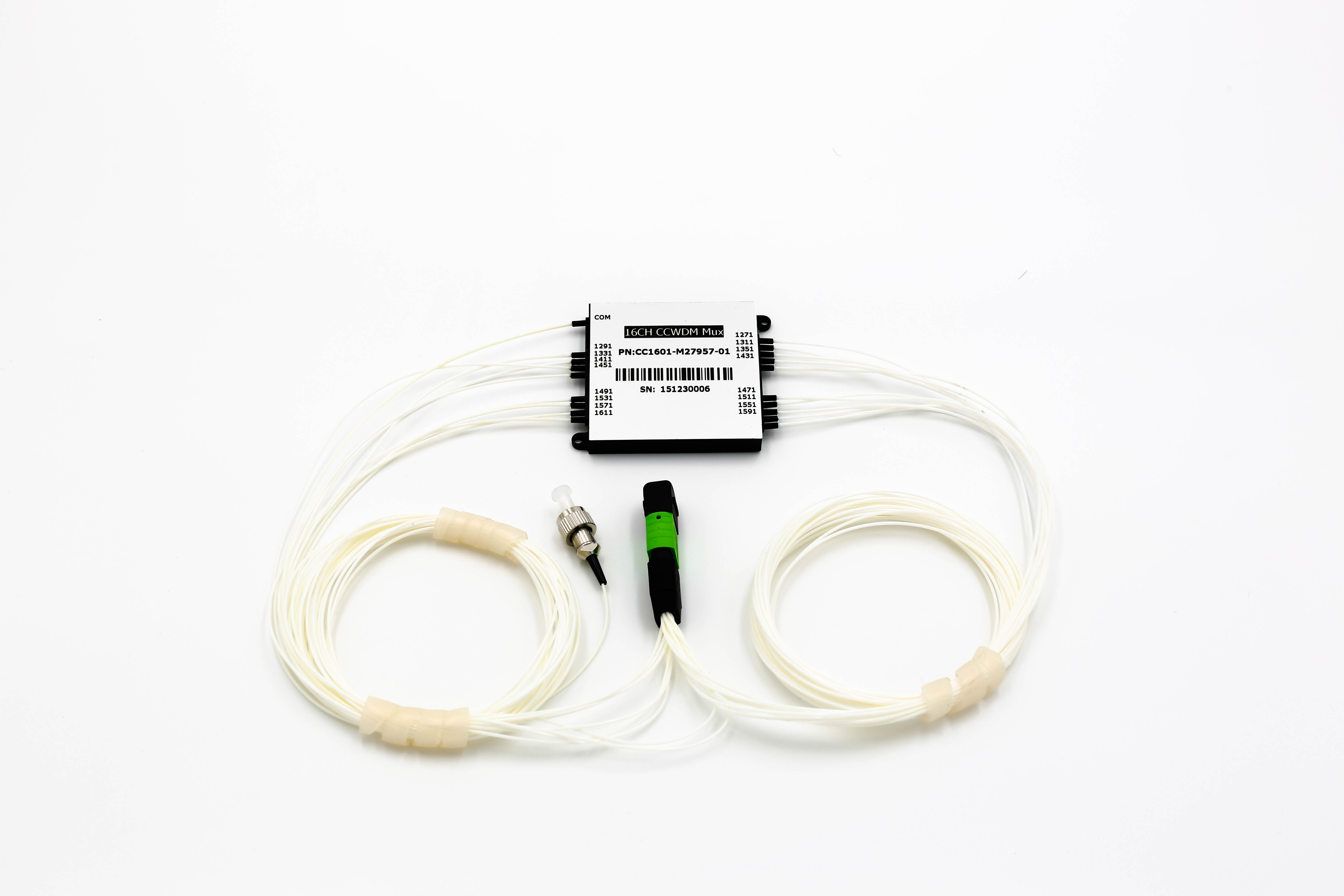

ABS Box Package Compact WDM 16CH CCWDM WDM Mux/Demux
-
Supplier: Shenzhen Ih Optics Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Tina Yin -
Price: $6.00 / 10 - 99 pieces
$4.00 / 100 - 999 pieces
$2.00 / >=1000 pieces -
Min. Order: 10 pieces
Product details
| payment terms: | Western Union,L/C,D/P,D/A,T/T,MoneyGram,paylater | Channel number: | 4, 8 or 16 channels |
| model: | IH-CCWDM | Package: | ABS box |
| Supply capacity: | 50,000 km per week | Packaging Preview: | |
| Packaging Details: | 1PCS/BAG | Certificate: | ROHS, ISO9001 |
| product name: | Wavelength Division Multiplexing, CCWDM | wavelength: | 1270nm, 1471nm, 1491nm 1611nm or others |
| Input/Output Connectors: | FC, SC, LC optional | type: | PLC splitter |
| port: | Shenzhen Port | Pigtail diameter: | 0.9mm |
| Input/Output Length: | 0.5m, 1m or customized | Minimum order quantity: | 1 |
| Card: | IH | place of origin; place of origin: | China |
| structure: | multiplexer or multiplexer |
Product Description

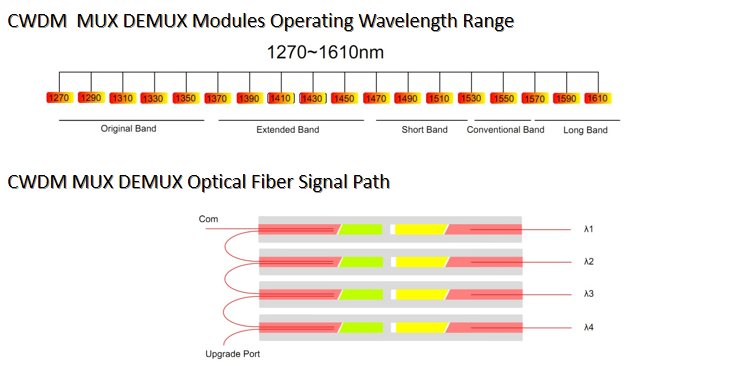

CWDM refers to Coarse Wavelength Division Multiplexer, CWDM MUX DEMUX modules transmit up to 18 different wavelengths on a single fiber with 20nm pitch in the ITU-T CWDM grid standard of 1270nm to 1610nm.
The CWDM MUX DEMUX module utilizes traditional thin film filter (TFFS) technology, the CWDM MUX DEMUX is available in a variety of configurations to enable multi-wavelength add/drop, and most CWDM devices can be designed to transmit over duplex fibers or bi-directionally over a single fiber network transfer up. Today's CWDM MUX DEMUX modules are available in ABS, LGX, 19" 1U rack-mount packages, which are easy to deploy in critical environments, while providing high-definition solutions for WDM networks and extending existing CWDM capabilities.* Low insertion loss
* Wide passband
* High channel isolation
* High stability and reliability
* No epoxy in the light path
* Access to the network
application
* Line monitoring
* Wavelength division multiplexing network
* Telecom
* Cellular application
* optical fiber amplifier
* Access to the network
