Packaging Details: | Stretch film and plywood boxes | Mechanical test report: | if |
Nozzle Type: | Stainless steel | port: | Qingdao |
Weight (kg): | 350 kg | Core Components Warranty: | 1 year |
Marketing Type: | New Products 2020 | Applicable industries: | Building material stores, manufacturing plants, mechanical repair shops, farms, construction works, energy and mining |
Rated fan power: | 18.5kW | Showroom location: | not any |
Nozzle Ring: | 2 | Pump (optional): | 4kW |
Theoretical projection distance: | 55-60m | Number of nozzles: | 60 |
place of origin; place of origin: | Shandong China | Hydraulic connection: | 1.1kw |
Core components: | Gearbox, Pump, Gear, Motor, PLC | Video external inspection: | if |
Elevation Pitch Angle: | -10°-45° | Health status: | new |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Warranty: | 1 year |
Manual rotation angle: | 0-320° | Packaging Preview: | |
Supply capacity: | 200 sets per month |

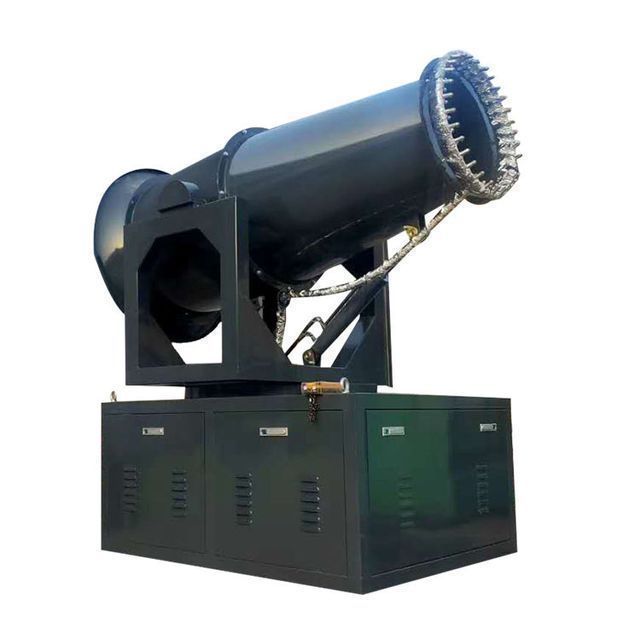

60M vehicle-mounted water mist cannon for agriculture and urban greening
According to the principle of air supply, the dust removal gun uses advanced stainless steel centrifugal pump and fine atomizing nozzle to atomize the water, and then uses the air volume and air pressure of the fan to send the atomized water mist to a farther place. distance, so that the water mist reaches a long distance, which can cover a larger volume at the same time. These tiny artificial fog particles can float and remain suspended in the air for long periods of time. The fog produced by a single nozzle can be up to 3-5 meters long and 1 meter wide, and the water mist and dust will condense after falling, so as to achieve the purpose of dust reduction.
Fog cannon sprayer can be used in urban demolition, mining areas, thermal power plants, port terminals, urban air pollution, areas with excessive dust, metallurgy, chemical industry, coal, steel, construction, gardens, public places and other places to atomize dust and cool down.
Model | 60 |
theoretical projection distance | 55-60m |
nozzle ring | 2 |
Number of nozzles | 60 |
Type Nozzle | Stainless steel |
Rated fan power | 18.5kW |
pump (optional) | 4kW |
Manual rotation angle | 0-320° |
pitch angle | -10°-45° |
hydraulic connection | 1.1kw |
Electrical connections | 380V 50hz 3P+T |
Protection class | IP 55 |
Water filter with withdrawable cartridge | Water filter with withdrawable cartridge |
Water Consumption | 4.5m³/h |
Weight (kg) | 900kg |
pressure | 1.9~2.1Mpa |
length of plunger | 2000mm |
control method | Manual/remote control |
optional | Explosion-proof/anti-freeze/noise reduction |
Package dimensions | 2.2*1.25*2.15 |
Q1: How long is your delivery time?
A1: According to the model and quantity.
If the machine is in stock, it is generally 3-5 days.
If you want to customize the machine, it will take 15-30 days.
Q2: Do you provide samples? Is it free or extra?
A2: Yes, we can provide you with a sample machine.
But it's not free. You need to pay for samples and shipping.
Q3: What are your payment terms?
A3: We accept T/T, Western Union, Alibaba Trade Assurance.
