Drum Chipper Shredder chip sorting machine Veneer Wood Chipper

Supplier: Hebi Yidafeng Industrial Co., Ltd.
Region: Henan, China
Contact: Ms Stephanie Chan
Price: $10000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Certification:	CE ISO9001;	After-sales Service Provided:	Engineers available to service machinery overseas;
Motor:	110kw;	Product name:	wood chipper Shredder;
Package:	in container or plywood case;	Delivery Detail:	in 15-35 days after deposit;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,T/T;	Packaging Detail:	in container Drum Chipper Shredder chip sorting machine Veneer Wood Chipper;
Number of Cutter:	2;	Supply Ability:	100 Unit/Units per Quarter Drum Chipper Shredder chip sorting machine Veneer Wood Chipper;
Inlet Diameter:	750*300MM;	Mill Granularity:	35-45MM;
Model Number:	YF318E;	Brand Name:	YF;
Length of Cutter:	780MM;	Function:	cut wood into chips;
Condition:	New;	Cutter Diameter:	850MM;
Place of Origin:	China (Mainland);	Aperture Size:	65*75MM;
Counter knife:	1pc;	Dimension(LWH):	350026001800MM;
Payment term:	50% deposit banlace paid before shipment;	Spindle Speed:	780RPM;
Port:	Qingdao Tianjin;	Weight:	8300KG;
Delivery Details:	about 35 days;	Input Material:	Wood, pallet,etc.;
Capacity:	10-15T /H;	Bottom knife:	1pc;

Product Description

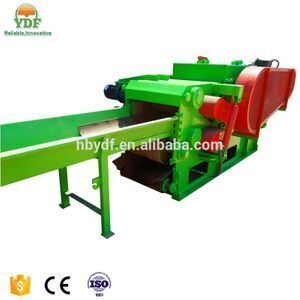

Drum Chipper Shredder chip sorting machine Veneer Wood Chipper

Drum Wood Chipper
Turn wood logs, trunks, timbers, tree branches and such forest wastes into wood chip in one step.
It’s also used for crushing biomass raw materials like oil palm EFB, dry palm EFB, coconut husk, etc..
Horizontal feeding.
Flying knife 2-5pcs according to user’s requirements of output wood chips size.
The structure of this series machine(drum chipper) is reasonable. Through our years of experience, it’s more and more durable and reliable, low spare parts cost, low electricity consumption, heavy duty, slight vibration and high efficiency. It’s deeply welcomed by users and hot-selling.

Technical Parameter

Name	Wood chipper
Model No.	YF318E
Capacity	10-15T/h
Main Motor	110kw
Input Window	750*300mm
Knife Roller	D=850mm / 780rpm
Fuction	Turn wood logs, trunks, timbers, tree branches and such forest wastes into wood chip in one step, output wood chips will be used for boiler fuel or MDF industry.
Other type	YF318E+、YF316E、YF315E

Detailed Images

Feeding Roll
Transmit raw material quickly and directly to flying knife and bottom knife.

Flying knife

Flying knife Made from 6CrW2Si ,have 9 holes,size is 780*220*20mm

Lifespan: 4~6 months.

0.6-1.2mm chipping distance

This distance between flying knife and bottome, and 700-780rpm of knife roller speed, make the primary chipping in high efficiency and good performance.

Spare parts

^{Flying knife, made from 6CrW2Si, have 9 holes}

^{Lifespan: 4~6 months}

Bottom knife, made from 6CrW2Si, have 9 holes

Lifespan: 4~6 months

Pressing board of flying knife and pressing board of bottom knife, made from manganese steel, have 9 holes

Lifespan: 2~3 months

using rage

Input material of drum wood chipper: wood logs, bamboos, trunks, tree branches, pallets, and such forest wastes.

Output product effect

Finished products in short size as 35-45mm for boiler fuel or other uses.

Packing & Delivery

Plywood case Or Iron case

FCL loading, container will be loaded in our factory, taken cared by our workers.

Automatic Chipper Knife Grinder

For chipper knives maintenance, to ensure the high performance of chipper.

Briquette Machine

Press wood chips into briquettes which has high calorific value.

Hydraulic Wood Brick Machine

Press wood chips into brick shape with uniform size and hardness

Our Company

Hebi Yidafeng Industrial Co., Ltd (YDF), is leading supplier of solution, equipment and engineering for palm and coconut EFB chipping, crushing, long fiber extracting, EFB pelletizing; wood, straw and biomass chipping, crushing, pelletizing and etc.
The purpose of all our research and equipment designing is to promote the application of Wasted Empty Fruit Bunch and biomass utilization. In one hand, there is shortage of wood or straws in biomass fuel industry, converting shredded EFB fiber becoming a major contribution in renewable energy. In the other hand, we update the utilization technology of EFB, and reduce the wastes.

Why choose YDF?
1> YDF has worked on field, of turning wasted palm EFB and coconut shell into fibre, for over 5 years, both long fibre for making papers or mattress or geotextile, and short fibre for boiler fuel, making EFB pellets or briquettes, making fertilizer or compost.
2> We have done a lot of trial operation on palm EFB, and coconut shell.
3> We have exported more than 50 fiber production line to Malaysia, Thailand, Indonesia, Peru, etc. We cooperated with users for supervising machine performance in long terms.
4> We are reliable, and treasure our reputation. Fast delivery, fast replying to clients question.

After-sales Services

* One year guarantee
* 24 hours technical support by e-mail
* Calling or door-to-door service
* User manual
