Stainless Steel Pipe Tube 3m Fiber Laser Cutting Machine
-
Supplier: Jinan Derek Laser Technology Co., Ltd. -
Region: Shandong, China -
Contact: Ms Derek Li -
Price: $26200.00 /set -
Min. Order: 1 set
| Packaging Detail: | Standard wood cases.; | Laser Head Brand: | Raytools; |
| Payment Terms: | T/T,Western Union,MoneyGram; | Certification: | CE,FDA; |
| Warranty: | 1 year; | Optical Lens Brand: | Raytools; |
| Graphic Format Supported: | AI,PLT,DXF,BMP,DST,DWG,LAS,DXP; | Applicable Material: | Metal,Metal Alloy; |
| Brand Name: | DRK; | Product name: | Fiber Laser Metal Cutting Machine; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | CNC or Not: | Yes; |
| Servo Motor Brand: | Yaskawa; | Laser Source Brand: | RAYCUS; |
| Laser source: | Raycus IPG; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
| Working area: | 600*400mm/..../6000*2500mm; | Positioning Accuracy: | 0.02mm; |
| Control Software: | Cypcut; | Port: | Qingdao or as Request; |
| Model: | DRK3015F; | Application: | Laser Cutting; |
| Guiderail Brand: | HIWIN; | Control System Brand: | Cypcut; |
| Condition: | New; | Supply Ability: | 100 Set/Sets per Month; |
| Laser power: | 1000W /1500W/ 2000W / 3000W...; | Cutting Thickness: | 0-20mm; |
| Cutting Area: | 3000*1500mm; | Cutting Speed: | 0-25m/min; |
| Laser Type: | Fiber Laser; | Type: | 3015 Fiber Laser Cutting; |
| Cutting materials: | Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine ); | Color: | Blue-white; |
| Place of Origin: | Mainland, China; | Working Voltage: | 380V/50Hz; |
| Key Selling Points: | High-accuracy; | Cooling Mode: | Water Cooling; |
Industrial Fiber Laser Cutting Machine
Our Company Brief |
Jinan Derek Laser Technology Co., Ltd is a special company which produce all type of fiber/CO2 lasing marking machine and fiber/CO2 laser engraving/cutting machine with many years experience, after several years researching and development, our company has developed DRK series laser machines, they are used in many fields and win a good reputation in laser fields. Our laser products could meet most of the customer's needs in the global markets, now we are looking forward to cooperate with all different clients and agents in order to achieve win-win target. Please feel free to contact us if you have any needs for these machines,we would like to offer you a highest quality products and supply the best service to you at the same time.
Our Main products:
l Fiber laser marking machine(mainly for metal +part of non-metal)
l CO2 laser marking machine(mainly for non-metal)
l CO2 laser engraving/cutting machine(mainly for non-metal)
l CO2 metal and non-metal laser cutting machine(metal and non-metal)
l Industrial Fiber laser cutting machine(mainly for metal/metal alloy)
l Wood CNC router
l Plasma cutting machine(thin metal plate 0.5-25mm)
Products Related Photos |

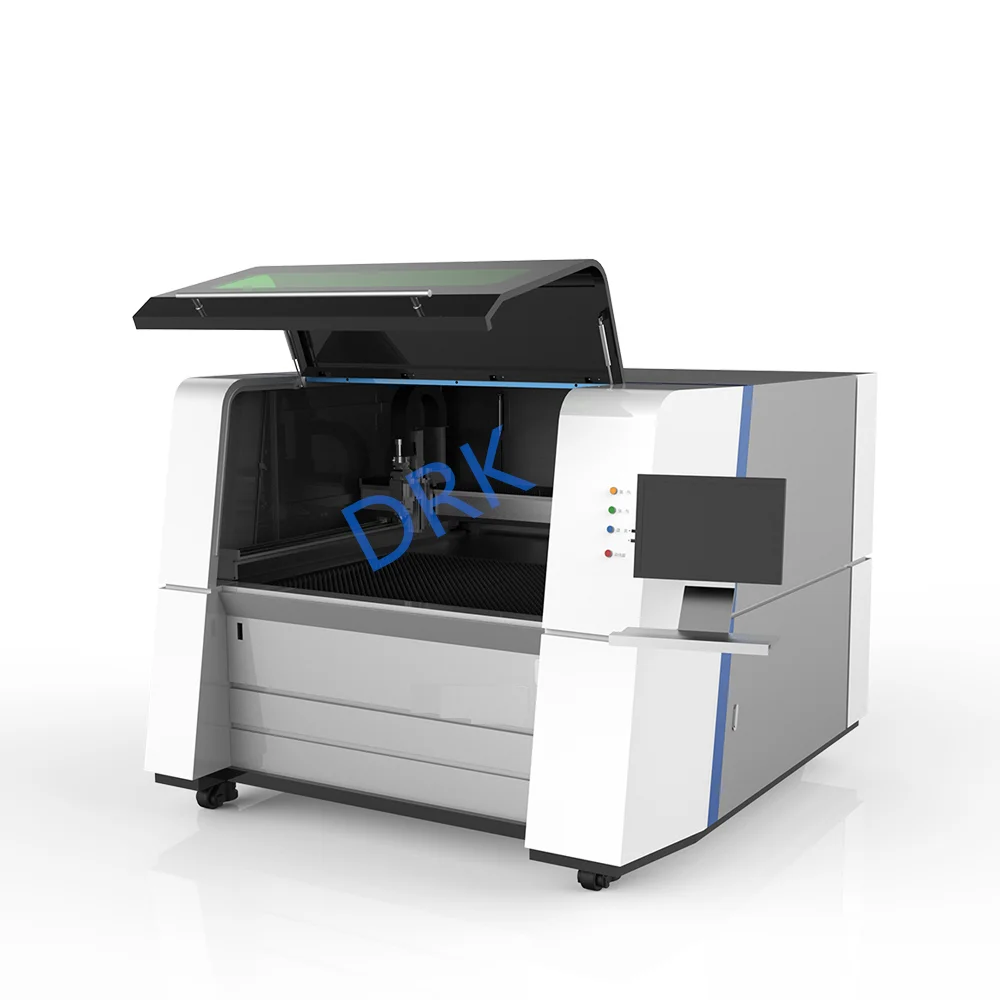

Normal flat metal sheet cutting machine Mini-flat metal sheet cutting machine(1300*900)

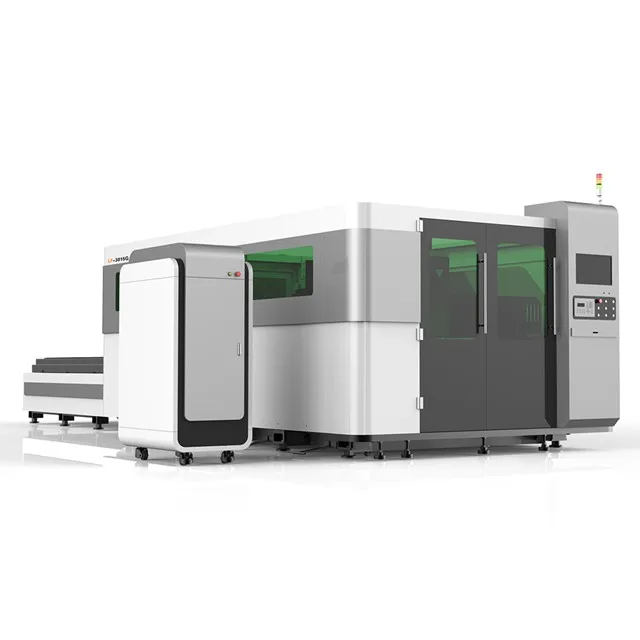

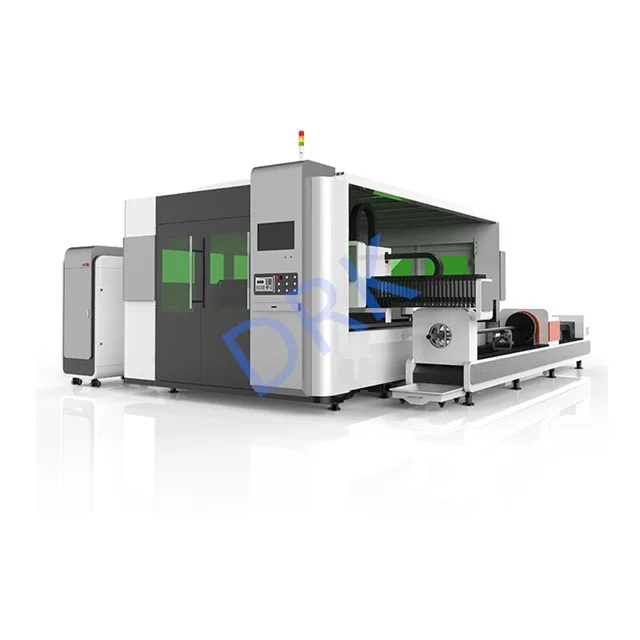

Large Encirclement flat metal sheet cutting Machine Large Encirclement flat metal sheet and tube
cutting Machine

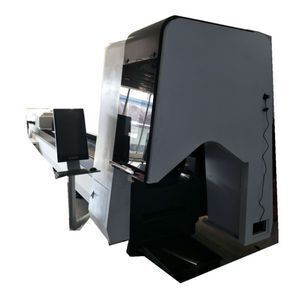

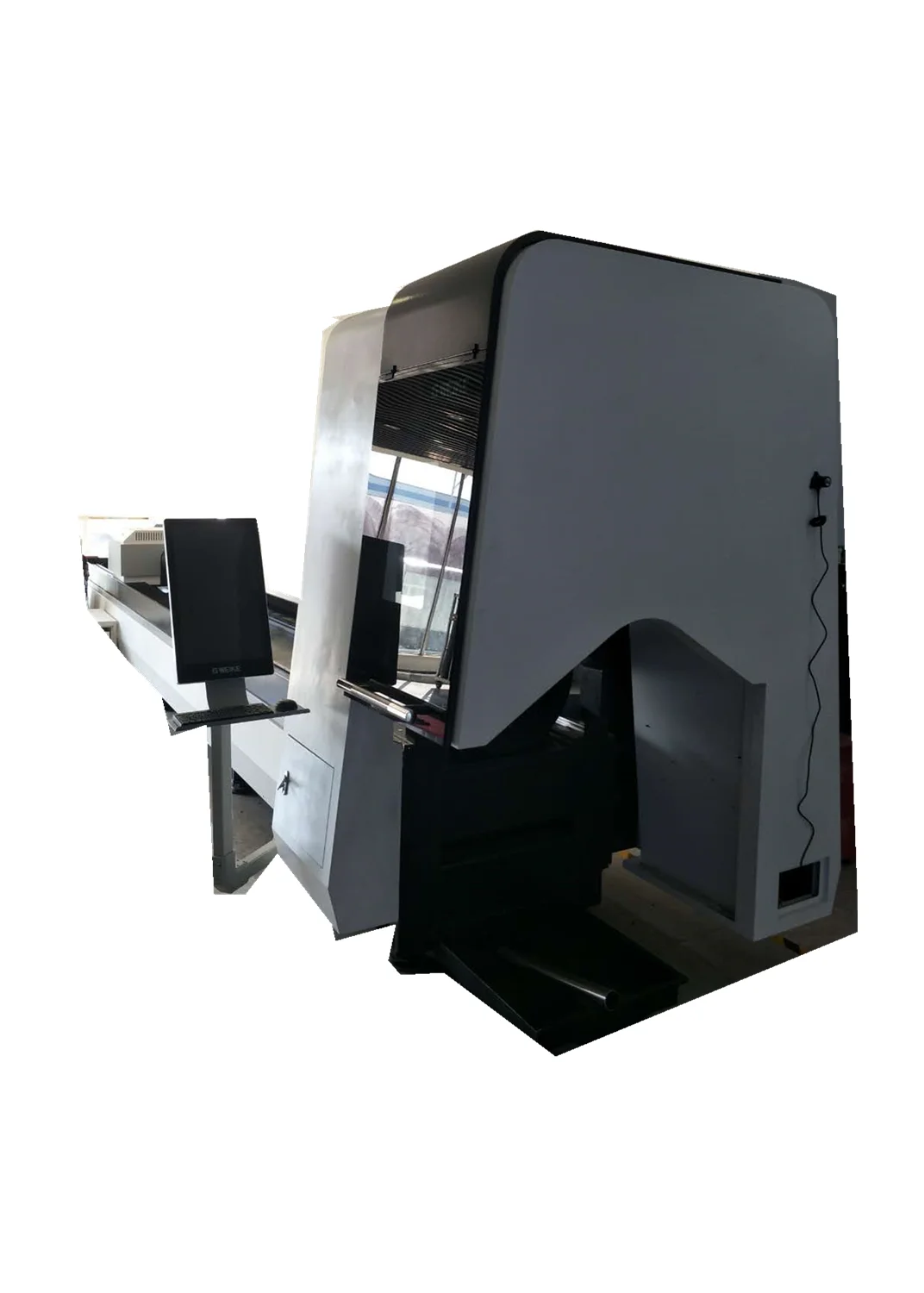

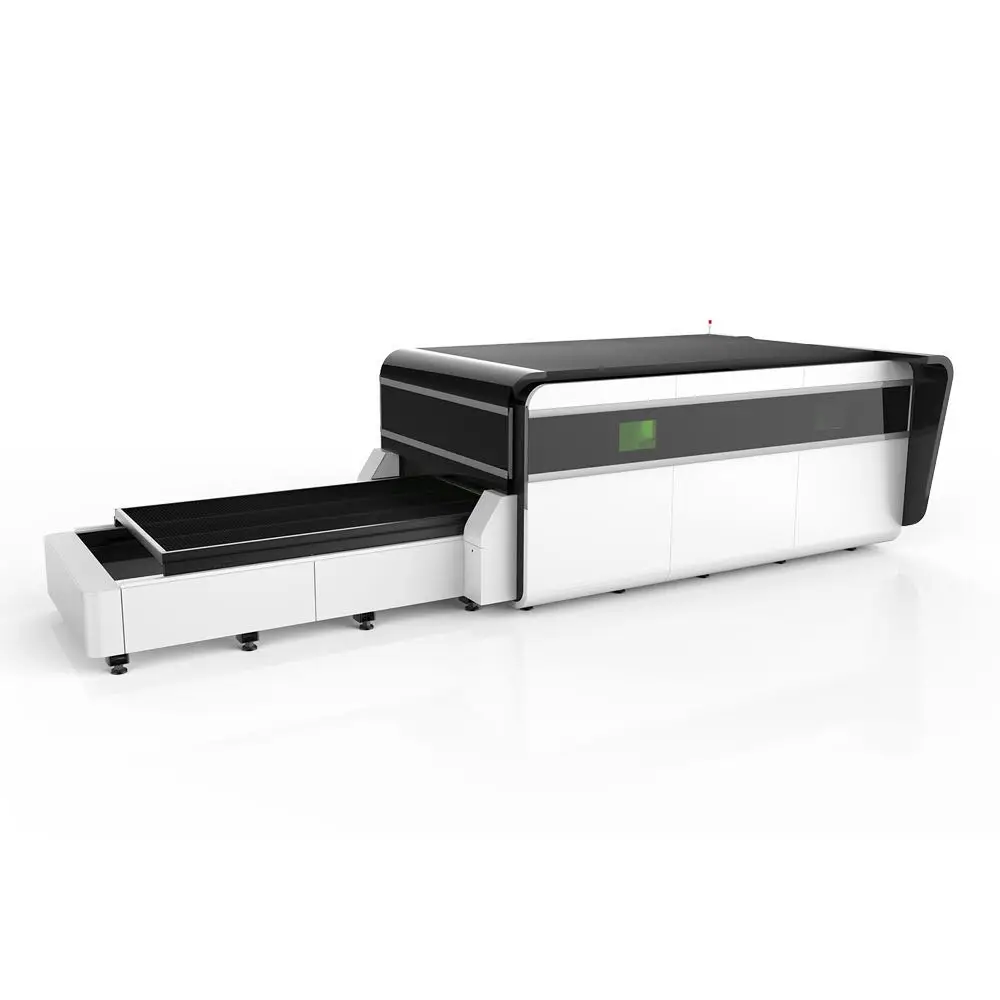

Large Encirclement and table exchanging Closed metal tube cutting machine

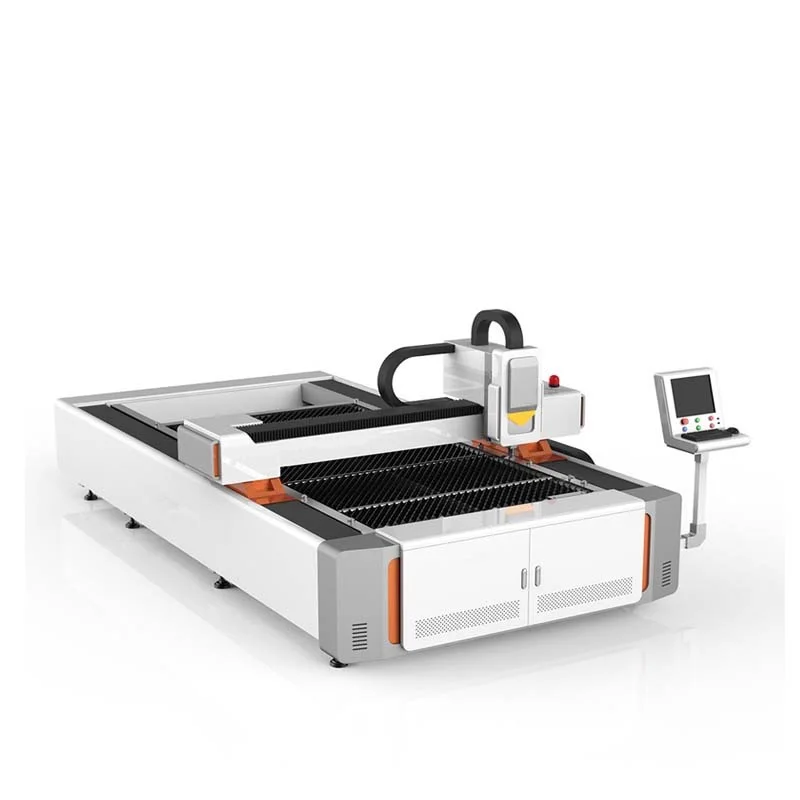

Flat metal sheet cutting machine
Fiber Laser Power Option |
Multi-option: 1000w/1500w/2000w/3000w/4000w/5000w/6000w/8000/w/10000w/12000w/15000w
Note:
1- Power less than 6000w---Use Raycus fiber laser source; If power is above 6000w----Use IPG fiber laser source.
2- If working table is above 3000w: Should select the Large Encirclement+Exchangeable table
Working Area |
Multi-option working table (X*Y):
600mm*400mm/1300mm*900mm/1300mm*2500mm/1500mm*3000mm/1500mm*4500mm/2000*4000mm/2500*6000mm...(hot sale ones: 1500*3000mm; 2000*4000mm; 2500*6000mm).
Cutting Speed/thickness |
Cutting speed:depends on the materials that you cut and the power you use.
Cutting thickness:0-20mm.
Application and Advantage |
Application Materials:
Fiber laser cutting equipments suitable for metal cutting like stainless steel sheet, mild steel plate, carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze plate, gold plate, silver plate, titanium plate, metal sheet, metal plate, tubes and pipes, etc...
Applicable Industry:
Widely used in advertising, high pressure/low voltage electrical cabinet production, textile machinery accessories, kitchen applicances, cars, machiinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
Advantages:
1.Stability and reliability of light path system and control system.
2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
3.Higher cutting quality and efficiency,cutting speed is up to 80m/min with appearance and beautiful cutting edge.
4.German high performance reducer,gear and rack;Japanese guide and ball screw.
Basic Configuration(Optionary) |
Worthing /Raytools cutting head, Japan Yaskawa servo motor in XY axis, Japan Panasonic servo motor in Z axis, Taiwan Hiwin square rail, Japan THK guide rail or Taiwan PMI guide rail, Taiwan APEX rack, Taiwan TBI ball screw, Japan SMC or AIRTAC Pneumatic components, France Motoreducer, Cypcut control system, Schneider Electronic Components in France,Tongfei, S&A water chiller.
Sample: DRK3015F-1500w Details Parameters.
Model | DRK3015F |
Laser source | Raycus or IPG |
Wavelength | 1064nm |
Fiber laser power | 1500w(more options) |
X, Y and Z axis stroke | 3025mm, 1525mm, 100mm |
Appearance size | 4800*2600*1750mm |
Working size | 3000*1500mm(more options) |
X and Y positioning accuracy | 0.03mm |
Re-positioning accuracy | 0.02mm |
Minimal line width | 0.1mm |
Cutting thickness(carbon steel) | 0-12mm(1000w); Maximum: 20mm(3000w) |
Cutting speed | 0~25m/min |
Max cutting speed | 35m/min |
Max moving speed | 100m/min |
Cooling mode | Water cooling |
Control system | Cypcut |
Position type | Red dot |
Control software | DSP control system |
Max acceleration | 1G |
Max load-bearing of work table | 3500KG |
Transmission mode | important high precision with double driving rack |
Power consumption of whole machine | < 15KW |
Rated voltage and frequency | 380V/50Hz/60Hz/60A |
Rotary | 3M (5M 6M 8M can customised ) |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
Auxiliary gas system: | Dual-pressure gas route of 3 kinds of gas sources(O2,N2, Air) |
Certificate | CE and FDA |
packing size | 4440×2500×1860mm |
Gross weight | 3500KG |
Fiber laser cutting machine parts

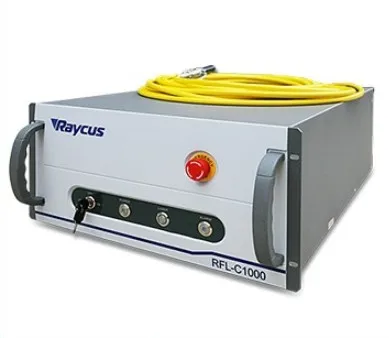

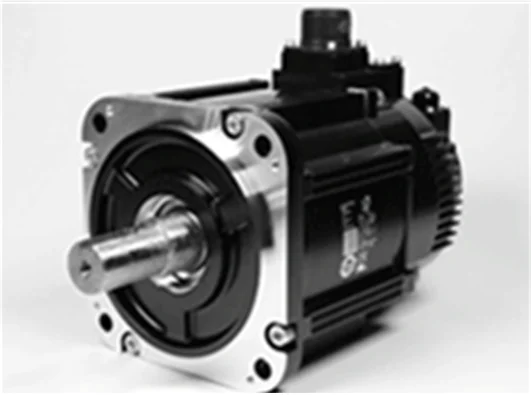

Raycus laser source Japan Yaskawa Servo motor

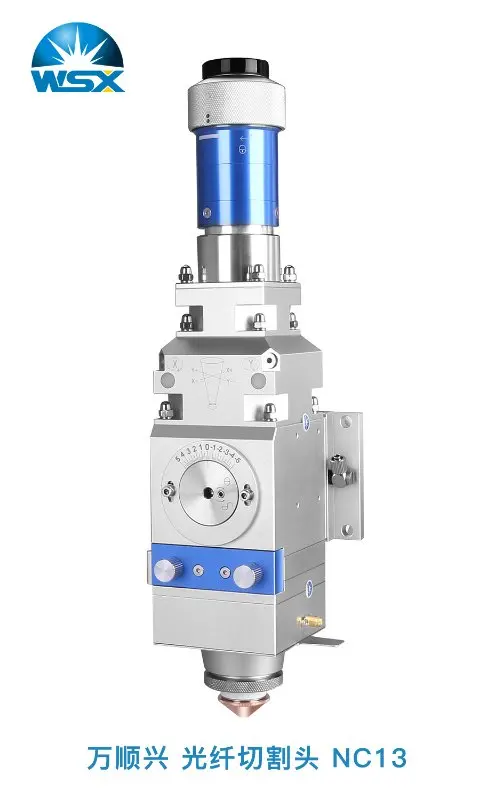

Worthing laser head Taiwan PMI Ball Screw

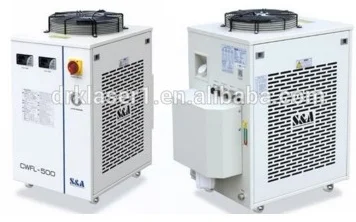

Japan SMC Pneumatic parts S & A water chiller

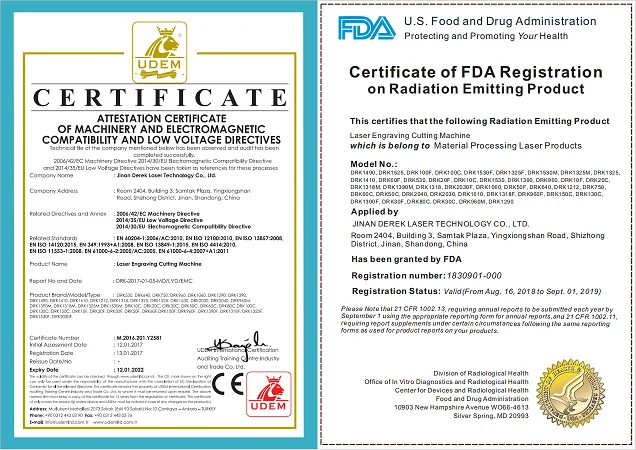

Certifications

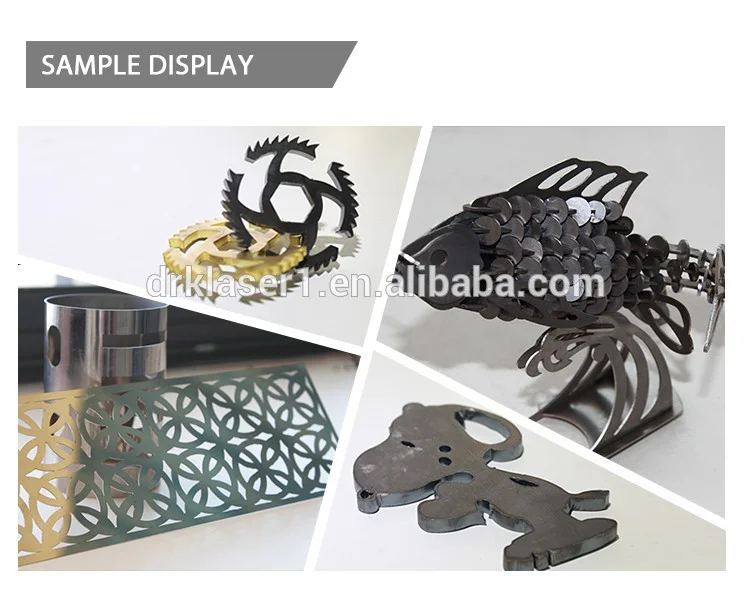

Samples
Packing & Delivery
l According to the request of customers(small size-wooden packing; big size- packing in 20 feet container).
l Delivery: Sea Freight
After-sale service
l 1 year warranty for the whole machine
l 2 years warranty for the fiber laser source
l Life-long maintenance
l In the warranty period,if it breaks down or some parts damaged(Except the human factors and the factors of force majeure), the seller should be responsible for repairing for free, the parts need to be replaced will be provided from seller for free (Except the quick-wear part).
l After the warranty period expired,the buyer only needs to pay the actual maintenance cost.
l After sales service response time: quick response within 24 working hours,after receive the repair call, our after sales engineer will reply as soon as possible.
Welcome To Select Our Products!
Thank You!
-
