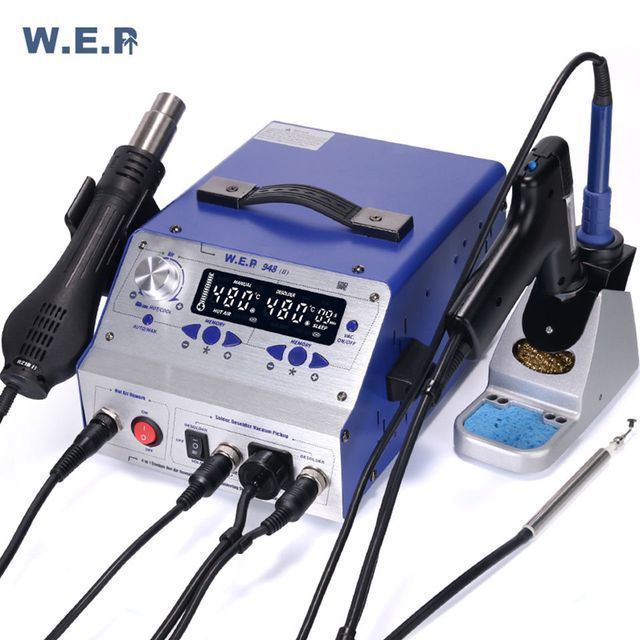

4 in 1 desoldering iron BGA rework station hot air suction desoldering gun WEP 948-II

WEP 948-II 4 in 1 Desoldering Soldering Iron BGA Rework Station Hot Air Suction Desoldering Gun

Features

1. Using PID programmable temperature control technology, the highest precision PID program can be implanted, high-speed tracking and detection of the actual temperature of the desoldering gun and soldering iron, and real-time temperature correction. Magical temperature compensation speed minimizes temperature errors for temperature stability and compensation speed.

2. It has the functions of hot air gun rework station, desoldering station, soldering iron, and suction pen, and has a wide range of repairs. The desoldering station and soldering iron function intelligently and interchangeably. Once the handle is connected, such functions can be easily used.

3. Anti-static design prevents damage or leakage of electrostatic components.

4. The built-in vacuum cleaner has strong suction, no need for an external vacuum system, and is easy to carry.

5. The machine design has the following powerful humanized functions:

A. Has 3 storage functions:Different parameters can be stored separately for easy selection and simple operation.

B. Digital temperature correction function:You can use this feature to perform temperature correction when the temperature of the soldering iron differs from the displayed temperature due to environmental influences or replacement of heating elements, tips or other components.

C. Temperature Celsius/Fahrenheit Display Function:This temperature display mode is specially designed to meet the needs of different markets, you can choose according to your own habits or interests.

D. Iron sleep function:The soldering iron automatically detects that its working state is not in use when it is in a static state. When the set sleep time is reached, the temperature of the soldering iron is automatically lowered to 200 ℃ and enters the sleep state, which can effectively prevent the oxidation of the soldering iron tip and prolong the service life of the soldering iron tip, which is energy-saving and environmentally friendly. The sleep time can be set in the range of 2 to 99 minutes, with a step size of 1 minute. The user can set it according to the usage. If the soldering iron is not required to sleep, the sleep time is set to - - -.

How to wake up from sleep:

One. Shake the welding handle up and down a few times or flick the red switch on the sniffer once.

b. Press any button.

C. Turn the power switch on and off.

E. Automatic shutdown function:After the machine enters the sleep state, start the timer program, set the shutdown time not to wake up from sleep, automatically shut down, save energy and protect the environment. Auto power off time setting range: 2 to 99 minutes, the step is 1 minute, if the auto power off function is not needed, the power off time is set to - - -.

F. Air guns without wind protection:When the hot air gun is used abnormally, the heating body stops heating, which can prevent the handle from being scalded and greatly improve the safety of the product.

G. Air gun automatic/manual function:

One. When you choose the automatic function, put the air gun handle back on the bracket, the machine will automatically turn off the heater and cool down, effectively prolonging the service life of the heating element, saving energy and environmental protection. It has a high safety factor when it is turned on again under unknown conditions. It can effectively prevent fire or other accidents.

b. When the manual function is selected, the air gun will not cool down when it is put back into the bracket. This function is suitable for frequent use of the air gun, which can save cooling and preheating time and improve work efficiency. We recommend that you convert the function to an automatic function after using the manual function, which can improve security.

6. Unique design of tin suction nozzle and heating tube, solder can be sucked in molten state through the filter, no regular maintenance is required, and the efficiency is higher.

7. Silicone heat-resistant tube is used to prevent heat and contact damage.

8. Double-sided internal SMT manufacturing process, the process is clean. The signal flow is clear, and the whole machine is stable and safe, which further improves its performance and adaptability to various harsh environments.

Specification
