Certification: | CE, FCC | length: | 33 cm / 13 inches |
product name: | Desoldering Vacuum Gun | Material: | Half aluminum half plastic |
Type of prompt: | nozzle | Warranty: | Provide video support |
Sales unit: | single product | Packaging Details: | PP bag, carton |
application: | Solder remover | color: | black/grey optional |
type: | Manual tin suction pump, manual | Maximum suction: | 30 (cm-Hg) |
Function: | Electronics Repair | place of origin; place of origin: | Guangdong, China |
Gross weight per piece: | 0.350 kg | brand: | Tianya |
custom made: | Yes | model: | DP06 |
Single package size: | 44X7X5 cm | weight: | 0.2KG |
Custom Support: | OEM, ODM, OBM | | |
Product Description

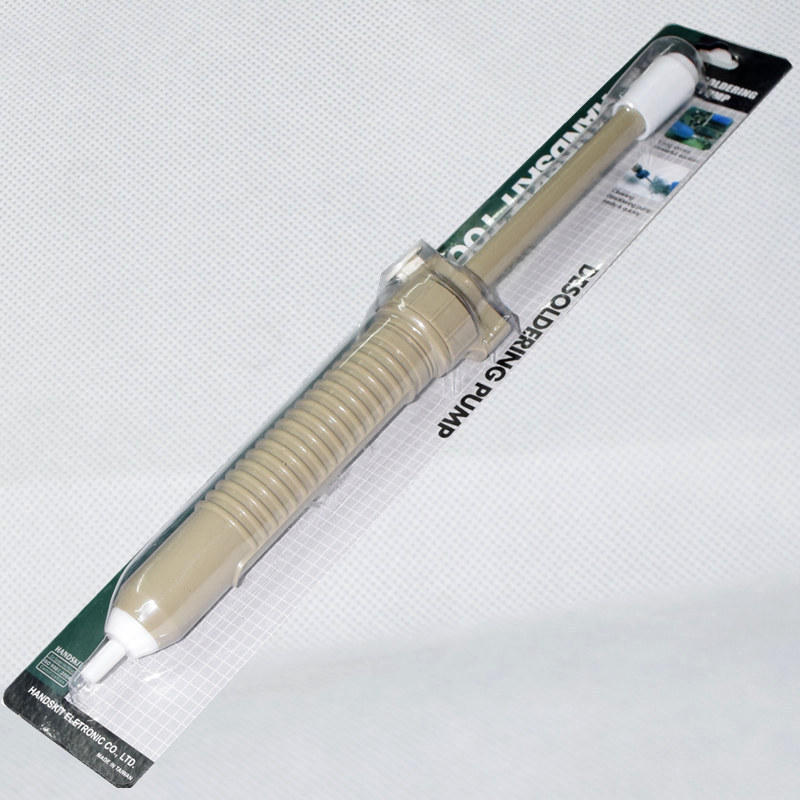

Skyasia Desoldering Hand Tool Desoldering Pump Solder Remover Rework Repair ABS Desoldering Vacuum Gun
Desoldering Vacuum GunSpecification | | | | |
product name | | Desoldering Pump | | |
feature | | Solder Remover, Repair | | |
maximum suction
| | 30 (cm-Hg) | | |
color | | black/grey available | | |
Package dimensions | | 35*5*5cm | | |
package includes
| | 1pc* Desoldering Vacuum Gun | | |
If you have any questions, please contact us
instruct:

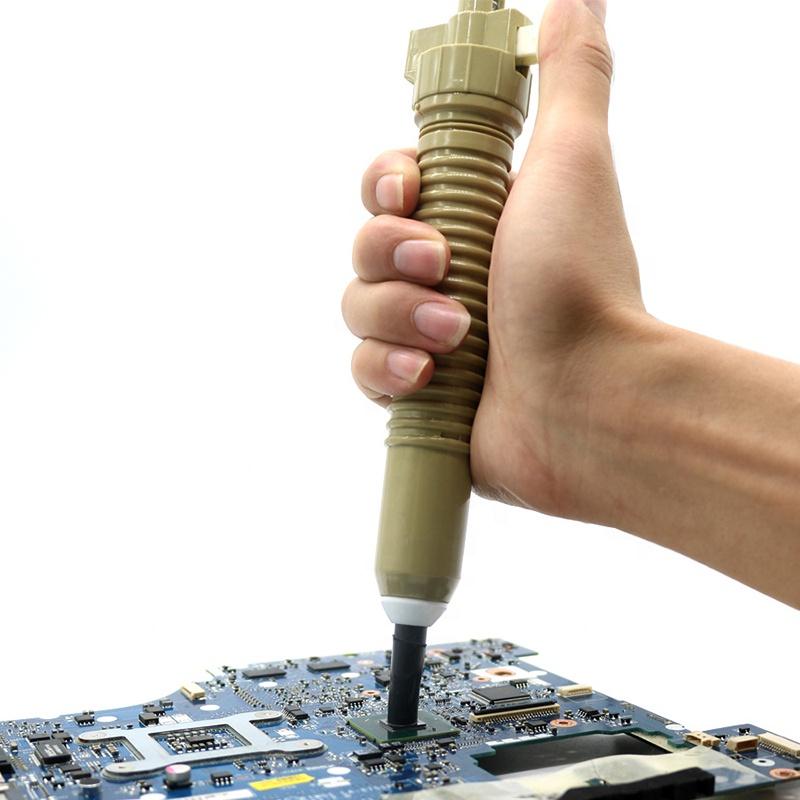

1. Press down on the plunger of the desolder to block it. 2. Heat the solder joint and melt it with a soldering iron. 3. Remove the soldering iron, quickly attach the solder mask to the tin cup, and press the button of the cup. 4. If it is not clean once, it can be repeated many times.

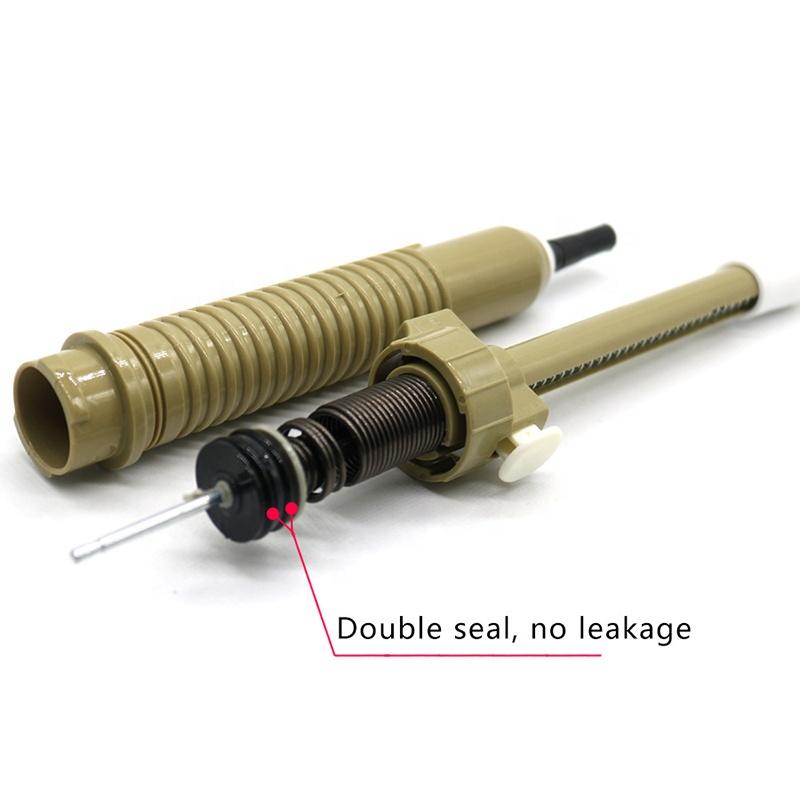

Instructions for use:1. Make sure that the piston of the tin suction device is well sealed. Before powering on, insert your finger into the tin cup and press the cup button. If the piston does not pop out easily, the seal is good. 2. There are different sizes of aperture tin tips, choose the appropriate size. 3. The tin tip is worn and should be replaced with a new one. 4. Immerse the solder paste in a small amount of rosin before contacting with the solder to improve the fluidity of the solder. 5. The soldering head is slightly longer. When the solder melts, take the solder joint as the center, pull out a circle clockwise, and then press the tin absorption button. Note: 1 Due to the difference of light and screen, the color of this product may be slightly different from the picture. 2. Due to manual measurement, there may be an error of 0.5-2 cm.
