Original and genuine Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter EJA210E-JMS4J-912DN-ED24A2SE01-B/D4

Product details
Place of Origin:Japan;Brand Name:Yokogawa;
Model Number:EJA210E;Certification:SIL Certification;
Port:Wuhan, guangzhou, Ningbo;Quality:100% original new;
Type:Flange Mounted Differential Pressure Transmitter;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Pressure connection:NPT1/2;Packaging Detail:Original Yokogawa carton packing, and customized protective carton outside;
Supply Ability:200 Set/Sets per Week;Model Number:Yokogawa EJA210E;
Brand Name:Yokogawa;Place of Origin:Japan;
Explosion:Optional;Stability:0.1% Stability per 10 years;
Display:optional;

Original and genuine Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter EJA210E-JMS4J-912DN-ED24A2SE01-B/D4









































Place of Origin:Japan

Brand Name:Yokogawa

Model Number:EJA210E

Output Signal:4 to 20 mA DC, 2-wire system with digital communication

Accuracy:±5 % of span

Ambient Temperature Limits:-40 to 85 C (-40 to 185 F) (general-use type)

Mounting:2-inch pipe mounting

Degrees of Protection:IP67, NEMA4X

Capsule gaskets material:Teflon-coated JIS SUS316L

Process connector gasket:PTFE (Teflon)

Amplifier Housing:Cast aluminum alloy or JIS SCS14A stainless steel

Integral Indicator:LCD digital indicator (optional)



Original and genuine Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter EJA210E-JMS4J-912DN-ED24A2SE01-B/D4

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

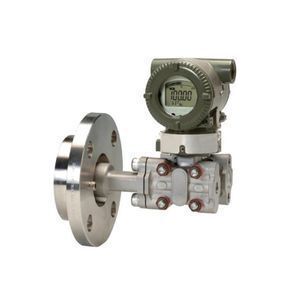

The EJA210E is the Flange-mount Liquid Level Transmitter in the series.

EJA210E features include:

·  ± 0.075% Accuracy

·  ± 0.1% per 1 year Stability

·  120 msec Response Time

·  Exida and TUV SIL2 / SIL3 Certified

·  Signal Characterizer for the 4 to 20 mA output

·  Local Parameter Setting (LPS)



The high performance flange mounted differential pressure transmitter EJA210E can be used to measure levels of densities of solidifying or precipitating liquids. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.

Capsule Ranges of Original and genuine Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter EJA210E-JMS4J-912DN-ED24A2SE01-B/D4

Capsule

Span

Range

Maximum Pressure Limit

Minimum

Maximum

Minimum

Maximum

M

4.0 inH2O

400.0 inH2O

-400.0 inH2O

+400.0 inH2O

per flange rating

H

20.0 inH2O

2,000.0 inH2O

-2,000.0 inH2O

+2,000.0 inH2O

Process Connections



Process connection Type

Size

Extension

Flange





Flush Type

3-inch
2-inch
1½-inch

N/A

JIS 10K, 20K

ANSI 150#, 300#

JPI Class 150, 300

DIN PN10/16, 25/40



Extended Type

4-inch
3-inch

2-inch
4-inch
6-inch

JIS 10K, 20K

ANSI 150#, 300#

JPI Class 150, 300

DIN PN10/16, 25/40


Key
Features of Original and genuine Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter EJA210E-JMS4J-912DN-ED24A2SE01-B/D4





1) Excellent Performance and Stability

The EJA series uses a silicon resonant sensor formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.



2) Compact and Light-Weight Design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.



3) Fieldbus Communication Capability



EJA series offers two types of fieldbus models, FOUNDATION™ fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between Yokogawa and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.







Original and genuine Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter EJA210E-JMS4J-912DN-ED24A2SE01-B/D4







What are the four major measurements for process control?
1. Pressure 2. Flow 3. Level 4. Temperature
How is the EJA-E different than EJA-A series?
EJA-E series offers enhanced performance in terms of Reference accuracy, Response time, Multi-sensing, Long term stability
What is the Reference Accuracy (%span) of the Yokogawa EJA110E and the EJA115E?
The Reference Accuracy (%span) is +/- 0.055%. For the Yokogawa EJA110E - only for wetted parts material code: S. Wetted parts material code "S" is Hastelloy C-276 Diaphragm, 316 SST Capsule, Flanges, Vent and Drain

What is the Reference Accuracy (%span) of the EJA430E?
The Reference Accuracy (%span) is +/- 0.055%. Only for the wetted parts material code: S.Wetted parts material code "S" is Hastelloy C-276 Diaphragm, 316 SST Capsule, Flanges, Vent and Drain
What is the Reference Accuracy (%span) of the Yokogawa EJA210E
The Reference Accuracy (%span) is +/- 0.055%. This is an enhancement over the EJA-A series 440 which is +/- 0.12%
