YIKA 24KV 27KV Porcelain Fuse Fuse Single Pole 24 KV 100A/200A Dropout Fuse for Power Line System

Product details
Fuse base material:porcelainmodel:YK1-24/100, YK1-24/200
Fuse accessories:NEMA bracketport:Ningbo, Shanghai
OEM production:acceptstandard:IEC282
Supply capacity:1,000,000 pieces/yearBreaking capacity:High
Package dimensions:51*38*17cmsafety standard:International Electrotechnical Commission
port:Ningbo, ShanghaiPackaging Details:FCL Carton / LCL Pallets
product name:open fusecolor:grey
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGrambrand:Easy Card
Package:cartonFuse tube material:glass fiber
usage:high pressurePackaging Preview:
place of origin; place of origin:Zhejiang, China

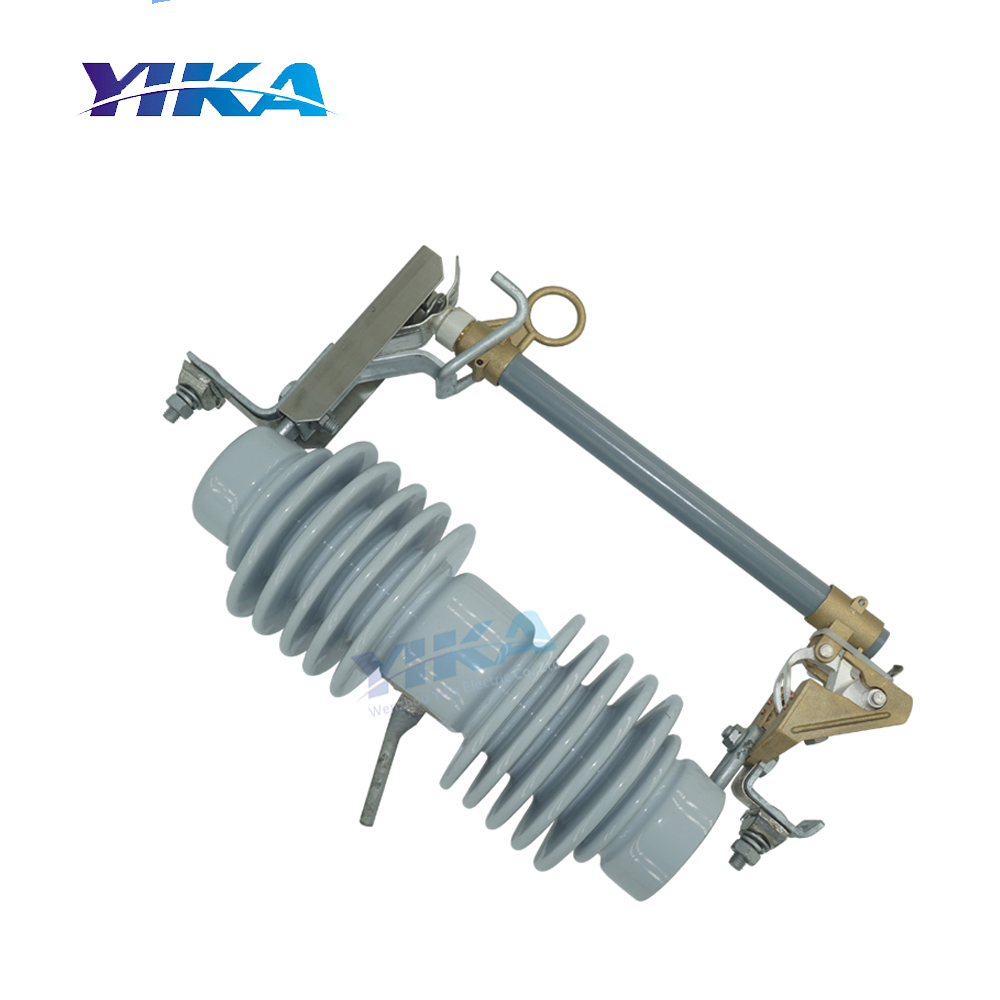

YIKA 24KV 27KV Porcelain Fuse Fuse Single Pole 24 KV 100A/200A Dropout Fuse for Power Line System

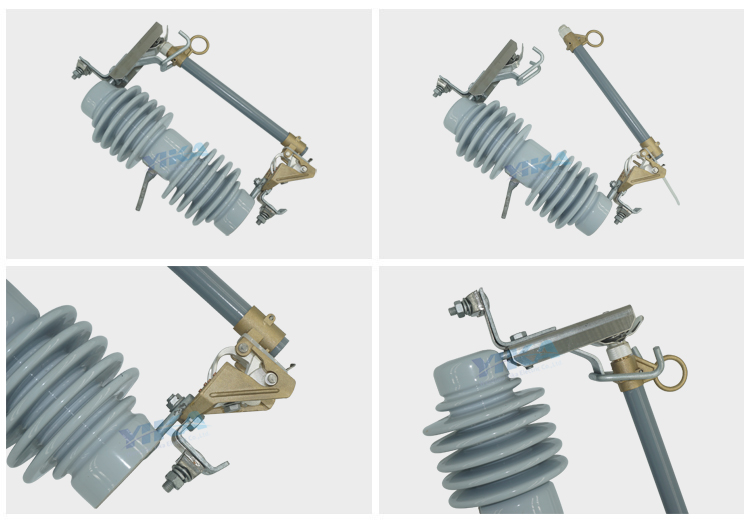

detailed image







Product Description

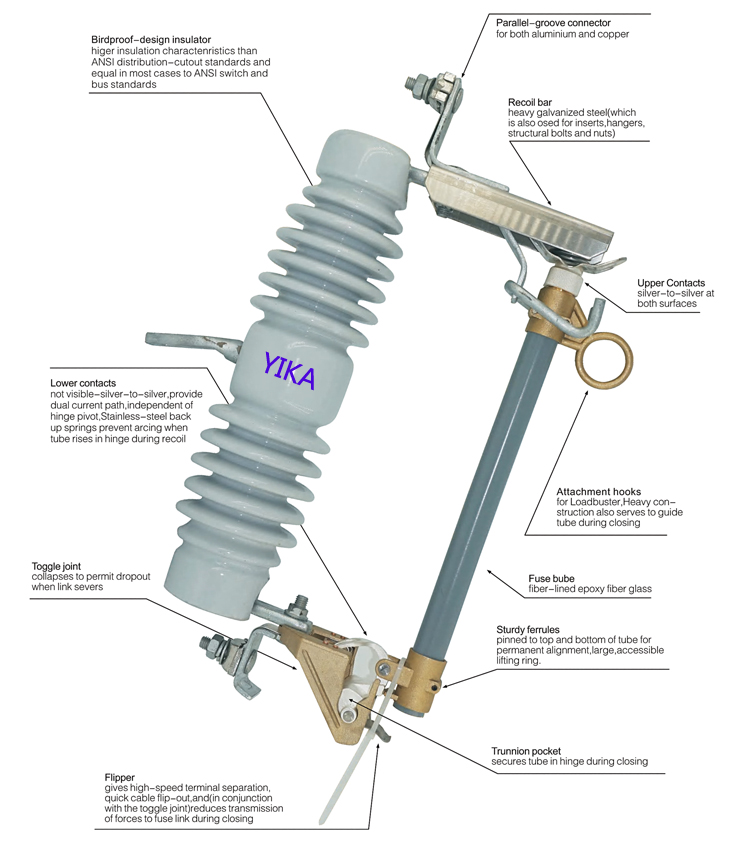

The fuse is connected to the incoming or distribution lines of the distribution transformer. These are mainly used to protect transformers or lines from short circuits, overloads and switching currents. The drop fuse is composed of an insulating bracket and a fuse tube. The static contacts are fixed on both sides of the insulating bracket, and the moving contacts are installed at both ends of the fuse tube. The inside of the fuse is a fire extinguishing tube, and the outside is a phenolic composite paper tube or epoxy glass.





Model rated
Voltage
(kV)
rated
current
(One)
break in
current
(One)
Bill
(kV)
Power frequency
Withstand voltage (KV)
Creepage distance
distance
(mm)
weight
(Kilogram)
aspect
(centimeter)
YK1 24-27 100 10,000 150 65 510 10 51*38*17
YK1 24-27 200 12,000 150 65 510 10 51*38*17

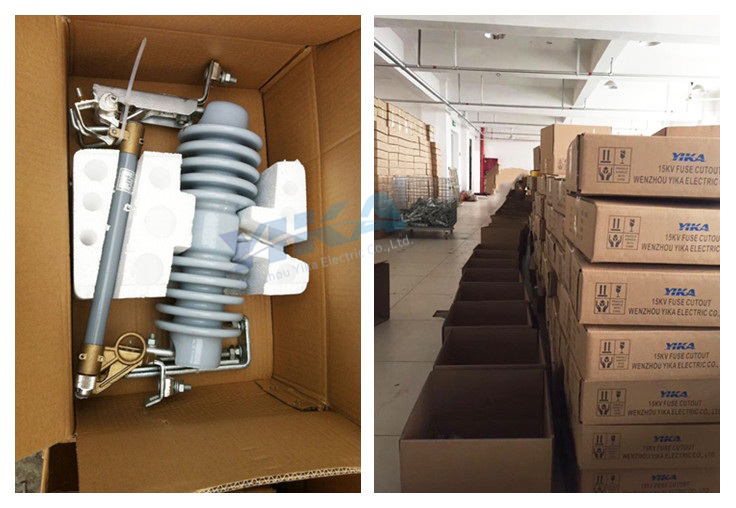

Bale
