Shutter displacement sensor IP65 Measuring contact displacement sensor Digital display shutter displacement sensor

Supplier: Wenzhou Yika Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ni Nicki
Price: $215.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	product name:	Digital grating displacement sensor
Supply capacity:	2,000,000 pieces per year	power supply:	5V DC
Origin:	Zhejiang, China	type:	displacement sensor, linear displacement sensor
model:	GSX series	Packaging Details:	FCL shipping carton
usage:	automation, automobile manufacturing, etc.	port:	Ningbo, Shanghai
series:	Grating Displacement Sensor	Installation type:	/
theory:	/	describe:	/
brand:	Ica	feature:	Digital Display
output:	/

Product Description

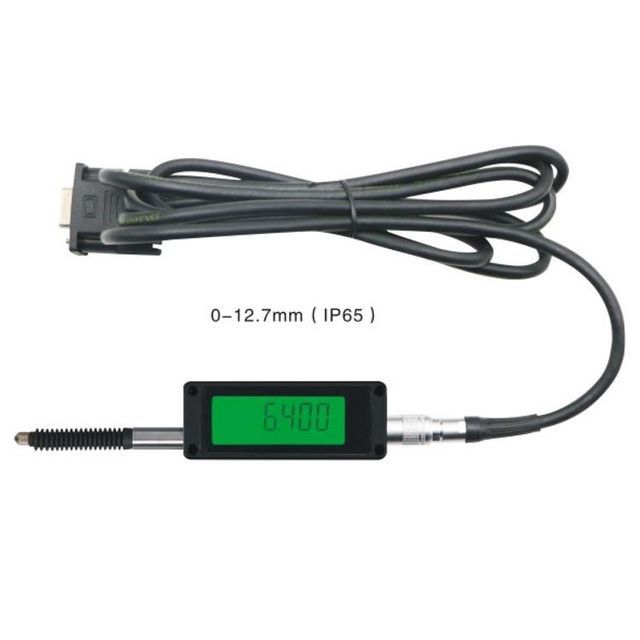

The grating displacement sensor is a contact displacement measurement sensor. The physical examination instrument is small in size, easy to carry and easy to operate. Widely used in automation, mechanical electronics, metal molds, automobile manufacturing and other industries. It is suitable for small component height measurement, depth measurement, contrast detection, etc.

Specification

Technical Parameters

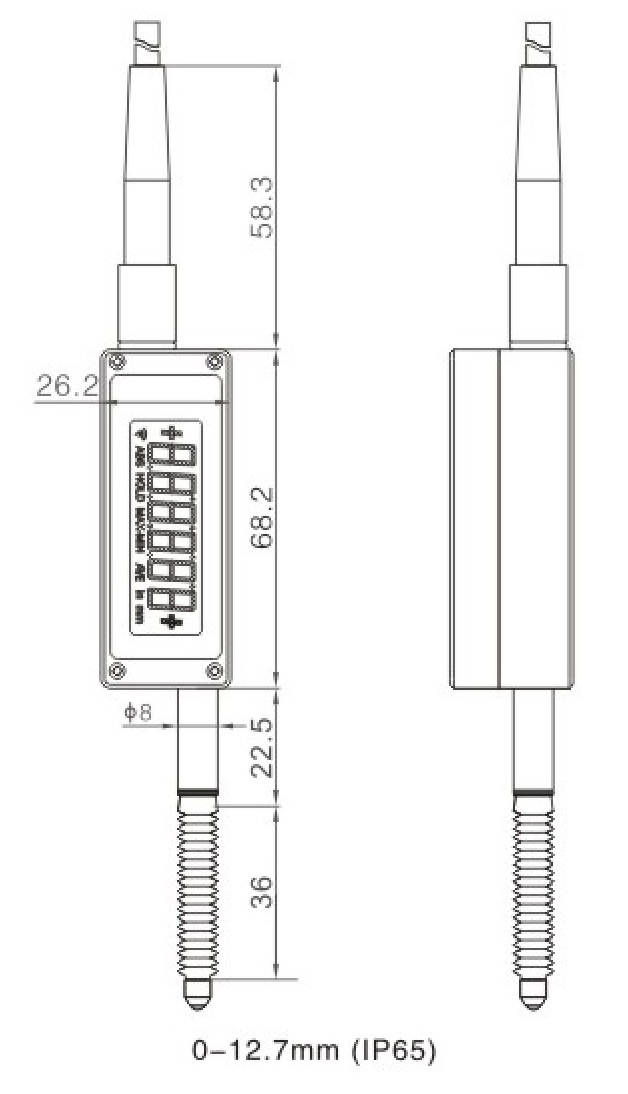

product name			Measuring range (mm)	full precision	solve	waterproof level
GSX-5332C	GSX-5332J	0-12.7	≤10µm	5 microns	IP65
GSX-5302C	GSX-5302J			±2µm		1 micron
GSX-5312C	GSX-5312J			≤2µm		0.5 microns
GSX-5322C	GSX-5322J			≤1.4µm		0.2 microns

plug type			Wiring
password	Function	password	Function
2	TXD (data output)	blue	TXD (data output)
3	RXD (data input)	Black	RXD (data input)
4	5V (power supply)	yellow	5V (power supply)
5	GND (ground)	Red	GND (ground)

feature

1. Working temperature: -10~40℃

2. Humidity: ≤80%RH

3. Absolute measurement (using grating absolute encoding)

4. Waterproof grade: IP54/IP65 (optional)

5. Support Modbus RTU protocol 6. Support read data protocol 7. Support clear data protocol 8. Support LCD display data metric/inch switching 9. Support LCD display data flip 10. Support LCD display data hold 11. Support extreme value measurement 12. Support setting normal display mode/extreme value display mode 13. Support setting preset, upper limit and lower limit parameters (data qualified backlight display green,

If the data is out of tolerance, the backlight will display red)

The following is to read the displacement sensor data:

Host query command 01 03 00 00 00 02 C4 0B			Displacement sensor response 01 03 04 01 00 12 39 37 3DH
address code	01H	address code	01H
function code	03H	function code	03H
Access register first address	00H	data byte length	04H
Access register first address	00H			Data word 1 height 8 degrees	01H	Displacement sensor data	flag bit
	00H	Data word 1 lower 8 degrees	00H				flag bit
		00H	Data word 2 height 8 degrees	12 hours			Measured data (hexadecimal)
		02H	Data word 2 lower 8 degrees	39 hours			Measured data (hexadecimal)
CRC (lower 8 bits)	C4H	CRC (lower 8 bits)	37 hours
CRC (upper 8 bits)	0BH	CRC (upper 8 bits)	7D
