WPS-RL 6000mm Crane Pull Wire Sensor Cable Extension Sensor

Supplier: Jiangxi SOP Precision Intelligent Manufacturing Technology Co., Ltd.
Region: Jiangxi, China
Contact: Ms Tina L
Price: $132.00 / 2 - 19 pieces
$131.00 / 20 - 49 pieces
$129.00 / 50 - 99 pieces
$126.00 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

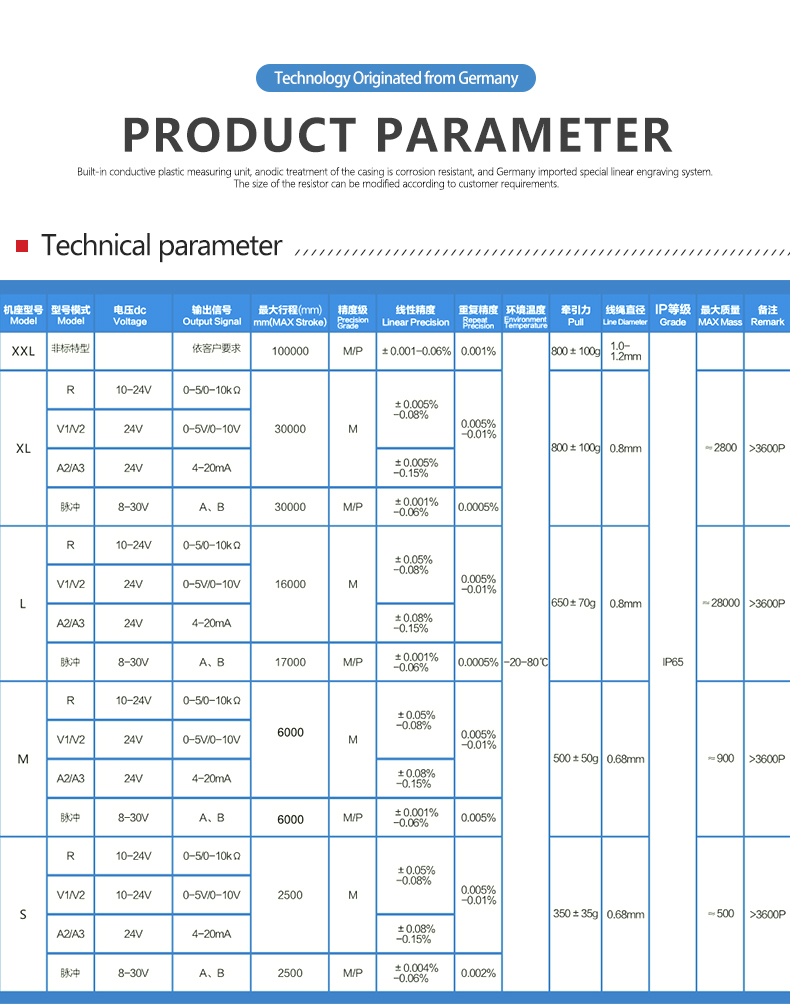

port:	Guangzhou/Shenzhen/Ningbo/Shanghai/Xiamen	Operating temperature:	-40℃~+80℃
type:	Linear Displacement Sensor	Packaging Details:	Pull wire sensor WPS 500mm for storage location positioning Packaging: Packed in a high quality box
Linearity:	±0.3%, ±0.25%, ±0.1%	Repeatability:	±0.01%FS-0.005%
usage:	displacement measurement	brand:	Standard operating procedures
voltage:	13-30V	Package preview:
theory:	Resistive sensor	payment terms:	D/P, D/A, T/T, MoneyGram
size:	L	Supply capacity:	300 pieces per day
Protection class:	IP65	Material:	aluminum alloy
Comment:	>3600p	output:	analog sensor
model:	WPS-RL6000	describe:	Pull sensor

Product Description

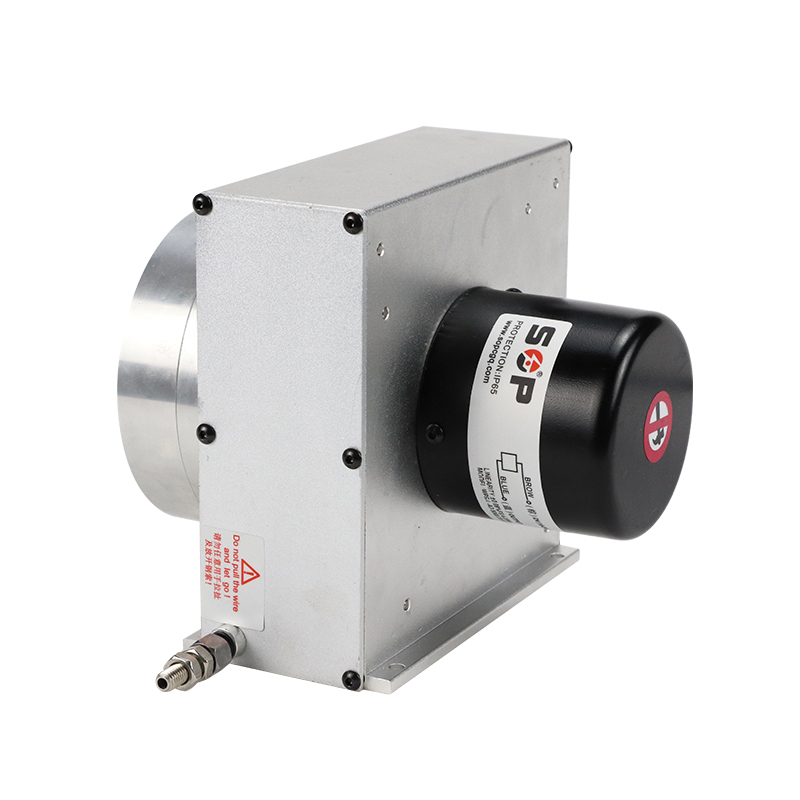

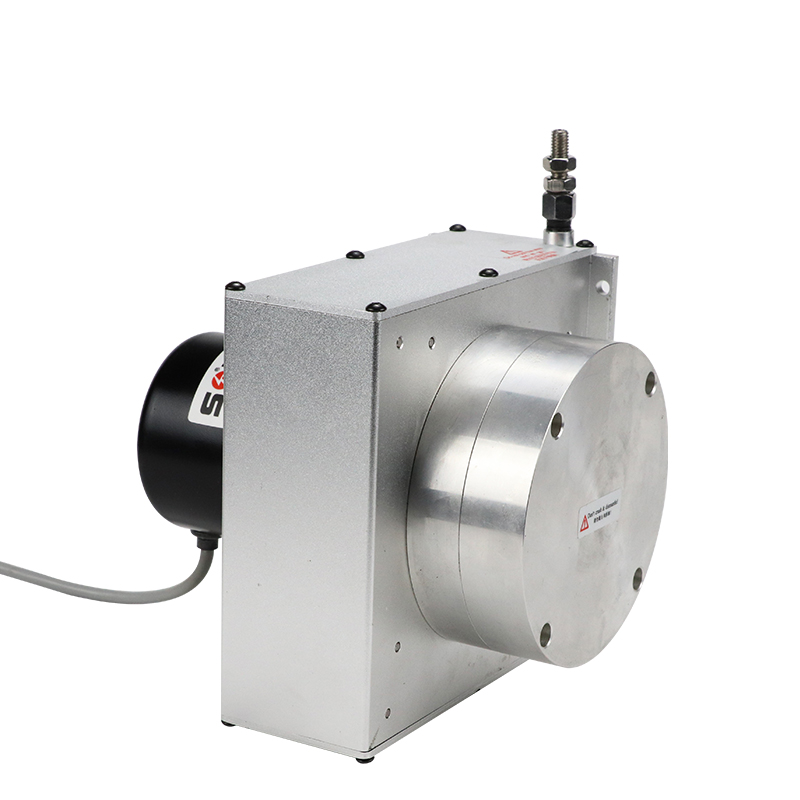

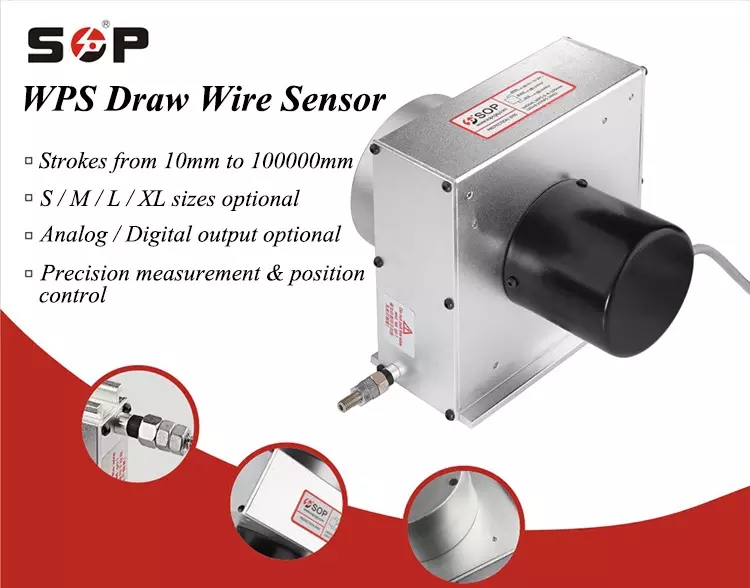

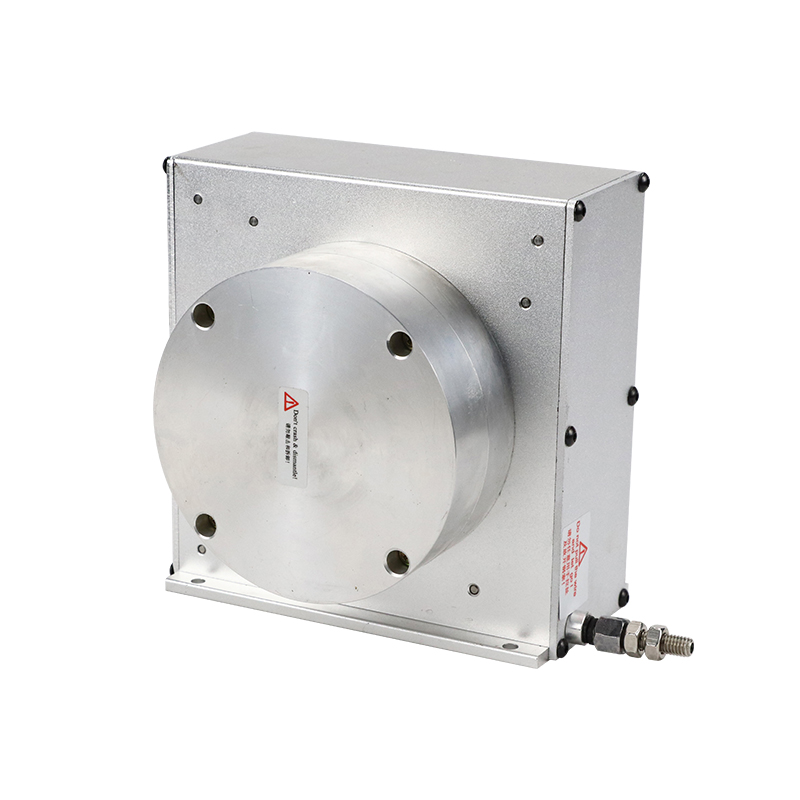

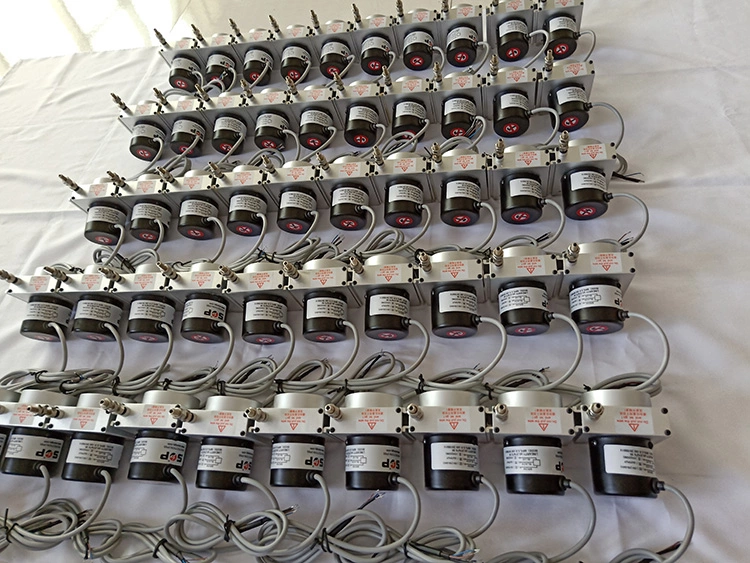

WPS-RL 6000mm Crane Pull Wire Sensor Cable Extension Sensor

Pull wire sensor combines the advantages of angle sensor and linear displacement sensor, with small installation size, compact structure and high precision. The measuring range can be 1000mm/2500mm/5000mm or even 50000mm.
The protection grade of the pull wire sensor is IP65, which can work in harsh environments. SOP can customize various non-standard displacement sensors according to customer requirements.
