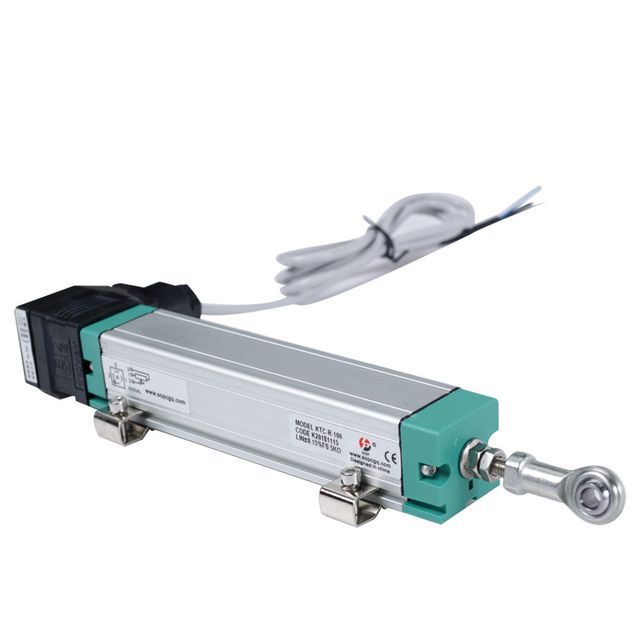

KTC Electric Ruler 225mm Linear Impact Potentiometer Output Sensor for Injection Machine

Supplier: Jiangxi SOP Precision Intelligent Manufacturing Technology Co., Ltd.
Region: Jiangxi, China
Contact: Ms Tina L
Price: $20.00 / 1 - 9 pieces
$19.00 / 10 - 49 pieces
$17.00 / 50 - 99 pieces
$15.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Sales unit:	single product	journey:	225mm
Package preview:		Packaging Details:	Wrapped in plastic film, then packed into a cylindrical box
Linearity:	±0.08% of full scale	temperature range:	-40 - 120°C
theory:	resistance sensor, resistance sensor	usage:	For injection molding machine

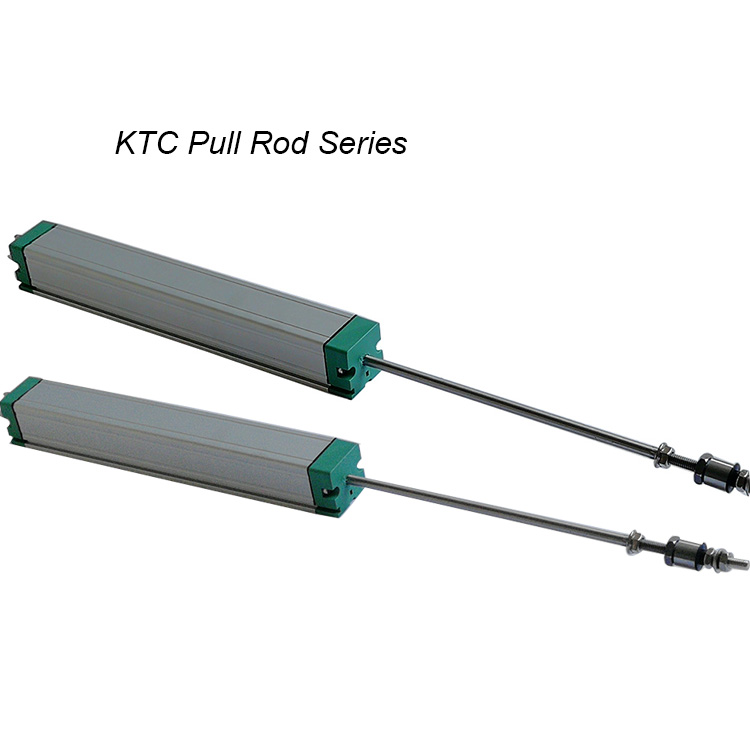

type:	Tie rod series, linear displacement sensor	Output connections:	Din43650 standard plug
net weight:	300 grams	describe:	KTC-R-225
Origin:	Jiangxi, China	Single package size:	35X10X12 cm
Protection class:	IP65DIN405000/IEC529	Repeatability:	0.01mm
model:	KTC-R-225	thing:	KTC electric ruler 225mm stroke potentiometer sensor
output:	Resistance output/current output/voltage output	Gross weight per piece:	0.800 kg

KTC electric ruler 225mm stroke resistance output linear potentiometer sensor injection machine

Product Description

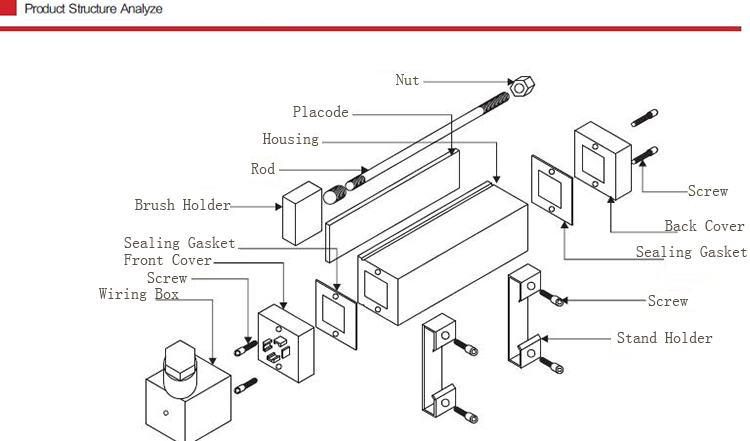

KTC linear potentiometer position sensors use conductive plastic elements and are suitable for the measurement, monitoring and control of mechanical strokes. The key to providing a smooth DC output depends mechanically on the steady sliding of the shaft and slider over the surface of the component.

KTC linear potentiometer position sensor adopts imported special linear trimming system. Resistor trimming technology can not only meet the needs of linearity, but also modify the resistance value according to your requirements.

Applications include industrial control, robotics, process systems or replacement of linear voltage differential transformers (LVDTs). Ideal for applications on plastic injection machines, vertical presses and many other processing machines.

feature:

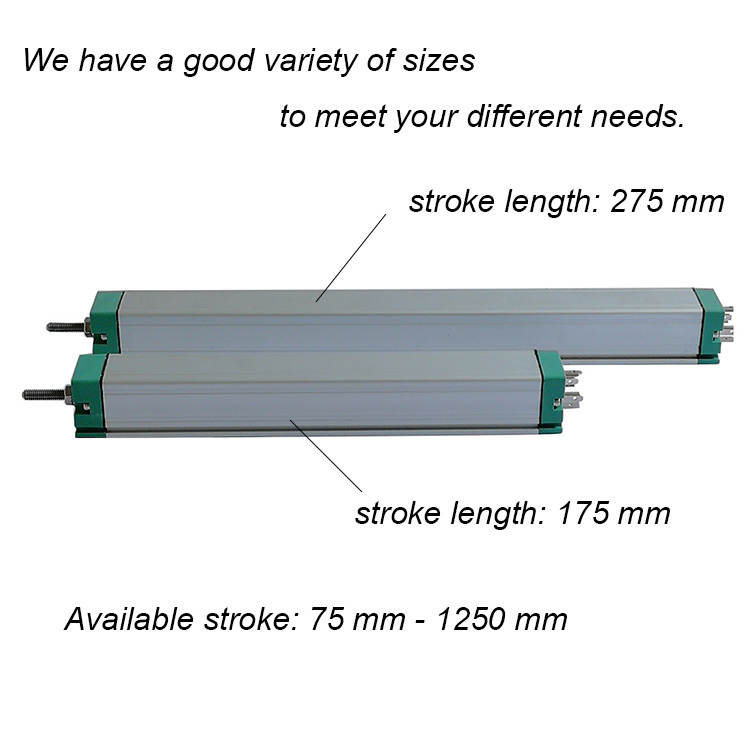

Stroke length is optional from 75mm to 1250mm
Anodized aluminum shell, beautiful and elegant, anti-corrosion
Brushes for precious metal collectors and resistive tracks
Polymer based conductive plastic track

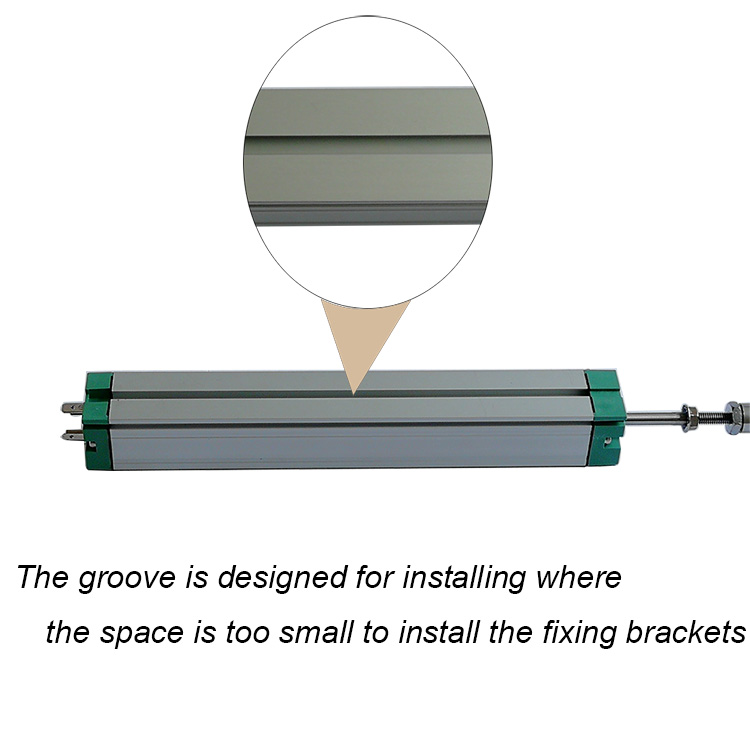

New grooves provide a great alternative to the usual bracket fixing system
Pull shaft stainless steel
unlimited resolution
Protection class IP65
Lifespan up to 50 million
Repeatability within 0.01mm
Also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output

Specifications: (some models)

KTC series	225	400	500	600	700	800	unit
strokes	225	400	500	600	700	800	mm
electric shock	226.5	403	503.5	604	704.5	805	mm
Resistance ±5%	5			10	20	10	Kiloohms
Linearity	0.08	0.05	0.05	0.05	0.05	0.04	± %
mechanical travel	233.5	410	510.5	611	711.5	812	±2mm

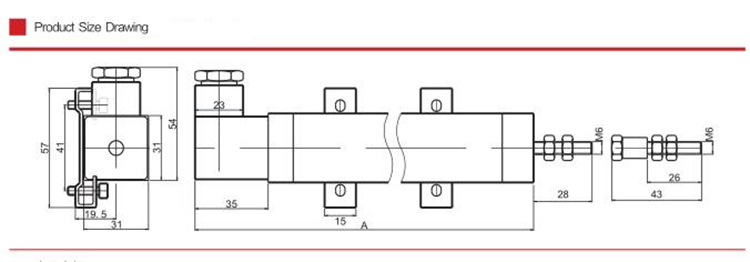

Length (A)	292	470	571	672	773	874	±2mm
solve	endless
repeatability	0.01						mm

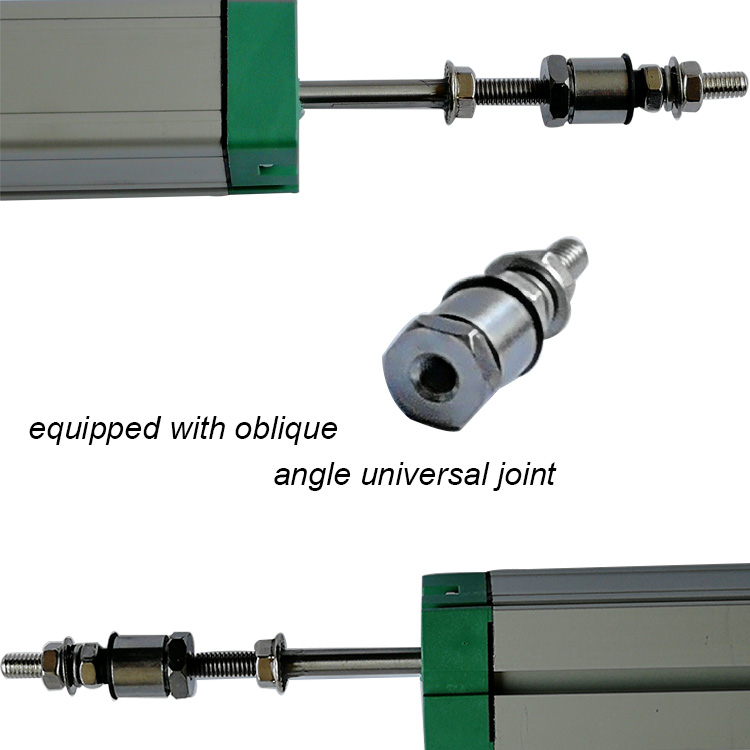

move	±5º angular deviation
horizontal direction	≤0.4						no
vertical direction	≤1.1						no
Speed of work	≤10						multiple sclerosis
degree of protection	IP65 DIN405000/IEC529 (Maximum)
life	> 20 × 10⁶						cycle
vibration	5~2000, one_maximum=0.75, a_maximum=20						Hz/mm/g
Working current	≤1						uA
Maximum current	10						Well
maximum voltage	42						V
Input voltage and output voltage temperature change rate	5 (typical)						ppm/K
Insulation resistance	≥10@500V, 1bar, 2s						megohm
Dielectric strength	≤100@500VDC,50Hz,2s,1bar						uA
temperature range	-40 ~ 120						℃
