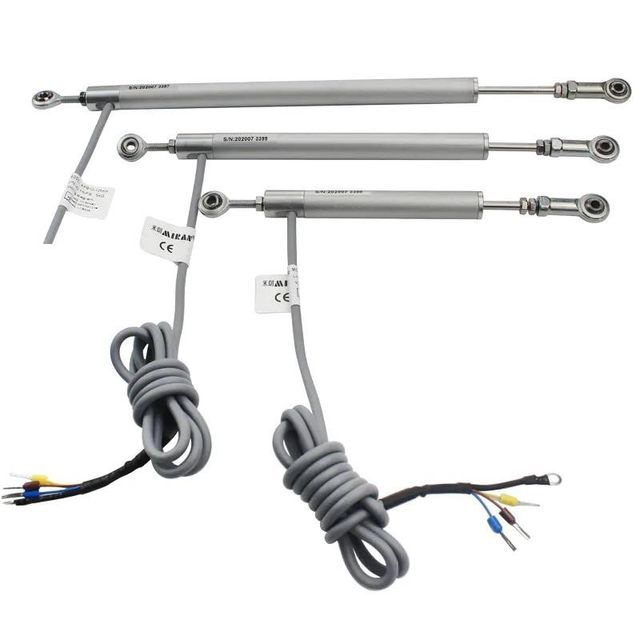

Linear accuracy (±%FS): | ±0.1%±0.05% | model: | KPM12 Rod Series |
Gross weight per piece: | 0.200 kg | Resistance (±10%): | 1-5kΩ |
temperature range: | -60℃~+150℃ | solve: | endless |
Sensitivity: | 1 | Repeatability: | 0.01mm |
brand: | milan | usage: | ranging |
type: | Linear Displacement Sensor | theory: | Potentiometer principle |
output: | 0~100%*input voltage, 1-5kΩ | describe: | KPM12 Rod Series |
Packaging Details: | Each piece is packed with foam and carton. | Valid itinerary: | Range +3mm |
Maximum speed: | 5 m/s | Package preview: | |
Sales unit: | single product | Origin: | Guangdong, China |
Temperature drift: | infinitesimal | Single package size: | 35X25X30 cm |
KPM12 Rod Type | 15mm 25mm | 50-75mm | 100-300mm | ||||
Linear accuracy (±%FS) | ±0.1% | ±0.05% | |||||
Resistance (±10%) | 1kΩ | 5kΩ | |||||
Effective itinerary | Range +3mm | ||||||
solve | endless | ||||||
Repeatability | 0.01mm | ||||||
Maximum speed | 5 m/s | ||||||
Recommended current | ≤1mA | ||||||
temperature range | -60℃~+150℃ | ||||||
output | 0~100%*input voltage (varies with the movement of the rod) | ||||||
sensitivity | 1 | ||||||
very long life | >100*1000000 cycles, >25*1000000 meters |
