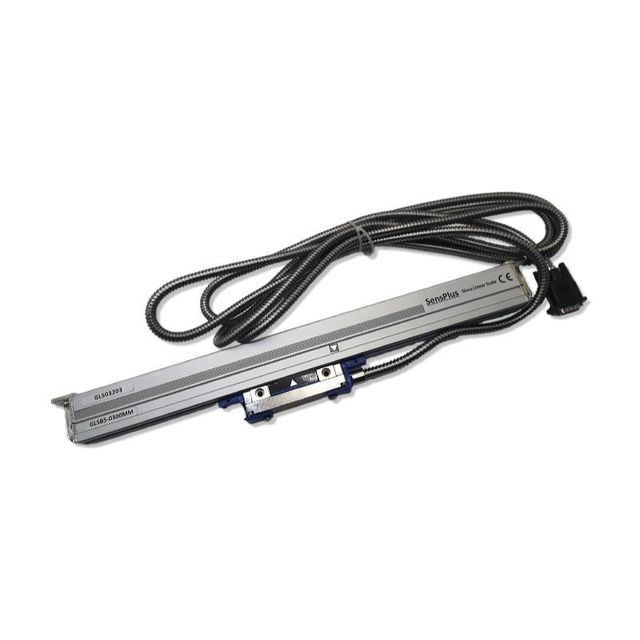

Milling and turning machine digital display meter position sensor glass grating ruler with digital encoder line grating ruler

Supplier: Shanghai Senseplus Technology Co., Ltd.
Region: Shanghai, China
Price: $110.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

theory:	Optical glass	Origin:	China
power supply:	5VDC or 24VDC	working equipment:	Digital Readout DRO
pack:	carton	Single package size:	120X25X25 cm
type:	Optical Glass, Linear Displacement Sensor	deliver goods:	by air or by sea
solve:	5um, 1um optional	usage:	Position Accuracy Measurement
output:	Push-Pull or Line Driver, TTL, Line Driver	Gross weight per piece:	0.500 kg

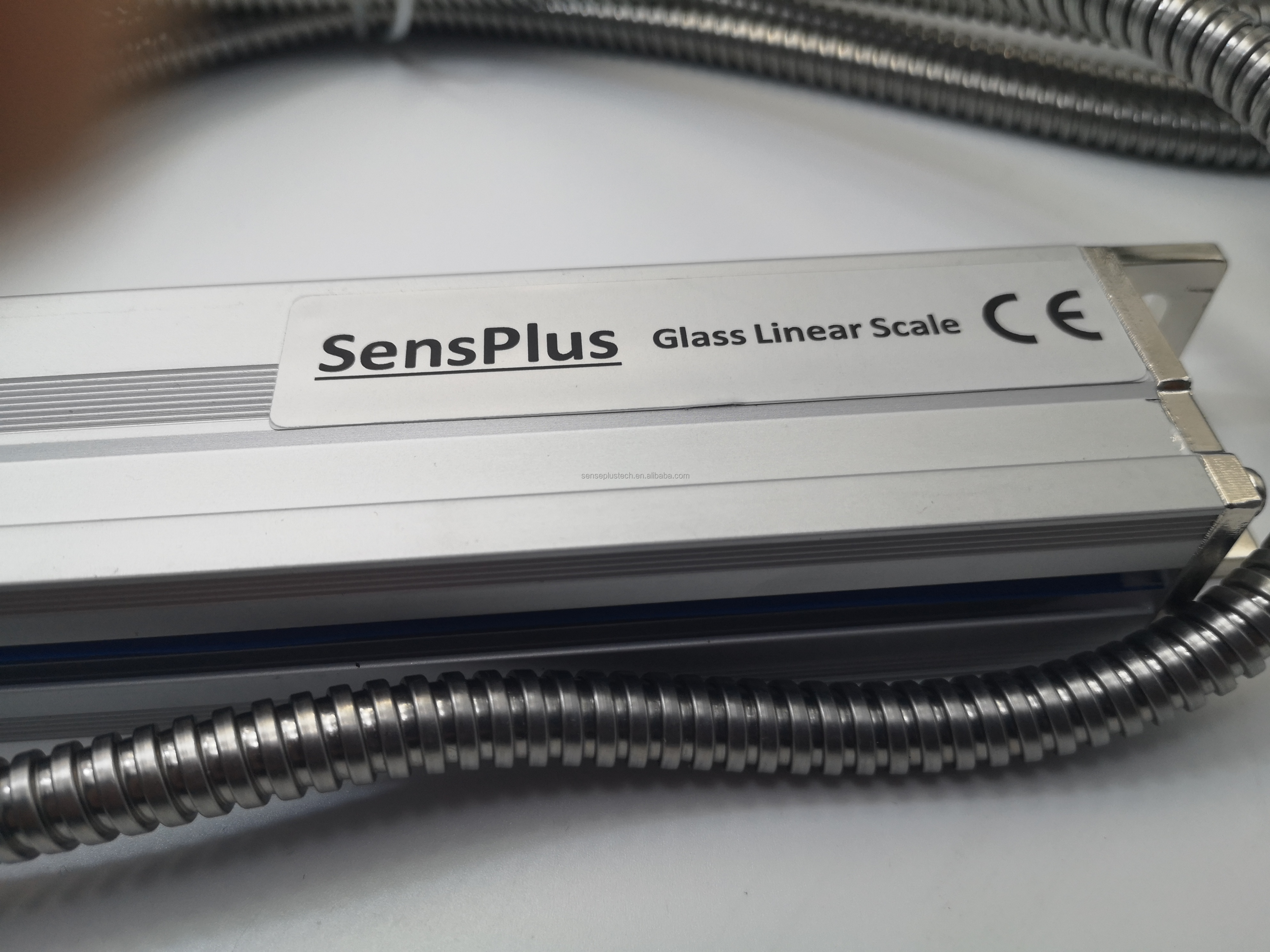

describe:	Glass ruler, optical glass position sensor	Warranty:	1 year
model:	Optical Ruler	accuracy:	10 microns
brand:	Glass position sensor	Sales unit:	single product

company information

Shanghai Shengsipu Technology Co., Ltd. focuses on high-precision components.

We export precision position sensor glass scales for the automation industry to Denmark, Germany, Italy, Turkey, Taiwan, South Korea, etc.

Team members have more than 10 years of experience and background. We are committed to high-quality and cost-effective supply to achieve long-term strong development together

Product Description

feature
• Moving speed: average 60 m/min;
• Long-distance data transmission over 100 meters does not require an intermediate interface;
• Five bearings for excellent positioning repeatability;
• Multi-shielded and flexible metal cables protect against water and environmental influences;
• Anti-electrical noise anodized aluminum alloy body;
• Good anti-vibration performance and wear resistance;
• Easy to install and maintain;
• Protection class: I54 dustproof and waterproof;

Specification
Model	Accuracy and Output Signal	strokes	solve	refer to	move. speed
GLS A 01	Maximum ±(3+3LO/1000)µm; 2-way TTL square wave 0°/90° output; 4-way TTL square wave 0°/90°/180°/270° differential signal optional;	50-1000 mm	0.0001mm	50/100mm	6 m/min
GLS A 02		50-1000 mm	0.0002 mm	50/100mm	15m/min
GLS A 05		50-1000 mm	0.0005 mm	50/100mm	30m/min
GLS A 10		50-1000 mm	0.0010 mm	50/100mm	50m/min
GLS A 50		50-1000 mm	0.0050 mm	50/100mm	90m/min
GLS B10		50-3200 mm	0.0010 mm	50/100mm	60m/min
GLS B 50		50-3200mm	0.0050 mm	50/100mm	60m/min
other data	Phase error: 90°±15°, working temperature: 0°C-40°C
	Storage temperature: -20°C-50°C
Stroke and Cable	Stroke spacing: L0=50-1000mm, there is a scale every 50mm,
	L0=1000-3200mm, there is a scale every 100mm
	maximum. Stroke=effective stroke+30mm(=<500mm)
	Signal line=2m
	maximum. Stroke = effective stroke + 30mm (500mm-900mm)
	Signal line=3.5m
	maximum. Stroke = effective stroke + 50mm (>=900mm)
	Signal line=5.0m
