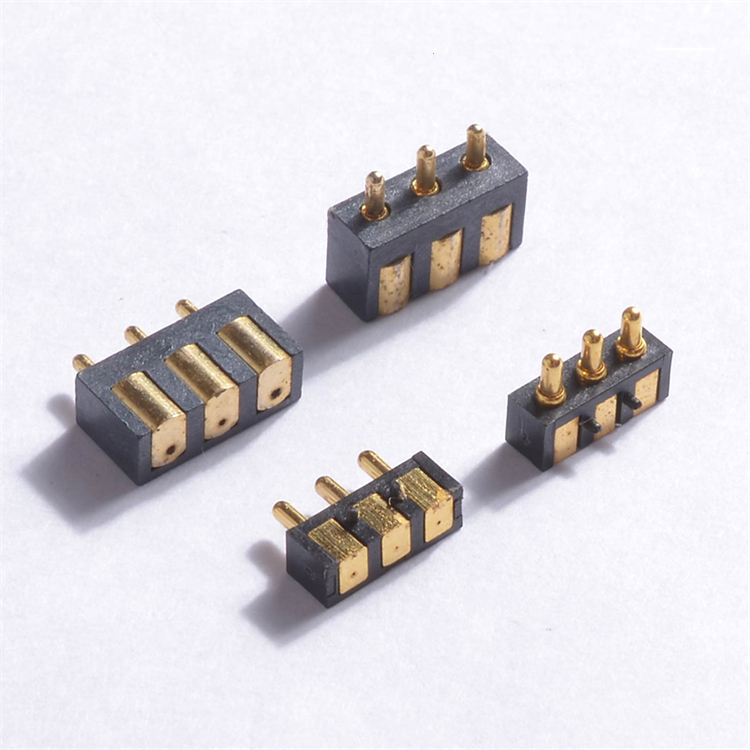

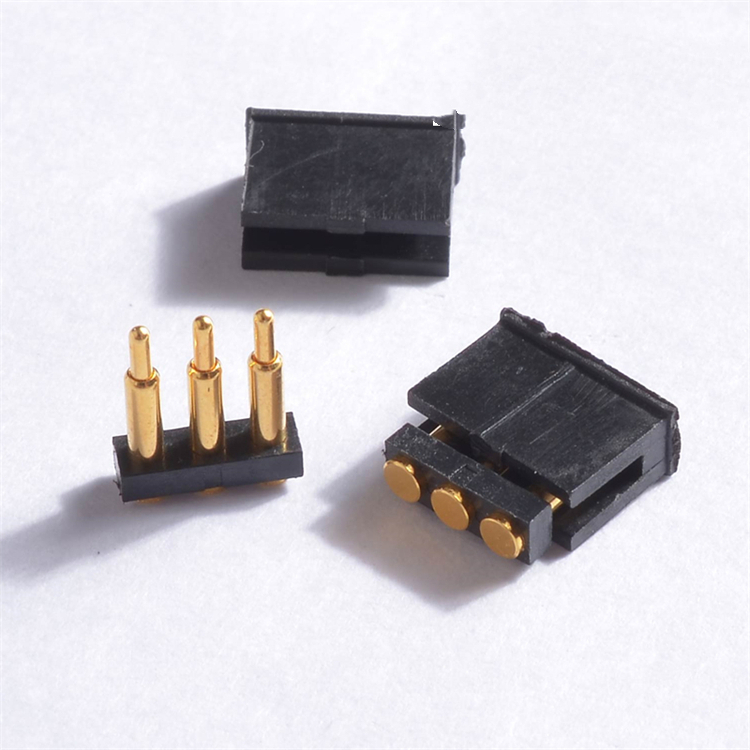

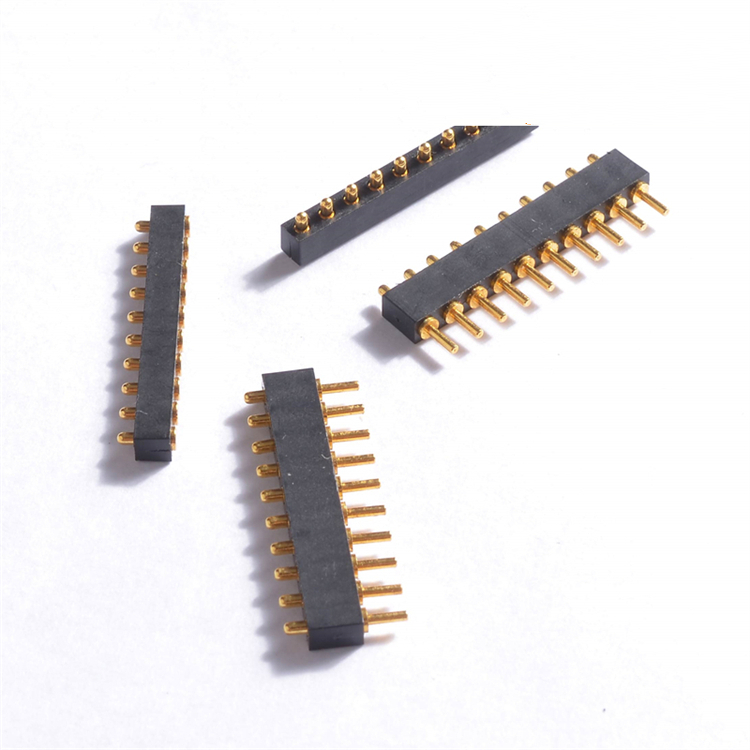

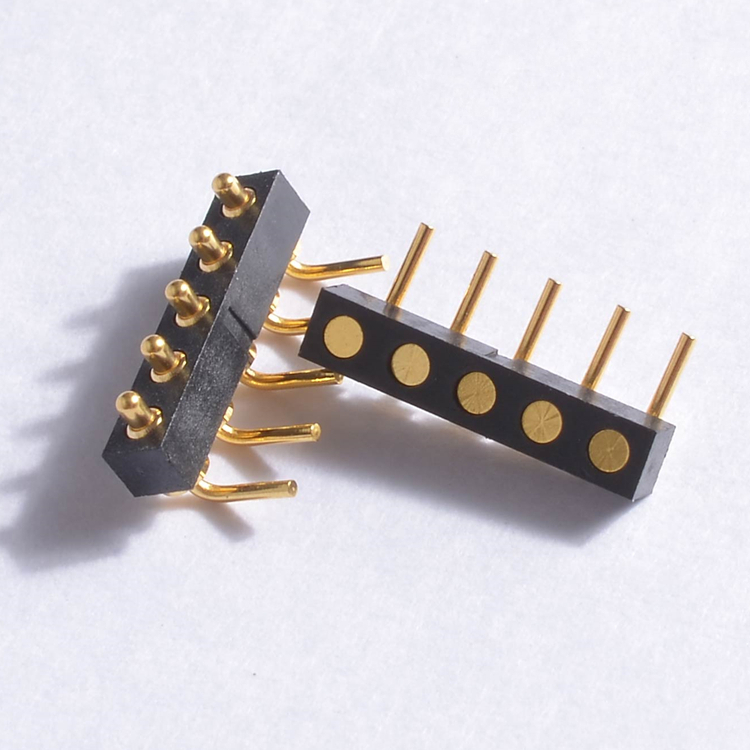

male female pin with brass spring, 5 pin magnetic pogo connector

Supplier: Shenzhen Jiatel Hardware Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Alina Ma
Price: $0.05 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Supply capacity:	500,000 pieces per week	type:	Contact Connector, Spring Connector/
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Specification:	Surface Mount 2Pin POGO Pin
application:	PCB, smart watch, wearable	Card:	Gartel
describe:	spring-loaded connector	port:	Shenzhen or Hong Kong
Packaging Details:	Bag Tapes and Reels	Spring force:	40g, 60g, 80g, 100g, 120g
Contact material:	Brass C3600	Plastic material:	Nylon 6T
color:	Black	Material:	Nylon+Brass
Current rating:	1~3A	Bale:	Tape and Reel (TR)

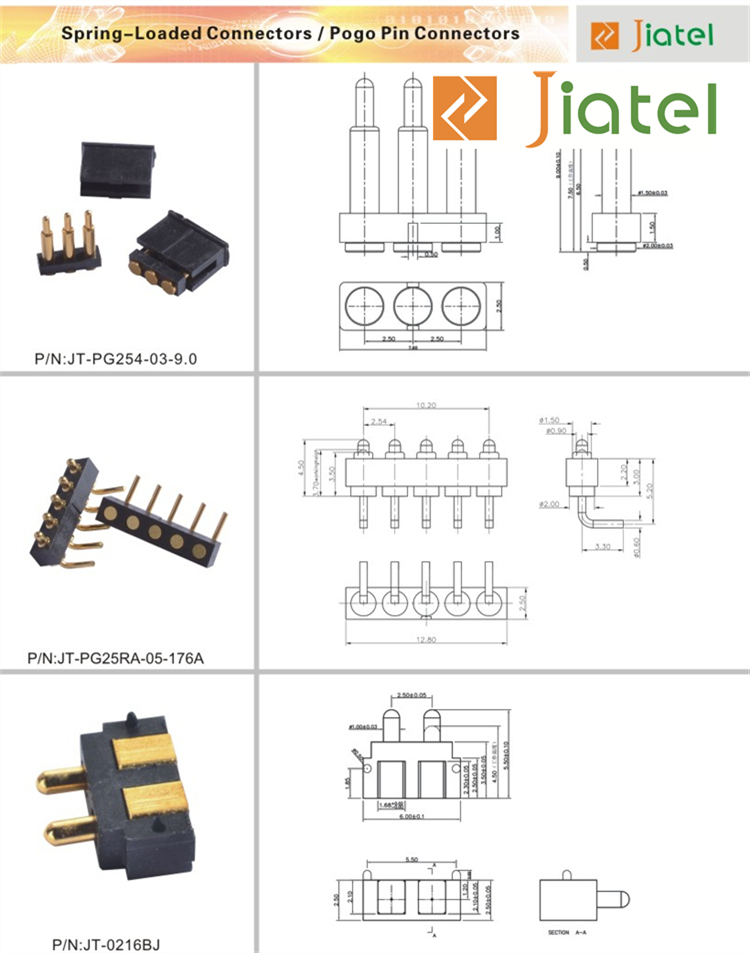

place of origin; place of origin:	Guangdong, China	model:	JT-PG25RA-05-176A
period time:	mini. 10000 times	Travel distance:	0.5~4mm upon request
Contact Plating:	3μ" 5μ" Nickel Gold Plated

product name	Spring/Pogo Connectors
standard packaging	Tape and Reel
Spacing options	2.0mm 2.54mm 3.0mm 3.5mm 4.0mm , contact us by email and tell us the pitch and number of pins so we can know if we have insulators Mold stock.
pin extender	3.5mm~15mm, pin length can be customized
ODM and OEM	can provide services

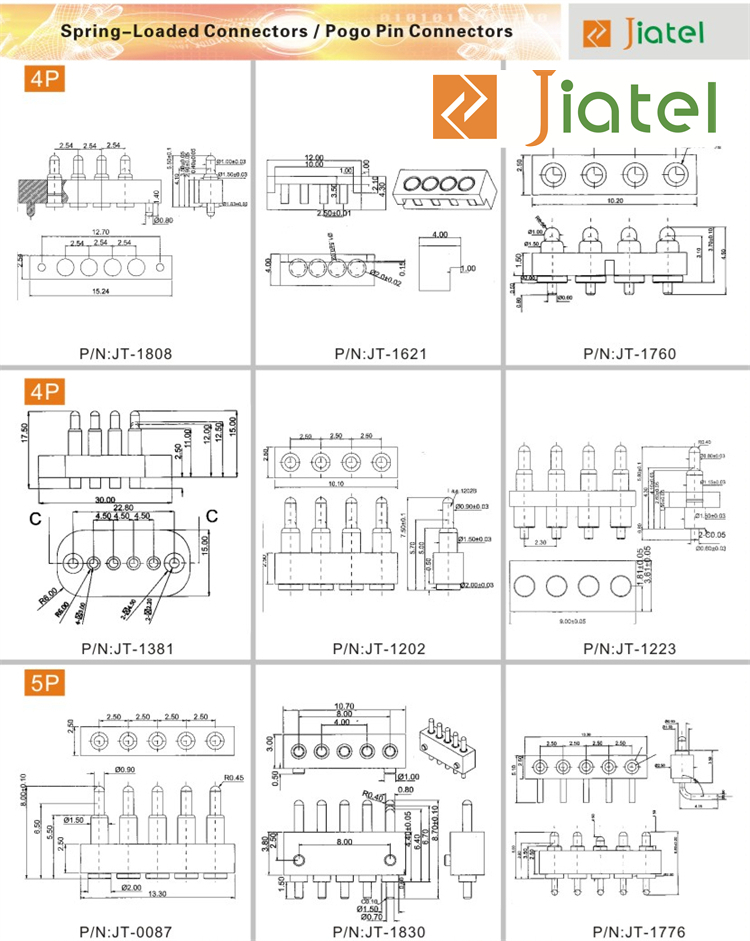

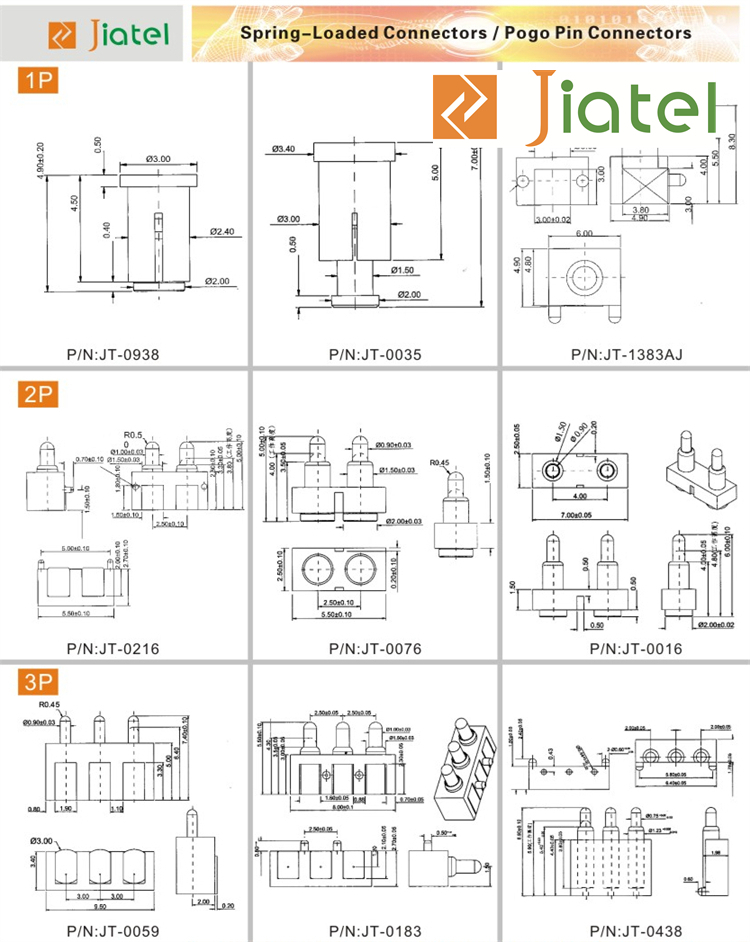

Applicable scene	Mobile phones, communications, chargers, medical equipment, contact us for official drawings

1. Barrier- Brass Gold Plated 5Mircoinch Nickel Plated 2. Plugger- Brass Gold Plated 2~4 Mircoinch Nickel Plated 3. Spring Stainless Steel 4. Spring Force 80~120g 5. Current Rating: 1~3 Amps 6. Durability: 10,000 Sub-cycle 7. Packaging: polybag or tape and reel (with lid)

If you don't find the exact item that meets your needs, don't rush away. send your

Give us drawings or specifications, maybe we can give you the best solution. If you have any question

and more information about our products.

Please contact us. Click here
