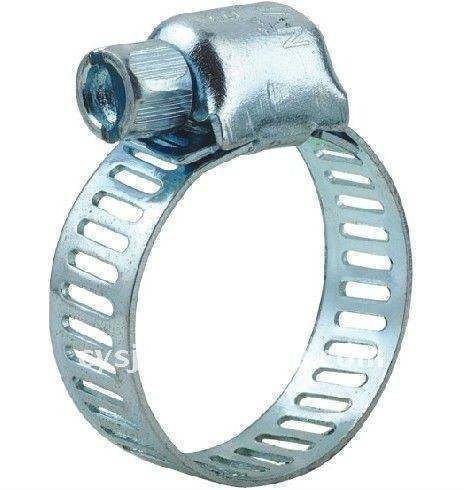

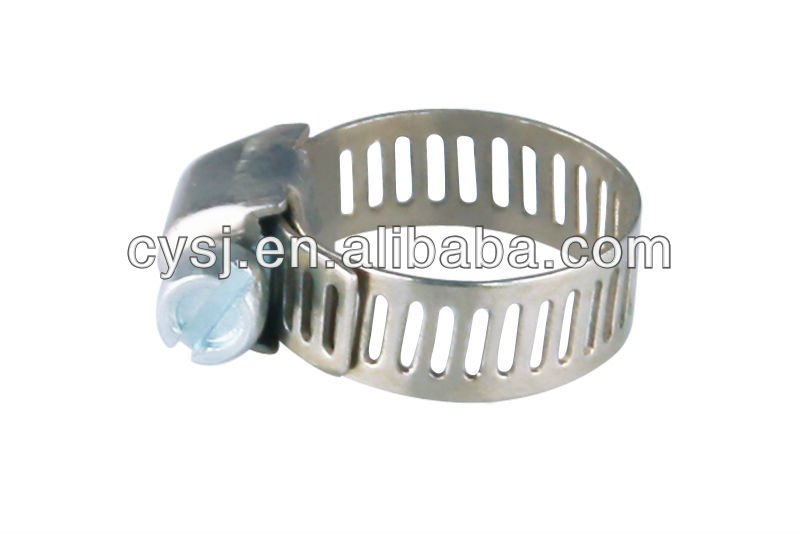

American American Standard Stainless Steel Worm Drive Hose Clamps

Supplier: Dongyang Chuanyuan Plastic Co., Ltd.
Region: Zhejiang, China
Contact: Mr havy hu
Price: $0.20 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Supply capacity:	30000 pieces per month	Material:	Stainless steel
place of origin; place of origin:	Zhejiang, China	model:	12.7mm/8mm
measuring system:	inch	payment terms:	Western Union, wire transfer
bandwidth:	12.7mm / 8mm	usage:	pipe clamp
Standard or non-standard:	standard	structure:	swivel clamp

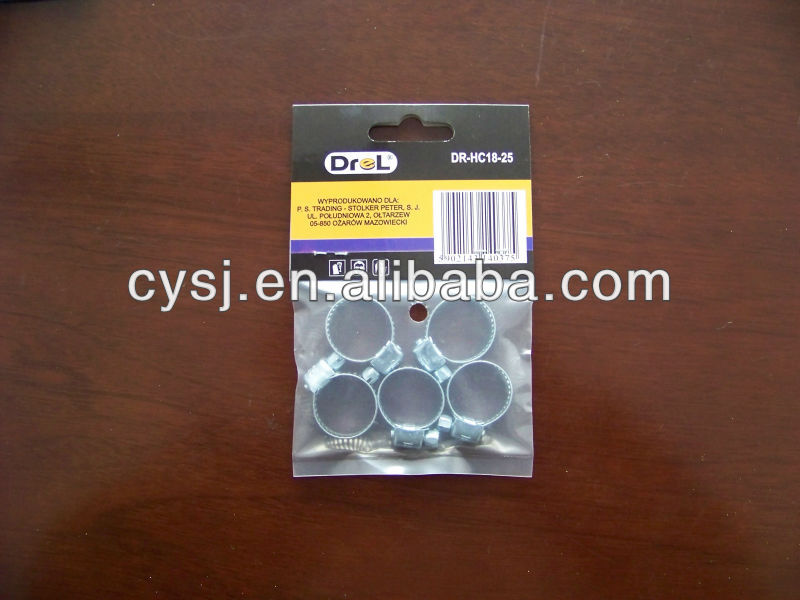

brand:	source	Packaging Details:	Several products in one plastic bag, several plastic bags in one carton
port:	Ningbo

American Hose Clamps:

1) Bandwidth: 12.7mm / 8mm

2) Diameter range: 16mm~203mm / 6-32mm

3) Material: Galvanized Steel and Stainless Steel

free torque New Zealand rice	Braking torque New Zealand rice
W1	≤0.8Nm	≥5Nm
W2	≤0.6Nm	≥8Nm
W4	≤0.6Nm	≥8Nm

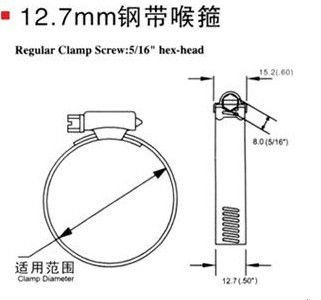

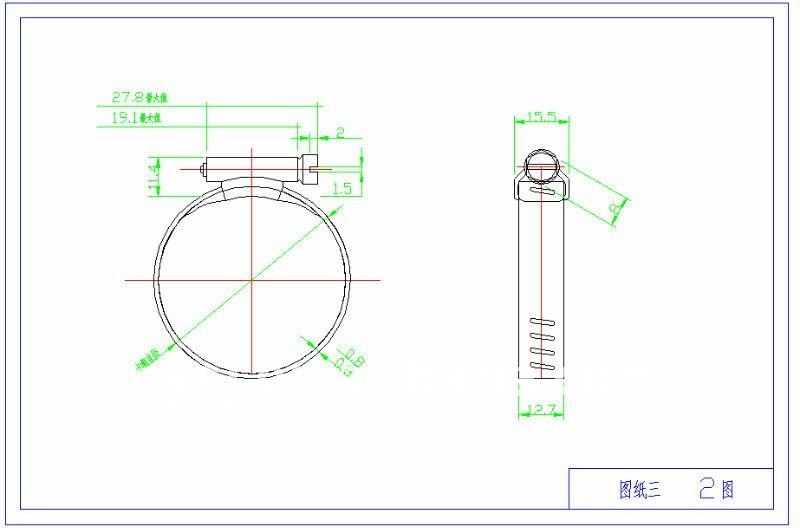

A(American) TYPE HOSE CLAMP-BANDWIDTH 12.7mm,WRENCE 8mm

Material			size	pcs/bag	pcs/box	carton size
W1	W2	W4	size	pcs/bag	pcs/box	carton size
			10-22	100	1000	32×27×20
			11-25	100	1000	38×27×24
			14-27	100	1000	38×27×24
			17-32	100	1000	38×27×29
			21-38	50	500	39×31×31
			21-44	50	500	38×27×24
			27-51	50	500	38×27×29
			33-57	50	500	38×27×34
			40-63	20	500	39×31×31
			46-70	20	500	40×37×30
			52-76	20	500	40×37×30
			59-82	20	500	40×37×30
			65-89	20	500	38×27×34
			72-95	20	500	39×31×31
			78-101	20	250	38×27×34
			84-108	20	250	38×27×34
			91-114	25	250	39×31×31
			105-127	25	250	39×31×31
			118-140	25	250	40×37×27
			130-152	25	250	40×37×30
			143-165	25	250	40×37×35
			155-178	25	250	49×40×31

High quality and competitive price

American worm drive hose clamps are mainly used in automobiles, tractors, ships, gasoline engines, etc. Various mechanical devices of oil, natural gas, hydraulic hose joints, all kinds of rubber pipe joints must be fastened by connectors
