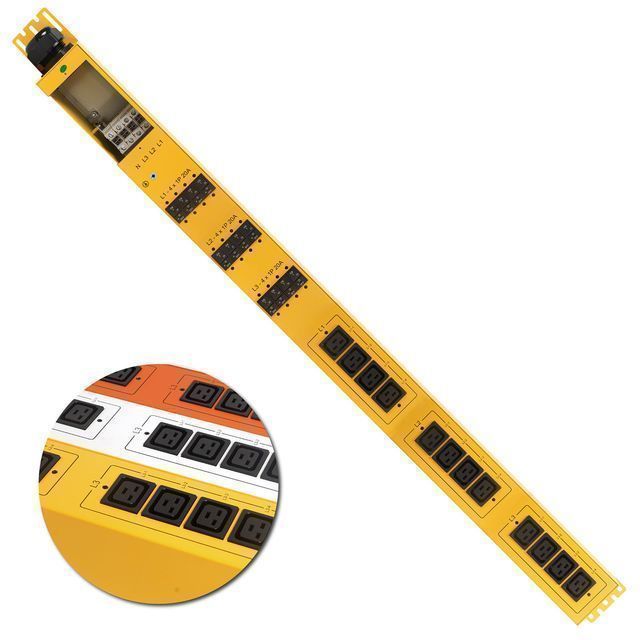

Orient 3Phase PDU 12port C19 and 80A Junction Box and 12 1P 20A Hydraulic Magnetic Circuit Breakers C19 PDU

Supplier: Dongguan Orient Electronics & Metal Co., Ltd.
Region: Guangdong, China
Contact: Ms Ada Yang
Price: $163.00 / 2 - 199 pieces
$145.00 / 200 - 499 pieces
$140.00 / >=500 pieces
Min. Order: 2 pieces

Click here to contact

Product details

size:	12568582mm	Packaging Details:	PE bag, inner box, outer carton
Ground:	Standard ground	Input Current:	80A
Certificate:	ETL CE ROHS	strength:	80A
Packaging Preview:		payment terms:	Wire transfer, MoneyGram
brand:	East	color:	Black
Supply capacity:	99999 pieces per month	Material:	sheet metal
Warranty:	12 months	model:	OIT-BPDU-12C19-12CB-80A
usage:	Expansion socket	place of origin; place of origin:	Guangdong, China
Voltage:	380V/415V	port:	Shenzhen
Rated voltage:	380VAC	model:	OIT-BPDU-12C19-12CB-80A

Product Description

Basic high-power PDU 12 ports C19 16A~20A with independent overload protector for each socket
10A to 160A Power Distribution Unit PDUs for servers and data centers.
* Easily create any rack size by stacking and connecting units
*Accommodates any 19'' network switch
*Easy cable management with extra cable trough

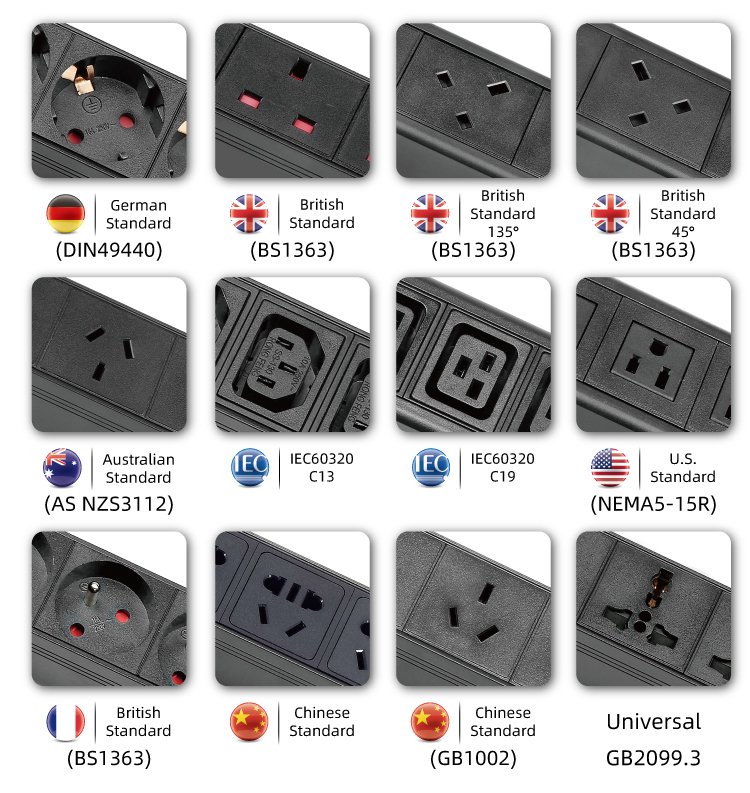

* C13 or C19 plug or customized
* Can be customized with your logo

Input characteristics
Model	OIT-BPDU-12C19-24CB-80A
Input voltage	208V Three Phase (LLLG) to 208V Single Phase
	380V Three Phase (LLLNG) to 220V Single Phase
	415V Three Phase (LLLNG) to 240V Single Phase
	433V Three Phase (LLLNG) to 250V Single Phase
input connector	80Ax5 wire (or junction box, input circuit breaker optional)
frequency	50/60Hz
total current	160A max
Rated output voltage	208-250VAC
Maximum output power per socket	Below 208V, each socket up to 2400W
	Below 220V, each socket up to 4400W
	Below 240V, each socket up to 4800W
	Below 250V, each socket is up to 5000W
total output power	Maximum 5000Wx12
Sock standard	12pcs C19 (customized)
breaker	12pcs 1P 20A Hydraulic Magnetic Circuit Breakers with UL or CE
dimension	Lengthwidthheight=16608585mm
net weight	15KG
Certification	ETL Calcium/US
wire gauge	UL certified, with flame retardant function
Test items
Pressure test	go through
ground	go through
Infrared	go through
Product color & material
Product color:	silver or black
Plastic flame retardant grade	UL94V-0 class
