Two stage plastic recycling machine polyester /SJ-120 model recycling machine

Product details
Power(W):15kw;After-sales Service Provided:Engineers available to service machinery overseas;
plastic type:HDPE,LDPE;Warranty:1 Year;
Single gross weight:1,500 KG;Rational Speed of Screw Stem:10-110rpm;
Selling Units:Single item;Package Type:Cost of plastic recycling machine wooden case package/ depends on customer requirement. Film Blowing Machine is with wooden box, wooden pallet, or strench film packaging. this machine is with flexible wrapping and export standard wooden case. It needs one 20" container for delivery. It will be packed in 4 parts, two separate machine body, winder, and extruder. we will supply one year guarantee, whole life services.;
Weight:1500kg;Diameter of Screw Stem:97mm;
Key Selling Points:Automatic;Brand Name:sanyuan;
Max: Output:100kg/h;Place of Origin:Zhejiang China (Mainland);
Product name:recycling plastic machine;After-sales Service Provided:Field maintenance and repair service,Online support;
Production Capacity:100/kg/h;Application:Plastic film recycling;
Dimension(L*W*H):5000*2500*1600mm;Voltage:380v;
Main Motor Power:15kw;Single package size:500X250X160 cm;
Certification:CE,SGS,ISO9001;Material Processed:Film;
Machine Weight:1.5t;Condition:New;
Automatic Grade:Automatic;Delivery Detail:0 days after payment;
Applicable Industries:Restaurant,Home Use,Retail,Food Shop;Major Diameter Ratio of Screw Stem:14: 1(L/D);

Two stage plastic recycling machine polyester /SJ-120 model recycling machine

Banner



Main specification

http://www.youtube.com/watch?v=GJ_lVwrQOYw&feature=youtu.be

Application:

SJ-100 Double-stage Waste Plastic Regenerative Pelletizer is equipped with two units of extruders, which is advantaged to moisture evaporation, and with even and smooth regenerative plastic granules. It is also equipped with automatic temperature control system, which is suitable for HDPE. LDPE waste plastic regenerative palletizing.

Main specification:

Output: 70-100kg/h

  • Applicable raw material: HDPE/LDPE, PP materials
  • Power supply: 380v, 50Hz 3 Phase
  • Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
  • Gear box: Hard Surface Gear
  • Automatic temperature controlling system
  • Including water-cooling device made of stainless steel

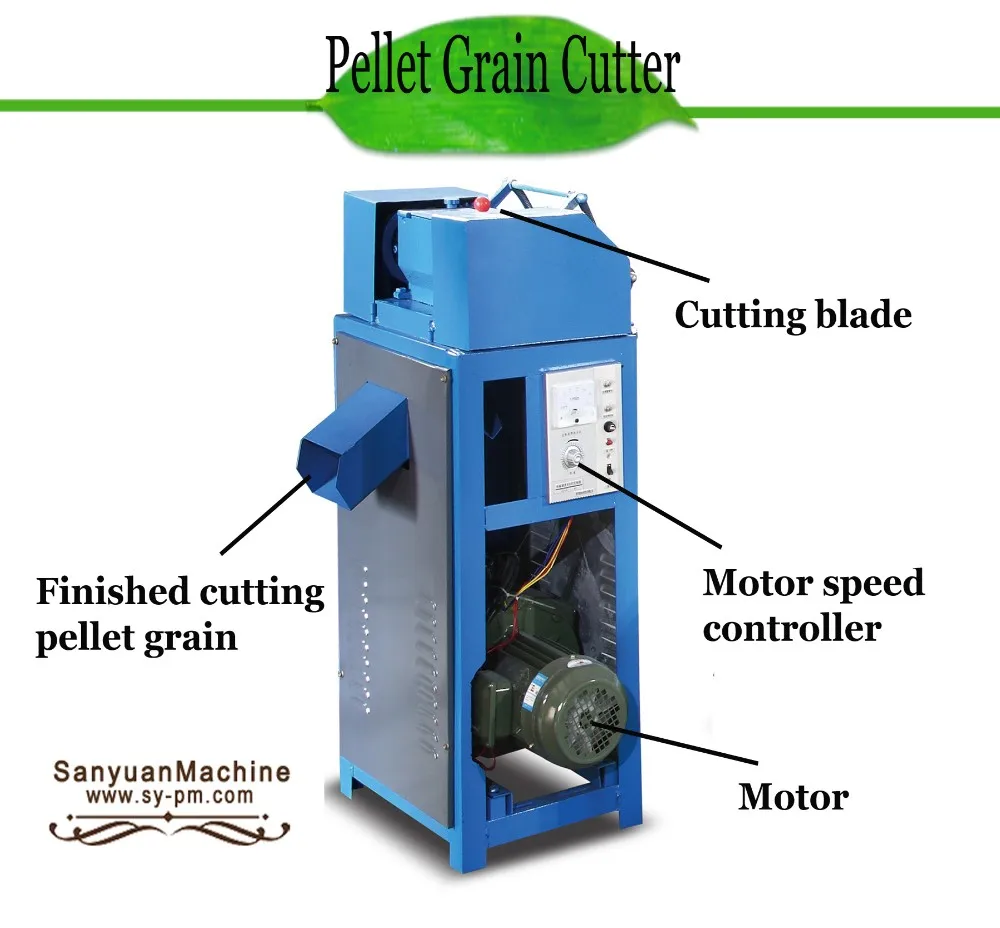

  • Including granule cutter

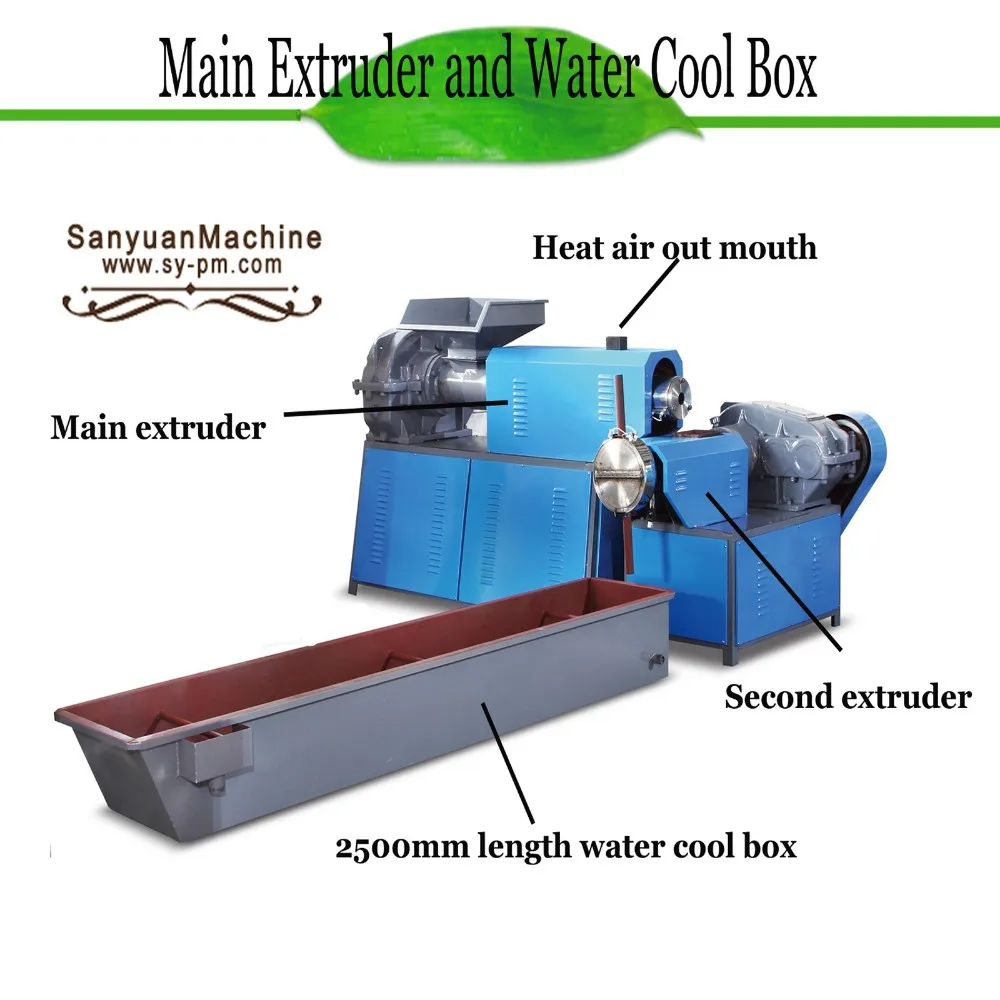

Main Extrusion Unit

  •  Main extruder
  •  Main motor :18.5kw
  • Screw Diameter: Φ 117mm
  • Screw ratio: L/D 13: 1

Auxiliary extruder

  •  Auxiliary motor: 7.5kw
  • Screw Diameter: Φ 105mm
  • Screw ratio: L/D 7: 1
  • Heating
Main Parameters

Main Technical Parameters:

Machine Model

SJ-100

SJ-120

SJ-130



Production

LDPE

60-70kg/h

100kg/h

105kg/h

HDPE

40-50 kg/h

70 kg/h

75 kg/h

PP

60-70 kg/h

100 kg/h

105 kg/h

Main Extruder Screw Size

97mm

117mm

127mm

Second Extruder Screw Size

97mm

105mm

115mm

Hydraulic Screen Changer

Optional

Optional

Optional

Force Feeder

Optional

Optional

Optional

Main Motor Size

15kw

18.5kw

30kw

Second Motor Size

7.5kw

7.5kw

11kw

Heating Power

15kw

20kw

30kw

Main Extruder LD

14:1

14:1

14:1

Second Extruder LD

7:1

7:1

7:1

Main Motor Inverter

Optional

Optional

Optional

Second Motor Inverter

Optional

Optional

Optional

Cutter Motor

1.5kw

1.5kw

1.5kw

Force Feeder Motor

Optional

Optional

Optional

Main Extruder Gear Box Hard Teeth

350 Model

400 Model

500 Model

Second Extruder Gear Box Hard Teeth

350+bearing seat

350+bearing seat

350+bearing seat

Ceramic Heating Ring

4pcs

6pcs

6pcs

Aluminum Heating Ring

6pcs

6pcs

6pcs

Machine Production Dimension

5000*2500*1600

mm

5000*2600*1600 mm

6000*3500*1600

mm

Free Spare Parts:

No.

Spare parts name

Quantity

1

Temperature meter

1set

2

Electric Sensor

2 pc

3

Heating ring

3 pc

4

Tool box

1set

5

English manual

1pc
