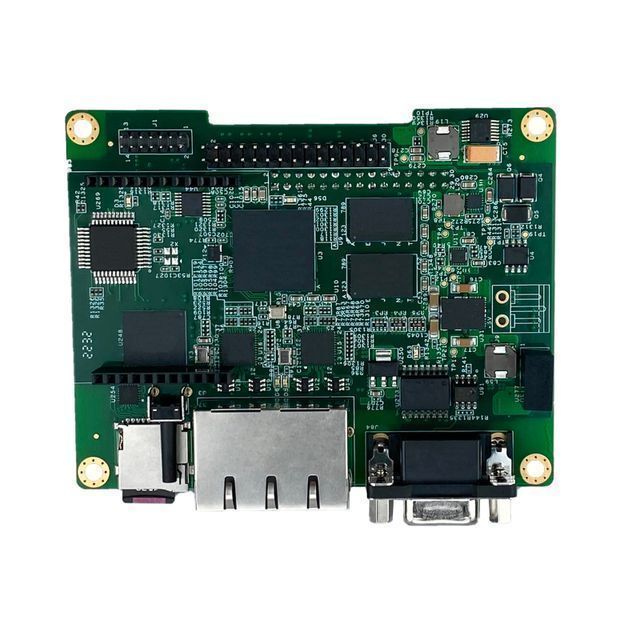

product development 2022 sale weigh scale circuit board pcb/pcba assembly made by intellisense

  • Supplier: Shenzhen Ilinkglobe Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Wang Michael
  • Price: $5.35 / 1 - 99 pieces
    $4.62 / 100 - 999 pieces
    $0.55 / >=1000 pieces
  • Min. Order: 1 piece
Product details
minute. Hole size:0.25mmminute. Line width:0.075mm
Features:CAD+PCB+Components+SMTOriginal Equipment Manufacturer:acceptable
Floor:up to 40 floorsapplication:industrial control
Substrate:aluminumCopper Thickness:0.2mm
type:high density circuit boardsample:1
place of origin; place of origin:Guangdong, ChinaSurface treatment:Spray tin, lead-free spray tin, gold and silver
Certification:ISO9001shape:rectangle, circle, irregular
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramport:Shenzhen Yantian Port
brand:ilinkglobemodel:ZLKX-IR-203
Packaging Details:Bubble pack + box or customizedMinimum PCB Thickness:0.1mm
Board size:50*50mm-910*600mmSupply capacity:800 pieces per day
Packaging Preview:Plate thickness:1.2mm
Craft:Reflow and Wave Solderingminute. Line spacing:0.075mm
Maximum printed circuit board size:910mm*600mm
Product Description
product name
PCB PCBA Manufacturer
application
Telecom, medical, industrial control, new energy, automobile, robot, 5G server, drone
boring
FR-4, high Tg FR4, high CTI FR4, halogen-free FR4, copper aluminum plate
flexible
Rogers, Arlon, Taconic, Nelco, Isola
PCB layer
1-40 layers
PCB shape
Rectangle, Square, Circle, Irregular
Board size
50*50mm-910mm*600mm
PCB thickness
0.1mm-8mm
Maximum finished copper thickness (inside and outside)
120 oz
Minimum base copper
1/3 ounce
Minimum drilling diameter
0.1mm
Minimum drilling tolerance
+/-2 million
Minimum layer tolerance
+/-3 million
Minimum line width/spacing
3 million/3 million
Minimum pitch (hole to inner or outer conductor)
6000000
Minimum BGA Diameter
800w
Human Development Index
1-3steps Anylayer
surface treatment
HASL, lead-free HASL, ENIG, Ni/Au plating, gold finger, immersion silver/tin, OSP, ENIPG
Manufacturer Services
Project Development Services
ILINKGLOBE provides product development services according to customers' specifications. If the project feasibility assessment is passed, the overall solution including software and hardware will be output. After the sample is made and tested, it will be further provided to the customer for verification or program modification. Finally, according to the needs of customers, it is determined to end the research and development program, or to continue the production of mass products.
The following files are required for project development:
1: Detailed function description
2: Description of technical parameters
3: Design cycle requirements
4: Batch cost requirements

PCB Design Services
ILINKGLOBE provides PCB design services according to customers' specifications. Customer provides DSN/SCHSchematic file and PCB package library file, or the corresponding device DataSheet. The customer needs to provide the PCB board structure file in DXF format, the structure restriction description, the electrical design description and other matters needing attention. After the project starts, our engineers will conduct DRC inspection on electrical design requirements such as schematic diagram and structural inspection. If there is a problem, the EQ record will be fed back to the customer as soon as possible. During the project design process, the daily work progress file of our engineers is sent to the client
confirm. Customers can see the status of the design every day, and can find and deal with problems in a timely manner. After the design of Pcb Layout is completed, our engineers will conduct mutual inspection, including DFM inspection, QA inspection and EMC inspection. After the customer confirms OK, we will issue production documents such as GERBER. After the customer confirms OK, our engineers will output ASM assembly files, SMT patch files, original PCB design files, GERBER
Documents, EQ engineering communication records, etc.
The following files are required for PCB design:
1: Schematic diagram of DSN/SCH format
2: PCB footprint
3: Package library file/main device data sheet
4: Outline structure drawing/DXF format/DWG format
5: Electrical design requirements such as layout/wiring/timing/frequency/speed/current
6: Reference board/PCB or BRD format

PCB Manufacturing Services
ILINKGLOBE provides PCB production services. We can make 1-40 layers rigid, 1-8 layers flex to 2-12 layers rigid-flex PCBs. Materials include standard FR-4, high Tg FR-4, halogen-free FR-4, copper aluminum plate, polyimide, PTFE, high-speed and high-frequency, etc.
Parts Purchasing Service
ILINKGLOBE provides component procurement services. Components are purchased from reliable distributors such as Digikey, Mouser, Arrow, Avnet. After 10 years of experience, the quality of all components can be guaranteed.
PCB Assembly Services
ILINKGLOBE provides PCB assembly services from prototype to mass production. Components range from 01005, BGA, LGA, QFN to DIP through hole. SPI, AOI, FA and X-Ray are all equipped to ensure quality. Both SMT formwork and cable assembly services can be provided.
programming and testing
ILINKGLOBE provides programming and functional testing services. Equipped with SPI FLASH programmer using Type-C communication interface and ISP/ATE multiplexing interface, which can be used for various SPI NOR FLASH, I2C/Micro Wire and other EEPROMs. Once detailed test instructions and documentation have been received, functional testing can be performed.
