0.01-1200ohm unit digital earth resistance meter high precision digital megohmmeter clamp earth resistance tester

Supplier: Rui Du Mechanical And Electrical(Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Rui Du
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	1000 sets per month	place of origin; place of origin:	China Shanghai
port:	Shanghai Port	brand:	Windu
Packaging Preview:		payment terms:	letter of credit, wire transfer
Measuring range:	0.01-1200ohm	model:	RDER2000+
Display type:	numbers only	Packaging Details:	Inner packing: Bubble board; Outer packing: Standard box; Customer OEM packing is also available

Product Description

describe:

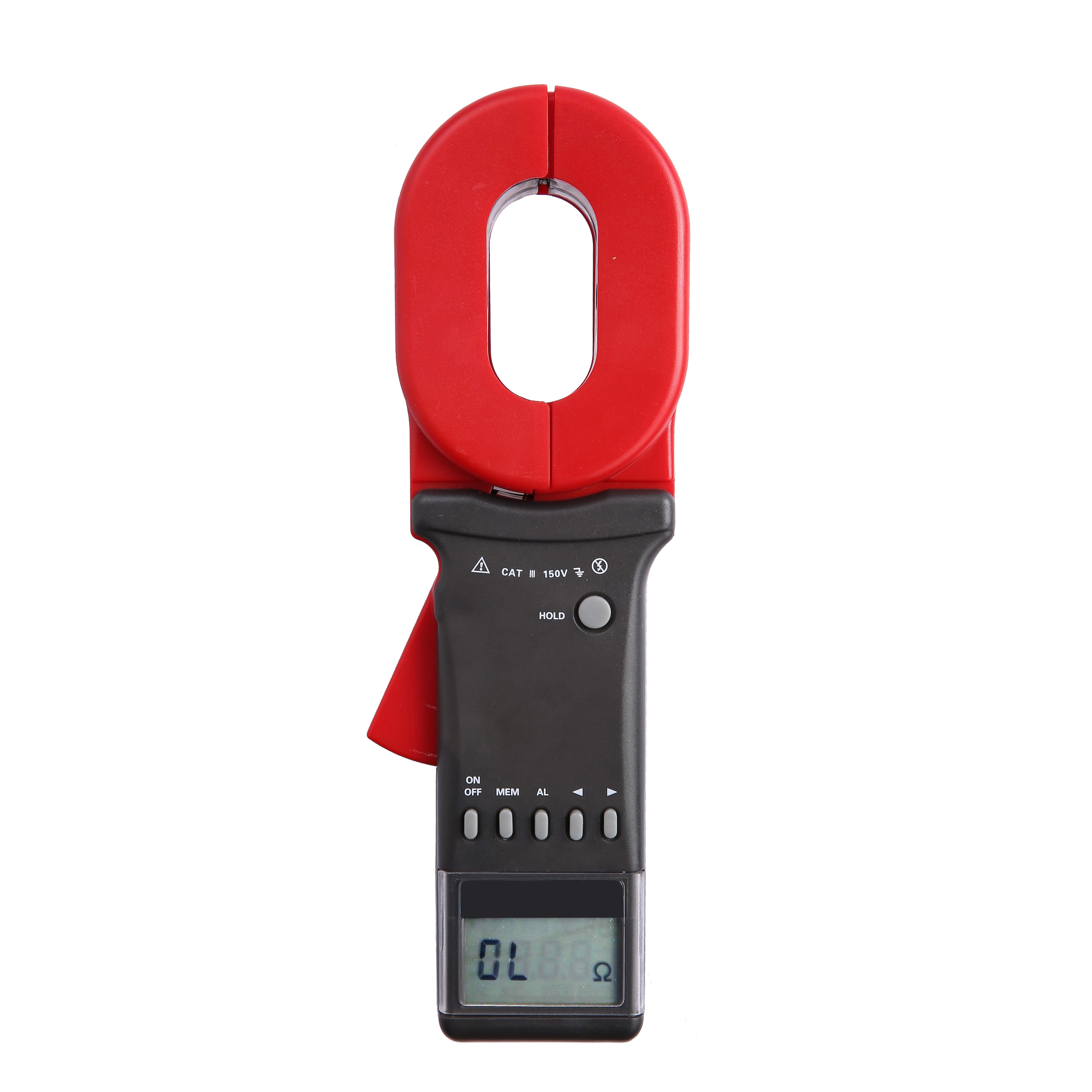

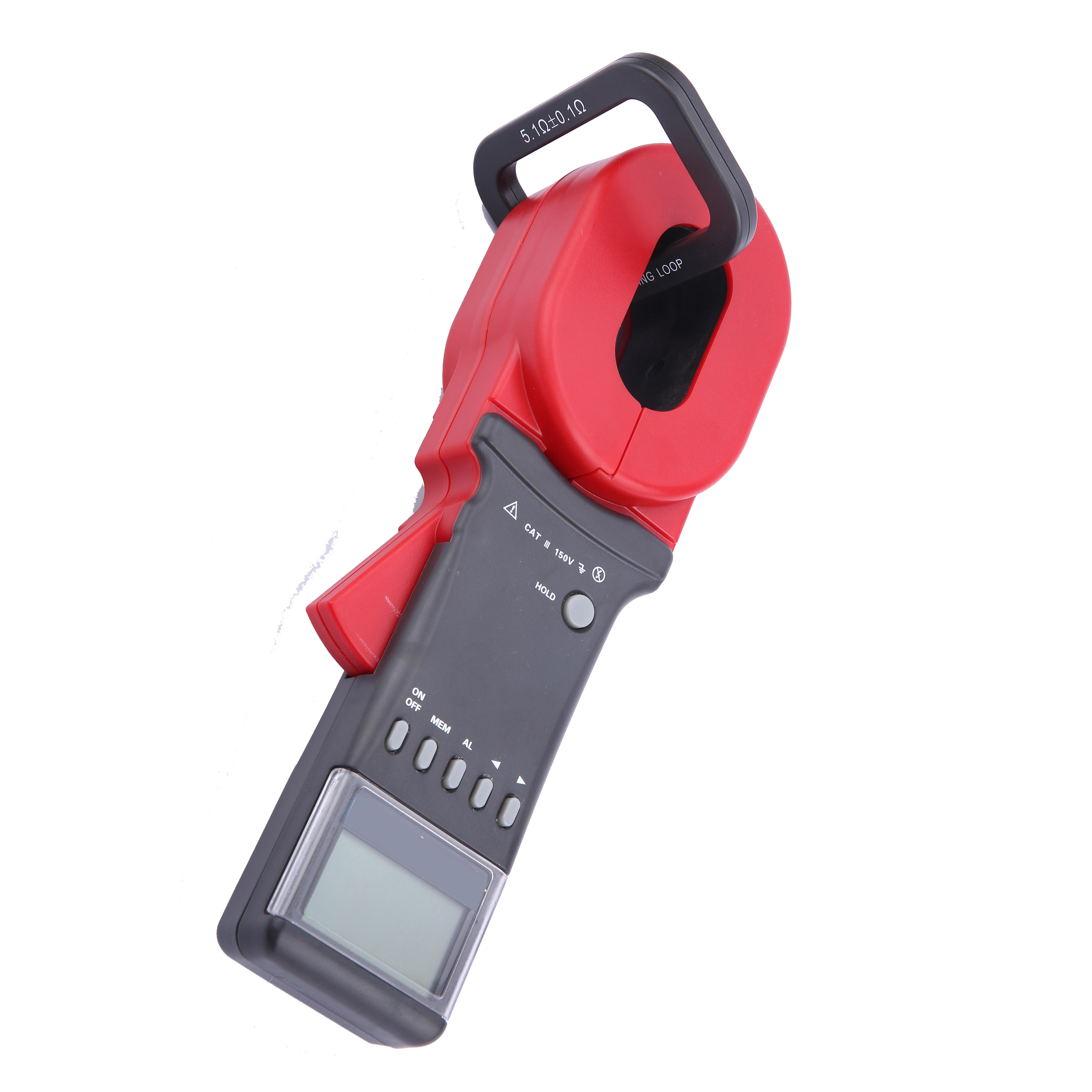

RDER2000+ Clamp Earth Resistance Tester is widely used in earth resistance measurement of electric power, telecommunication, meteorology, oil field, construction and industrial and electrical equipment. When measuring grounded systems with loops, there is no need to remove the grounding lead or auxiliary electrodes. It's safe, fast and easy to use. This tester can measure ground faults that cannot be measured by traditional methods. It can be used for applications that cannot be measured by traditional methods, because the RDER Series Clamp-On Resistance Meters measure the combined value of ground body resistance and ground lead resistance.

Features

1. Quick self-test, start entering the test immediately.

2. Adopt the most advanced processing algorithm and digital integration technology.

3. The product is light in weight and more in line with the characteristics of handheld devices.

4. New design, 6-button panel operation, better performance.

5. Add sound and light alarm function, with "beep-beep-beep" alarm sound.

6. Increase the function of interference signal identification indicator, with a "beep-beep-beep" indicator.

7. Measuring range: 0.01Ω～1200Ω

8. Store data 99 units. Lower power consumption, the maximum operating current is less than 50mA.

1. Measuring range and accuracy

Measurement	scope	Resolution	accuracy
resist	0.010Ω ~ 0.099Ω	0.001Ω	±(1%rdg+0.01Ω)
		0.10Ω ~ 0.99Ω	0.01Ω	±(1%rdg+0.01Ω)
		1.0Ω ~ 49.9Ω	0.1Ω	±(1% reading+0.1Ω)
		50.0Ω ~ 99.5Ω	0.5Ω	±(1.5%rdg+0.5Ω)
		100Ω ~ 199Ω	1Ω	±(2% reading+1Ω)
		200Ω～395Ω	5Ω	±(5% reading+5Ω)
		400Ω ~ 590Ω	10Ω	±(10% reading+10Ω)
		600Ω～880Ω	20Ω	±(20% reading+20Ω)
		900Ω ~ 1200Ω	30Ω	±(25% reading+30Ω)

2. Technical parameters

Function	describe
power supply	6VDC 4 PCS LR6 alkaline battery
Fixture size	65mm×32mm
LCD size	4-digit LCD display, screen: 47mm×28.5mm
scope	0.010Ω ~1200Ω
Resolution	0.001Ω
accuracy	±1%±0.01Ω
data storage	99 sets
Data upload function	RS232 interface (optional)
Automatic shut-down	Automatic shutdown after 5 minutes without any operation
energy consumption	≤50mA, continuous work for 30 hours
working environment	-20℃~55℃ 20%~80%RH
shop environment	-20℃~60℃; lower than 90%RH
Alarm threshold setting range	Resistance: 1Ω~199Ω
Audible alarm	"Beep beep beep" alarm sound, the alarm symbol flashes, press the AL key to turn on/off the setting
Interfering signal identification	"Beep beep" indicator light, NOISE symbol flashes
Protection class	double insulation

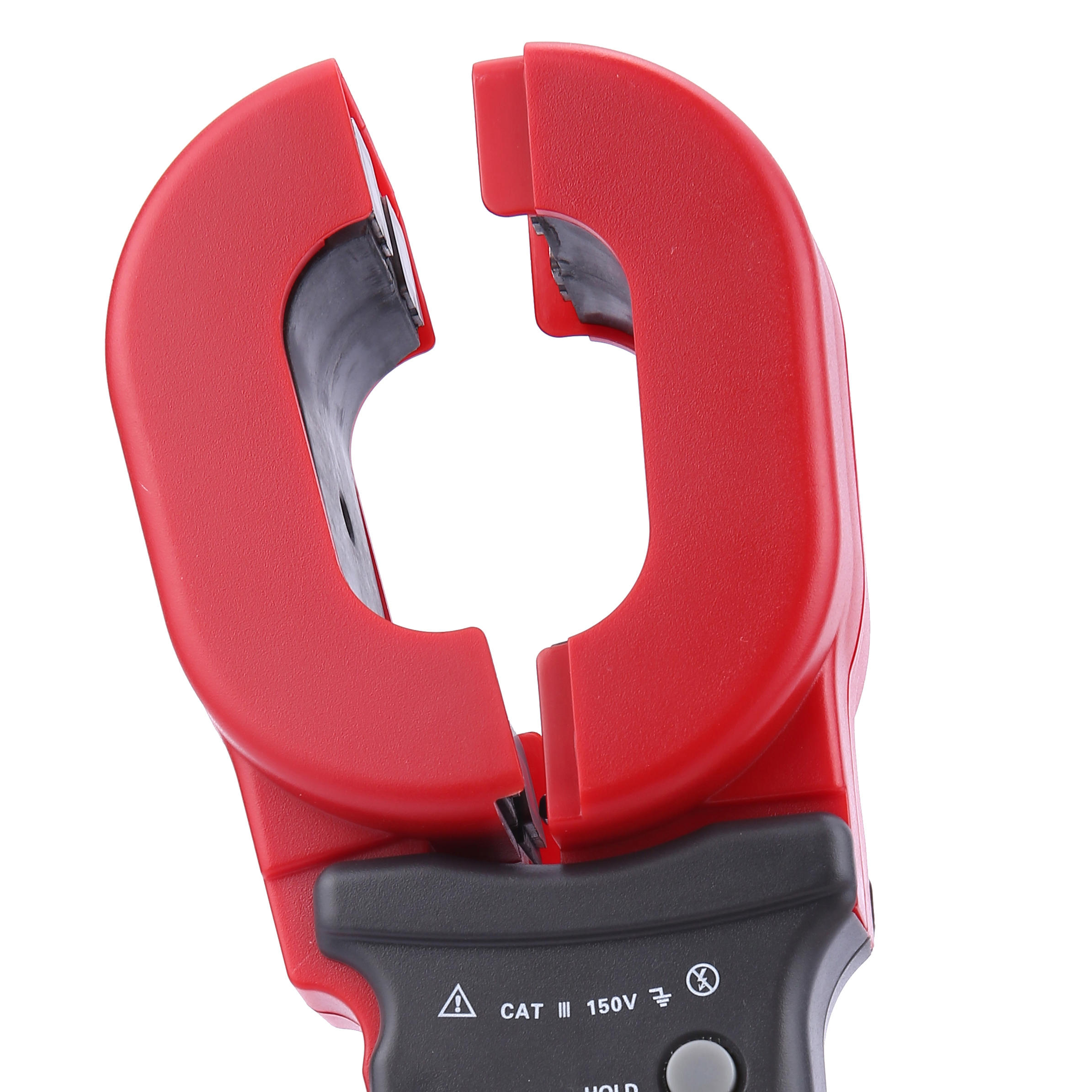

Structure	Clamp CT
transfer	automatic gear shift
external magnetic field	<40A/m
external electric field	<1V/m
single measurement time	0.5 seconds
Resistance measurement frequency	>1KHz
Measuring current frequency	50/60Hz Auto
Low battery voltage indicator	When the battery voltage is lower than 5.3V, the battery voltage low symbol is displayed
memory full indication	When the stored data is full of 99 groups, the "MEM" symbol flashes
Overrange indication	Out of range indication "OLΩ", "L0.01" or "OL A"
Tester Weight	1160 grams
Tester size	285mm×85mm×56mm
