Output Power: | 100W/80W; | Model Number: | TH6201; |
Delivery Detail: | 0 days after payment; | Selling Units: | Single item; |
Output Voltage: | 20V/8V; | Brand Name: | Tonghui; |
Single gross weight: | 9 KG; | Output Current: | 5A/10A; |
Input Voltage: | 110V/220V; | Voltage: | 0-20V; |
Single package size: | 25X50X15 cm; |

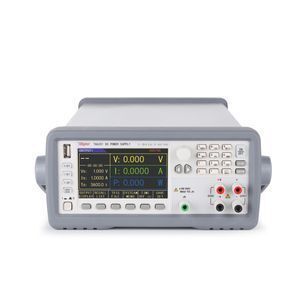

TH6201 Dual range DC Power supply
Features
Fresh and simple system settings with Chinese and English operation interfaces
High resolution: 24-bit color 4.3-inch TFTLCD, resolution: 480 x 272
High precision and high stability
Small size: 1/2 2U
Use rotary knob and numeric keyboard to set the voltage, current and output time
Low ripple and low noise
Panel function button with backlight display
Remote measurement function, compensation for line voltage drop
Intelligent fan control, energy saving and noise reduction
Output switch control
Software monitoring through PC
Output the voltage and current value according to the written programs
Set the timing output time (0.1-9999.9S)
Save the screen information to the U-disk
Fully isolated circuit and support positive and negative reverse connection
The software can be automatically upgraded via the USB HOST
Supports standard SCPI communication protocols
Hardware overvoltage and overcurrent protection
Application
R & D and design verification common test
Production line table routine testing and maintenance
Automated device integration testing
Solar photovoltaic simulation test
New power car simulation test
Teaching laboratory
.
Specification
Model | TH6201
| ||||
Rated output (0℃-40℃) | Channel/Range | Range1 | Range2 | ||
Voltage | 0-20V | 0-8V | |||
Current | 0-5A | 0-10A | |||
Power | 100W | 80W | |||
Load regulation ± (% Output + Bias) | Voltage | ≤0.01% + 4mV
| |||
Current | ≤0.01% + 2mA
| ||||
Power regulation ± (% Output + Bias) | Voltage | ≤0.01% + 4mV
| |||
Current | ≤0.01% + 2mA
| ||||
Programming resolution | Voltage | 1mV | |||
Current | 0.1mA | ||||
Read-back value resolution | Voltage | 1mV | |||
Current | 0.1mA | ||||
Year accuracy (25℃± 5℃) ± (% Reading + Bias) |
Programming | Voltage | ≤0.04% + 8mV | ||
Current | ≤0.1% + 5mA | ||||
Read- back | Voltage | ≤0.04% + 8mV | |||
Current | ≤0.1% + 5mA | ||||
Ripple and Noise (20Hz-20MHz) | Normal mode voltage | ≤3mVp-p/1mVrms
| |||
Normal mode current | <9mArms
| ||||
Common mode current | <1.5µArms | ||||
Rise time (10% — 90%) | <90ms
| ||||
Fall time (90% — 10%) | <150ms
| ||||
Timer | 0.1 ~ 99999.9 seconds | ||||
Memory | 10 groups of trigger output, 100 steps for each group,100 sets of setting memory |
