Linear guide hgr20 and linear guide hgr20 with slider HGH20HA

.HIWIN provides flanged and square linear guides. Due to the low assembly height and large mounting surface, the flanged version is suitable for heavy moment load applications.

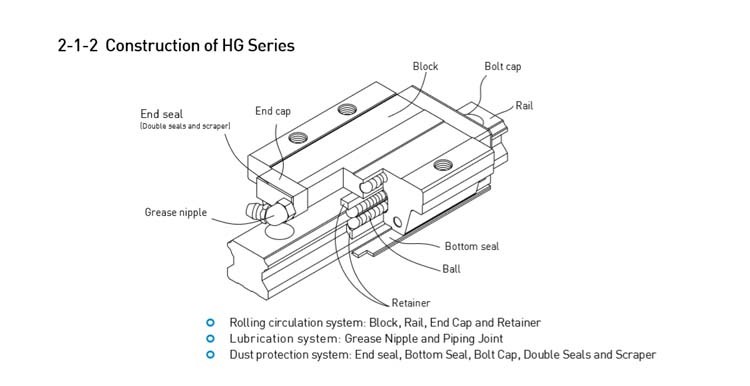

.HIWIN linear slide rail is a kind of rolling guide, which is composed of steel balls between the slider and the slide rail to form an infinite rolling cycle, so that the load platform can easily perform high-precision linear motion along the slide rail, and the friction coefficient can be reduced to 1/50 of the traditional sliding guide, making it easy to achieve μm-level positioning accuracy. The end design between the slider and the slide rail enables the linear slide rail to bear various loads such as up, down, left, right, etc. in the downward direction at the same time. The recycling of the patented system and the streamlined structure design make the Shangyin linear slide rail more stable and with lower noise. .

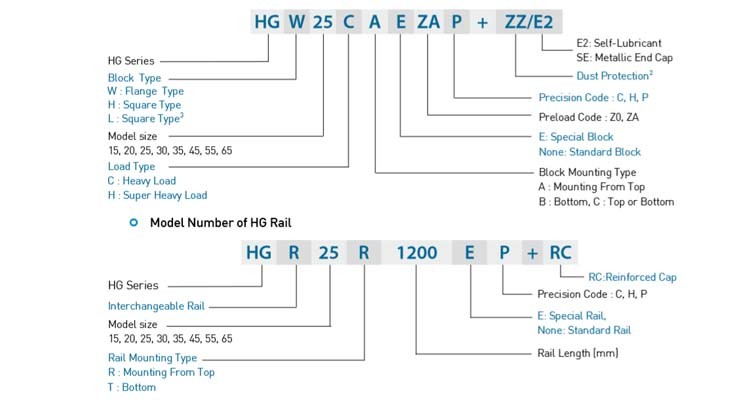

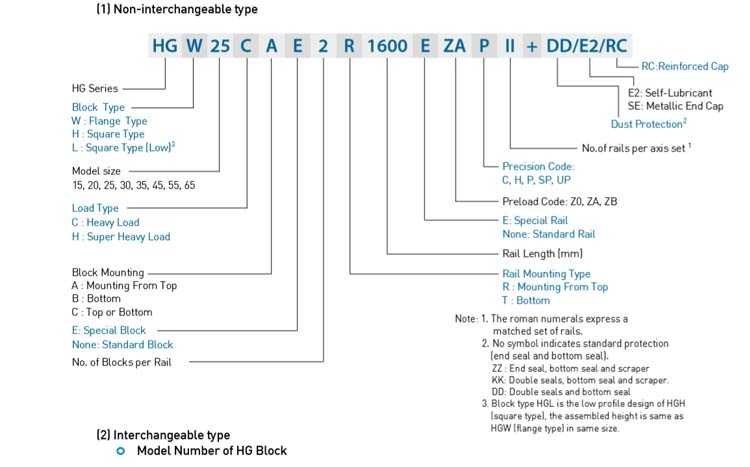

.HG series guide rails can be divided into non-interchangeable type and interchangeable type. Same size. The only difference between the two types is that the interchangeable types of sliders and guides can be freely replaced, and their accuracy can reach p-class. The models of HG series include size, type, accuracy grade, preload grade, etc.
