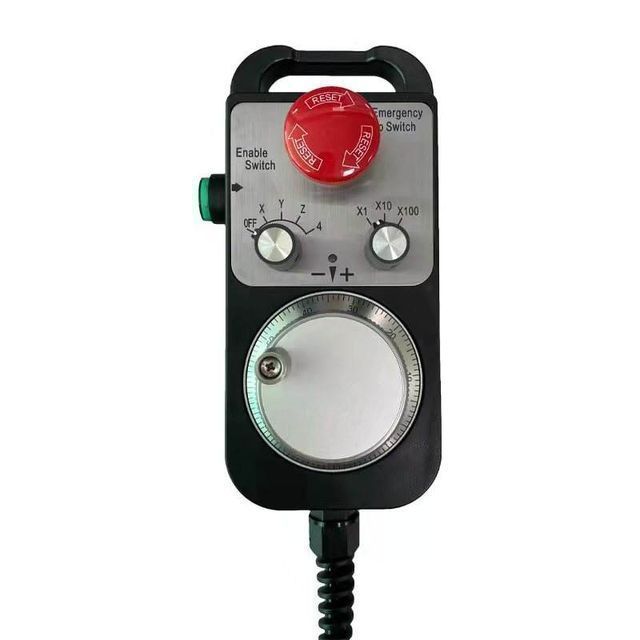

MPg CNC Pulse Generator Handset SSK Plastic Protection Circuit Video Sales Technical Parts Set

Supplier: Zhongshan Yuanchuan Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jackson Du
Price: $57.00 / 5 - 49 pieces
$47.00 / 50 - 499 pieces
$45.00 / >=500 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Single package size:	30X18X10 cm	application:	Machinery Parts
Warranty:	1 year	Core components:	programmable logic controller
Applicable industries:	Manufacturing plants, machinery repair shops	Video external inspection:	if
Showroom location:	not any	Health status:	new
place of origin; place of origin:	Guangdong, China	Weight (kg):	1.5
Minimum order quantity:	1	color:	Balk
axis:	4/5/6	Marketing Type:	normal product
Sales unit:	single product	Material:	plastic
Mechanical test report:	Not available	cable:	19 cores
Body material:	ABS	Gross weight per piece:	1.500 kg

Product Description

illustrate:
- The HC1 is the most compact model of all our MPG series, developed for use in a wide range of industrial sectors.
- Compact, thin line and light weight (26mm)
- Axis/multiple selection can be set according to customer requirements
- Sealed structural box
- RoHS Compliant (Box/Wire)
- Exclusive easy-to-install bracket as standard accessory
- Rubber magnets are available

Body:
- Dimensions: 124×73×26(mm)*
- LED visible indicator: DC24V green
- Noise immunity EN50082-2 compliant

Curling Rope:
- 19/25 core shielded cable
- 19 cores: choose from 2m, 3m, 4m, 5m
- 25 cores: choose from 3m, 5m
- (We will choose 19 or 25 conductors depending on the function required)
- For more details, please refer to the Curl Line Catalog

Specification:
- For FANUC and other systems
- Model: HC115
- Voltage: DC5V
- Output resolution 100
- A, B phase output

thing	HC115 Fanuc system	HC121 Mitsubishi system	HC11D Siemens system
Resolution	100PPR	25PPR	100PPR
voltage	DC5~15V	DC5~15V	DC5V
supply current	<60mA	<60mA	<160mA
high output	>VccX0.7V	/	>2.5V
low output	<0.5v	/	<0.5v
Output current	<35mA	<35mA	±20mA
fall/rise time	5us	5us	<100ns
frequency	0~5KHz
resist	>20MΩ
lights	DC24V LED
Operating temperature	-10°C~+60°C
