Monosodium glutamate forced circulation evaporator with large industrial alcohol recovery evaporation concentrator machinery

Supplier: Vanoo(Shanghai) Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Antonia Shu
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Advantage:	Efficient and durable	Processing:	Concentrator
After Warranty Service:	Video technical support	payment terms:	L/C,Western Union,T/T,MoneyGram
Dimensions (LWH):	custom made	Bale:	wooden packaging
Core Components Warranty:	3 years	Marketing Type:	New Products 2020
Packaging Preview:		capacity:	10-5000 cubic meters / day
Mechanical test report:	if	Video external inspection:	if
port:	Shanghai/Ningbo Port	brand:	Vanu
Supply capacity:	10 sets per month	place of origin; place of origin:	China Shanghai
Warranty:	1 year	Applicable industries:	Food and Beverage Factory, Pharmaceutical, Chemical
Showroom location:	U.S.	Health status:	new
Voltage:	custom made	Packaging Details:	We usually put the machine into a container with soft clothes, some will be put in a wooden box, the most important such as some control systems we will be careful and put in a box.
weight:	12000 kg	strength:	custom made
application:	Pharmaceutical	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Processing Type:	juice	Key words:	Concentration equipment

product description

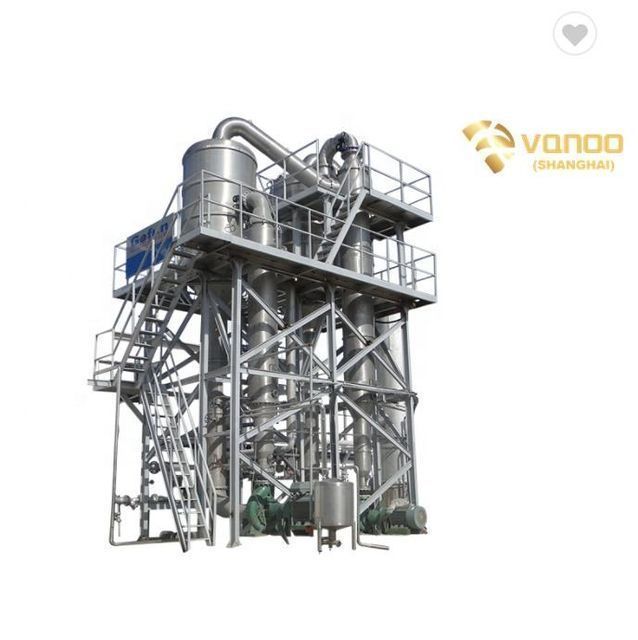

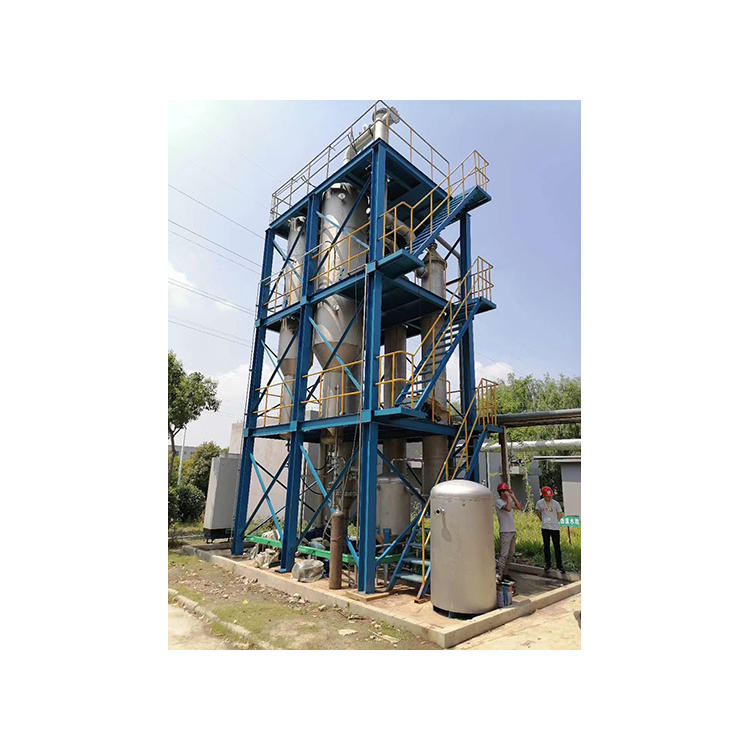

Multi-effect forced circulation evaporator

The forced circulation evaporator is a large-scale low-energy consumption and energy-saving crystallization equipment developed by our company. It has the advantages of fast flow rate, high evaporation rate, high heat transfer coefficient, anti-salting, anti-scaling, and not easy to scale. Widely used for scaling, crystallization, heat-sensitive (low temperature), high concentration, high viscosity and insoluble solid materials. Forced circulation evaporators can be divided into single-effect evaporators, double-effect evaporators and multi-effect evaporators. The forced circulation evaporator can be used for zero discharge of various miscellaneous salt wastewater, evaporation and crystallization of high COD wastewater, evaporation and crystallization of inorganic salts, evaporation and concentration of landfill leachate, etc.

Function list

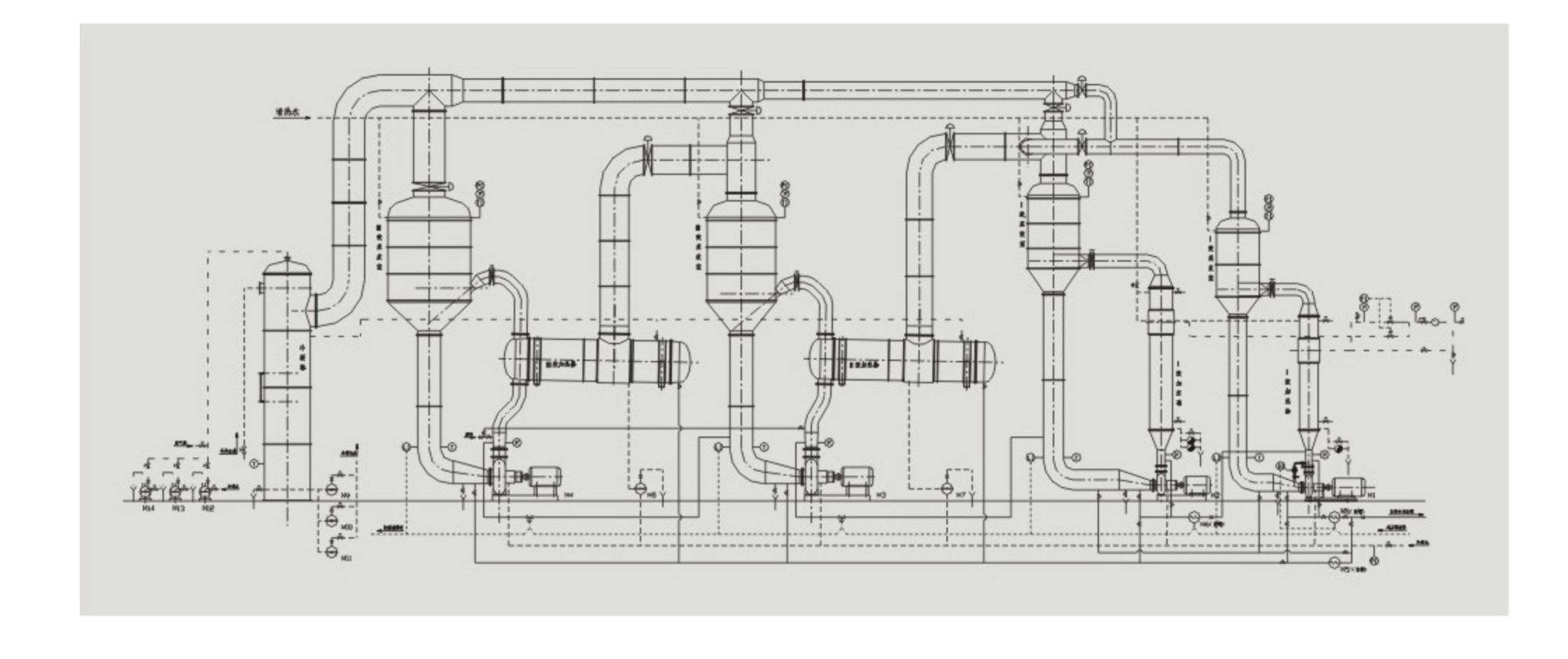

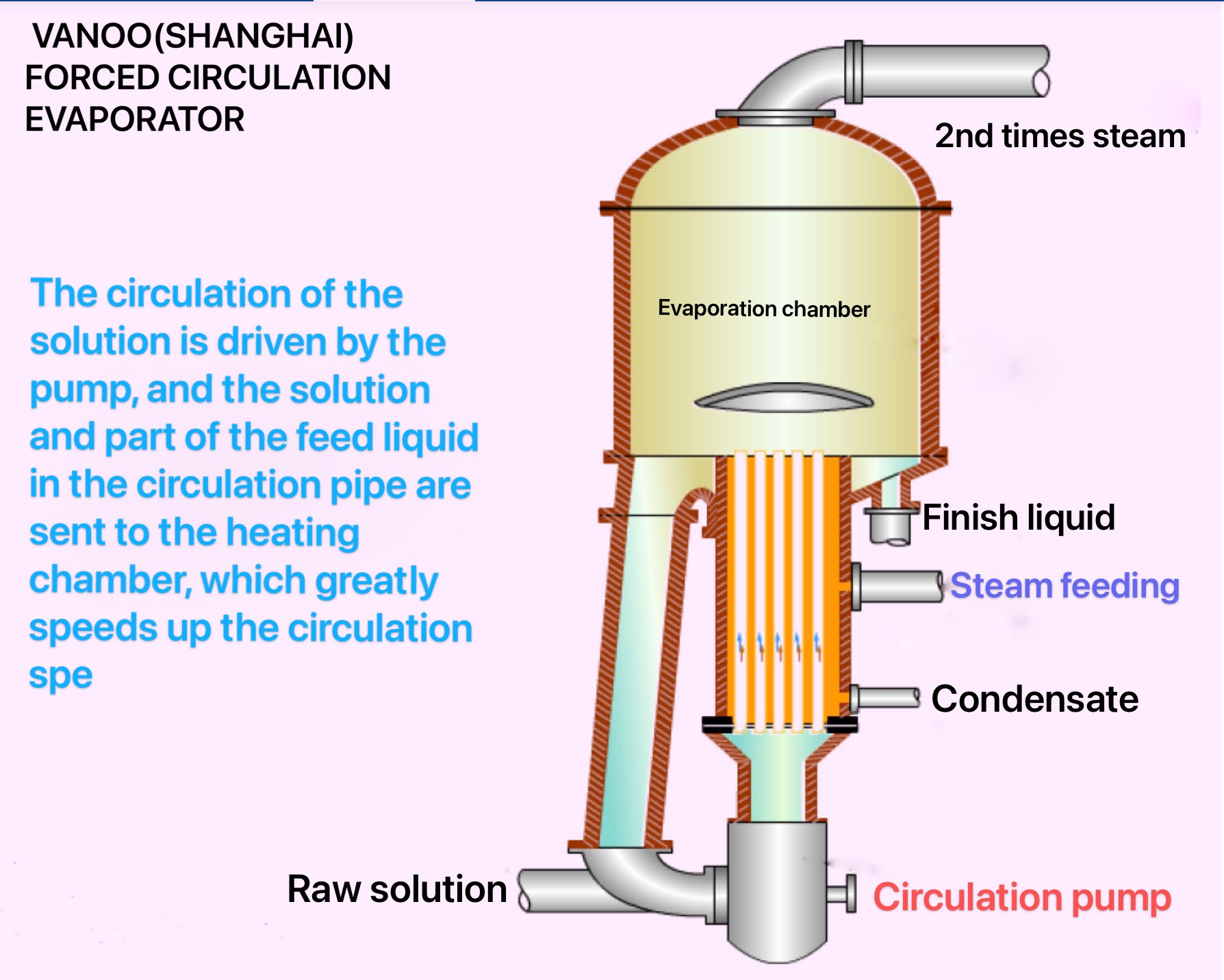

The system consists of forced circulation evaporator, separator (crystallizer), condenser, forced circulation pump, feed regulating valve, vacuum drainage system, sub-cylinder, operating platform, electrical instrument control cabinet, valves and pipelines.

1. Through forced circulation, the material liquid in the tube is heated evenly, which can prevent the phenomenon of "dry wall"; high evaporation rate and high concentration ratio, forced circulation makes the high viscosity material liquid easy to evaporate and concentrate;

2. The circulating liquid flow in the heating tube is very high, which can avoid scaling or crystallization caused by boiling of the product on the heating surface;

3. Due to the continuous maintenance of the liquid circulation, the flow and temperature in the circulation pipe can be controlled to meet the requirements of different products, and are not affected by the set temperature difference;

4. The heating tube can be vertical one-way, vertical two-way, horizontal one-way and horizontal two-way. The total height of the latter two equipment is relatively small, but the pipeline is not easy to clean, and the pipe wall is easy to wear;

5. When concentrating and crystallizing, the crystal can be separated from the circulating crystal liquid by adjusting the circulating flow and adopting a special separator design;

6. The power consumption and power consumption of the forced circulation evaporator are relatively high, and the heating temperature of the original steam (primary steam) is relatively high, so the heating area design of this evaporator should not be too large;

right façade

left facade

Front view

Product Specifications

Model	single effect	double effect	triple effect	Four effects
Feed volume (kg/h)	500-2000	2500-4000	3600-15000	8000-50000
feed concentration %	depends on customer
Emission concentration	depends on customer
Pressure Mpa	around 0.5
kg/kg	0.67	0.40	0.30	0.25
wire transfer	29	12	9	8
degree	45-90
