AC 220V gear head current transformer winding machine

Supplier: Tianjin Grewin Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms Alice Lee
Price: $2800.00 / 1 - 4 cartons
$2500.00 / >=5 cartons
Min. Order: 1 carton

Click here to contact

Product details

Showroom location:	United Kingdom, Nigeria, Spain, Kazakhstan, Bangladesh, Argentina, India, Canada, South Korea, Algeria, Uzbekistan, Thailand, Italy, Philippines, South Africa, Turkey, United States, Germany, France, Morocco, Egypt, United States, Romania, Russia	product name:	Winding machine
Key words:	Winding machine	Marketing Type:	New Products 2020
Warranty:	1.5 years	Core components:	Motors, others, gears
Gross weight per piece:	68.000 kg	feature:	transformer
Packaging Details:	sturdy tray	After-sales service provided:	no after sales service
operating hours:	0-2000	Mechanical test report:	if
Weight (kg):	125kg	Function:	Toroidal Transformer
Packaging Preview:		Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops
Single package size:	55X50X75 cm	Core Components Warranty:	1.5 years
Sales unit:	single product	Video external inspection:	if
year:	1998	place of origin; place of origin:	Tianjing, China
application:	Transformer winding machine	application:	wound toroid

Product Description

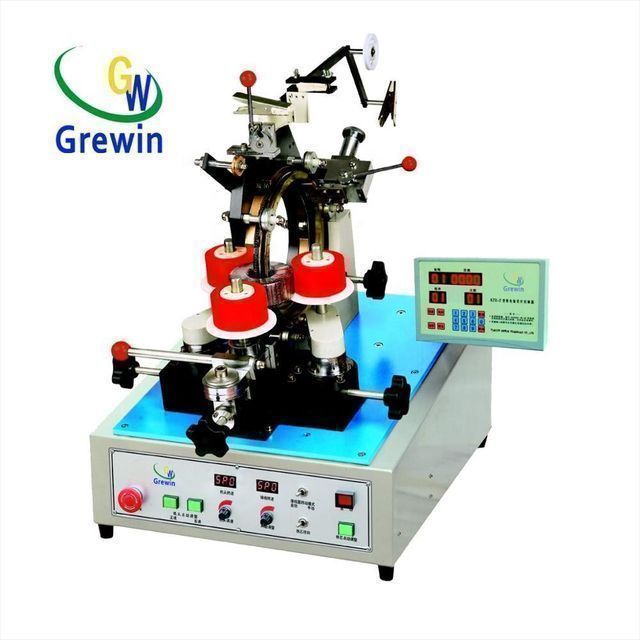

The automatic toroidal transformer winding machine adopts precise digital toroidal controller, which is an accurate and reliable digital automatic toroidal winding machine. For wrapping insulating tape on toroidal cores and windings. Most suitable for toroidal inductors, toroidal transformers, toroidal current transformers, toroidal coils, toroidal choke coils, power inductors, power magnetics, UPS inductors, transformer inductors, heavy-duty toroidal cores, etc.

Specification

wire diameter	0.50—1.30	Maximum winding speed	200 rpm
Maximum final coil outer diameter	φ60—200	Line spacing	proportional linkage
Minimum final coil ID	φ25	voltage	AC 220V (50Hz)
Maximum final roll height	80	Mechanical Dimensions	550×500×750
Controller storage competency plan	29 (set)	weight	94 kg
