Number of pulses: | 80 cattle | Bearing material: | GCr15 |
model: | BMB-6209/080S2/EH106A | payment terms: | Western Union,D/P,D/A,T/T,Alibaba Online |
port: | Shanghai, Guangzhou, Qingdao, Ningbo, Shenzhen, Beijing, etc. | accurate: | P0,P6 |
Cycle Accuracy: | 5 | Packaging Details: | 1. Single box + outer box + pallet 2. Tube package + outer box + pallet 3. Tube package + middle box + outer box + pallet 4. According to buyer's requirements. |
Phase-shifted output signal: | 90 | Applicable industries: | Building Materials Stores, Manufacturing Plants, Mechanical Repair Stores, Food and Beverage Plants, Farms, Home Use, Retail, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Others |
Supply voltage: | 5 to 16 V DC | Certificate: | ISO9001:2000 |
Supply capacity: | 100 sensor bearings per week | width: | 19 mm |
brand: | YNR | Card: | Europe |
type: | special | Tolerance Phase Shift Output Signal: | 30 |
High performance motor encoder unit sensor bearing BMB-6209/080S2/EH106A
Nanjing Unari Bearing Co., Ltd.The main products include: cylindrical roller bearings, angular contact ball bearings, deep groove ball bearings, tapered roller bearings, thrust roller bearings, thrust ball bearings, spherical roller bearings, needle roller bearings, linear guide bearings, slewing bearings, Bearing housings and accessories. Please consult us for the above or special bearings depending on your application.
ball bearing | roller bearing | special bearing | OEM bearings | other | Accessories |
YNR motor encoder unit BMB-6209/080S2/EH106A
For many applications, accurate monitoring of the condition of rotating components is essential. This is especially true for AC motors that require encoders to continuously measure speed and direction of rotation. The motor encoder unit BMB-6209/080S2/EH106A provides a signal resolution of 32 to 80 digital pulses per revolution. They are available for shaft diameters from 15 to 45 mm.

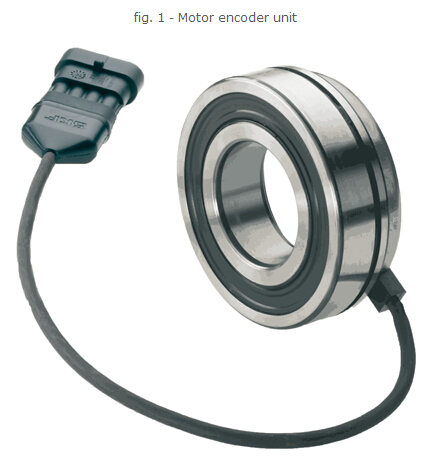

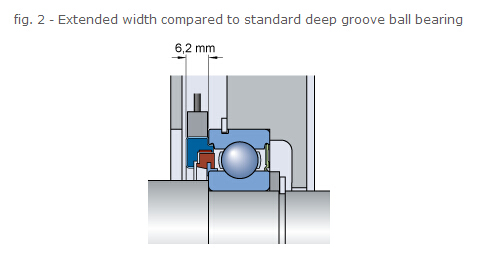

The YNR motor encoder unit BMB-6209/080S2/EH106A (Fig. 1) is a compact and ready-to-install unit that combines active sensor technology with deep groove ball bearings. These units, BMB-6209/080S2/EH106A, can be mounted in either bearing position of an AC motor and are only 6.2 mm wider than the corresponding standard deep groove ball bearings (fig. 2).
power supply
The motor encoder unit BMB-6209/080S2/EH106A requires a regulated power supply with a range of 5 to 16 V DC.
working environment
The motor encoder unit BMB-6209/080S2/EH106A can be used in systems operating in the very harsh electromagnetic environment described in the international standard IEC 61000-6-2.

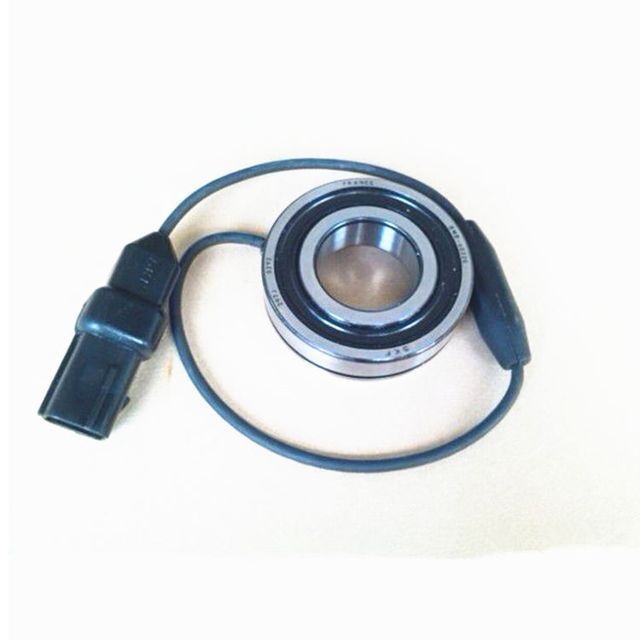

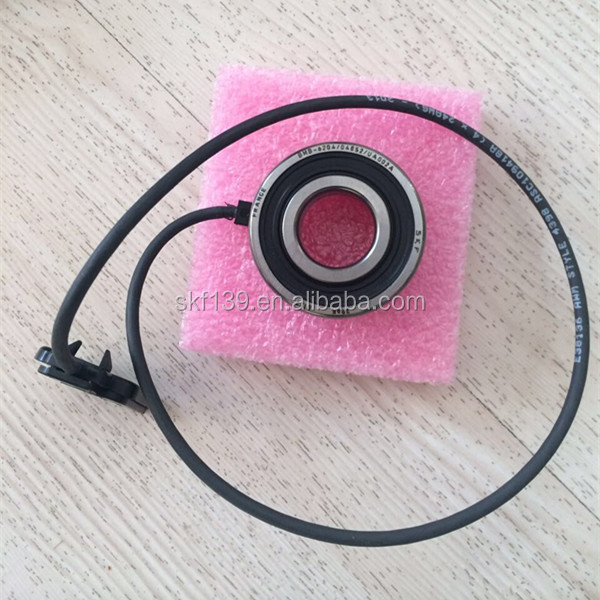

photoMotor encoder unit BMB-6209/080S2/EH106A

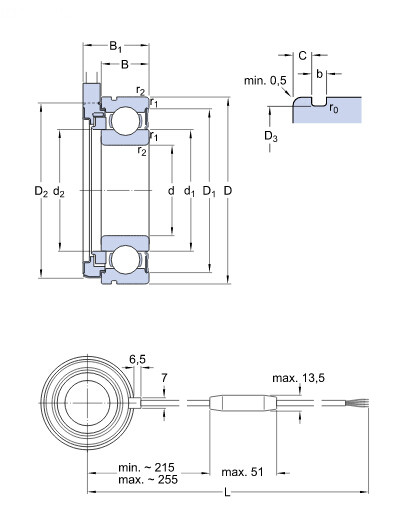

Motor encoder unit diagram BMB-6209/080S2/EH106A
Bearing size (PleaseIf you do not find the bearing number you need, please contact us)
specify | Main dimensions | basic load rating | speed limit | Sensor Technology | ||||||
Dynamic | stationary | number of pulses | Cycle Accuracy | Phase-shifted output signal | Tolerance Phase Shift Output Signal | |||||
d | D | Second1 | C | C0 | n | |||||
mm | kN | rpm | ||||||||
BMB-6202/032S2/UB008A | 15 | 35 | 17.2 | 7.8 | 3.75 | 13000 | 32 | 3 | 90 | 30 |
BMB-6202/032S2/UB108A | 15 | 35 | 17.2 | 7.8 | 3.75 | 13000 | 32 | 3 | 90 | 30 |
BMO-6204/048S2/UA008A | 20 | 47 | 20.2 | 12.7 | 6.55 | 10000 | 48 | 3 | 90 | 20 |
BMO-6204/048S2/UA108A | 20 | 47 | 20.2 | 12.7 | 6.55 | 10000 | 48 | 3 | 90 | 20 |
BMO-6205/048S2/UA008A | 25 | 52 | 21.2 | 14 | 7.8 | 8500 | 48 | 3 | 90 | 30 |
BMO-6205/048S2/UA108A | 25 | 52 | 21.2 | 14 | 7.8 | 8500 | 48 | 3 | 90 | 30 |
BMD-6206/064S2/UA108A | 30 | 62 | 22.2 | 19.5 | 11.2 | 7500 | 64 | 4 | 90 | 30 |
BMD-6206/064S2/UA008A | 30 | 62 | 22.2 | 19.5 | 11.2 | 7500 | 64 | 4 | 90 | 30 |
BMB-6208/080S2/UB108A | 40 | 80 | 24.2 | 30.7 | 19 | 5600 | 80 | 5 | 90 | 30 |
BMB-6208/080S2/UB008A | 40 | 80 | 24.2 | 30.7 | 19 | 5600 | 80 | 5 | 90 | 30 |
BMB-6209/080S2/UB008A | 45 | 85 | 25.2 | 33.2 | 21.6 | 5000 | 80 | 5 | 90 | 30 |
BMB-6209/080S2/UB108A | 45 | 85 | 25.2 | 33.2 | 21.6 | 5000 | 80 | 5 | 90 | 30 |
