Dial aperture gauge 50-160mm
-
Supplier: Yiwu Hot Ecommerce Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms LILY YE -
Price: $18.00 / >=100 sets -
Min. Order: 100 sets
Product details
| read: | 0.01mm | Packaging Details: | plastic box |
| Measuring range: | 50-100mm | model: | BD005 |
| Packaging Preview: | place of origin; place of origin: | Zhejiang, China | |
| brand: | OEM |

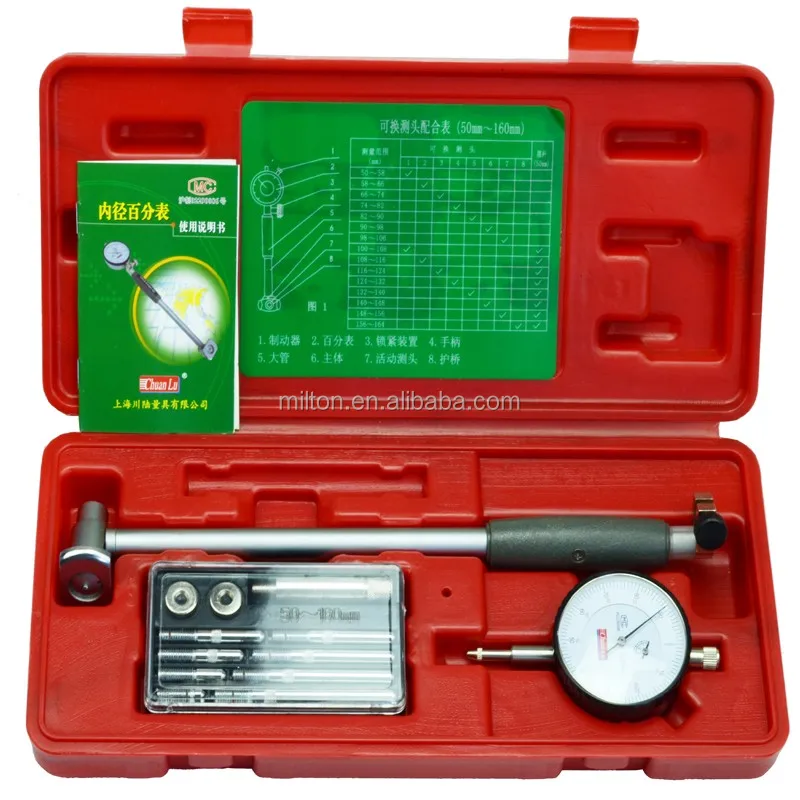

Dial aperture, 50-160mm, competitive price!

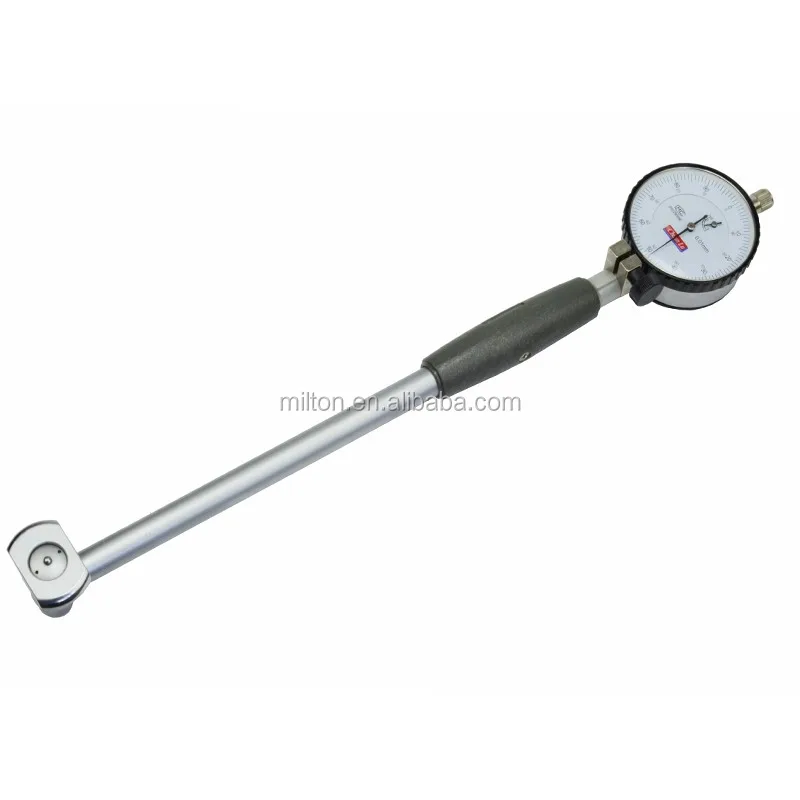

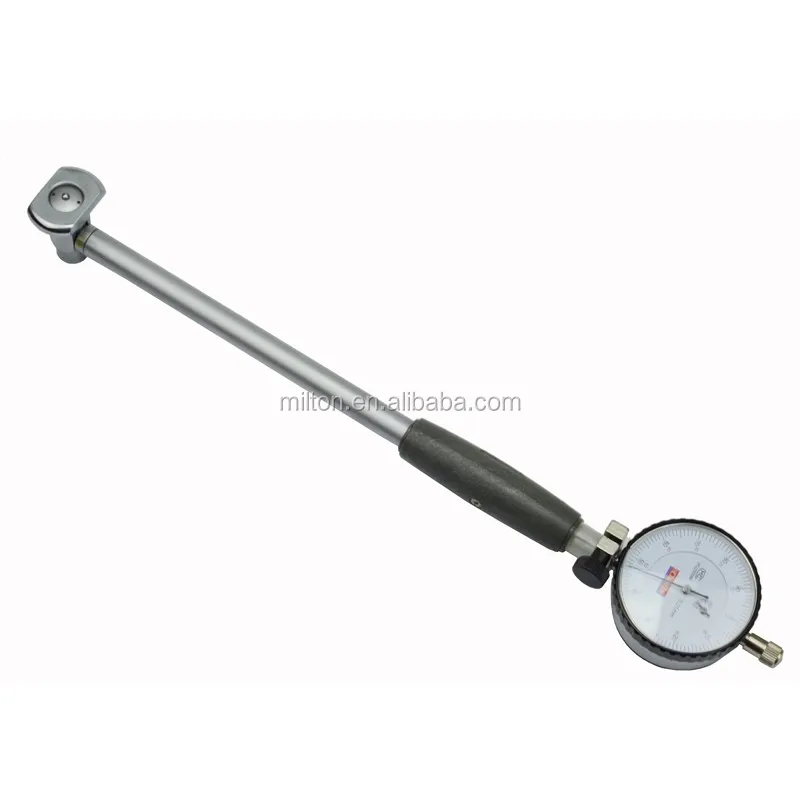

Broe gauges are used to measure bore size and shape errors of different diameters and depths by a comparative method.

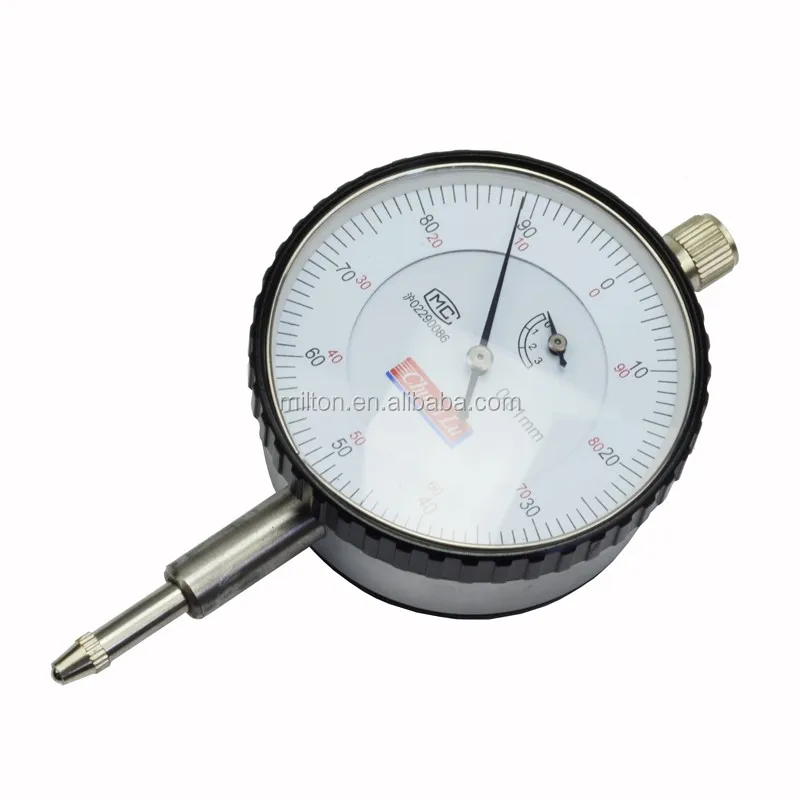

- Equipped with 3 mm x 0.01 mm dial indicator

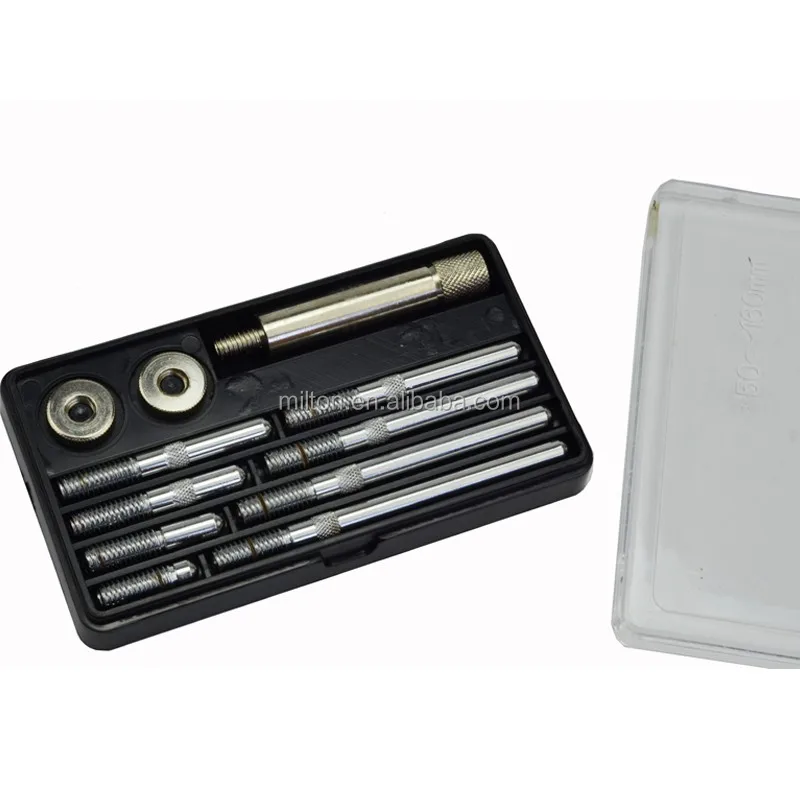

- With interchangeable anvils made of alloy steel
| Model | scope | postgraduate. | depth | anvil |
| BD001 | 6-10mm | 0.01 | 40 | 9 |
| BD002 | 10-18mm | 0.01 | 100 | 9 |
| BD003 | 18-35mm | 0.01 | 125 | 7 |
| BD004 | 35-50mm | 0.01 | 150 | 3 |
| BD005 | 50-100mm | 0.01 | 150 | 5 |
| BD006 | 50-160mm | 0.01 | 150 | 5 |
| BD007 | 100-250mm | 0.01 | 250 | 4 |
| BD008 | 160-250mm | 0.01 | 400 | 5 |
| BD009 | 250-450mm | 0.01 | 400 | 5 |
