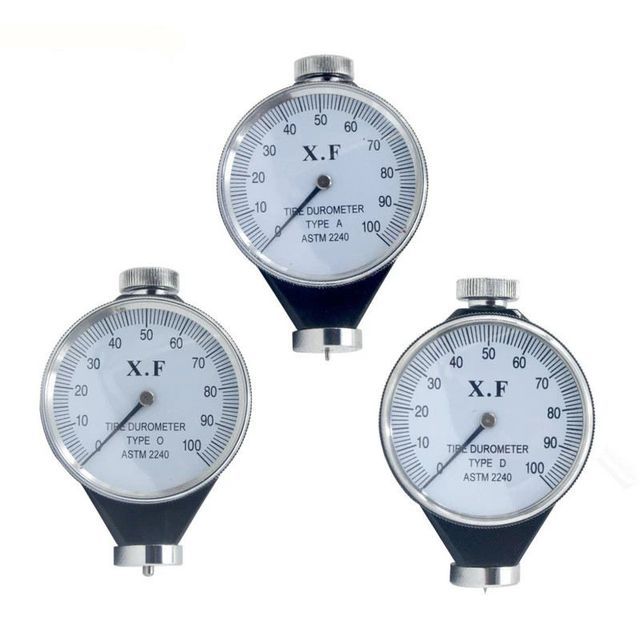

LX-A/LX-O/LX-D Shore Hardness Tester

Supplier: Yiwu Hot Ecommerce Co., Ltd.
Region: Zhejiang, China
Contact: Ms LILY YE
Price: $8.69 / 1 - 99 pieces
$8.58 / 100 - 499 pieces
$8.13 / 500 - 999 pieces
$7.98 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	1 year	Model:	LX-A/LX-O/LX-D
Customization support:	Processing	solve:	0.5HA/ 0.5HO/ 0.5HD
Tool tip travel:	2.5MM	model:	LX-A/LX-O/LX-D
brand:	etop	payment terms:	L/C, D/P, D/A, T/T, MoneyGram
Test Range:	0-100HA/0-100HC/0-100HD	Packaging Details:	plastic box
Origin:	Zhejiang, China	accuracy:	±1HA /±1HO /±1HD

Shore Hardness Tester LX-A/LX-O/LX-D

high quality! Very competitive price!

I. Overview

The Shore hardness tester is used to test the hardness of vulcanized rubber and plastics, and the instrument has A type/D type/C type.

Type A and Type D are suitable for testing materials with low, medium hardness and high hardness.

Type C is suitable for testing the hardness of shoe-making porous materials made of foaming agents in plastics when the compression rate is 50% and the stress is greater than 0.049MPa.

2. Main parameters

Scale value: 1-100 degrees

Pointer stroke: 0-2.5mm

Pointer end stress: A, C type 0.55N-8.06N; D type 0-44.5N

3. Operating Instructions

Place the sample on a solid surface, hold the durometer so that the pointer is at least 12mm away from the edge of the sample, place the leg of the durometer firmly on the sample, and make the pointer go straight into the sample until the leg is fully inserted into the sample. sample. Check the reading within 1s. Repeat this test 5 times at different positions at least 6mm from the test point and take the average reading (distance between porous materials is at least 15mm).

Specification:

model	LX-A	LX-O	LX-D
Test Range	0-100HA	0-100H2O	0-100 HD
solve	0.5HA	0.5H2O	0.5 HD
accuracy	±1HA	±1H2O	±1HD
Nose travel	2.5MM (all the same)
Tip size	0.79MM	SR2.5MM	SR0.1MM
standard	GB/T531-1999	HG/T2489-93	GB/T531-1999
