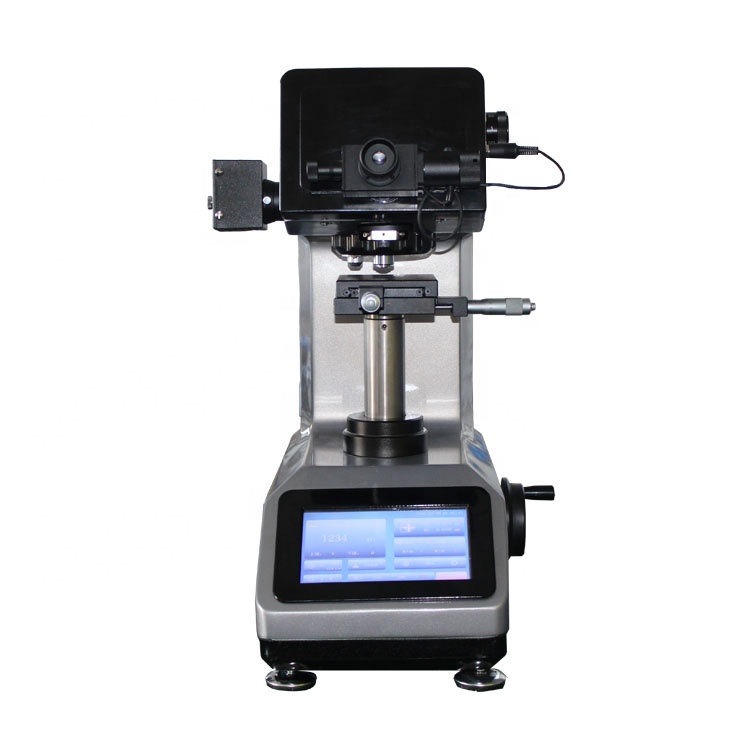

MHVS-1000A Digital Touch Screen Micro Vickers Hardness Tester

Product details
Turret mode:automatic turretproduct name:Micro Vickers Hardness Tester
Depth from centerline:195 mmmodel:MHVS-1000
Test Range:5HV-3000HVPackaging Details:Sales unit: Single piece Package size: 55*40*65cm Gross weight per piece: 55KG Package type: Export plywood box packaging
Test force:10,25,50,100,200,300,500,1000gfnet weight:about 40 kg
Supply capacity:100 sets per monthbrand:Metal
Origin:Shandong, China (Mainland)payment terms:wire transfer
Certification:ISO9001type:Hardness Tester
power supply:AC 220V 50-60HZWarranty:1 year
Customization support:Processingport:Qingdao Port
Package preview:aspect:320*500*570 mm
Model:MHVS-1000Amaximum. Test piece height:90 mm



Product Features/Uses:

MHVS-1000A The automatic turret digital display micro-Vickers hardness tester adopts a liquid crystal display, and the operation interface adopts a menu structure. Hardness scale HV or HK can be selected on the operation panel. Automatically calculate and display the hardness value of the test. Various hardness values ​​can be converted into each other.

The hardness error can be corrected by software input to make the hardness more accurate.
Test results can be automatically stored, processed and printed
Equipped with RS-232 interface, it can be networked with computer.

HVS-1000 digital display microhardness tester manually switches between the head and the objective lens during testing, and the positioning of the test point is accurate.

product brand

Metal

Product parameters

product name

Micro Vickers Hardness Tester

Test force

10,25,50,100,200,300,500,1000gf

Hardness scale

Vickers hardness, Knoop hardness

Test force selection

manual

product number

MHVS-1000A

Test Range

5HV-3000HV

Test force holding time

0-60S (adjustable)

Force loading and unloading mode

automatic

Lens/Indenter

with mobile turret

Test force



10,25,50,100,200,300,500,1000gf

QC

Advanced equipment and experienced QC team will check during processing and before packing

minute. Test drum indexing value

0.25μm (drum reading)

delivery date

20-30 working days after receiving T/T 30% deposit

objective lens

10 times, 40 times

Measuring range

150μm

microscope magnification

100X(observation), 400X(measurement)

optical channel

Dual channel/CCD

filter lens

green

light source

Halogen lamp (adjustable brightness)

Hardness value resolution

0.1 Vickers unit

power supply



maximum. Specimen height

90mm

Depth from Centerline 95mm XY table size 100*100mm
XY table playground 25*25mm minute. XY table movement 0.01 mm
Operating temperature 23±5℃ Working humidity <65%
Machine size 530*290*490mm net weight 40 kg
power supply 220V 2A 50-60Hz



1. Is your company a trading company or a manufacturer, do you have a technical team?

We are a manufacturer with more than 15 years of experience in this field, our export office is located in Qingdao, and our professional technicians have many years of experience.

2. What is your main product?

Our main products are a complete set of metallographic sample making machines and hardness testers.

3. What is the delivery term?

For common model machines, we have stock in workshop. Time is just machine testing before shipping and packing. Usually 2-3 days.

If there is no stock, the delivery time will be 5-10 days, depending on the machine quantity.

For special requirements or large quantities, please confirm with us before ordering.

4. Do you accept customized service?

Yes for sure. We provide not only standard machines, but also customized machines, our technicians will manufacture the machines according to your requirements. Just need to communicate before ordering.

5. What is your payment item?

Usually it is 100% prepaid, because almost the models we have in stock. After receiving the payment, we will directly prepare the goods for export. For bulk orders, please communicate with our people first.

6. How about your after-sales service, what is the warranty?

Before sending the goods, we will test the machine first, after receiving the goods, there is a manual to show you how to install the machine, and how to operate, if you are not sure, we will send a video to demonstrate how to operate, if there is any problem, our personnel will do online service, teach how to operate and how to solve the problem.

Our warranty is 1 year.
