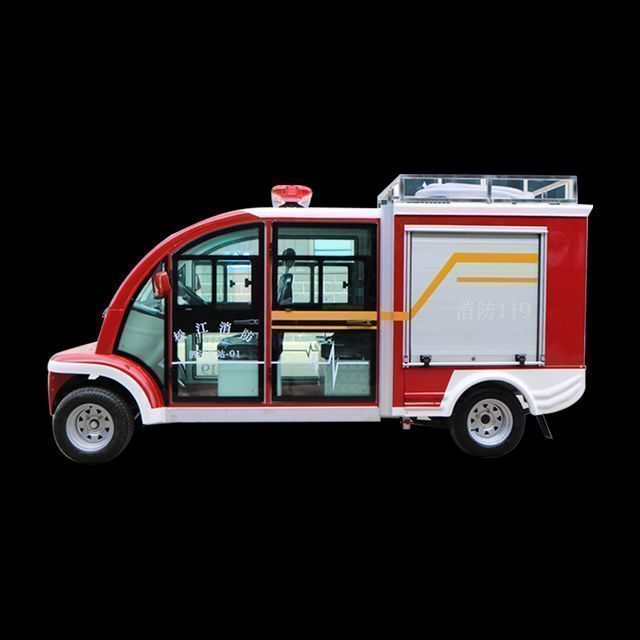

New Arrival Latest Design Popular Mini Electric Fire Truck Fire Truck

Supplier: Nanjing Skywork Intelligent Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Dracy Wang
Price: $11170.00 / 1 - 2 pieces
$10317.00 / 3 - 4 pieces
$9500.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	50,000 pieces per year	Transmission type:	automatic
size:	406015902150mm	horsepower:	< 150 hp
Pump capacity:	550-660L/min	Emission Standards:	Euro 4
Washing pressure:	0.4-0.8MPa	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Packaging Details:	steel frame	Type of gasoline:	diesel engine
specified load:	800kg	Drive Wheel:	4X2
brand:	Tiangong	maximum. Working height:	60m
type:	rescue	Packaging Preview:
Maximum speed:	≤30km/h	port:	Nanjing, Shanghai
Health status:	new	Fuel tank capacity:	< 3000L
Braking distance:	≤4	product name:	Electric fire truck
driven distance:	≥80km	Charging time:	6-8 hours
Curb weight:	1200kg	Minimum turn:	≤5.5
place of origin; place of origin:	Jiangsu, China

Product Description

project name				scope
4 rated passengers				4
important dimension	Dimensions (mm)		406015902150
		Wheelbase(mm)		2830
		Q235AMini Ground Clearance(mm)		150
car box	Q235A size (mm)		142014001135
		Material		Q235A
water tank	Pump capacity (L/min)		550-600
		Maximum flushing pressure (Mpa)		0.4-0.8
		Volume (L)		500
	Dust (m)		65
Quality parameters	Curb weight		1200
		Rated Capacity		800
drivability	Maximum speed		≤30
		driven distance		≥80
		Minimum turning radius		≤5
		Braking distance		≤4
		Gradeability		≤15%

XF4201

XF4202

XF4203

Product advantages

1. The rear axle of the integrated differential is equipped with a 5kw AC asynchronous motor, which has fast response speed, low noise, long service life, low power consumption and simple daily maintenance.

2. Equipped with ordinary fire fighting equipment, suitable for street and urban fire patrols;

3. The controller can be programmed online, and the corresponding functional parameters can be tailored according to customer needs.

4. The hull is made of yacht glass fiber reinforced plastic material, which is formed by one-time release, with beautiful appearance, corrosion resistance and wear resistance.

5. Double-layer laminated tempered glass is adopted, which has a wide field of vision and improves safety.

6. The tires are beach tires, with good anti-skid and grip performance; equipped with a 13-horsepower gasoline engine, with strong power and good stability.

7. Equipped with electric start and manual rope start, easy to operate, suitable for operation under various working conditions;

8. Equipped with long police lights and loudspeakers to facilitate patrol and publicity.
