food grade 5 10 20 30 40 50 60 70 80 90 100 120 150 200 300 400 micron screen monofilament nylon filter mesh manufacturer

Supplier: Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd.
Region: Shanghai, China
Contact: Ms Suxiao Zhang
Price: $1.20 /meter
Min. Order: 1 meter

Click here to contact

Product details

Hole Shape:	Square;	Product name:	nylon filter mesh;
Application:	food grade filtration;	Hot selling microns:	70 100 120 150 200 250 400 micorn nylon filter mesh;
Port:	Shanghai or any port in China;	Thickness:	375-78 micron;
Material:	Nylon;	Other name:	nylon Filter Mesh;
Mesh opening:	5um-1950um nylon monofilament mesh;	Type:	Filter Elements;
Width:	0.6-3.65 m;	Sample:	1 meter free;
Supply Ability:	100000 Meter/Meters per Day nylon filter mesh;	Filter Rating:	99%;
Color:	white ,as your request;	Mesh count:	4T-236T(10mesh~600 mesh/inch);
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Thread Diameter:	200-40 micron;
Brand Name:	Shangshai/SS;	Length:	as your request;
Item:	nylon monofilament filter mesh;	Usage:	Liquid Filter;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal for nylon filter mesh;	Packaging Detail:	food grade 5 10 20 30 40 50 60 70 80 90 100 120 150 200 300 400 micron screen monofilament nylon filter mesh manufacturer 1.30-70m as per roll in PVC bags; 2.2-8 rolls as per carton; 3.Waterproof bags outside ; 4.Package belt strengthen;;
Place of Origin:	Hebei China (Mainland);

food grade 5 10 20 30 40 50 60 70 80 90 100 120 150 200 300 400 micron screen monofilament nylon filter mesh manufacturer

Product Description

Specifications:

nylon filter mesh

1.100%Nylon

2.Precision opening, well-distributed, stabilization.

3.high elongation

4.ISO9001,SGS

Nylon Filter Mesh
Weave Style	Plain Weave
Martiral	100% nylon
Monofilament Style	Yes
Width	0.6-3.65m
Mesh Count	13-305 mesh/inch
Thread Diameter	500 -40 micron
Mesh Opening	1500-43 micron
Thickness	1000-80 micron

Characteristic:

High Elongation
Excellent alkaline resistance
It has a working temperature of up to 120 degrees ℃.
Smooth filament, immersion resistance,no material drop off
Stable chemical and physical properties

Usage:

The Nylon mesh widely used in all kinds of industrial filtration and separation, such as chemicals, pharmaceutical, agriculture, food,ect.

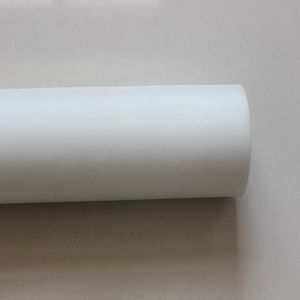

White nylon filter mesh

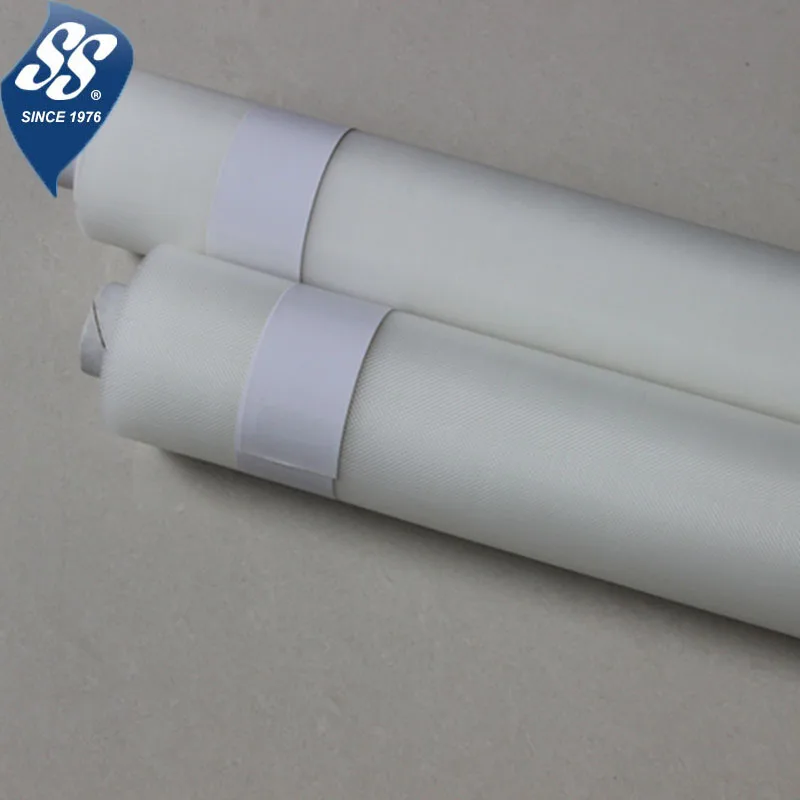

plain weave monofilament nylon filter mesh

100 micron nylon filter mesh

200um nylon filter mesh

Specification list:

Model	Specification (/cm)	Mesh count (mesh/inch)	Thread Diameter(um)	Mesh opening(um)	Open Area(%)	Thickness (um)	Weight (g/m2)
NL4/1931	4	10	550	1931	60	1100	251
NL5/1485	5	13	500	1485	55	1000	270
NL5/1535	5	13	450	1535	59	900	218
NL6/1254	6	15	400	1254	57	800	199
NL7/1068	7	18	350	1068	56	700	183
NL8/891	8	20	350	891	51	700	203
NL8/990	8	20	250	990	63	500	104
NL9/853	9	24	250	853	59	500	125
NL10/743	10	25	250	743	55	500	130
NL10/693	10	25	300	693	48	600	187
NL12/578	12	30	250	578	48	500	156
NL12/528	12	30	300	528	40	600	224
NL14/410	14	35	300	410	33	510	261
NL14/509	14	35	200	509	51	340	116
NL16/421	16	41	200	421	45	340	136
NL16/371	16	41	250	371	35	425	213
NL17/384	17	42	200	384	43	340	139
NL18/332	18	45	220	332	36	374	181
NL20/347	20	50	150	347	48	255	93
NL20/297	20	50	200	297	35	340	166
NL24/264	24	60	150	264	40	255	112
NL28/235	28	70	120	235	43	204	84
NL28/205	28	70	150	205	33	255	131
NL30/211	30	76	120	211	40	204	91
NL32/210	32	80	100	210	45	170	66
NL36/176	36	90	100	176	40	170	75
NL40/149	40	100	100	149	35	170	83
NL44/126	44	110	100	126	31	170	91
NL43/151	43	110	80	151	42	136	58
NL48/127	48	120	80	127	37	136	64
NL56/117	56	142	60	117	43	102	42
NL59/108	59	150	60	108	41	102	45
NL64/95	64	163	60	95	37	102	49
NL72/88	72	183	50	88	40	85	38
NL76/79	76	193	52	79	36	88	43
NL80/74	80	203	50	74	35	85	42
NL88/71	88	224	42	71	39	71	33
NL96/62	96	244	42	62	35	76	36
NL100/55	100	254	42	55	31	80	37
NL104/51	104	264	42	51	29	71	39
NL110/46	110	279	42	46	25	76	41
NL120/39	120	305	42	39	21	80	45
NL120/43	120	305	38	43	25	65	37
NL120/46	120	305	35	46	29	60	31
NL130/32	130	330	43	32	17	73	51
NL130/40	130	330	35	40	25	60	34
NL140/35	140	356	35	35	22	60	36
NL150/34	150	381	31	34	25	53	30

our factory

1.SHANGHAI SHANGSHAI BOLTING CLOTH MANUFACTURING CO., LTD is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh and Flour Mesh, established in 1997.

2.We are Bolting Cloth manufacturer with two factories,one is located in “home town of mesh”--ANPING, the other is in Shanghai, with a total number of 300 SULZER Ruti weaving machines.Now,Shanghai has enjoys a good fame both at home and abroad along the 40 years development.
