Warranty: | 1 year | channel: | 800 |
place of origin; place of origin: | China | exhibit: | LCD Monitor |
Supply capacity: | 500000 boxes per month | model: | S9II, S9II |
Packaging Details: | Hot Selling Gps Land Surveying Equipment Gnss Rtk Receiver Base and Rover 1 set in 2 cartons: 50*50*60cm (25kg) 15*15*150cm(8kg) | transfer speed: | 9.6Kbps, 19.2Kbps |
Internal battery life: | static 12 hours | port: | Chongqing, Shanghai, Shenzhen |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Transmit power: | 0.5W, 1W, 2W adjustable |
Custom Support: | OBM, ODM, OEM, OEM, ODM | product name: | GNSS Systems Stonex S9ii Stonex S9II GPS RTK |
brand: | Stoneks, Stoneks |
Hot Selling Gps Land Surveying Equipment Gnss Rtk Receiver Base and Rover
S9II Specifications | |
channel | 800 |
Global Positioning System | L1 C/A, L1C, L2C, L2P, L5 |
glonas | L1 C/A ,L2C, L2P L3, L5 |
Beidou | B1 B2. B3 |
Galileo | E1, E5a, E5b, E5 Altboc, E6 |
QZSS | L1 C/A, L1C, L2C, L5, L6 |
NSA | L5 |
SBAS | L1, L5 |
Position rate | 5 Hz, optional 20 Hz |
signal reacquisition | <1 second |
RTK signal initialization | Typically <10 seconds |
Hot Start | Typically <15 seconds |
Initialize reliability | > 99.9% |
internal memory | 8 GB |
Micro SD card | Expansion slot up to 32 GB |
High-precision static measurement | |
horizontal | 2.5 mm + 0.1 ppm rms |
vertical | 3.5 mm + 0.4 ppm rms |
Code differential positioning | |
horizontal | 0.25 m rms |
vertical | 0.45 m rms |
SBA positioning | |
horizontal | 0.30 m rms |
vertical | 0.60 m rms |
Live Dynamics (< 30 km) - Network Measurements | |
Fixed RTK level | 8 mm + 1 ppm rms |
Fixed RTK Vertical | 15mm+1 ppm rms |
Integrated GNSS Antenna | |
High-precision four-constellation microstrip antenna with zero-phase center. With Internal Multipath Suppression Plate |
Main features:
1. Full magnesium alloy body design
2.SurPad4.2 software, 800 channels
3. The third-generation inclination measurement technology, S9II is constructed with high-sensitivity electronic bubbles, and adopts a unique multi-point inclination measurement algorithm, which can obtain accurate data without calibration, further improving operating efficiency.
4.360° zenith signal communication without dead angle, further improving the quality and distance of signal transmission between devices. ESim technology: CORS, network 1+N can be used without inserting a card

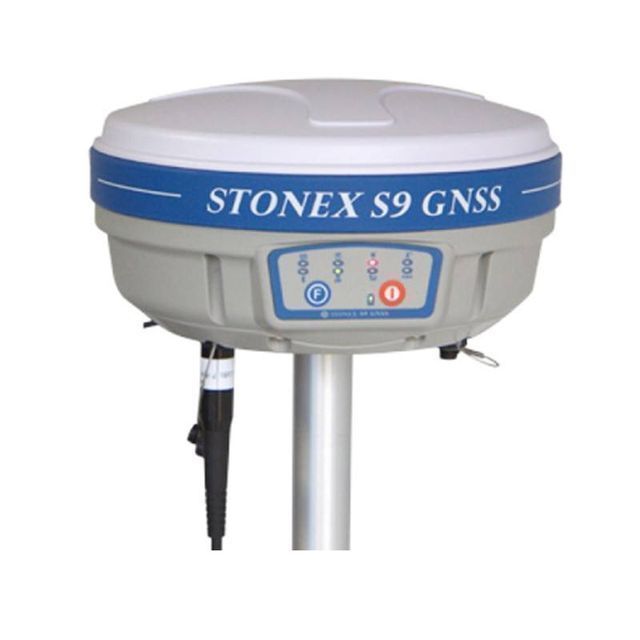

800 Channel Stonex S9II GPS RTK
