Shipbuilding Military Defense Launch Industry Compressor Vibration Shock JGX-0956D-104A Wire Rope Protector

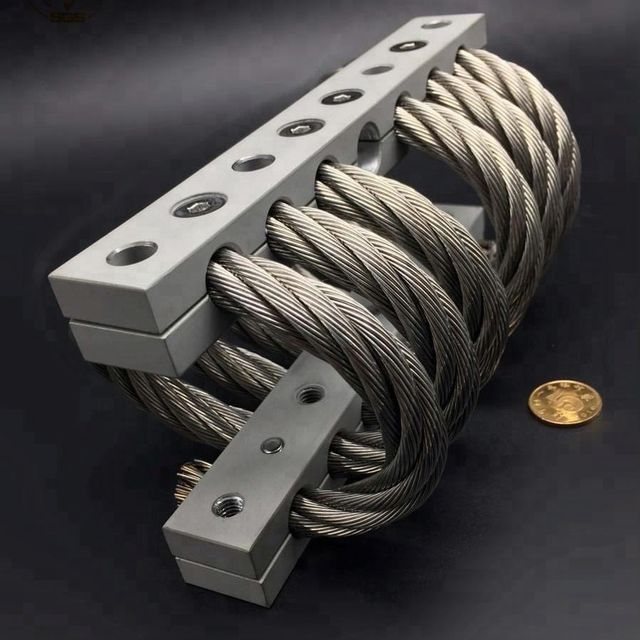

JGX-0956D-104A is a newly designed 6-turn 9.5mm diameter wire rope damper with a maximum static load of 104kg, especially for noise attenuation of any instrument or system. This wire rope vibration isolator is made of stainless steel and has perfect waterproof, anti-corrosion and durable properties.

JGX-0956D-104A steel wire rope shock absorber is widely used in road transportation, ships, ships, navy, photographic equipment, aviation equipment, communication equipment, electronic sensing equipment, mobile electronic equipment, cameras and other fields of any required working conditions.

• Order by model codeJGX-0956D-104A:
• Structure diagramJGX-0956D-104A:
• sizeJGX-0956D-104A:
• installation options forJGX-0956D-104A:
• compressionJGX-0956D-104A:
• 45° compressionJGX-0956D-104A:
• cut/rollJGX-0956D-104A:

* Mounting rod material *
Choice of stainless steel or aluminum

*Surface treatment options for aluminum mounting bars*

• White Anodized:A surface treatment that makes the aluminum surface harder than itself. The color of the white anodized aluminum mounting strip remains the same color as the aluminum itself. It is the normal surface treatment of aluminum mounting strip;
• Hard Anodizing:The finish makes the aluminum mounting strip harder than the white anodized way. The hard anodized aluminum mounting bars are darker than the white anodized version. Special purpose, suitable for complex or special working conditions using wire rope isolators.

* The uniqueness of Xi'an Huan'anvibrationIsolator *

• No creep or aging.
• High internal damping.
• very wide temperature range.
• Various possible accessories.
• Fast and affordable prototyping.
• Extremely robust construction and long service life.
• Excellent combined shock and vibration isolation.
• Resistant to chemical agents, sea water, ozone, UV light,...

*Application of Wire Rope Damper*

* Application Showcase *
