Handmade exquisite aerial photography drone camera remote control car stabilizer anti-shock GR3 helicopter drone wire isolator

By building your own camera gimbal and using the camera for your helicopter drone stabilizer, the GR3 series is your best choice!

Xi'an Huanan's GR3 Series Camera Isolators are camera isolators designed for one-time use or to build camera gimbals to absorb the tension generated by the vehicle as the camera moves.

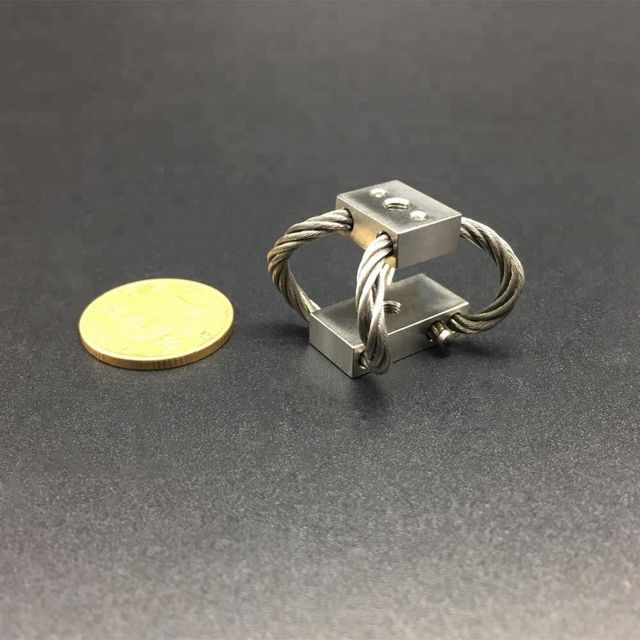

The GR3 series has 4 models, which are made of 2.4mm diameter steel wire rope wrapped around two mounting rods. The maximum static load isGR3 Series Camera Vibration IsolatorsFrom 11N (1.12 kg) to 30N (3.06 kg).

GR series isolators are made of stainless steel, with perfect waterproof, anti-corrosion and durable performance. Specially designed for building your camera gimbal and helicopter drone with camera.

The GR3 Series Camera Vibration Relief Mount smooths out small rhythmic vibrations during mobile shooting and dampens sudden, unexpected shocks that may be caused by rocks or potholes.

At present, GR series isolators are widely used in remote control car aerial photography drone system stabilizers, helicopter drone gimbal stabilizers, video project stabilizers, drone shooting stabilizers, drone cameras and camera stabilizers and other fields.

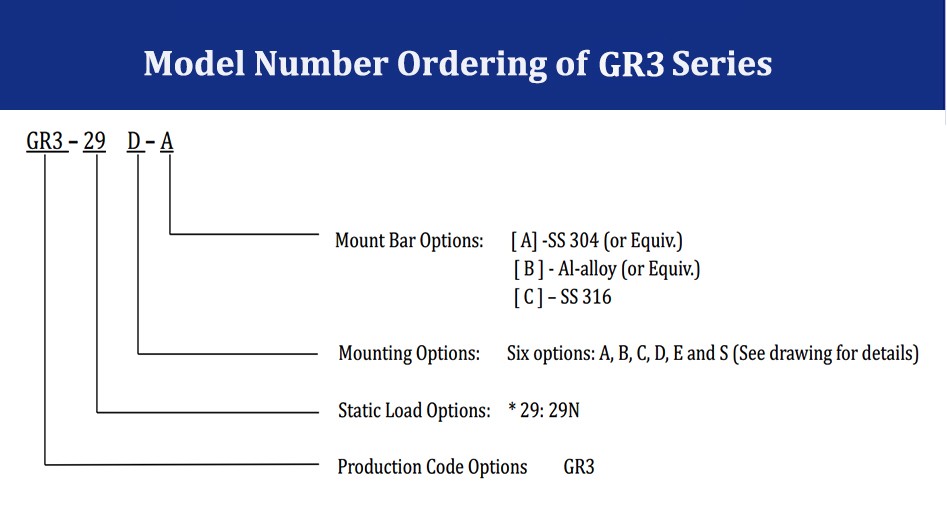

• Order by Model CodeGR3 Series:

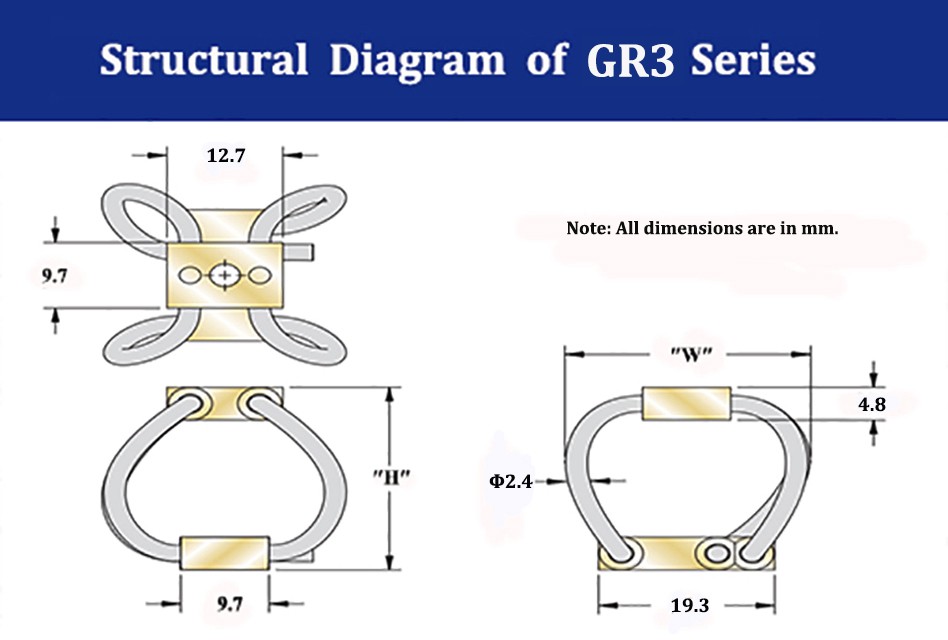

• EraStructure diagramGR3 series:

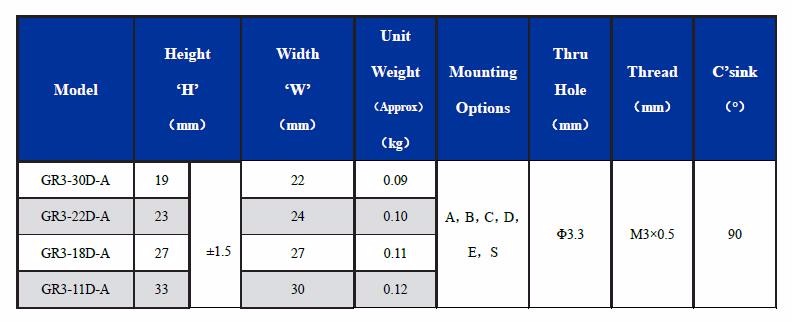

• sizeGR3 series:

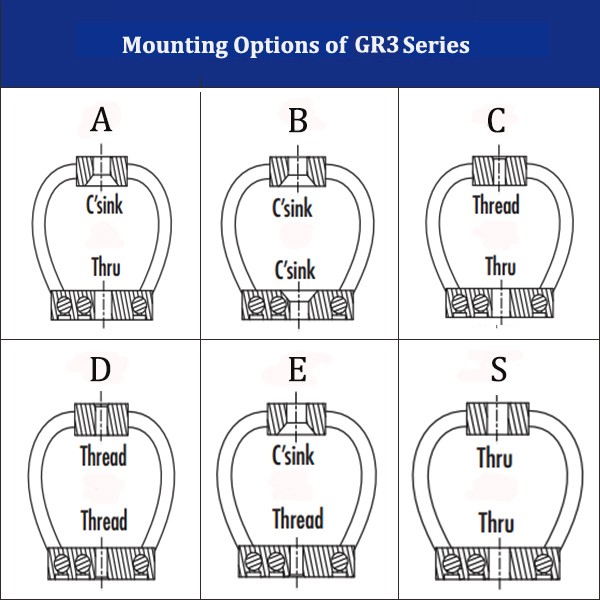

• Installation OptionsGR3 series:

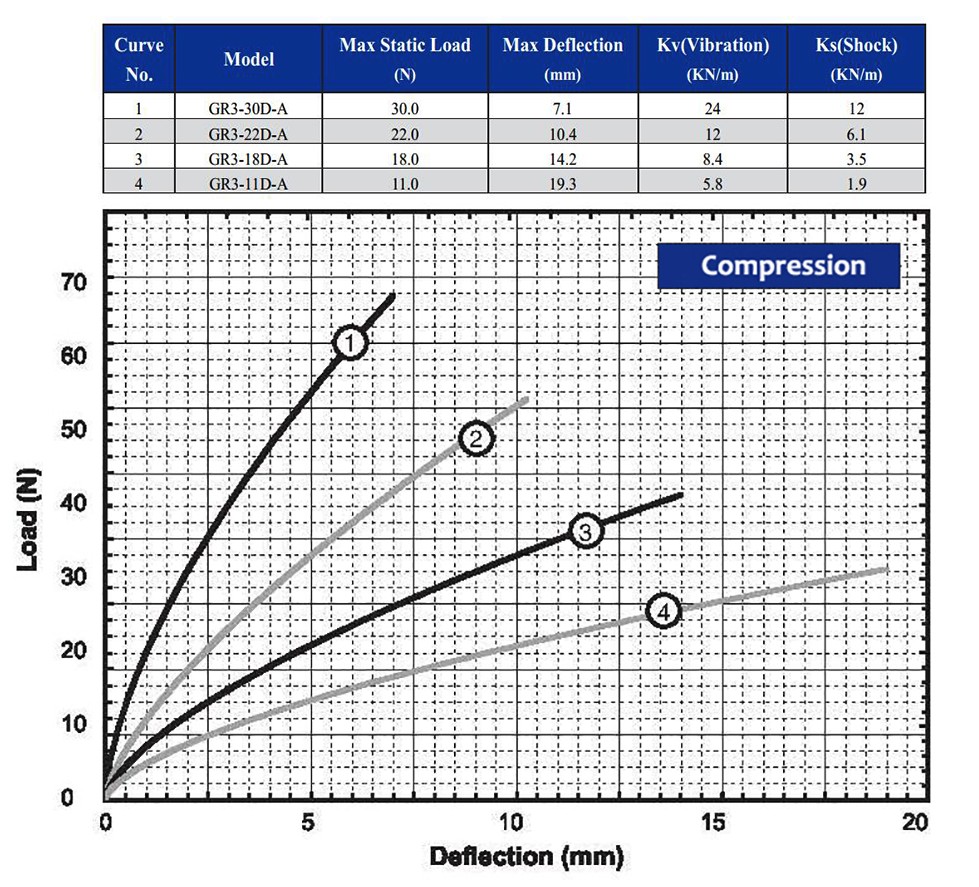

• compressionGR3 series:

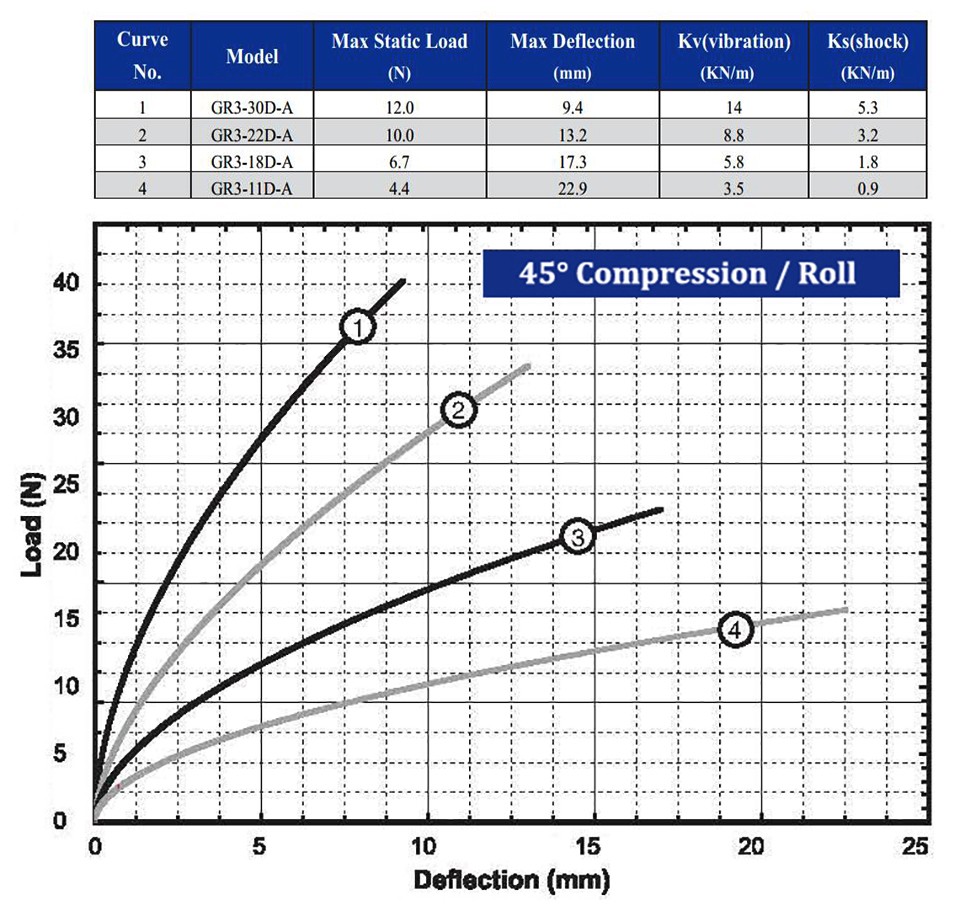

• 45° CompressionGR3 series:

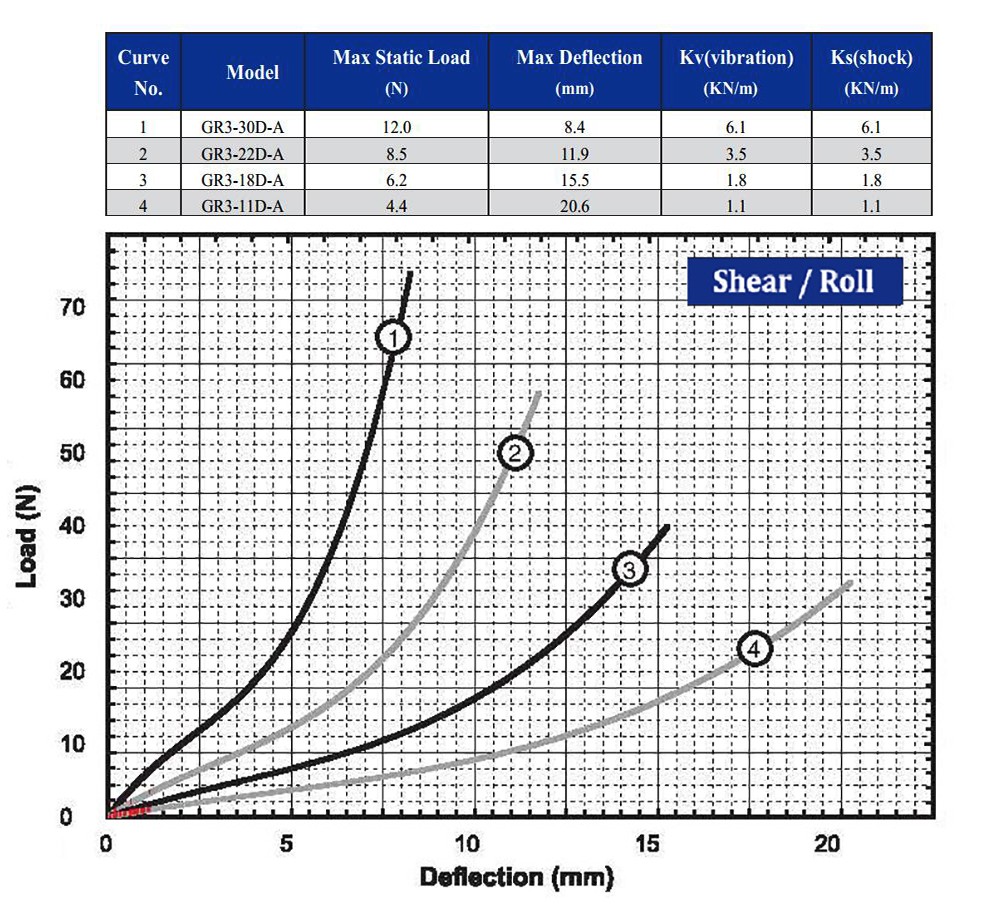

• Cut/RollGR3series:

* Mounting rod material *
Choice of stainless steel or aluminum

* Surface treatment options for the aluminum mounting strips *

• White Anodized:The surface treatment makes the aluminum surface harder than the aluminum itself. The color of white anodized aluminum mounting strips is consistent with the color of the aluminum itself and is the normal surface treatment of aluminum mounting strips;
• Hard Anodizing:The surface treatment makes the aluminum mounting rod harder than white anodized. The color of hard anodized aluminum mounting rod is darker than white anodized. It is especially suitable for complex or special working conditions where wire rope isolators are used.

* Features of Xi'an HuanvibrationIsolator *

• No creep or aging.
• High internal damping.
• Very wide temperature range.
• There are many possible accessories.
• Fast and economical prototyping.
• Extremely strong structure and long service life.
• Excellent combined shock and vibration isolation.
• Not affected by chemicals, seawater, ozone, ultraviolet rays, etc.

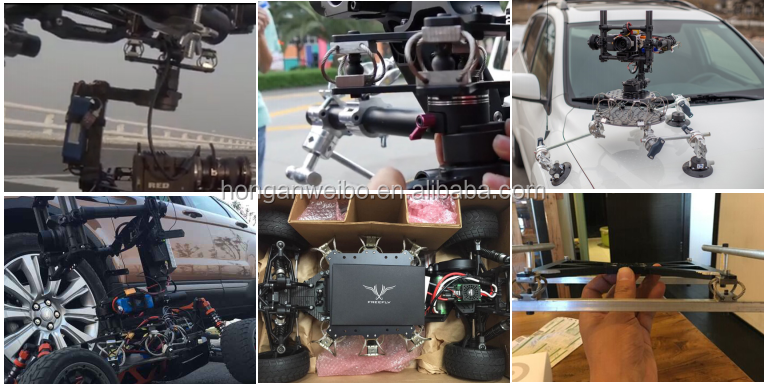

* MainApplication of Wire Rope Vibration Isolators*

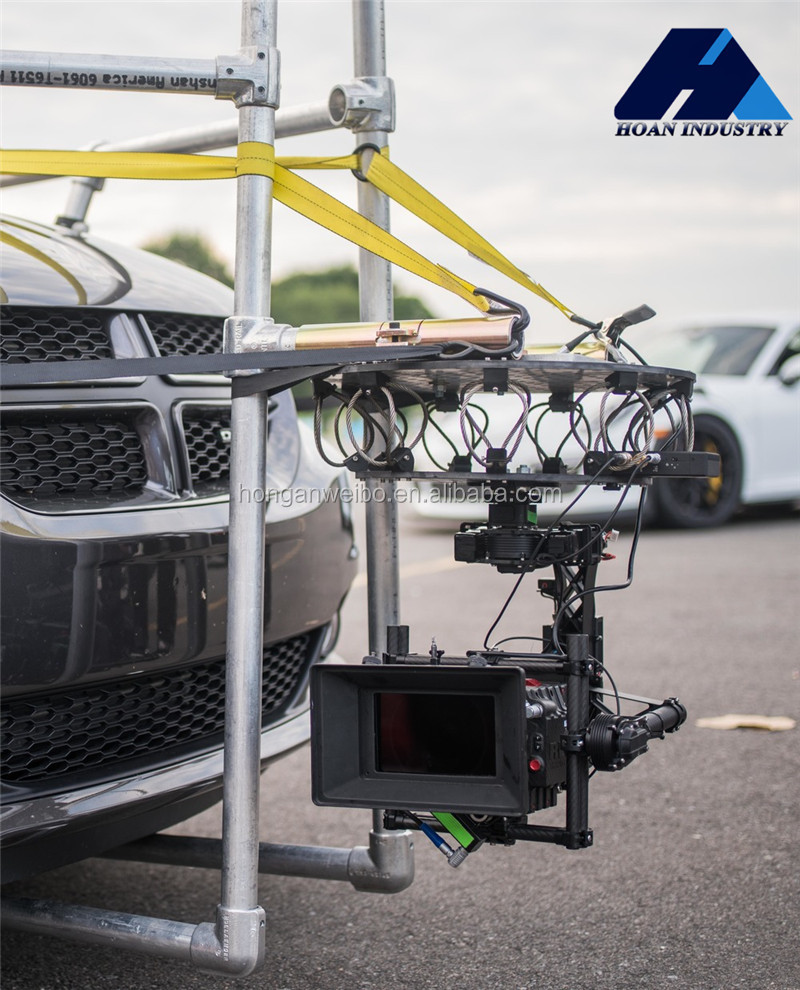

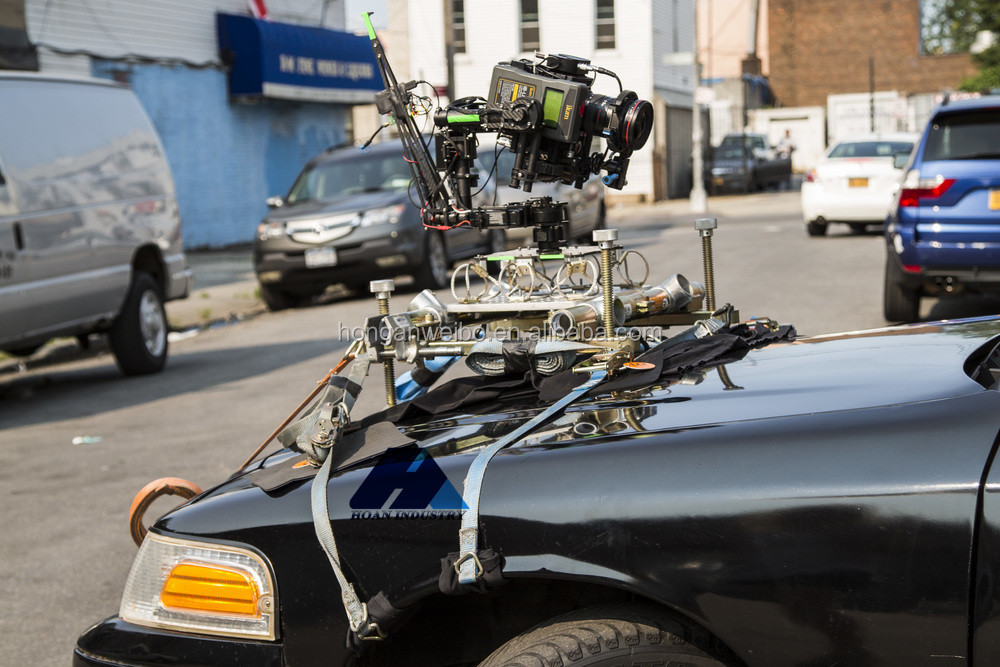

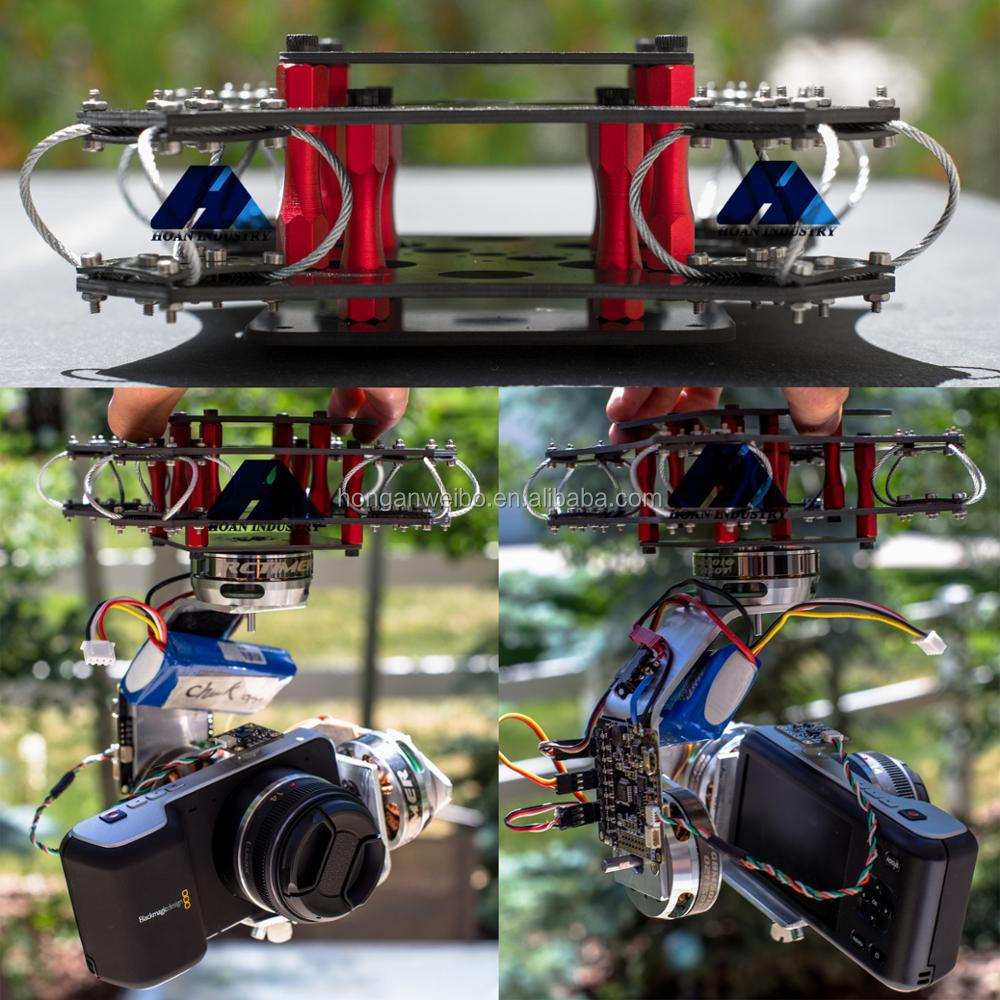

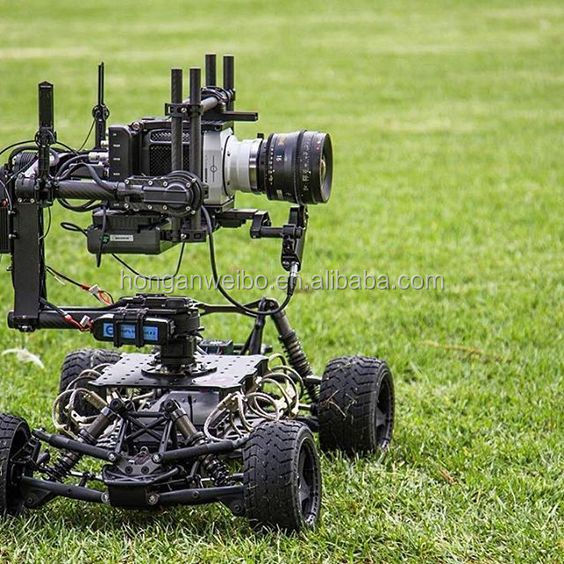

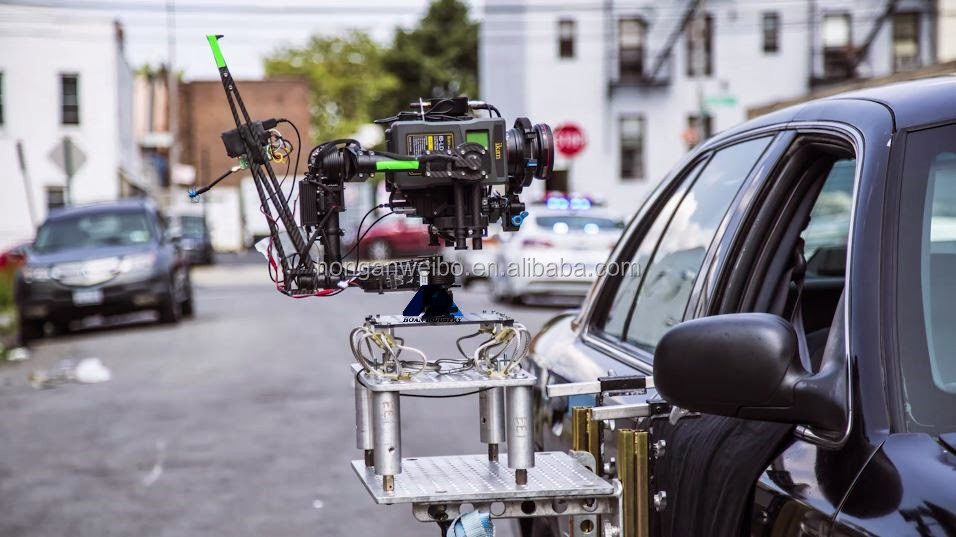

*Aerial camera gimbal application demonstration*
