The latest air filter paper for light vehicles

Product details
Material:wood pulptype:Quantitative
payment terms:L/C,T/T,Western Unionwidth:125mm
place of origin; place of origin:Shandong Chinathickness:0.35-0.5mm
brand:strongcolor:custom made
usage:air filterSupply capacity:1000 tons/month
Breathability:190±30product name:Automotive air filter paper for light vehicles
Volatile:4±2%port:Port of Qingdao, China
Packaging Details:Standard export packing or according to customer requirements.Ripple depth:0.15±0.05mm
Certificate:ISO9001:2008rigidity:4±1mn*m
Product Description

Automotive air filter paper for light vehicles

Automotive filters are divided into air filters, oil filters, and fuel filters. Generally, it is replaced every 5,000 kilometers, and the air conditioner filter is replaced every 10,000 kilometers.
The main application of the air filter is the combustion air of the engine. The filter paper is converted into a filter cartridge, which is then mounted on the holder. The construction of the cartridge primarily requires the paper to be stiff enough to be self-supporting.

Paper used for air filters needs to be very porous and weigh 100 - 200 g/m2. These properties are usually obtained using mercerized pulp of exceptionally long fibers. Paper is usually impregnated to improve moisture resistance. Some heavy-duty mass is flushed, extending filter life.

Technical data
Specification
unit
value
Gram weight
g/m2
135±5
thickness
mm
0.48±0.05
ripple depth
mm
0.23
Breathability
△p=200pa L/M2.S
350±30
Maximum aperture
microns
85±5
Average pore size
microns
80±5
burst strength
kPa
360±30
longitudinal stiffness
mN.m
5.0±0.5
Resin content
%
22±2
color
yellow
Note: Color, size and various specifications can be changed according to your requirements.

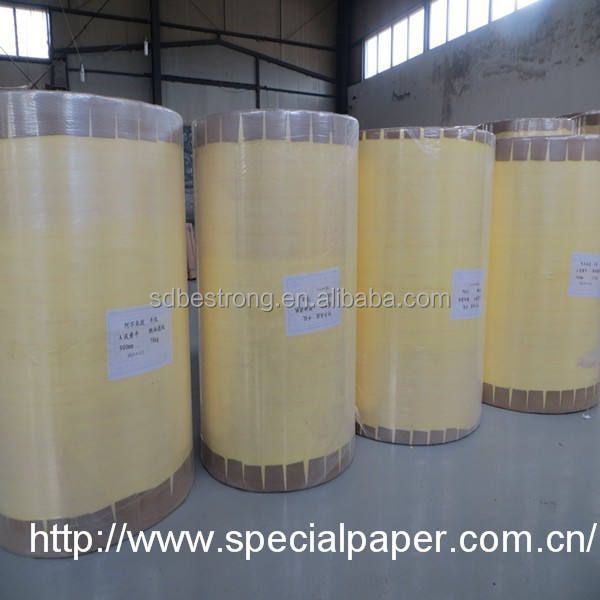

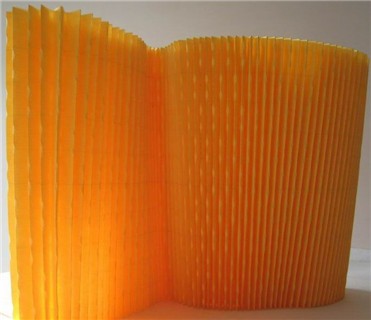

detailed image

Automotive air filter paper for light vehicles

         The role of the air filter: As a component of the internal combustion engine, it plays a very important role in the lubrication system. During the combustion process, the metal debris mixed with oil can be filtered out, and the carbon powder and oil gradually produce impurities such as colloid. These impurities will accelerate the wear of moving parts and easily lead to blockage of the lubricating oil passages.

Packaging and Delivery


Bale


First pack in plastic bag, then we will pack carton; customized.





transportation


Within 25 working days after prepayment


our company
Shandong Bichuang Group Co., Ltd.

Our company is located in Shandong Province and has been producing parchment paper since 1937. It is one of only three companies in the world (Russia, France) with parchment manufacturing technology. The company has passed ISO9000, ISO14000, OHSAS18000 certification and clean production audit, and passed the FSC forest environmental protection system certification. Our parchment has a high market share at home and abroad.
