brand: | iris peacock | Material: | wood pulp |
Origin: | Zhejiang, China | Product Keywords: | tea bag filter paper |
Video shipment inspection: | if | Bast Weight: | 16.5-22gsm |
Applicable industries: | Mechanical repair shop, farm, restaurant, home use | Warranty: | unavailable |
Package preview: | Core component warranty: | 1 year | |
Local service location: | Egypt, United Kingdom, United States, France, Philippines | Health status: | new |
Packaging Details: | carton, pallet | Core components: | gear |
Mechanical test report: | if | width: | 125mm |
After warranty service: | Video technical support, online support | usage: | Fuel Filter |
Showroom location: | Egypt, Canada, United Kingdom, United States, France, Vietnam | payment terms: | L/C, T/T |
Marketing Type: | 2019 Hot Products |
125mmx16.5gsm, 130mmx16.5gsm....
4 rolls/box
260ctn for 1x20fcl around 6200kgs
1. Product name:

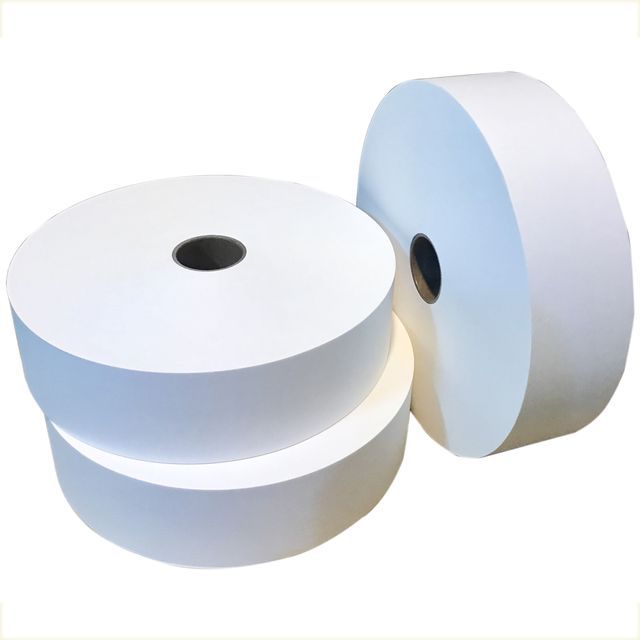

Heat Sealed Tea Bag Filter Paper
16.5gsm, 17gsm, 18gsm, 20gsm, 21gsm, 22gsm, 23gsm, 25gsm
Can be widely used in the latest packaging machines
Italy IMA (C2000,C51,CA1,CA3,CAL123)
Argentina MAIS.A (EC12, EC12/B, EC12/CY)
German tee pack CONSTANTA, etc.
Suitable for all DXD, YD teabag packaging machines in China.
two. material ingredient
1. Wood pulp
2.PP fiber
3. Product Appearance Requirements
1. The surface of the paper should be flat.
2. The color of the same batch should be consistent without obvious difference.
3. The edge of the paper roll should be flat, and the density on both sides should be the same. There should be no deformation of the paper core.
4. Size
The roll width of our products can be customized, usually 87,125,130,140,264,320,370,484,564mm
The outer diameter of the coil is 300-500mm according to customer requirements
The inner diameter of the core is 76mm.
Five, the main technical indicators:
Specifications of heat-sealed tea bag filter paper | |||||||||||
index | unit | Specification | |||||||||
Gram weight | g/m2 | 16.5±0.8 | 18±1.0 | 19g±1.0 | 20±1.2 | 21±1.2 | 23±1.5 | 24±1.5 | 25±1.5 | ||
tensile strength | Medical PhD | ≥ | kN/m | 0.75 | 0.92 | 0.93 | 1.05 | 1.15 | 1.25 | 1.31 | 1.34 |
CD | 0.18 | 0.21 | 0.22 | 0.22 | 0.22 | 0.23 | 0.28 | 0.30 | |||
Wet Tensile Strength (MD) | ≥ | kN/m | 0.20 | 0.23 | 0.23 | 0.23 | 0.25 | 0.30 | 0.33 | 0.33 | |
thickness | Micron | 54 | 58 | 60 | 63 | 65 | 67 | 71 | 72 | ||
filter time | ≤ | small | 1.30 | 1.70 | 1.80 | 1.90 | 2.00 | 2.00 | 2.50 | 3.00 | |
air permeability | ≥ | copper | 12960 | 11000 | 10050 | 9500 | 9200 | 7500 | 6500 | 5580 | |
Brightness (whiteness) | ≥ | % | 77-80 | ||||||||
heat sealability | ≥ | kN/m | 0.12-0.18 | ||||||||
delivery moisture | ≤ | % | 5-8 |
